(2017-2019) Citroën E-Méhari fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën E-Méhari 2017-2019 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen E-Mehari is the fuse F15 in the Instrument panel fuse box.
Year of production: from 2017, 2018, 2019
Fuses in the passenger compartment
Fuse box location

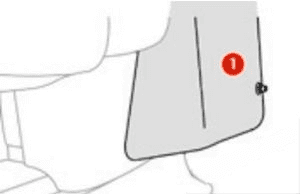

Remove the nut from the access cover 1 located below the passenger storage compartment.

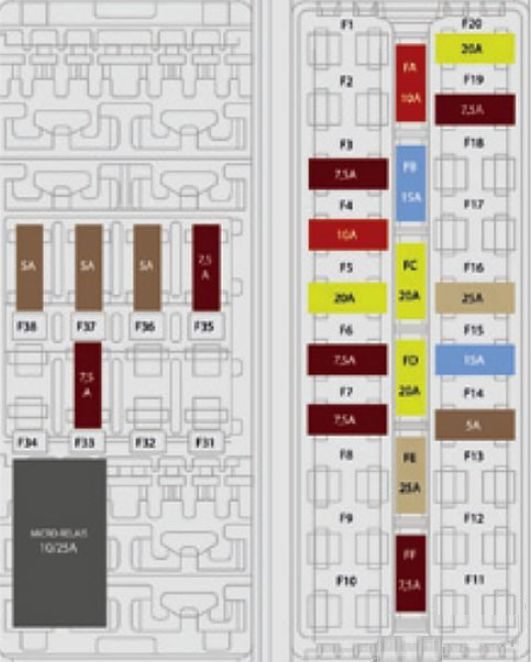

Fuse box diagram
Assignment of the fuses
| N° | Rating | Application |
|---|---|---|
| F3 | 7.5A | Rear foglamp |
| F4 | 10A | +12V switched, brake + third brake lamps |
| F5 | 20A | +12V switched, radio – navigation screen – aerial |
| F6 | 7.5A | Left-hand brake lamp (GEN1 only) |
| F7 | 7.5A | Right-hand brake lamp (GEN1 only) |
| F14 | 5A | +12V switched, front/rear defrosting-cabin fan relay |
| F15 | 15A | 12V accessory socket |
| F16 | 25A | Front wiper and screenwash (GEN1 only) |
| F19 | 7.5A | +12V BAT starting key – dashboard |
| F20 | 20A | +12V BAT radio – navigation screen – aerial |
| F35 | 7.5A | +12V switched, switch illumination – diagnostic socket |
| F36 | 5A | +12V switched, IER telemetry box |
| F37 | 5A | +12V switched, navigation screen – radio |
| F38 | 5A | +12V BAT cabin UCE (BCM) – drive selector |
| FA | 10A | Spare fuse |
| FB | 15A | Spare fuse |
| FC | 20A | Spare fuse |
| FD | 20A | Spare fuse |
| FE | 25A | Spare fuse |
| FF | 7.5A | Spare fuse |
