The Citroën C4 Picasso II (2013-2018) is a versatile MPV (multi-purpose vehicle) available in two body styles: the standard 5-seater and the larger Grand C4 Picasso 7-seater. Both models are known for their futuristic design, spacious interiors, and advanced tech features. The electrical system of the C4 Picasso is essential for powering many of its features, including the infotainment system, climate control, and driver assistance systems.
The fuse box and relay, crucial parts of the car’s electrical components, play a key role in protecting these systems from overloading and short circuits. The main fuse box is located under the dashboard, while a secondary box is situated in the engine compartment. Regular inspection of these fuses and relays is recommended to ensure that all systems, from lighting to power windows, are functioning properly. Diagrams are often included in the vehicle’s manual to assist in identifying and replacing faulty fuses or relays when necessary.
MUST READ: DYI – How to Check Car Fuses?
(2013-2018) Citroën C4 Picasso II fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C4 Picasso II 2013-2018 fuse assignment
Year of production: from 2013, 2014, 2015, 2016, 2017, 2018
Fuse box location
Configurations:

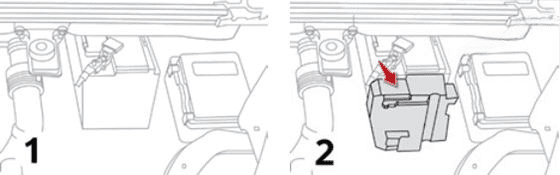

The type of electrical system of the vehicle depends on its level of equipment. To identify the type of electrical system on your vehicle, open the bonnet: the presence of an additional fusebox in front of the battery indicates that it is type 2. The type 1 electrical system does not have any fuses in front of the battery.
Dashboard fuse boxes

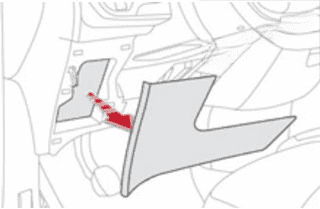

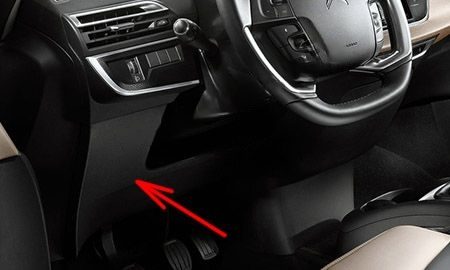

Left-hand drive vehicles: the fusebox is located in the lower dashboard (left-hand side).

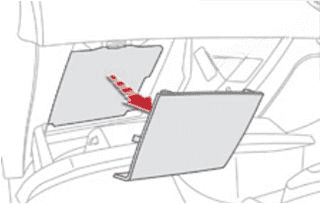

Unclip the cover by pulling at the top right, then left, disengage the cover completely, by carefully pulling in the direction indicated by the arrow.

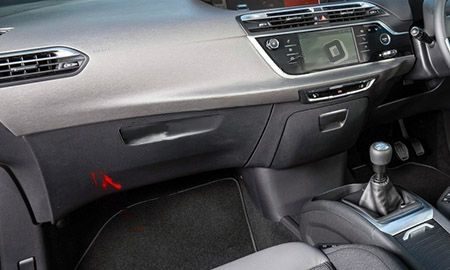

Right-hand drive vehicles:
Open the glove box, unclip the cover by pulling at the top left, then right, disengage the cover completely, by carefully pulling in the direction indicated by the arrow.

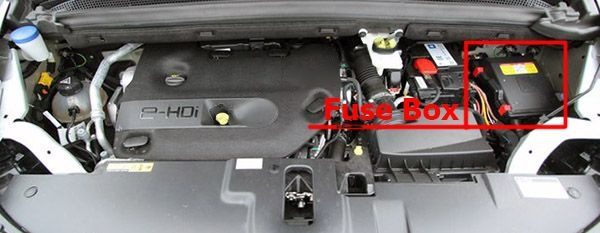

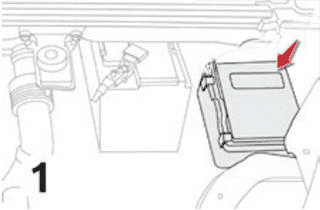

Engine compartment
It is placed in the engine compartment near the battery (left-hand side).

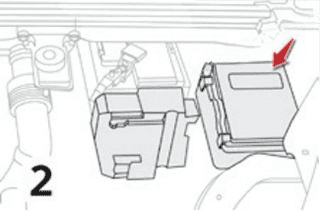

An additional fusebox is fitted in front of the battery, for type 2.
Fuse box diagrams
2013, 2014, 2015
Dashboard fuses (Type 1)

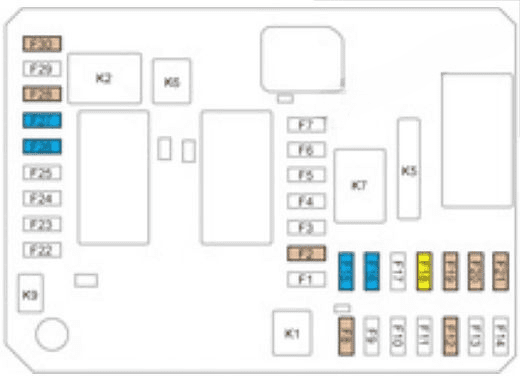

Dashboard Fuse box 1Assignment of the fuses in the Dashboard Fuse box 1 (2013, 2014, 2015)
| N° | Rating | Functions |
|---|---|---|
| F8 | 5 A | Steering mounted controls |
| F18 | 20 A | Touch screen tablet, audio and navigation system, CD player, USB ports and auxiliary sockets. |
| F16 | 15 A | Front 12V socket. |
| F15 | 15 A | Boot 12V socket. |
| F28 | 5 A | START/STOP button. |
| F30 | 15 A | Rear wiper. |
| F27 | 15 A | Front screenwash pump, rear screenwash pump. |
| F26 | 15 A | Horn. |
| F20 | 5 A | Airbags. |
| F21 | 5 A | Instrument panel. |
| F19 | 5 A | Rain and sunshine sensor. |
| F12 | 5 A | Keyless starting unit. |
| F2 | 5 A | Manual headlamp adjustment control. |

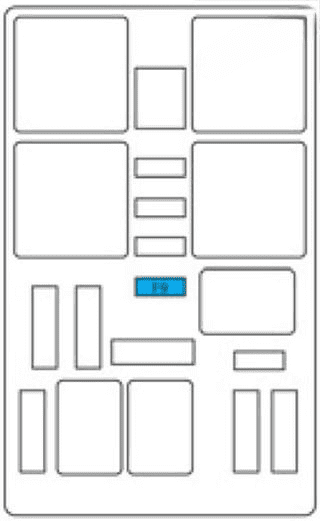

Dashboard Fuse box 2Assignment of the fuses in the Dashboard Fuse box 2 (2013, 2014, 2015)
| N° | Rating | Functions |
|---|---|---|
| F9 | 15 A | Rear 12V socket. |

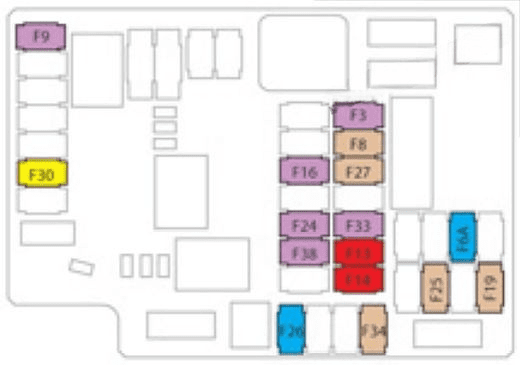

Dashboard fuses (Type 2)
Assignment of the fuses in the Dashboard Fuse box type 2 (2013, 2014, 2015)
| N° | Rating | Functions |
|---|---|---|
| F3 | 3 A | START/STOP button. |
| F6 A | 15 A | Touch screen tablet, audio and navigation system, CD player, USB ports and auxiliary sockets. |
| F8 | 5 A | Alarm. |
| F9 | 3 A | Steering mounted controls. |
| F19 | 5 A | Instrument panel. |
| F24 | 3 A | Rain and sunshine sensor. |
| F25 | 5 A | Airbags. |
| F33 | 3 A | Memorisation of driving position. |
| F34 | 5 A | Electric power steering. |
| F13 | 10 A | Front 12V socket. |
| F14 | 10 A | Boot 12V socket. |
| F16 | 3 A | Map reading lamps in row 1 courtesy lamps. |
| F27 | 5 A | Electronic gearbox gear selector. |
| F30 | 20 A | Rear wiper. |
| F38 | 3 A | Manual headlamp adjustment control. |

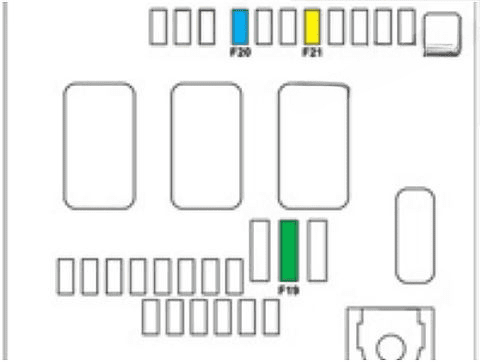

Engine compartment
Assignment of the fuses (type 1) (2013, 2014, 2015)
| N° | Rating | Functions |
|---|---|---|
| F18 | 10 A | Right hand main beam |
| F19 | 10 A | Left hand main beam. |
Assignment of the fuses (type 2) (2013, 2014, 2015)
| N° | Rating | Functions |
|---|---|---|
| Fusebox 1: | ||
| F9 | 30 A | Motorised tailgate. |
| F18 | 25 A | Hi-Fi amplifier. |
| F21 | 3 A | Hands-free starting reader unit. |
| Fusebox 2: | ||
| F19 | 30 A | Front wiper slow / fast speed. |
| F20 | 15 A | Front and rear screenwash pump. |
| F21 | 20 A | Headlamp wash pump. |
2016, 2017

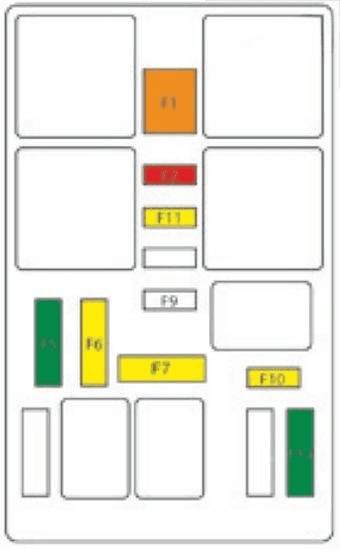

Dashboard Fuse box 1
Assignment of the fuses in the Dashboard Fuse box 1 (2016, 2017)
| N° | Rating | Functions |
|---|---|---|
| F1 | 40 A | Heated rear screen. |
| F2 | 20 A | Electric door mirrors. |
| F5 | 30 A | Panoramic sunroof blind |
| F6 | 20 A | 12 V socket, rear multimedia. |
| F7 | 20 A | 230 V socket. |
| F9 | 25 A | Heated seats. |
| F10 | 20 A | Trailer interface unit. |
| F11 | 20 A | Air conditioning fan. |
| F12 | 30 A | Electric window motors. |

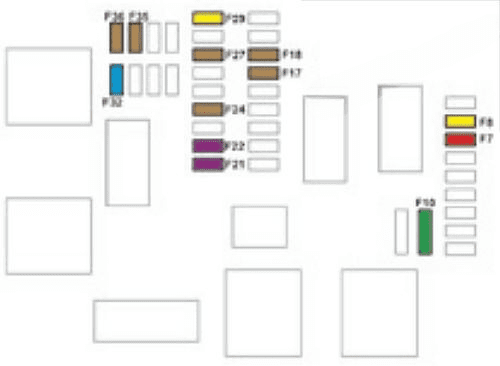

Dashboard Fuse box 2
Assignment of the fuses in the Dashboard Fuse box 2 (2016, 2017)
| N° | Rating | Functions |
|---|---|---|
| F7 | 10 A | Boot 12 V socket, rear multimedia. |
| F8 | 20 A | Rear wiper. |
| F10 | 30 A | Locks. |
| F17 | 5 A | Instrument panel. |
| F18 | 5 A | Automatic gearbox gear selector. |
| F21 | 3 A | START/STOP button. |
| F22 | 3 A | Rain and sunshine sensor, windscreen camera. |
| F24 | 5 A | Parking sensors, panoramic visual aid. |
| F27 | 5 A | Automatic gearbox. |
| F29 | 20 A | Audio and telematic systems. |
| F32 | 15 A | 12 V sockets. |
| F35 | 5 A | Headlamp beam height adjustment, heated rear screen, radar. |
| F36 | 5 A | Interior lighting: glove box, central storage, reading lamps, courtesy lamps. |

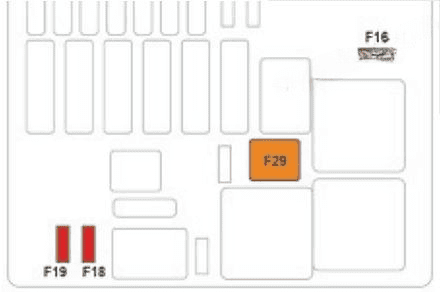

Engine compartment
Assignment of the fuses in the Engine compartment (2016, 2017)
| N° | Rating | Functions |
|---|---|---|
| F16 | 20 A | Headlamp wash. |
| F18 | 10 A | Right hand main beam. |
| F19 | 10 A | Left hand main beam. |
| F29 | 40 A | Wipers. |
Conclusion
For owners and enthusiasts of classic Citroën C4 Picasso II 2013-2018, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
