Learn about Citroën C4 Picasso I 2006-2012 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Citroën C4 Picasso I (2006-2012) comes in two major body styles: the standard 5-seater and the longer 7-seater version called the Grand Picasso. Known for its spacious interior and innovative design, both models prioritize comfort and functionality. The 5-seater is slightly more compact, while the Grand Picasso adds extra seating capacity and space, making it ideal for families.
Regarding electrical components, the fuse box and relays are crucial to maintaining the vehicle’s electrical systems, including the lights, air conditioning, and infotainment. The main fuse box is typically located in the dashboard, while additional relays may be found in the engine compartment. Keeping these components in check ensures smooth operation of the car’s many features. Regular inspection of the fuse box and relays helps prevent electrical malfunctions.
MUST READ: DYI – How to Check Car Fuses?
(2006-2012) Citroën C4 Picasso I fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C4 Picasso I 2006-2012 fuse assignment
- Cigar lighter (power outlet) fuses in the Citroen C4 Picasso I are the fuse F9 (Cigar lighter, front 12V socket) in the Instrument panel fuse box, and fuse F8 (Rear 12V socket) on the battery (2006-2007) or F32 (Rear 12 V socket) in the second instrument panel fuse box (since 2008).
Year of production: from 2006, 2007, 2008, 2009, 2010, 2011, 2012
Fuse box location
There are two fuseboxes in the glovebox, one fusebox in the engine compartment and another fusebox on the battery.

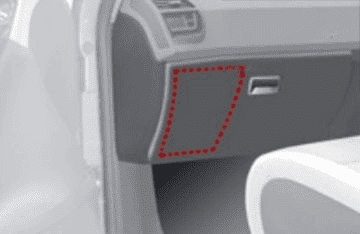

Dashboard fuse boxes
Left-hand drive vehicles:

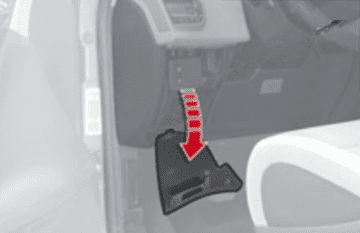

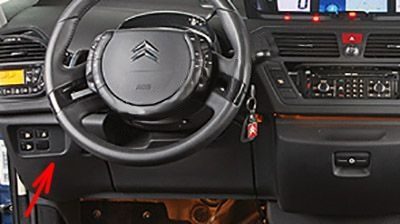

Unclip the cover by pulling at the top right, then left; pull the cover down.

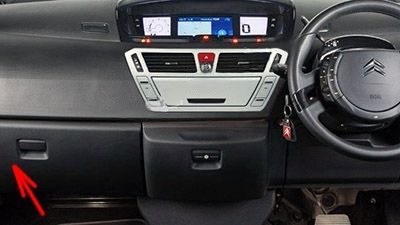

Right-hand drive vehicles:
Open the lower glovebox, undo the screw by a quarter turn and pivot the housing.

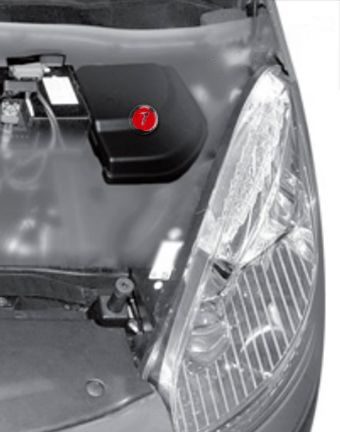

Engine compartment

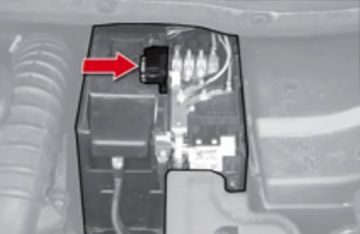

Fuses on the battery
Detach and remove the cover.
Fuse box diagrams
2007
Dashboard Fuse box 1

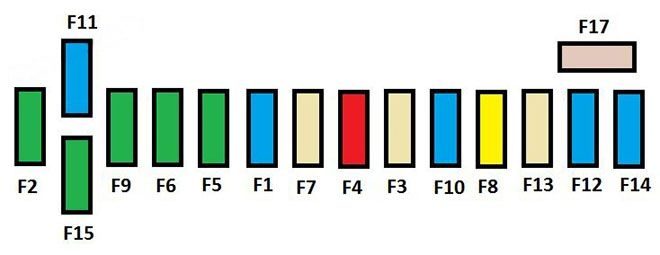

Assignment of the fuses in the Dashboard Fuse box 1 (2007)
| Reference | Rating | Functions |
|---|---|---|
| F1 | 15A | Rear screen wipe |
| F2 | 30A | Locking and unlocking earth |
| F3 | 5A | Airbag |
| F4 | 10A | Multimedia, photochromic rear view mirror, particle flter, diagnostic socket, air conditioning, headlamp height correction control |
| F5 | 30A | Front windows, front door electronics, panoramic glass roof |
| F6 | 30A | Rear windows |
| F7 | 5A | Interior lamps, refrigerated glovebox, radio |
| F8 | 20A | Multifunction display, radio, CD changer, steering wheel controls, multimedia, deflation detection, alarm, trailer |
| F9 | 30A | Cigar lighter, multimedia, front 12V socket, torch, radio |
| F10 | 15A | Height corrector (suspension) |
| F11 | 15A | Brake switch, ignition switch |
| F12 | 15A | Parking assistance, automatic screen wipe and lighting, passenger’s electric seat, AFIL, Hi-Fi amplifier, trailer |
| F13 | 5A | Engine relay unit, driver’s electric seat |
| F14 | 15A | Air conditioning, Bluetooth® hands-free kit, automatic gearbox selector, airbag, instrument panel |
| F15 | 30A | Locking and unlocking |
| F16 | SHUNT | |
| F17 | 40A | Heated rear screen |
Dashboard Fuse box 2

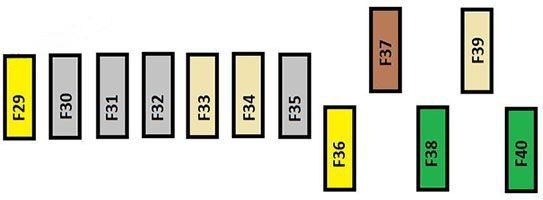

Assignment of the fuses in the Dashboard Fuse box 2 (2007)
| Reference | Rating | Functions |
|---|---|---|
| F29 | 20A | Heated seats |
| F30 | Free | |
| F31 | Free | |
| F32 | Free | |
| F33 | 5A | Parking assistance, automatic screen wipe and lighting, passenger’s electric seat, AFIL, Hi-Fi amplifier |
| F34 | 5A | Trailer |
| F35 | Free | |
| F36 | 20A | Hi-Fi amplifier |
| F37 | 10A | Air conditioning, light pack |
| F38 | 30A | Driver’s electric seat |
| F39 | 5A | Fuel flap |
| F40 | 30A | Passenger’s electric seat, panoramic roof |

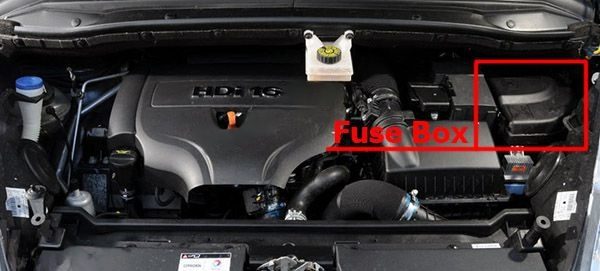

Engine compartment

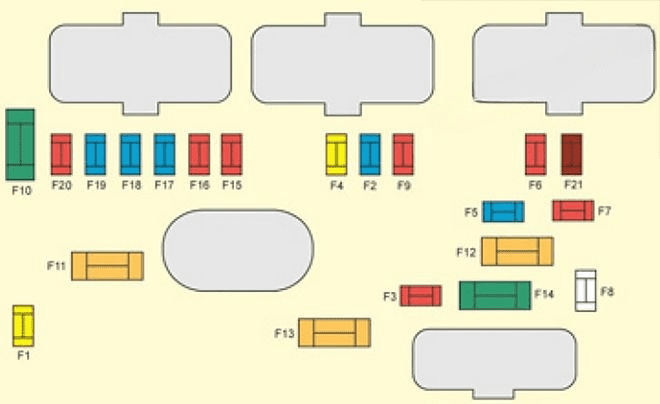

Assignment of the fuses in the Engine compartment (2007)
| Reference | Rating | Functions |
|---|---|---|
| F1 | 20A | Engine management |
| F2 | 15A | Horn |
| F3 | 10A | Screen wash pump |
| F4 | 20A | Headlamp wash pump |
| F5 | 15A | Engine components |
| F6 | 10A | Xenon dual-function directional headlamps, headlamp height correction motor, clutch switch, BCP (protection switch box) |
| F7 | 10A | Automatic gearbox, engine coolant level switch, power steering |
| F8 | 25A | Starter motor |
| F9 | 10A | Stoplamp switch |
| F10 | 30A | Engine components |
| F11 | 40A | Rear blower |
| F12 | 30A | Screen wipe |
| F13 | 40A | BSI (Built-in Systems Interface) |
| F14 | 30A | Air pump, heat exchange saver |
| F15 | 10A | Right-hand main beam |
| F16 | 10A | Left-hand main beam |
| F17 | 15A | Left-hand dipped beam |
| F18 | 15A | Right-hand dipped beam |

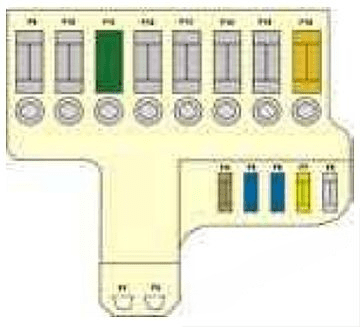

Fuses on the battery
| Reference | Rating | Functions |
|---|---|---|
| F1 | Battery Plus connection studs | |
| F2 | Supply connection studs, BSM (engine relay unit) | |
| F3 | ||
| F4 | 5A | Automatic gearbox actuator and ECU |
| F5 | 15A | Diagnostic socket |
| F6 | 15A | ECU for 6-speed electronic gearbox / automatic gearbox |
| F7 | 5A | ESP ECU |
| F8 | 20A | Rear 12V socket |
2008, 2009, 2010, 2011, 2012
Dashboard Fuse box 1
Assignment of the fuses in the Dashboard Fuse box 1 (2008-2012)
| N° | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear screen wipe |
| F2 | 30 A | Locking and unlocking earth |
| F3 | 5 A | Airbags and pretensioners |
| F4 | 10 A | Multimedia, photochromatic rear view mirror, particle filter, diagnostic socket, air conditioning, manual headlamp height adjustment |
| F5 | 30 A | Front windows, front door electronic control panel, panoramic sunroof |
| F6 | 30 A | Rear windows |
| F7 | 5 A | Interior lamps, cooled glove box, radio |
| F8 | 20 A | Multifunction screen, radio, steering mounted controls, multimedia, deflation detection, alarm, trailer |
| F9 | 30 A | Multimedia, front 12 V sockets, torch, radio |
| F10 | 15 A | Height corrector (suspension) |
| F11 | 15 A | Brake switch, ignition switch |
| F12 | 15 A | Parking sensors, automatic screen wipe and lighting, passenger’s electric seat, lane departure warning system, Hi-Fi amplifier, trailer |
| F13 | 5 A | Engine relay unit (BSM), driver’s electric seat |
| F14 | 15 A | Air conditioning, Bluetooth® hands-free kit, automatic gearbox lever, airbags, instrument panel |
| F15 | 30 A | Locking and unlocking |
| F16 | – | SHUNT |
| F17 | 40 A | Heated rear screen |
Dashboard Fuse box 2
Assignment of the fuses in the Dashboard Fuse box 2 (2008-2012)
| N° | Rating | Functions |
|---|---|---|
| F29 | 20 A | Heated seats |
| F30 | – | Not used |
| F31 | 40 A | Trailer relay unit |
| F32 | 15 A | Rear 12 V socket |
| F33 | 5 A | Parking sensors, automatic rain sensitive wipers and automatic illumination of headlamps, passenger’s electric seat, lane departure warning system, Hi-Fi amplifier |
| F34 | 5 A | Trailer |
| F35 | – | Not used |
| F36 | 20 A | Hi-Fi amplifier |
| F37 | 10 A | Air conditioning, lighting pack |
| F38 | 30 A | Driver’s electric seat |
| F39 | 5 A | Fuel filler flap |
| F40 | 30 A | Passenger’s electric seat, panoramic sunroof |
Engine compartment
Assignment of the fuses in the Engine compartment (2008-2012)
| N° | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine management |
| F2 | 15 A | Horn |
| F3 | 10 A | Screenwash pump |
| F4 | 20 A | Headlamp wash pump |
| F5 | 15 A | Engine components |
| F6 | 10 A | Xenon dual-function directional headlamps, automatic headlamp height adjustment, clutch switch, protection switch box (BCP) |
| F7 | 10 A | Automatic gearbox, engine coolant level switch, power steering |
| F8 | 25 A | Starter motor |
| F9 | 10 A | Stoplamp switch |
| F10 | 30 A | Engine components |
| F11 | 40 A | Rear blower |
| F12 | 30 A | Wipers |
| F13 | 40 A | Built-in Systems Interface (BSI) |
| F14 | 30 A | Air pump, heat recovery and exchange |
| F15 | 10 A | Right-hand main beam |
| F16 | 10 A | Left-hand main beam |
| F17 | 15 A | Left-hand dipped beam |
| F18 | 15 A | Right-hand dipped beam |
| F19 | 15 A | Engine components |
| F20 | 10 A | Engine components |
| F21 | 5 A | Cooling fan relay |

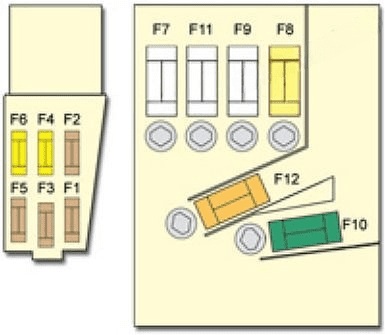

Fuses on the battery
Fuses F1 to F6 are located on the small board, clipped vertically on the battery fusebox.Assignment of the fuses on the battery (2008-2012)
| N° | Rating | Functions |
|---|---|---|
| F1 | 5 A | Automatic gearbox actuator |
| F2 | 5 A | Stop switch |
| F3 | 5 A | Battery charge estimation ECU |
| F4 | 20 A | ESP supply |
| F5 | 5 A | ESP supply |
| F6 | 20 A | ECU for 6-speed electronic gearbox/automatic gearbox |
Conclusion
For owners and enthusiasts of classic Citroën C4 Picasso I 2006-2012, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
