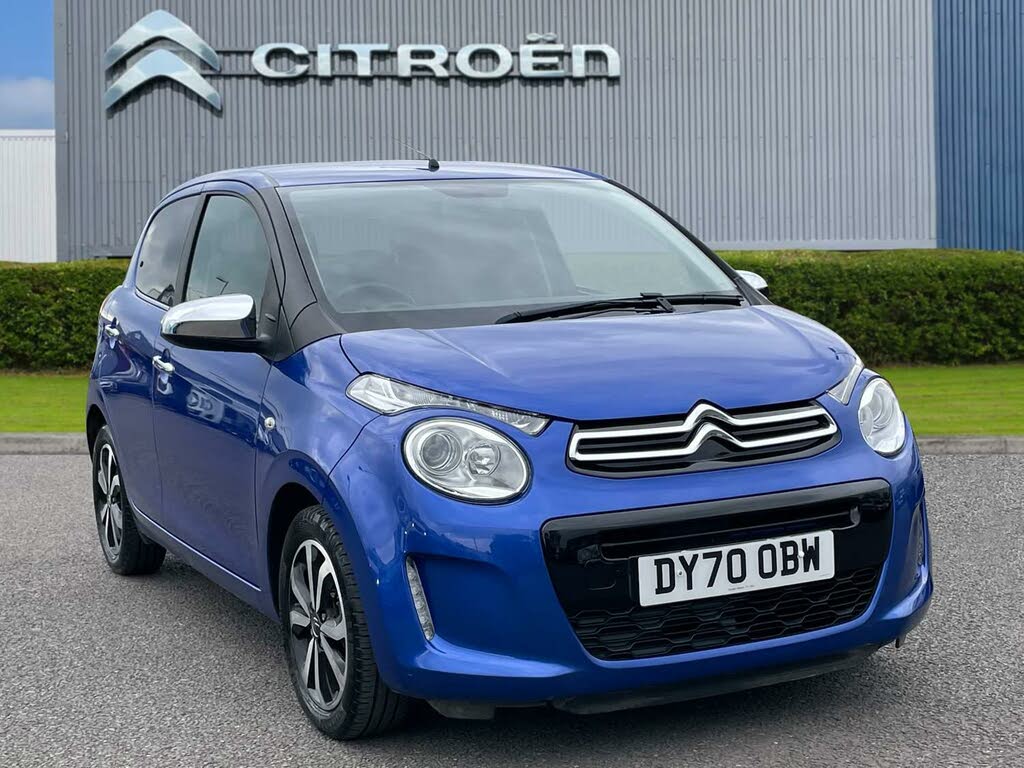

The Citroën C1 (2014-2019) is a stylish and compact city car that comes in two main body styles: a three-door and a five-door hatchback. It is known for its modern design, with bold front headlights, a compact profile, and a choice of bright color options, making it perfect for urban driving. The C1 also offers an “Airscape” version, which features a retractable fabric roof for an open-air driving experience.
Inside, the C1 is equipped with features like a touchscreen infotainment system, smartphone connectivity, and a range of safety technologies, such as hill start assist and lane departure warning.
When it comes to electrical components, the fuse box and relays in the C1 are crucial for managing its electrical functions, including the lights, wipers, and air conditioning system. The fuse box is typically located in the engine bay or behind the dashboard, providing easy access for maintenance. Relays, often found near the fuse box, regulate electrical currents for larger components like the starter motor and fuel pump. Proper care and inspection of these elements help maintain the car’s reliable performance and prevent electrical issues.
MUST READ: DYI – How to Check Car Fuses?
(2014-2019) Citroën C1 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C1 2014-2019 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C1 is the fuse №9 in the Instrument panel fuse box.
Year of production: from 2014, 2015, 2016, 2017, 2018, 2019

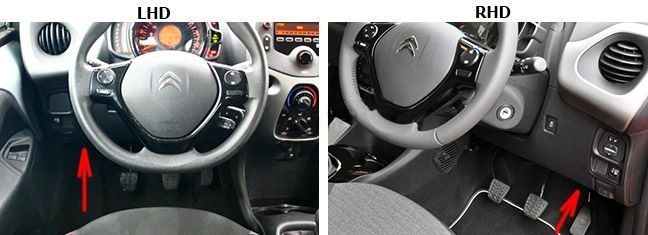

Fuse box location
Dashboard fuse box
It is located below the dashboard (driver’s side).
Unclip the plastic cover under the dashboard for access to the fuses.

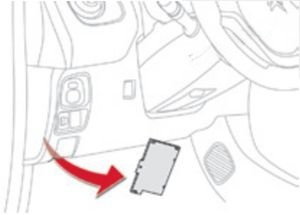

Left-hand drive vehicles

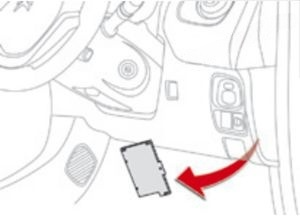

Right-hand drive vehicles

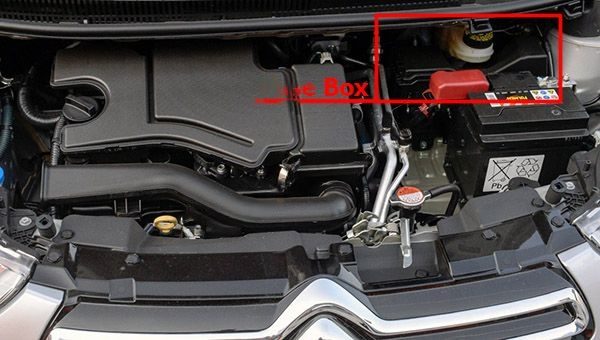

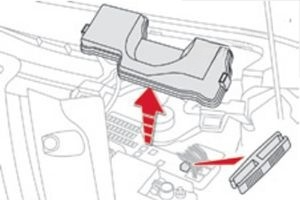

Engine compartment

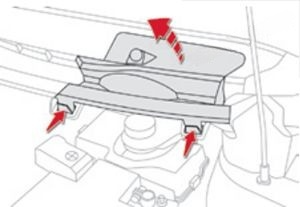

Unclip the plastic cover, located below the windscreen, by pressing on the two catches.
Unclip the fusebox cover by pressing on the lug on the right, for access to the fuses.
Fuse box diagrams
2014, 2015

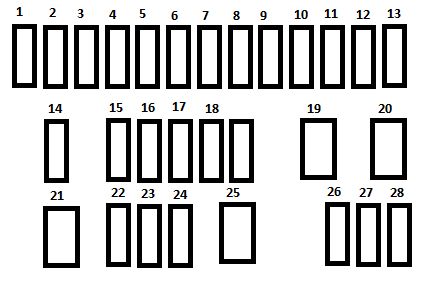

Dashboard
Assignment of the fuses in the Dashboard Fuse box (2014, 2015)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 5 | Fuel injection system – Audio system – VSC system |
| 2 | 15 | Front and rear screenwash |
| 3 | 5 | Main distribution unit – Instrument panel – Display screen – Air conditioning – Heated rear screen and door mirror heating -Heated seats – Electric fabric roof – Audio system |
| 4 | 5 | Electric power steering – Stop & Start |
| 5 | 15 | Rear wiper |
| 6 | 5 | Cooling fan – ABS system ESP – VSC system |
| 7 | 25 | Front wiper |
| 8 | 10 | Heated door mirrors |
| 9 | 15 | 12 V socket (120 W max) |
| 10 | 7.5 | Door mirrors – Audio system – Stop & Start – Instrument panel -Display screen |
| 11 | 5 | Steering lock – Fuel injection system – Electronic gearbox |
| 12 | 7.5 | Airbags |
| 13 | 5 | Instrument panel – Display Screen – Stop & Start |
| 14 | 15 (VTi 68 engine) | Steering – Fuel injection system – Brake lamps |
| 14 | 7.5 (VTi 82 engine) | Steering – Fuel injection system – Brake lamps |
| 15 | 7.5 (VTi 68 engine) | Fuel injection system – Stop & Start |
| 15 | 10 (VTi 82 engine) | Fuel injection system – Stop & Start |
| 16 | 7.5 | Engine diagnosis |
| 17 | 10 | Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system |
| 18 | 10 | Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer |
| 19 | 40 | Air conditioning |
| 20 | 40 | Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps -Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – “Keyless Entry and Starting’ system – Electric windows |
| 21 | 30 | Fuel injection system – Stop & Start – Main distribution unit |
| 22 (VTi 68 engine) | 7,5 | Fuel injection system |
| 23 (VTi 68 engine) | 20 | Fuel injection system – Stop & Start |
| 24 | 25 | Main distribution unit |
| 25 | 30 | Electric windows |
| 26 | 25 | Electric windows |
| 27 | 10 | Air conditioning |
| 28 | 5 | Rear foglamp |

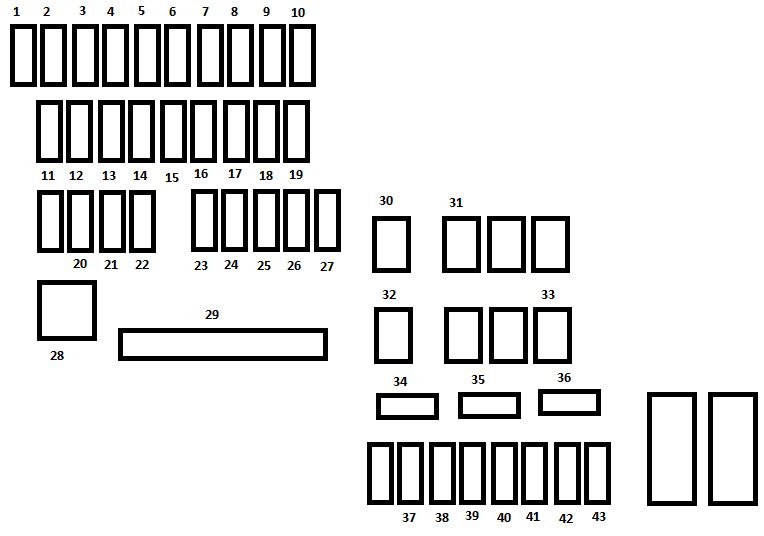

Engine compartment
Assignment of the fuses in the Engine compartment (2014, 2015)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 10 | Right hand dipped beam |
| 2 | 10 | Left hand dipped beam – Headlamp adjustment |
| 3 | 7.5 | Right hand main beam |
| 4 | 7.5 | Left hand main beam |
| 5 (VTi 82 engine) | 15 | Fuel injection system |
| 6 (VTi 82 engine) | 7.5 | Fuel injection system |
| 7 (VTi 82 engine) | 15 | Fuel injection system |
| 8 (VTi 82 engine) | 7.5 | Cooling fan |
| 9 | 7.5 | Air conditioning |
| 10 (VTi 68 engine) | 7.5 | Fuel injection system – Brake lamps – Third brake lamp |
| 11 | 5 | Courtesy lamp – Boot lamp |
| 12 | 10 | Direction indicators – Hazard warning lamps – Instrument panel – Display screen |
| 13 | 10 | Horn |
| 14 | 30 | Distribution units |
| 15 (VTi 68 engine) | 7.5 | Electronic gearbox |
| 16 | 7.5 | Fuel injection system |
| 17 | 7.0 | Keyless Entry and Starting system |
| 18 (VTi 68 engine) | 7.5 | Battery |
| 19 | 25 | Fuel injection system – Cooling fan |
| 20 | 30 | Starter motor |
| 21 | 7.5 | Steering lock |
| 22 | 25 | Front lamps |
| 23 | 7.5 | Fuel injection system |
| 24 | 7.5 | Fuel injection system – Starter motor – Electronic gearbox – Stop & Start |
| 25 | 15 | Audio system – “Keyless Entry and Starting’ system |
| 26 | 7.5 | Instrument panel – Display screen |
| 27 | 7.5 | VSC system |
| 28 | 60 | Passenger compartment fusebox |
| 29 (VTi 68 engine) | 125 | Heated rear screen and door mirror heating -Heated seats (except UK version) – Electric fabric roof – ABS system -VSC system – Cooling fan – Front foglamps – LED daytime running lamps (This fuse must be replaced only by a CITROËN dealer or a qualified workshop) |
| 30 | 50 | Electronic gearbox |
| 30 | 40 | Stop & Start |
| 31 | 50 | Power steering |
| 32 | 50 (VTi 82 engine) | Cooling fan |
| 32 | 30 | Cooling fan |
| 32 | 40 | Cooling fan |
| 33 | 50 | ABS system – VSC system |
| 34 | 10 | Spare fuse |
| 35 | 20 | Spare fuse |
| 36 | 30 | Spare fuse |
| 37 | 20 | Heated rear screen and door mirror heating |
| 38 | 30 | ABS system – VSC system |
| 39 | 7.5 | Front foglamps – Instrument panel – Display screen |
| 40 | 7.5 | LED daytime running lamps |
| 41 | 15 | Right hand heated seat (except UK version) |
| 42 | 20 | Electric fabric roof |
| 43 | 15 | Left hand heated seat (except UK version) |
2016, 2017, 2018, 2019
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2016, 2017, 2018, 2019)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 5 | Reversing lamp – Fuel injection system – Audio system -VSC system |
| 2 | 15 | Front and rear screenwash |
| 3 | 5 | Main distribution unit – Instrument panel – Display screen – Air conditioning – Heated rear screen and door mirror heating -Heated seats – Electric fabric roof – Audio system |
| 4 | 5 | Electric power steering – Stop & Start |
| 5 | 15 | Rear wiper |
| 6 | 5 | Cooling fan – ABS system – VSC system |
| 7 | 25 | Front wiper |
| 8 | 10 | Heated door mirrors |
| 9 | 15 | 12 V socket (120 W max) |
| 10 | 7.5 | Door mirrors – Audio system – Stop & Start – Instrument panel -Display screen |
| 11 | 5 | Steering lock – Fuel injection system – Electronic gearbox |
| 12 | 7.5 | Airbags |
| 13 | 5 | Instrument panel – Display Screen – Stop & Start |
| 14 | 15 (VTi 68 engine) | Steering – Fuel injection system – Brake lamps |
| 14 | 7.5 (PureTech 82 engine) | Steering – Fuel injection system – Brake lamps |
| 15 | 7.5 (VTi 68 engine) | Fuel injection system – Stop & Start |
| 15 | 10 (PureTech 82 engine) | Fuel injection system – Stop & Start |
| 16 | 7.5 | Engine diagnosis |
| 17 | 10 | Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system |
| 18 | 10 | Sidelamps – Number plate lamps – Rear foglamp – Rear lamps -Lighting dimmer |
| 19 | 40 | Air conditioning |
| 20 | 40 | Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Rear lamps – Lighting dimmer -Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system – Electric windows |
| 21 | 30 | Fuel injection system – Stop & Start – Main distribution unit |
| 22 (VTi 68 engine) | 7,5 | Fuel injection system |
| 23 (VTi 68 engine) | 20 | Fuel injection system – Stop & Start |
| 24 | 25 | Main distribution unit |
| 25 | 30 | Electric windows |
| 26 | 25 | Electric windows |
| 27 | 10 | Air conditioning |
| 28 | 5 | Rear foglamp |
Engine compartment
Assignment of the fuses in the Engine compartment (2016, 2017, 2018, 2019)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 10 | Right hand dipped beam |
| 2 | 10 | Left hand dipped beam – Headlamp adjustment |
| 3 | 7.5 | Right hand main beam |
| 4 | 7.5 | Left hand main beam |
| 5 (VTi 82 engine) | 15 | Fuel injection system |
| 6 (VTi 82 engine) | 7.5 | Fuel injection system |
| 7 (VTi 82 engine) | 15 | Fuel injection system |
| 8 (VTi 82 engine) | 7.5 | Cooling fan |
| 9 | 7.5 | Air conditioning |
| 10 (VTi 68 engine) | 7.5 | Fuel injection system – Brake lamps – Third brake lamp |
| 11 | 5 | Courtesy lamp – Boot lamp |
| 12 | 10 | Direction indicators – Hazard warning lamps – Instrument panel – Display screen |
| 13 | 10 | Horn |
| 14 | 30 | Distribution units |
| 15 (VTi 68 engine) | 7.5 | Electronic gearbox |
| 16 | 7.5 | Fuel injection system |
| 17 | 7.0 | Keyless Entry and Starting system |
| 18 (VTi 68 engine) | 7.5 | Battery |
| 19 | 25 | Fuel injection system – Cooling fan |
| 20 | 30 | Starter motor |
| 21 | 7.5 | Steering lock |
| 22 | 25 | Front lamps |
| 23 | 7.5 | Fuel injection system |
| 24 | 7.5 | Fuel injection system – Starter motor – Electronic gearbox – Stop & Start |
| 25 | 15 | Audio system – “Keyless Entry and Starting’ system |
| 26 | 7.5 | Instrument panel – Display screen |
| 27 | 7.5 | VSC system |
| 28 | 60 | Passenger compartment fusebox |
| 29 (VTi 68 engine) | 125 | Heated rear screen and door mirror heating – Heated seats (Except UK version) -Electric fabric roof – ABS system – VSC system – Cooling fan -LED daytime running lamps (This fuse must be replaced only by a CITROËN dealer or a qualified workshop) |
| 30 | 50 | Electronic gearbox |
| 30 | 40 | Stop & Start |
| 31 | 50 | Power steering |
| 32 | 50 (VTi 82 engine) | Cooling fan |
| 32 | 30 | Cooling fan |
| 32 | 40 | Cooling fan |
| 33 | 50 | ABS system – VSC system |
| 34 | 10 | Spare fuse |
| 35 | 20 | Spare fuse |
| 36 | 30 | Spare fuse |
| 37 | 20 | Heated rear screen and door mirror heating |
| 38 | 30 | ABS system – VSC system |
| 39 | 7.5 | Instrument panel – Display screen |
| 40 | 7.5 | LED daytime running lamps |
| 41 | 15 | Right hand heated seat (Except UK version) |
| 42 | 20 | Electric fabric roof |
| 43 | 15 | Left hand heated seat (Except UK version) |
Conclusion
For owners and enthusiasts of classic Citroën C1 2014-2019, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
