The Citroën Berlingo II (2008-2018) is a versatile multi-purpose vehicle (MPV) and light commercial van. It is available in two main body styles: a panel van for commercial use and a passenger van version, commonly known as the Berlingo Multispace. The passenger version seats up to seven, making it ideal for families, while the van version is prized for its large cargo space and practicality.
In terms of electrical features, the Berlingo II includes a range of modern conveniences such as power windows, climate control, and advanced infotainment systems. The electrical system, including the fuse box and relays, plays a crucial role in ensuring these features work properly. The fuse box, located in the engine compartment and under the dashboard, houses fuses responsible for various electrical components like lights, wipers, and power outlets. The relays, typically situated near the fuse box, manage high-power circuits such as the starter motor and the fuel pump. Regular inspection and maintenance of the fuse box and relays are essential for preventing electrical issues and keeping the vehicle’s systems running smoothly.
MUST READ: DYI – How to Check Car Fuses?
(2008-2018) Citroën Berlingo II fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën Berlingo II 2008-2018 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen Berlingo II is the fuse №9 in the Instrument panel fuse box.
Year of production: from 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Fuse box location
The fuse boxes are placed:

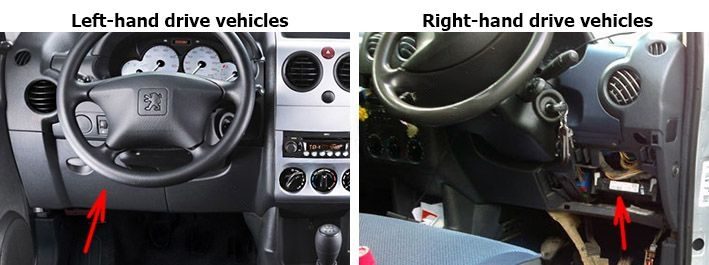

– in the lower part of the fascia on the left-hand side, behind the cover (on the right-hand side in the RHD)

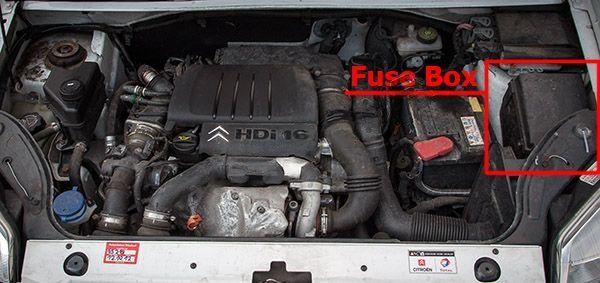

– under the bonnet (near the battery)
Instrument Panel
Engine Compartment
If fitted on your vehicle, an additional fusebox is used for towing, the towbar and the connections for the coachbuilder and platform cab modifications. It is located on the right behind the load retaining partition.
Fuse box diagrams

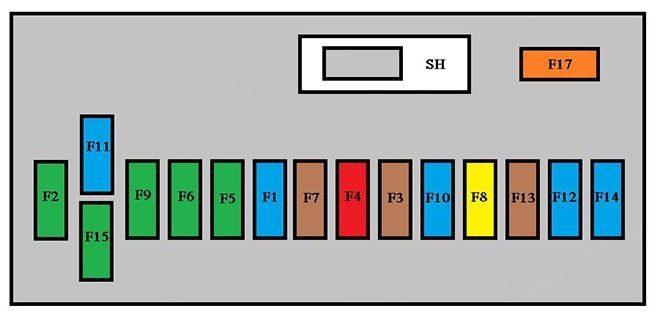

Dashboard Fuse Box
Assignment of the fuses in the Dashboard Fuse box
| Fuses | Amperes | Allocation |
|---|---|---|
| 1 | 15 | Rear wiper |
| 2 | 30 | Central locking |
| 3 | 5 | Airbags |
| 4 | 10 | Air conditioning, diagnostic socket, mirror control, headlamp beam |
| 5 | 30 | Electric windows |
| 6 | 30 | Locks |
| 7 | 5 | Rear courtesy lamp, front map reading lamp, roof console |
| 8 | 20 | Audio equipment, screen, tyre under-inflation detection, alarm and siren |
| 9 | 30 | Front and rear 12V socket |
| 10 | 15 | Central column |
| 11 | 15 | Low current ignition switch |
| 12 | 15 | Rain and sunshine sensor, airbag |
| 13 | 5 | Instrument panel |
| 14 | 15 | Parking sensors, digital air conditioning controls, hands-free kit |
| 15 | 30 | Locks |
| 16 | – | Not used |
| 17 | 40 | Heated rear screen/mirrors |

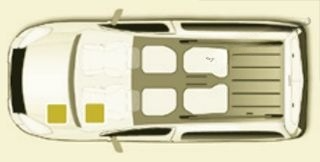

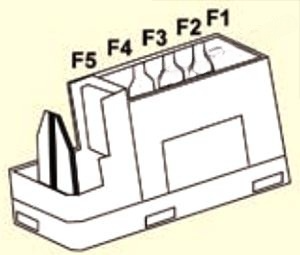

Passenger compartment fuses
Assignment of the fuses in the Passenger compartment
| Fuses | Amperes | Allocation |
|---|---|---|
| 1 | – | Not used |
| 2 | 20 | Heated seats |
| 3 | – | Not used |
| 4 | 15 | Folding mirrors relay |
| 5 | 15 | Refrigeration equipment socket relay |

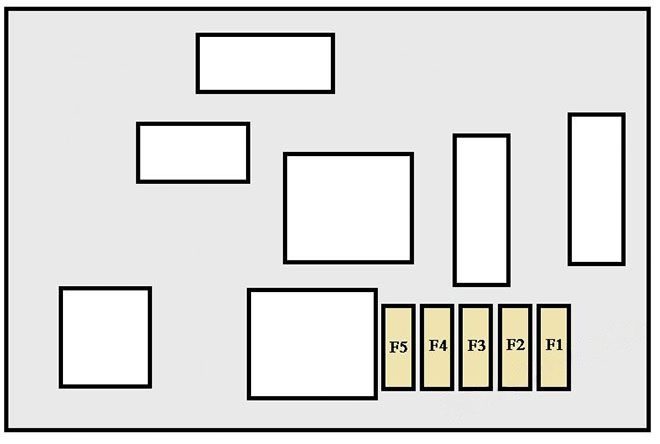

Towing/towbar/coachbuilders/platform CAB fuses
Assignment of the CAB fuses
| Fuses | Amperes | Allocation |
|---|---|---|
| 1 | 15 | Not used |
| 2 | 15 | Ignition, generator operating relay |
| 3 | 15 | Trailer 12V supply |
| 4 | 15 | Permanent supply for the modifiers |
| 5 | 40 | Hazard warning lamps |

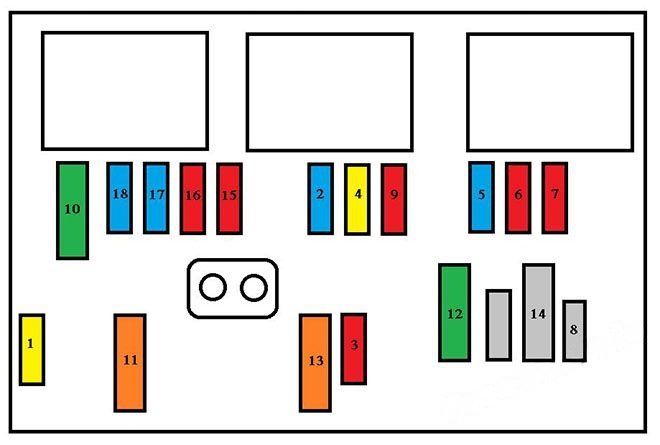

Engine compartment fuse box
Assignment of the fuses in the Engine compartment Fuse box
| Fuses | Amperes | Allocation |
|---|---|---|
| 1 | 20 | Engine management |
| 2 | 15 | Horn |
| 3 | 10 | Front and rear screenwash pump |
| 4 | 20 | Headlamp wash pump or LED |
| 5 | 15 | Engine components |
| 6 | 10 | Steering wheel angle sensor, DSC |
| 7 | 10 | Brake switch, clutch switch |
| 8 | 25 | Starter motor |
| 9 | 10 | Headlamp beam motor, parc management unit |
| 10 | 30 | Engine components |
| 11 | 40 | Not used |
| 12 | 30 | Wipers |
| 13 | 40 | Built-in systems interface |
| 14 | 30 | Pump |
| 15 | 10 | Right-hand main beam headlamp |
| 16 | 10 | Left-hand main beam headlamp |
| 17 | 15 | Right-hand dipped beam headlamp |
| 18 | 15 | Left-hand dipped beam headlamp |
