The Chrysler Town & Country (2001-2007) offers family-friendly features like power sliding doors, rear-seat entertainment, and advanced safety systems such as ABS and airbags. These features rely on an intricate electrical system that is controlled and protected by fuses and relays.
The fuse box, located under the hood and in the cabin, houses fuses that protect various electrical circuits, including the power windows, lighting, and entertainment systems. If a fuse blows, it interrupts the flow of electricity, preventing damage to the components.
The relays manage high-power components such as the air conditioning, starter motor, and fuel pump. Relays act as electrical switches, allowing low-current circuits to control higher-current systems. A malfunctioning relay can lead to problems like the vehicle failing to start or the A/C not functioning properly.
Regular inspection of the fuse box and relays is crucial for maintaining the performance and reliability of the Town & Country, ensuring all its electrical components function smoothly and avoiding system failures due to blown fuses or faulty relays.
MUST READ: DYI – How to Check Car Fuses?
(2001-2007) Chrysler Town & Country fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler Town & Country 2001-2007 fuse assignment
- Cigar lighter (power outlet) fuse in the Chrysler Town & Country is the fuse F6 in the Integrated Power Module.
Year of production: from 2001, 2002, 2003, 2004, 2005, 2006, 2007

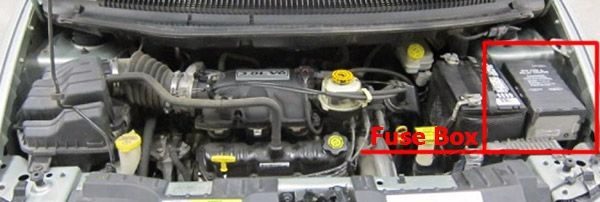

Fuse box location

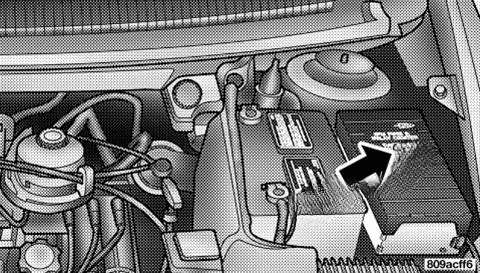

An Integrated Power Module (IPM) located in the engine compartment near the battery.
This center contains cartridge fuses and mini fuses. A label that identifies each component may be printed on the inside of the cover. Refer to the graphic below for FUSES/IPM location.

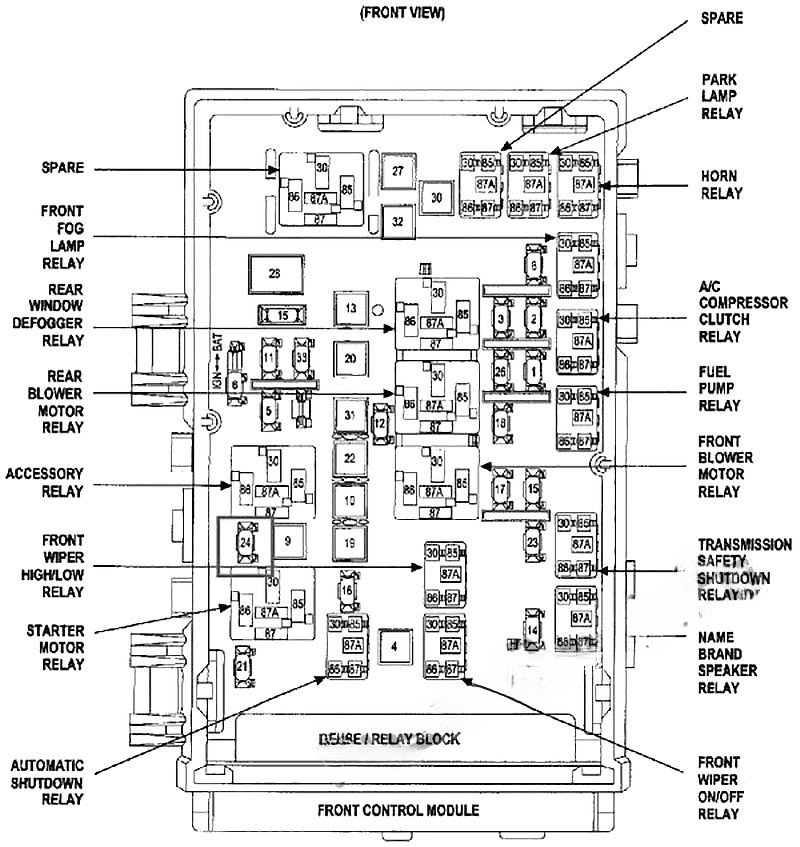

Fuse Box Diagram
Assignment of fuses in the IPM
| Cavity | Amp | Description |
|---|---|---|
| Cartridge Fuse: | ||
| F4 | 30 Amp Pink | Front Wipers |
| F9 | 40 Amp Green | Anti-Lock Brake System (ABS) Pump |
| F10 | 40 Amp Green | Front Blower |
| F13 | 40 Amp Green | Electronic Back Light (EBL) |
| F19 | 40 Amp Green | Body Control Module (BCM) Feed 1 |
| F20 | 30 Amp Pink | Central Amplifier |
| F22 | 30 Amp Pink | Seats |
| F27 | 40 Amp Green | Radiator Fan |
| F28 | 40 Amp Green | Power Windows |
| F30 | 40 Amp Green | Headlight Washers (Export Only) |
| F31 | 40 Amp Green | Power Sliding Door |
| F32 | 40 Amp Green | Power Liftgate |
| Mini Fuse: | ||
| F1 | 20 Amp Yellow | Fog Lights |
| F2 | 15 Amp Blue | Left Park/Tail Light |
| F3 | 15 Amp Blue | Right Park/Tail Light |
| F5 | 20 Amp Yellow | RDO/IP Ignition |
| F6 | 20 Amp Yellow | 12 Volt Out Ignition or Battery |
| F8 | 20 Amp Yellow | Horn |
| F11 | 20 Amp Yellow | EWD/ Rear Wiper |
| F12 | 25 Amp Clear | Rear Blower |
| F14 | 20 Amp Yellow | Ignition Off Draw (IOD) |
| F15 | 20 Amp Yellow | Electronic Automatic Transaxle (EATX) Battery |
| F15 | 25 Amp Clear | ASD |
| F17 | 20 Amp Yellow | Fuel Pump |
| F18 | 15 Amp Blue | A/C Clutch |
| F21 | 25 Amp Clear | Anti-Lock Brake System (ABS) Module |
| F23 | 10 Amp Red | Ignition Switch |
| F24 | 20 Amp Yellow | Hazard |
| F26 | 20 Amp Yellow | Stop Lamp |
| F33 | 15 Amp Blue | Front/Rear Washer |
| – | 20 Amp Yellow | Spare (IOD) |
Conclusion
For owners and enthusiasts of classic Chrysler Town & Country 2001-2007, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
