(2015-2017) Chrysler 200 (MK2) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler 200 (MK2) 2015-2017 fuse assignment
- Cigar lighter / power outlet fuses in the Chrysler 200 are the fuses F60 (Center Console Power Outlet) and F75 (Cigar Lighter) in the engine compartment fuse box.
Year of production: from 2015, 2016, 2017
Fuse box location

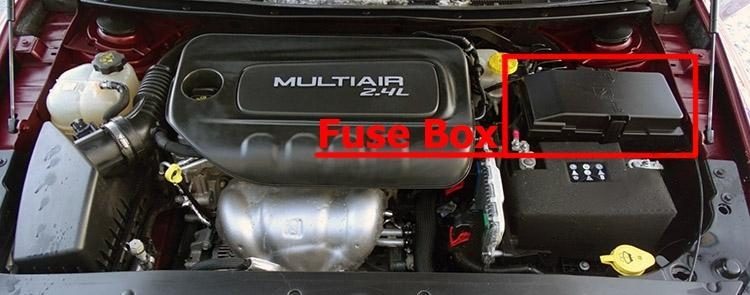

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, mini-fuses, micro-fuses, circuit breakers, and relays. A label that identifies each component is printed on the inside of the cover.

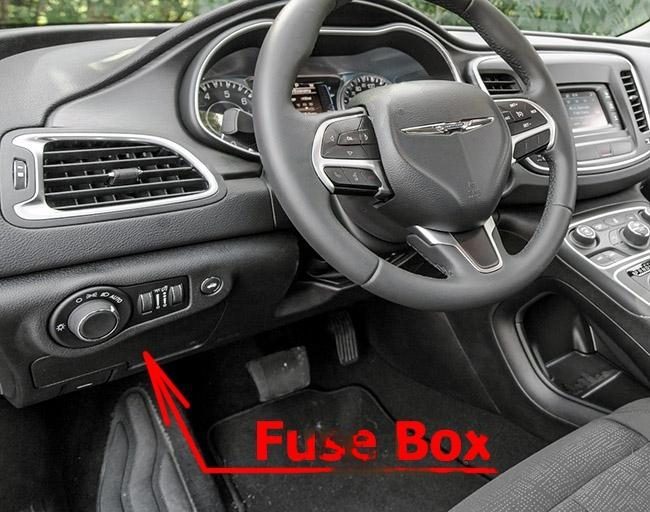

The interior fuse panel is located in the passenger compartment on the left side dash panel behind the cover.
Fuse Box Diagrams
2015
Engine Compartment

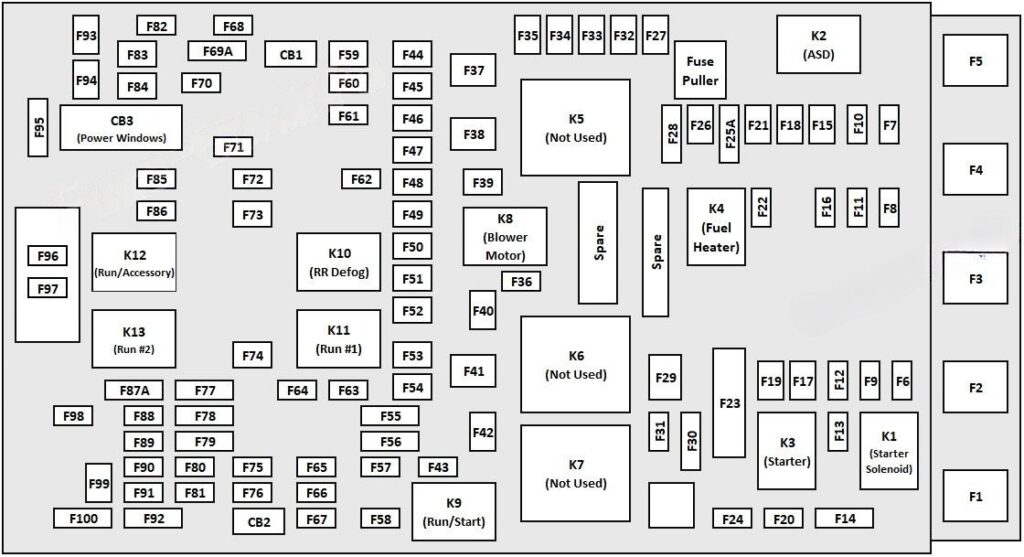

Assignment of fuses in the Power Distribution Center (2015)
| Cavity | Blade Fuse | Cartridge Fuse | Description |
|---|---|---|---|
| F06 | – | – | Not Used |
| F07 | – | – | Not Used |
| F08 | 25 Amp Clear | – | Engine Control Module (ECM) / Fuel Inj. |
| F09 | – | – | Not Used |
| F10 | 20 Amp Yellow | – | Power Transfer Unit (PTU) – If Equipped |
| F11 | – | – | Not Used |
| F12 | 20 Amp Yellow | – | Brake Vacuum Pump – If Equipped |
| F13 | 10 Amp Red | — | Engine Control Module (ECM) / VSM (Stop/ Start Only) |
| F14 | 10 Amp Red | Drivetrain Control Module (DTCM) / Power Transfer Unit (PTU) – If Equipped / RDM / Brake System Module (BSM) / Brake Pedal S. | |
| F15 | – | – | Not Used |
| F16 | 20 Amp Yellow | – | Powertrain / Ignition Coil |
| F17 | – | – | Not Used |
| F18 | – | – | Not Used |
| F19 | – | 40 Amp Green | Starter Solenoid |
| F20 | 10 Amp Red | – | A/C Compressor Clutch |
| F21 | – | – | Not Used |
| F22 | 5 Amp Tan | – | Radiator Fan Enable |
| F23 | 70 Amp Tan | – | Body Controller Module (BCM) – Feed 2 |
| F23 | 50 Amp Red | – | Voltage Stability Module (VSM) #2 – If Equipped With Stop/Start Engine Option |
| F24 | – | – | Not Used |
| F25B | 20 Amp Yellow | Front Washer Pump – If Equipped with Stop/ Start Option | |
| F26 | – | – | Not Used |
| F27 | – | – | Not Used |
| F28 | 15 Amp Blue | – | Transmission Control Module (TCM) |
| F29 | – | – | Not Used |
| F30 | 10 Amp Red | – | Engine Control Module (ECM) / EPS |
| F31 | – | – | Not Used |
| F32 | – | – | Not Used |
| F33 | – | – | Not Used |
| F34 | – | – | Not Used |
| F35 | – | – | Not Used |
| F36 | – | – | Not Used |
| F37 | – | 50 Amp Red | Radiator Fan PWM Controller |
| F38 | – | – | Not Used |
| F39 | – | 40 Amp Green | HVAC Blower Motor |
| F40 | – | – | Not Used |
| F41 | – | 50 Amp Red | Voltage Stability Module (VSM) #1 – If Equipped With Stop/Start Engine Option |
| F41 | – | 60 Amp Yellow | Body Controller Module (BCM) – Feed 1 |
| F42 | – | – | Not Used |
| F43 | 20 Amp Yellow | – | Fuel Pump Motor |
| F44 | – | – | Not Used |
| F45 | – | 30 Amp Pink | Passenger Door Module (PDM) – If Equipped |
| F46 | – | 25 Amp Clear | Sunroof – If Equipped |
| F47 | – | – | Not Used |
| F48 | – | 30 Amp Pink | Driver Door Module (DDM) |
| F49 | – | 30 Amp Pink | Power Inverter (115V A/C) – If Equipped |
| F50 | – | 30 Amp Pink | Windshield Wiper Smart Motor (WWSM) |
| F51 | – | – | Not Used |
| F52 | – | – | Not Used |
| F53 | – | 30 Amp Pink | Brake System Module BSM & Valves |
| F54 | – | 30 Amp Pink | Body Controller Module (BCM) – Feed 3 |
| F55 | 10 Amp Red | — | Blind Spot Sensors/Compass/Rearview Camera – If Equipped |
| F56 | 15 Amp Blue | – | Ignition Node Module (IGNM) / RF Hub |
| F57 | – | – | Not Used |
| F58 | 10 Amp Red | Occupant Classification Module/Voltage Stability Module (VSM) #2 – If Equipped With Stop/Start Engine Option | |
| F59 | – | 30 Amp Pink | Drivetrain Control Module (DTCM) |
| F60 | 20 Amp Yellow | – | Power Outlet – Center Console |
| F61 | – | – | Not Used |
| F62 | – | – | Not Used |
| F63 | 20 Amp Yellow | – | Front Heated Seats – If Equipped |
| F64 | 20 Amp Yellow | – | Heated Steering Wheel – If Equipped |
| F65 | 10 Amp Red | In Car Temperature Sensor/Humidity Sensor/ Driver Assist System Module (DASM)/Park Assist (PAM) – If Equipped With Stop/Start Engine Option | |
| F66 | 15 Amp Blue | Instrument Panel Cluster (IPC)/Electronic Climate Control (ECC) | |
| F67 | 10 Amp Red | In Car Temperature Sensor/Humidity Sensor/ Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped | |
| F68 | – | – | Not Used |
| F69 | 10 Amp Red | – | Gear Shift Module (GSM)/Active Grill Shutter (AGS). – If Equipped / EPB SW |
| F70 | 5 Amp Tan | – | Intelligent Battery Sensor (IBS) – If Equipped with Stop/Start Option |
| F71 | 20 Amp Yellow | – | HID Headlamp Right – If Equipped with Stop/Start Option |
| F72 | 10 Amp Red | – | Heated Mirrors – If Equipped |
| F73 | – | – | Not Used |
| F74 | – | 30 Amp Pink | Rear Defroster/Defogger |
| F75 | 20 Amp Yellow | – | Cigar Lighter |
| F76 | 10 Amp Red | – | Drivers Window SW- If Equipped |
| F77 | 10 Amp Red | – | UCI Port/Brake Pedal Switch |
| F78 | 10 Amp Red | – | Diagnostic Port/Steering Column Control Module (SCCM) |
| F79 | 10 Amp Red | – | Integrated Center Stack (ICS)/Switch Bank/ Instrument Panel Cluster (IPQ/EPB SW |
| F80 | 20 Amp Yellow | – | Radio |
| F81 | – | – | Not Used |
| F82 | – | – | Not Used |
| F83 | – | 20 Amp Blue | Engine Control Module (ECM) |
| F84 | – | 30 Amp Pink | Electric Park Brake (EPB) – Left |
| F85 | – | – | Not Used |
| F86 | 20 Amp Yellow | Horns – If Equipped With Stop/Start Engine Option | |
| F87A | 20 Amp Yellow | HID Headlamp Left – If Equipped Stop/Start Only | |
| F88 | 10 Amp Red | Collision Mitigation Module (CMM)/ Electrochromatic Mirror/Haptic Lane Feedback Module (HalO/Humidity Sensor- If Equipped | |
| F89 | – | – | Not Used |
| F90 | – | – | Not Used |
| F91 | – | – | Not Used |
| F92 | – | – | Not Used |
| F93 | 40 Amp Green | Brake System Module (BSM) – Pump Motor -If Equipped | |
| F94 | – | 30 Amp Pink | Electric Park Brake (EPB) – Right |
| F95 | 10 Amp Red | Electrochromatic Mirror/Rain/Pass. Window SW/Power Outlet Console Illumination/ Sensor/Sunroof – If Equipped | |
| F96 | 10 Amp Red | – | Occupant Restraint Controller (ORC) (Airbag) |
| F97 | 10 Amp Red | – | Occupant Restraint Controller (ORC) (Airbag) |
| F98 | 25 Amp Clear | – | Audio Amplifier – If Equipped |
| F99 | – | – | Not Used |
| F100 | – | – | Not Used |
| CB1 | Driver Power Seat | ||
| CB2 | Passenger Power Seat | ||
| CB3 | Power Windows |
Instrument Panel

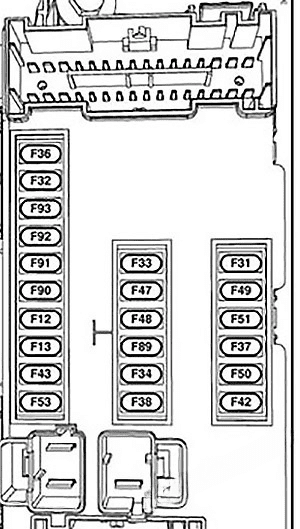

Assignment of fuses in the interior fuse box (2015)
| Cavity | Blade Fuse | Description |
|---|---|---|
| F13 | 15 Amp Blue | Low Beam Left |
| F32 | 10 Amp Red | Interior Lighting |
| F36 | 10 Amp Red | Intrusion Module / Siren |
| F37 | 7.5 Amp Brown | Aux. Switch Bank Module (ASBM) |
| F38 | 20 Amp Yellow | All Doors Lock/Unlock |
| F43 | 20 Amp Yellow | Washer Pump Front |
| F48 | 20 Amp Yellow | Horns |
| F49 | 7.5 Amp Brown | Lumbar Support |
| F51 | 10 Amp Red | Driver Window Switch / Power Mirrors – If Equipped |
| F53 | 7.5 Amp Brown | UCI Port (USB & AUX) |
| F89 | 5 Amp Tan | Trunk Lamp |
| F91 | 5 Amp Tan | Fog Lamp Front Left |
| F92 | 5 Amp Tan | Fog Lamp Front Right |
| F93 | 10 Amp Red | Low Beam Right |
2016, 2017
Engine Compartment
Assignment of fuses in the Power Distribution Center (2016, 2017)
| Cavity | Cartridge Fuse | Blade Fuse | Description |
|---|---|---|---|
| F06 | – | – | Not Used |
| F07 | – | – | Not Used |
| F08 | – | 25 Amp Clear | Engine Control Module (ECM)/Fuel Inj. |
| F09 | – | – | Not Used |
| F10 | — | 20 Amp Yellow | Power Transfer Unit (PTU) -If Equipped |
| F11 | – | – | Not Used |
| F12 | – | 20 Amp Yellow | Brake Vacuum Pump – If Equipped |
| F13 | 10 Amp Red | Engine Control Module (ECM)/VSM (Engine Stop/Start Only) | |
| F14 | 10 Amp Red | Drivetrain Control Module (DTCM)/ Power Transfer Unit (PTU) – If Equipped/RDM/Brake System Module (BSM)/Brake Pedal Switch/EPB (Electric Park Brake) | |
| F15 | – | – | Not Used |
| F16 | – | 20 Amp Yellow | Ignition Coil |
| F17 | – | – | Not Used |
| F18 | – | – | Not Used |
| F19 | 40 Amp Green | – | Starter Solenoid |
| F20 | – | 10 Amp Red | A/C Compressor Clutch |
| F21 | – | – | Not Used |
| F22 | – | 5 Amp Tan | Radiator Fan Enable |
| F23 | – | 70 Amp Tan | Body Controller Module (BCM) -Feed 2 |
| F23 | – | 30 Amp Red | Voltage Stability Module (VSM) #2 -If Equipped With Engine Stop/Start Option |
| F24 | – | – | Not Used |
| F25B | – | 20 Amp Yellow | Front Washer Pump – If Equipped with Engine Stop/Start Option |
| F26 | – | – | Not Used |
| F27 | – | – | Not Used |
| F28 | – | 15 Amp Blue | Transmission Control Module (TCM) |
| F29 | – | – | Not Used |
| F30 | – | 10 Amp Red | Engine Control Module (ECM)/EPS/ Fuel Pump Relay Feed |
| F31 | – | – | Not Used |
| F32 | – | – | Not Used |
| F33 | – | – | Not Used |
| F34 | – | – | Not Used |
| F35 | – | – | Not Used |
| F36 | – | – | Not Used |
| F37 | 50 Amp Red | – | Radiator Fan PWM Controller |
| F38 | – | – | Not Used |
| F39 | 40 Amp Green | – | HVAC Blower Motor |
| F40 | – | – | Not Used |
| F41 | 50 Amp Red | Voltage Stability Module (VSM) #1 -If Equipped With Engine Stop/Start Option | |
| F41 | 60 Amp Yellow | – | Body Controller Module (BCM) -Feed 1 |
| F42 | – | – | Not Used |
| F43 | – | 20 Amp Yellow | Fuel Pump Motor |
| F44 | – | – | Not Used |
| F45 | 30 Amp Pink | Passenger Door Module (PDM) – If Equipped | |
| F46 | 25 Amp Clear | – | Sunroof – If Equipped |
| F47 | – | – | Not Used |
| F48 | 30 Amp Pink | – | Driver Door Module (DDM) |
| F49 | 30 Amp Pink | – | Power Inverter (115V A/C) – If Equipped |
| F50 | 30 Amp Pink | – | Windshield Wiper Smart Motor (WWSM) |
| F51 | – | – | Not Used |
| F52 | – | – | Not Used |
| F53 | 30 Amp Pink | – | Brake System Module BSM & Valves |
| F54 | 30 Amp Pink | Body Controller Module (BCM) -Feed 3 | |
| F55 | 10 Amp Red | Blind Spot Sensors/Compass/Rearview Camera – If Equipped | |
| F56 | – | 15 Amp Blue | Ignition Node Module (IGNM)/RF Hub |
| F57 | – | – | Not Used |
| F58 | – | 10 Amp Red | Occupant Classification Module/Voltage Stability Module (VSM) #2 -If Equipped With Engine Stop/Start Option |
| F59 | 30 Amp Pink | – | Drivetrain Control Module (DTCM) |
| F60 | – | 20 Amp Yellow | Power Outlet – Center Console |
| F61 | – | – | Not Used |
| F62 | – | – | Not Used |
| F63 | – | 20 Amp Yellow | Front Heated Seats – If Equipped |
| F64 | – | 20 Amp Yellow | Heated Steering Wheel – If Equipped |
| F65 | 10 Amp Red | In Vehicle Temperature Sensor/ Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) -If Equipped With Engine Stop/Start Option | |
| F66 | – | 15 Amp Blue | Instrument Panel Cluster (IPC)/ Electronic Climate Control (ECC) |
| F67 | – | 10 Amp Red | In Vehicle Temperature Sensor/ Humidity Sensor/Drivers Assist System Module (DASM)/Park Assist (PAM) -If Equipped |
| F68 | – | – | Not Used |
| F69 | – | 10 Amp Red | Gear Shift Module (GSM)/Active Grill Shutter (AGS). – If Equipped/EPB SW |
| F70 | – | 5 Amp Tan | Intelligent Battery Sensor (IBS) -If Equipped with Engine Stop/Start Option |
| F71 | – | 20 Amp Yellow | HID Headlamp Right – If Equipped with Engine Stop/Start Option |
| F72 | – | 10 Amp Red | Heated Mirrors – If Equipped |
| F73 | – | – | Not Used |
| F74 | 30 Amp Pink | – | Rear Defroster/Defogger |
| F75 | – | 20 Amp Yellow | Cigar Lighter |
| F76 | – | 10 Amp Red | Drivers Window SW- If Equipped |
| F77 | – | 10 Amp Red | UCI Port/Brake Pedal Switch |
| F78 | 10 Amp Red | Diagnostic Port/Steering Column Control Module (SCCM) | |
| F79 | 10 Amp Red | Integrated Center Stack (ICS)/Switch Bank/Instrument Panel Cluster (IPC)/ EPB SW | |
| F80 | – | 20 Amp Yellow | Radio |
| F81 | – | – | Not Used |
| F82 | – | – | Not Used |
| F83 | 20 Amp Blue | – | Engine Control Module (ECM) |
| F84 | 30 Amp Pink | – | Electric Park Brake (EPB) – Left |
| F85 | – | – | Not Used |
| F86 | – | 20 Amp Yellow | Horns – If Equipped With Engine Stop/ Start Option |
| F87A | – | 20 Amp Yellow | HID Headlamp Left – If Equipped Engine Stop/Start Option |
| F88 | – | 10 Amp Red | Collision Mitigation Module (CMM)/ Electrochromatic Mirror/Haptic Lane Feedback Module (Half)/Humidity Sensor- If Equipped |
| F89 | – | – | Not Used |
| F90 | – | – | Not Used |
| F91 | – | – | Not Used |
| F92 | – | – | Not Used |
| F93 | 40 Amp Green | Brake System Module (BSM) – Pump Motor – If Equipped | |
| F94 | 30 Amp Pink | – | Electric Park Brake (EPB) – Right |
| F95 | – | 10 Amp Red | Electrochromatic Mirror/Rain/Pass. Window SW/Power Outlet Console Illumination/Sensor/Sunroof – If Equipped |
| F96 | – | 10 Amp Red | Occupant Restraint Controller (ORC) (Airbag) |
| F97 | “ | 10 Amp Red | Occupant Restraint Controller (ORC) (Airbag) |
| F98 | – | 25 Amp Clear | Audio Amplifier – If Equipped |
| F99 | – | – | Not Used |
| F100 | – | – | Not Used |
| CB1 | Driver Power Seat | ||
| CB2 | Passenger Power Seat | ||
| CB3 | Power Windows |
Instrument Panel
Assignment of fuses in the interior fuse box (2016, 2017)
| Cavity | Blade Fuse | Description |
|---|---|---|
| F13 | 15 Amp Blue | Low Beam Left |
| F32 | 10 Amp Red | Interior Lighting |
| F36 | 10 Amp Red | Intrusion Module / Siren |
| F37 | 7.5 Amp Brown | Aux. Switch Bank Module (ASBM) |
| F38 | 20 Amp Yellow | All Doors Lock/Unlock |
| F43 | 20 Amp Yellow | Washer Pump Front |
| F48 | 20 Amp Yellow | Horns |
| F49 | 7.5 Amp Brown | Lumbar Support |
| F51 | 10 Amp Red | Driver Window Switch / Power Mirrors – If Equipped |
| F53 | 7.5 Amp Brown | UCI Port (USB & AUX) |
| F89 | 5 Amp Tan | Trunk Lamp |
| F91 | 5 Amp Tan | Fog Lamp Front Left |
| F92 | 5 Amp Tan | Fog Lamp Front Right |
| F93 | 10 Amp Red | Low Beam Right |
Conclusion
For owners and enthusiasts of classic Chrysler 200 (MK2) 2015-2017, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
