The Chrysler Pacifica (RU) 2021-2024 is available in multiple trims, including hybrid and gasoline models. It offers advanced features such as a Uconnect infotainment system, hands-free sliding doors, and an array of safety tech like adaptive cruise control, lane assist, and collision warning.
These features are powered and protected by the vehicle’s fuse box and relays. The fuse box, located under the dashboard and in the engine bay, ensures that the electrical components, such as lighting, navigation, and entertainment systems, remain protected from overloads. If a fuse blows, it cuts off the power to prevent damage to these components.
The relays manage high-power systems such as the fuel pump, cooling fans, and starter motor, functioning as switches that control larger electrical loads. A faulty relay can disrupt these vital systems, affecting the vehicle’s starting, cooling, or fuel supply.
Ensuring the fuse box and relays are functioning properly is critical to maintaining the Pacifica’s advanced features and overall performance. Regular checks prevent electrical failures and ensure smooth operation of the vehicle’s essential systems.
MUST READ: DYI – How to Check Car Fuses?
(2021-2024) Chrysler Pacifica (RU) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler Pacifica (RU) 2021-2024 fuse assignment
Year of production: from 2021, 2022, 2023, 2024

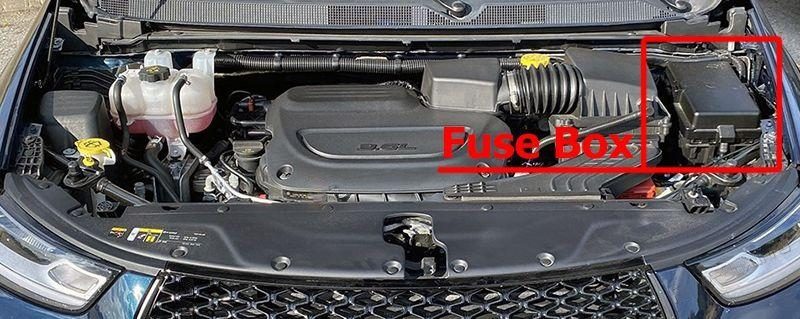

Fuse Box Location
The Power Distribution Center (PDC) is located in the engine compartment near the battery. Remove the cover by unlatching the two locks located at each side of the PDC cover, avoid the usage of screw drivers or any other tool to remove the cover, since they may apply excessive force and result in a broken/ damaged part. After service is done, secure the cover with its two locks.
A label that identifies each component is printed on the inside of the cover.

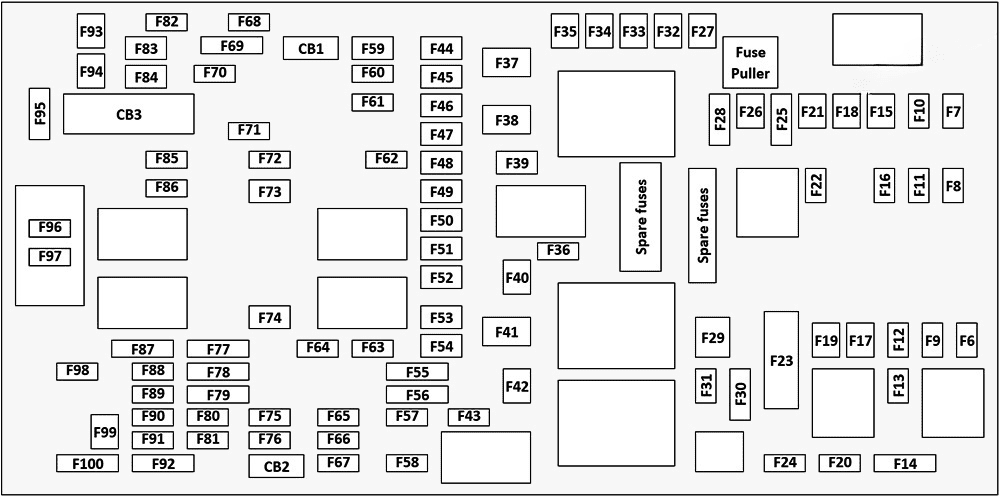

Fuse Box Diagram
Power Distribution Center (2021-2024)
Assignment of the fuses in the engine compartment (2021-2024)
| № | Amps | Description |
|---|---|---|
| F06 | – | Not Used |
| F07 | 25A Clear | Ignition Coil / Fuel Injector |
| F08 | – | Not Used |
| F09 | 25A Clear | Amplifier / Active Noise Control |
| F10 | – | Not Used |
| F11 | – | Not Used |
| F12 | 5A Tan | Battery Sensor (IBS) |
| F13 | 10A Red | ECM (S) |
| F14 | 10A Red | ECM |
| F15 | 40A Green | CBC / Power Locks |
| F16 | 20A Yellow | ECM |
| F17 | 30A Pink | Starter |
| F18 | 40A Green | CBC / EXT LIGHTS |
| F19 | 25A Clear | 2nd Row Folding Seats Solenoid (Left) |
| F20 | 10A Red | A/C Compressor Clutch |
| F21 | 25A Clear | 2nd Row Folding Seat Solenoid (Right) |
| F22 | – | Not Used |
| F23 | – | Not used |
| F24 | 20A Yellow | RR Wiper |
| F25 | 10A Red | Hands Free Dr Mod / Active Grille Shutter / Pwr Mirror / VRM |
| F26 | 40A Green | Front HVAC Blower Motor |
| F27 | 25A Clear | RR Slide Door Module – Right |
| F28 | 10A Red | Diagnostic Port / USB+(IP) / Video USB Port / Overhead DVD Player (Aftermarket) |
| F29 | – | Not Used |
| F30 | 15A Blue | Media HUB/ Power Lumbar |
| F31 | – | Not Used |
| F32 | 20A Blue | ECM |
| F33 | 30A Pink | Power Liftgate Module |
| F34 | 25A Clear | RR Door Module – Left |
| F35 | 25A Clear | Sunroof |
| F36 | – | Not Used |
| F37 | 40A Green | CBC / Exterior Lights |
| F38 | 60A Yellow | Vacuum Cleaner |
| F39 | 25A Clear | Rear HVAC Blower Motor |
| F40 | – | Not Used |
| F41 | – | Not Used |
| F42 | 40A Green | Folding Seat Module |
| F43 | 20A Yellow | Fuel Pump Motor |
| F44 | 30A Pink | CBC / Interior Lights |
| F45 | 30A Pink | Power Inverter |
| F46 | 30A Pink | Driver Door Module |
| F47 | 30A Pink | Passenger Door Module |
| F48 | – | Not Used |
| F49 | 25A Clear | RR Sliding Door Module – Left |
| F50 | 25A Clear | RR Door Module – Right |
| F51 | 30A Pink | Front Wiper |
| F52 | 30A Pink | Brake Vacuum Pump |
| F53 | – | Not Used |
| F54 | 40A Green | ESP-ECU And Valves |
| F55 | 15A Blue | Radio Frequency HUB / Keyless Ignition System (KIN) / ESL / DVD |
| F56 | 10A Red | Front and Rear HVAC Control Module / Occupant Classification Module (OCM) / Electronic Steering Lock (ESL) / ESP / ESC |
| F57 | – | Not Used |
| F58 | 10A Red | Drive Train Control Mod / Power Transfer Unit |
| F59 | 30A Pink | Trailer Tow Receptacle |
| F60 | 20A Yellow | Rear Cargo Pwr Outlet |
| F61 | 20A Yellow | Trailer Tow Right Stop/Turn |
| F62 | 20A Yellow | Power Transfer Unit |
| F63 | 20A Yellow | Trailer Tow Left Stop/Turn |
| F64 | 15A Blue | HID Headlamp (Right) |
| F65 | – | Not Used |
| F66 | 15A Blue | Cluster |
| F67 | 10A Red | Haptic Lane Feedback Module (HALF) / Parktronics System (PTS) / Drivers Assist System Module (DASM) |
| F68 | – | Not Used |
| F69 | – | Not Used |
| F70 | – | Not Used |
| F71 | 20A Yellow | Horn |
| F72 | 10A Red | Heated Mirror |
| F73 | 30A Pink | Rear Defroster |
| F74 | 20A Blue | Trailer Tow Backup Lights |
| F75 | 5A Tan | Overhead Console / RR Center Stack |
| F76 | 20A Yellow | Uconnect / Center Display / Telematics |
| F77 | 10A Red | RR Entertainment / Media HUB / USB (S) / Rain Sensor/ Sunroof / RR View Mirror / Overhead DVD Player / INT Monitoring Camera / Wireless Charging Pad |
| F78 | 15A Blue | TCM (ZF) / E-Shifter / Cluster |
| F79 | 10A Red | ICS / HVAC / SCCM/ EPB SW |
| F80 | – | Not Used |
| F81 | – | Not Used |
| F82 | – | Not Used |
| F83 | 20A Blue | TT Park Lights |
| F83 | 30A Pink | Headlamp Washer Pump |
| F84 | 30A Pink | Drive Train Control MOD |
| F85 | 20A Yellow | Cigar Lighter |
| F86 | – | Not Used |
| F87 | – | Not Used |
| F88 | 20A Yellow | Front Heated Seats |
| F89 | 20A Yellow | Rear Heated Seats |
| F90 | – | Not Used |
| F91 | 15A Blue | Front Ventilated Seats / Heated Steering Wheel |
| F92 | 5A Tan | Security Gateway |
| F93 | – | Not Used |
| F94 | 40A Green | ESC Motor Pump |
| F95A | 10A Red | USB Charge Port – ACC/RUN |
| F95B | 10A Red | Selectable Fuse Location – USB IP (Direct) B+ |
| F96 | 10A Red | Airbag |
| F97 | 10A Red | Airbag |
| F98 | 15A Blue | HID Headlamp (Left) |
| F99 | 30A Pink | Trailer Tow Elect Brake Module |
| F100 | 10A Red | Headlamp Level / RR Camera / Blindspot/ Humidity SNSR / In Car Temp SNSR / Headlamp SW |
| CB1 | 25A Circuit Breaker | Power Seats (Driver) |
| CB2 | 25A Circuit Breaker | Power Seats (Pass) (30 Amp mini fuse is substituted for 25 Amp Circuit Breaker) |
| CB3 | 25A Circuit Breaker | FRT PWR Window W/O Door Nodes + RR PWR Window Lockout |
Conclusion
For owners and enthusiasts of classic Chrysler Pacifica (RU) 2021-2024, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
