The 2024 Chevrolet Traverse is a midsize crossover SUV designed to offer both practicality and luxury for families and individuals. With its spacious three-row seating and impressive cargo capacity, the Traverse is perfect for long trips or everyday commutes. The sleek exterior design is complemented by a well-appointed interior featuring modern technology, advanced safety features, and ample space for passengers. The vehicle comes in various trims, catering to different preferences and budgets.
The Traverse’s electrical system, crucial for powering everything from the infotainment to the vehicle’s safety features, relies heavily on its fuse box and relay system. The main fuse box is located under the hood, near the driver’s side, while an additional fuse box may be found inside the cabin, typically under the dashboard or near the glove compartment. Relays, which help control high-power components like the cooling fan, fuel pump, and ignition, are positioned near these fuse boxes. Regular checks and maintenance of these components help ensure the vehicle’s electrical systems function smoothly.
MUST READ: DYI – How to Check Car Fuses?
(2024) Chevrolet Traverse fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Traverse 2024 fuse assignment
Chevrolet Traverse Year of production: 2024

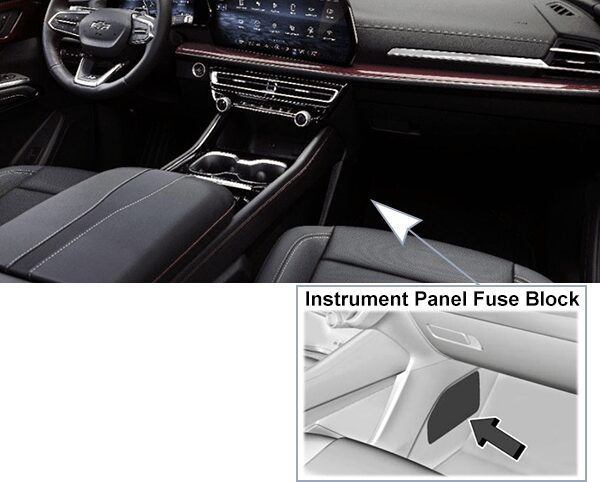

Instrument Panel Fuse Block:
The instrument panel fuse block is housed within the center console on the right-hand side of the vehicle, alongside the steering wheel. To obtain access to the fuses, gently slide open the fuse access door by inserting either a coin or a small tool into its designated slot, allowing easy access to the fuses within.

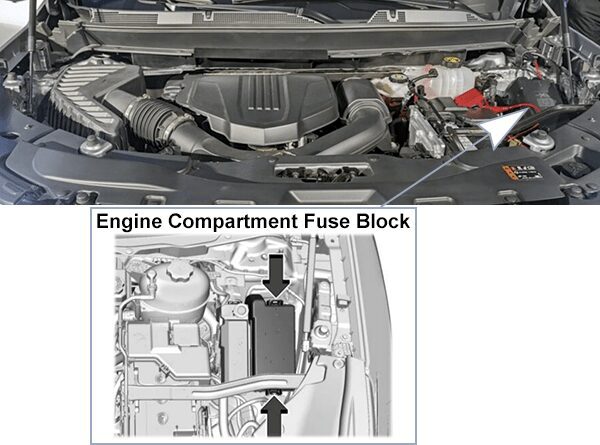

Engine Compartment Fuse Block:
The engine compartment’s fuse block is situated on the driver side of the vehicle, near the battery. To gain access to the fuses, depress the tab located at the back of the cover and raise it upwards.

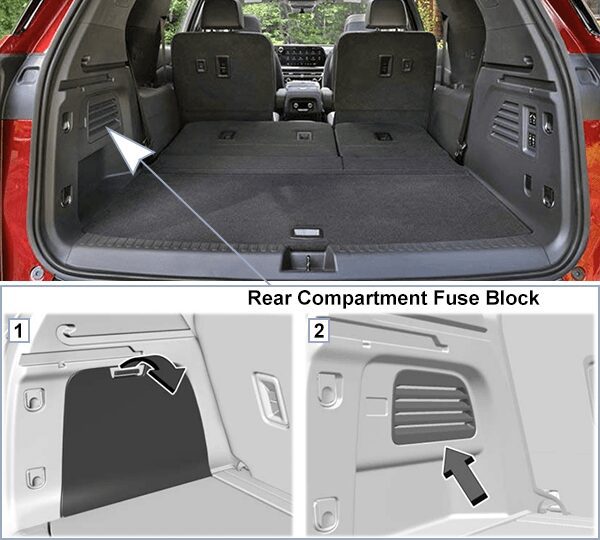

Rear Compartment Fuse Block:
The back-of-the-vehicle fuse compartment is possibly tucked behind two trim sections on the driver’s side of the rear storage area. The label for the fuse compartment can be found on the rear side of the access door located in the driver’s-side rear trim panel.
- If equipped, there may be an outer panel that needs to be removed to get to the inner panel. Press the clip and pull the panel towards you to remove the panel.
- The inner panel is removed by prying along the top edge of the trim panel. Remove the trim panel to access the fuse block, or see your dealer.
Fuse Box Diagrams
2024

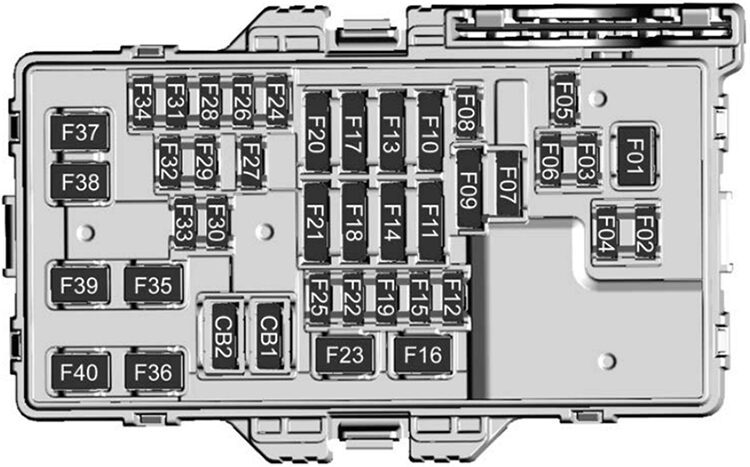

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2024)
№ | Usage |
---|---|
F1 | BLOWER MOTOR |
F2 | ELM 1 – Exterior Lighting Module 1 |
F3 | SCL – Steering Column Lock |
F4 | ELM 2 – Exterior Lighting Module 2 |
F5 | BCM 2 – Body Control Module 2 |
F6 | OHC – OnStar Hands-Free Calling |
F7 | STEERING WHEEL CONTROL |
F8 | TELEMATICS |
F9 | BCM BATT 1 & ETS SHIFTER – Body Control Module Battery 1 and Euro Truck Shifter |
F10 | UGDO – Universal Garage Door Opener Spare |
F11 | HVAC & TPIM – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module |
F12 | STEERING COLUMN LOCK |
F13 | CGM & DLC – Central Gateway Module and Data Link Connector |
F14 | EBCM & PCM -Electronic Brake Control Module and Power Control Module |
F15 | AUX DISPLAY |
F16 | APO RR CARGO – Auxiliary Power Outlet_Rear_Cargo |
F17 | SDMAOS – Sensing Diagnostic Module_Automatic Occupant Sensor Spare |
F18 | SEAT FAN CTR / HDLP CO & DR – Seat Fan Control Headlamp CO and Driver |
F19 | ELM RC – Exterior Lighting Module Ride Control |
F20 | VKM – Virtual Key Module Spare |
F21 | VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2 |
F22 | SDM – Sensing Data Module |
F23 | – |
F24 | WCM – Wireless Charging Module |
F25 | HVPO – High Voltage Power Outlet |
F26 | Spare |
F27 | AUX |
F28 | LRR – Long Range Radar |
F29 | SRR – Short Range Radar |
F30 | – |
F31 | BCM 3 – Body Control Module 3 |
F32 | HSWM – Heated Steering Wheel Module |
F33 | – |
F34 | CPM – Column Position Module |
F35 | AMPLIFIER |
F36 | DC/DC BATT 2 – Direct Current/Direct Current Battery 2 |
F37 | BCM 4 – Body Control Module 4 |
F38 | AMPLIFIER 2 |
F39 | ELM 6 – Exterior Lighting Module 6 |
F40 | DCAC – Direct Current Alternating Current |

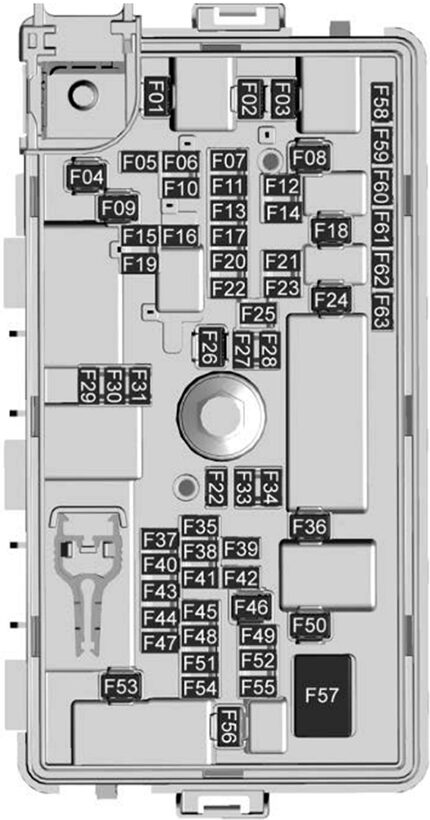

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
№ | Usage |
---|---|
F1 | Spare |
F2 | Spare |
F3 | FRT WIPER – Front Wiper |
F4 | Spare |
F5 | Spare |
F6 | HDLP RT – Headlamp Right |
F7 | RR WIPER – Rear Wiper |
F8 | Spare |
F9 | RR DEFOG – Rear Defog |
F10 | ELM_4 – Exterior Lighting Module 4 |
F11 | HDLP LT – Headlamp Left |
F12 | HORN |
F13 | Spare |
F14 | Spare |
F15 | Spare |
F16 | RR_WPR_CTRL – Rear Wiper Control |
F17 | RLY COIL CND – Relay Coil Ground |
F18 | DC DC BATT1 – Direct Current Direct Current Battery 1 |
F19 | ELM_7 – Exterior Lighting Module 7 |
F20 | Spare |
F21 | Spare |
F22 | ELM_5 – Exterior Lighting Module 5 |
F23 | WIPER_DE_ICE |
F24 | EBCM1 – Electronic Brake Control Module 1 |
F25 | ELM_3 – Exterior Lighting Module 3 |
F26 | Spare |
F27 | TRLR_LTP_TRN_LT – Trailer Lamp Turn Left |
F28 | TRLR_LTP_TRN_RT – Trailer Lamp Turn Right |
F29 | WASH |
F30 | AERO SHUTTER |
F31 | Spare |
F32 | PCM – Power Control Module |
F33 | Spare |
F34 | Spare |
F35 | PCM – Power Control Module |
F36 | STRTR MTR – Starter Motor |
F37 | AC CLUTCH GAS – Alternating Current Clutch Gas |
F38 | SOL CP TURBO BYPASS – Solenoid Turbo Bypass |
F39 | COIL ODD |
F40 | Spare |
F41 | B721_B70_M674 |
F42 | Spare |
F43 | Spare |
F44 | Spare |
F45 | Spare |
F46 | Spare |
F47 | Spare |
F48 | Spare |
F49 | Spare |
F50 | E-PHASER – Electronic Phaser |
F51 | Spare |
F52 | PCM – Power Control Module 2 |
F53 | Spare |
F54 | AIR_PUMP |
F55 | Spare |
F56 | STRTR PINION – Starter Pinion |
F57 | WATER PUMP |

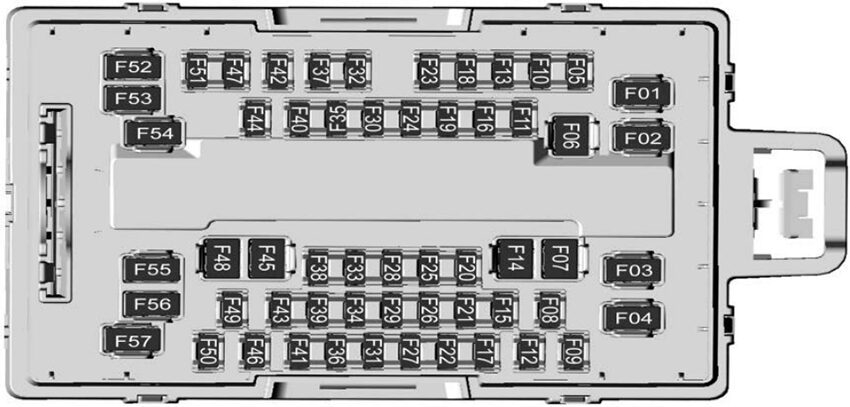

Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2024)
№ | Usage |
---|---|
F1 | RR_BLOW – Rear Blow |
F2 | DSP_CODR – Door Switch Panel_Code |
F3 | TAILGATE |
F4 | TRLR BAT1 – Trailer Battery 1 |
F5 | ACP2 – AWD Control Processor 2 |
F6 | PWR_FOLD_SEAT_L_R – Power Fold Seat Left and Rear |
F7 | DSP – Door Switch Panel |
F8 | Spare |
F9 | LAMPS_RT – Right Lamps |
F10 | Spare |
F11 | Spare |
F12 | ELM 2 – Exterior Lighting Module 2 |
FIB | LAMPS_LT – Left Lamps |
F14 | SP DRVR – Driver |
F15 | MSM_DRIVER -Memory Seat Module Driver |
F16 | MTR PFTS_ROW2_L |
F17 | FRT – Front |
F18 | SBP_CO_DRIVER |
F19 | MTR PFTS_ROW2_R |
F20 | Spare |
F21 | RFA – Remote Function Actuator |
F22 | Spare |
F2B | Spare |
F24 | Spare |
F25 | Spare |
F26 | CANISTER |
F27 | UPA – Universal Park Assist |
F28 | RDCM – Right Door Control Module |
F29 | SBZA – Side Blind Zone Assist |
F30 | TRLR_PRK_LMP – Trailer Park Lamp |
F31 | FCM – Front Camera Module |
F32 | Spare |
F33 | ROW2 BAT1 – Second Row Battery 1 |
F34 | Spare |
F35 | Spare |
F36 | ROW2 BAT2 – Second Row Battery 2 |
F37 | Spare |
F38 | Spare |
F39 | Spare |
F40 | TRLR_BACK_UP |
F41 | Spare |
F42 | DSP – Door Switch Panel |
F43 | POWER FOLD SEAT SW/N 3_ROW |
F44 | OUT_OF_PARK_DISABLE |
F45 | TRAILER_BRAKE |
F46 | ACP3 – AWD Control Processor 3 |
F47 | FTZM – Fuel Tank Zone Module |
F48 | SP_PASS |
F49 | Spare |
F50 | ELM 1 – Exterior Lighting Module 1 |
F51 | FRT BAT2 – Front Battery 2 |
F52 | Spare |
F53 | Spare |
F54 | ROW2_FOLD_RH -Second Row Right-hand Fold |
F55 | ROW3 – Third Row |
F56 | SUNROOF |
F57 | RDCM – Right Door Control Module |
Conclusion
The 2024 Chevrolet Traverse combines performance and practicality, supported by a reliable electrical system. Regular inspection of the fuse box and relays is essential for optimal performance.
