Learn about Chevrolet Traverse 2022-2024 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Chevrolet Traverse (2022-2024) is a spacious midsize SUV designed with families in mind, offering a blend of comfort, utility, and modern style. Available in multiple trims, it features a bold exterior with a large grille, sleek headlights, and a robust body design. Inside, the Traverse provides three rows of seating, accommodating up to eight passengers, with ample cargo space, making it ideal for road trips and everyday commuting.
To support its range of advanced features, from infotainment to safety systems, the Traverse’s electrical system includes strategically placed fuse boxes and relays. The main fuse box is located under the hood near the engine, while an additional fuse box is found inside the cabin, typically on the passenger side under the dashboard. These fuse boxes house relays for high-power systems like the ignition and cooling fans. Routine inspection of the fuse box and relays is essential for reliable operation of the vehicle’s electronics.
MUST READ: DYI – How to Check Car Fuses?
(2022-2024) Chevrolet Traverse fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Traverse 2022-2024 fuse assignment
Chevrolet Traverse Year of production: 2022, 2023, 2024

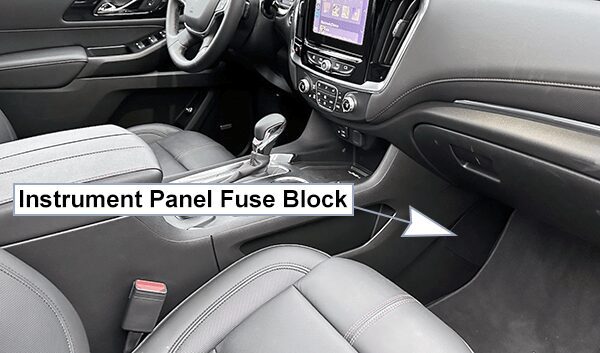

Instrument Panel Fuse Block:
To reach the fuse box behind the instrument panel, look for the access door situated on the passenger side of the center console. Carefully slide a coin or tool into the designated slot of the access door to remove it.

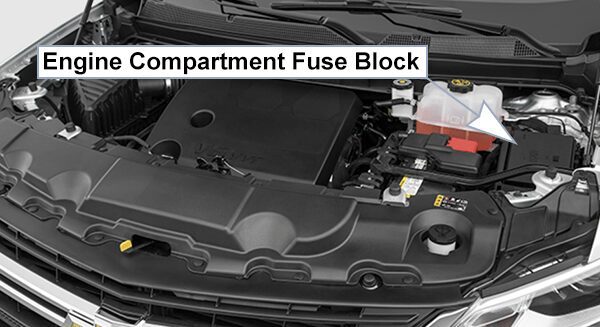

Engine Compartment Fuse Block:
The fuse block is located in the engine bay, towards the driver’s side of the vehicle. To access the fuses, simply depress the clips on the cover and lift it upwards.

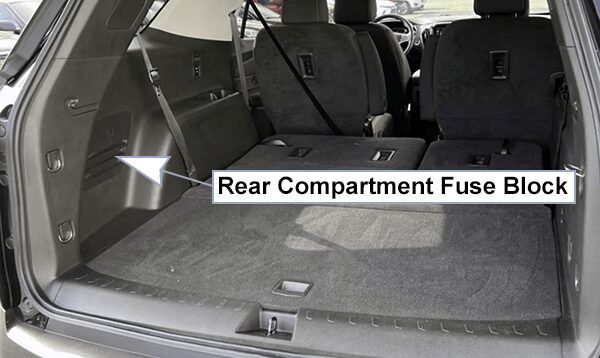

Rear Compartment Fuse Block:
The rear compartment fuse block can be found behind a trim panel, positioned on the driver side of the vehicle’s rear storage compartment. To gain access to the fuses, it is necessary to remove the trim panel by carefully prying along the top edge of the panel at two notched locations. Once the panel has been removed, the driver can easily access the fuse block. In cases where additional assistance is needed, consulting the vehicle’s dealer is recommended.
Fuse Box Diagrams
2022

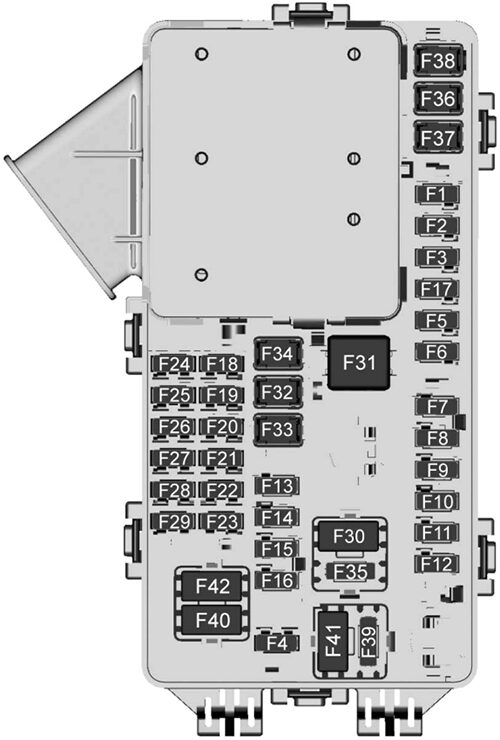

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2022)
№ | Usage |
---|---|
F1 | Body Control Module 6 |
F2 | Diagnostic Link |
F3 | Electric Steering Column Lock |
F4 | Rear USB Port |
F5 | Rear Sunshade / Park/Reverse/Neutral/Drive/Low |
F6 | Heating, Ventilation, and Air Conditioning |
F7 | Body Control Module 3 |
F8 | Adaptive Front Lighting System |
F9 | Right Front Heated Seat |
F10 | Airbag |
F11 | – |
F12 | Amplifier |
F13 | Body Control Module 7 |
F14 | Left Front Heated Seat |
F15 | – |
F16 | Sunroof |
F17 | Communication Gateway Module |
F18 | Instrument Cluster / Head Up Display |
F19 | Body Control Module 1 |
F20 | Wireless Charger Module |
F21 | Body Control Module 4 |
F22 | Infotainment |
F23 | Body Control Module 2 |
F24 | Park/Reverse/Neutral/Drive/Low |
F25 | Park Assist / Shifter Interface Board |
F26 | Communications Integration Module |
F27 | Video |
F28 | Radio / Heating, Ventilation, and Air Conditioning Display |
F29 | Radio |
F30 | Steering Wheel Controls |
F31 | Front Blower |
F32 | DC AC Inverter |
F33 | Driver Power Seat |
F34 | Passenger Power Seat |
F35 | Feed / Body Control Module 4 |
F36 | Electric Power Steering |
F37 | Power Outlet / Wireless Charger / Accessory |
F38 | Body Control Module 8 |
F39 | – |
Circuit Breakers / Minifuse | |
F40 | – |
F41 | – |
F42 | Auxiliary Power Outlet (CB) / Lighter (Minifuse) |

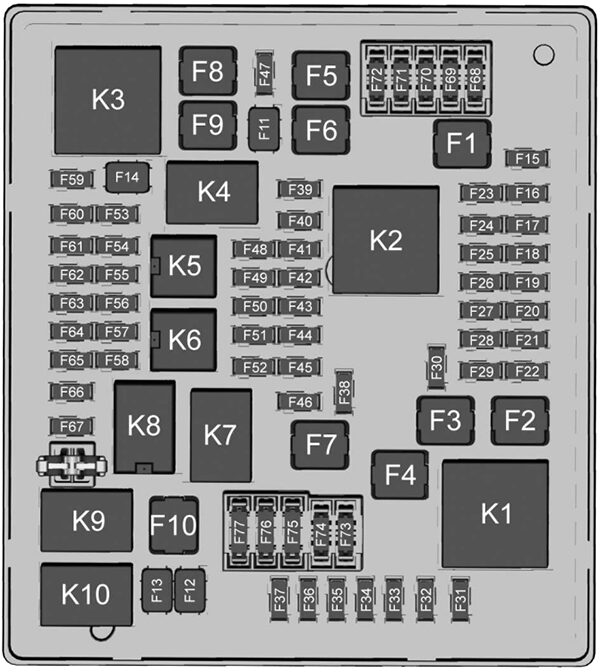

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022)
№ | Usage |
---|---|
F1 | Antilock Brake System Pump |
F2 | Starter 1 |
F3 | DC DC Transformer 1 |
F4 | – |
F5 | DC DC Transformer 2 |
F6 | – |
F7 | – |
F8 | – |
F9 | Vacuum Pump |
F10 | Front Wiper |
F11 | – |
F12 | – |
F13 | Starter 2 |
F14 | – |
F15 | Rear Wiper |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
F22 | Electronic Brake Control Module |
F23 | Parking/Trailer Lamps |
F24 | Right Trailer Stoplamp / Turnlamp |
F25 | Steering Column Lock |
F26 | – |
F27 | Left Trailer Stoplamp / Turnlamp |
F28 | – |
F29 | – |
F30 | Washer Pump |
F31 | – |
F32 | Left Low-Beam Headlamp |
F33 | Daylight Running Lamps |
F34 | Horn |
F35 | – |
F36 | – |
F37 | Right Low-Beam Headlamp |
F38 | Automatic Headlamp Leveling Motor |
F39 | Transmission Control Module |
F40 | Left Rear Bus Electrical Center / lgnition |
F41 | Instrument Cluster |
F42 | Heating, Ventilation, and Air Conditioning |
F43 | Head-up Display / Reflective Light Auxiliary Display |
F44 | Communication Gateway Module / Run/ Crank |
F45 | – |
F46 | – |
F47 | – |
F48 | – |
F49 | Interior Rearview Mirror |
F50 | Fuel Tank Zone Module / Shifter Interface Board / Run/Crank |
F51 | Heated Steering Wheel |
F52 | Folding Seats Switch |
F53 | Coolant Pump |
F54 | – |
F55 | Air Conditioning Clutch |
F56 | – |
F57 | Engine Control Module / Ignition |
F58 | Transmission Control Module / lgnition |
F59 | Engine Control Module Battery |
F60 | Engine Control Module – Even |
F61 | O2 Sensor 1 / Air Flow |
F62 | – |
F63 | O2 Sensor 2 / Canister / Engine Oil / Turbo |
F64 | Aeroshutter |
F65 | Engine Control Module Powertrain 1 |
F66 | Engine Control Module Powertrain 2 |
F67 | Engine Control Module – Odd |
F68 | – |
F69 | – |
F70 | – |
F71 | – |
F72 | – |
F73 | – |
F74 | – |
F75 | – |
F76 | – |
F77 | – |
Relays | |
K1 | Starter 1 |
K2 | Run/Crank |
K3 | Vacuum Pump |
K4 | – |
K5 | Air Conditioning |
K6 | – |
K7 | Engine Control Module |
K8 | Folding Seats |
K9 | – |
K10 | Starter 2 |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2022)
№ | Usage |
---|---|
F1 | – |
F2 | Trailer |
F3 | Folding Seats |
F4 | Rear Blower |
F5 | Rear Drive Control |
F6 | – |
F7 | Right Window |
F8 | Rear Defogger |
F9 | Left Window |
F10 | – |
F11 | Trailer Reverse |
F12 | USB Port – Third Row Seats |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – / Air Quality Sensor |
F18 | – |
F19 | Ventilated Seats / Massage |
F20 | – |
F21 | – |
F22 | – |
F23 | – |
F24 | Lumbar |
F25 | – |
F26 | Trailer Brake Lamps |
F27 | Massage |
F28 | Passive Entry / Passive Start |
F29 | – |
F30 | Canister Vent |
F31 | – |
F32 | Heated Mirrors |
F33 | USB Port – Second Row Seats |
F34 | Liftgate Module |
F35 | Fuel System Control Module / Fuel Tank Zone Module |
F36 | – |
F37 | – |
F38 | Window Module |
F39 | Rear Closure |
F40 | Memory Seat Module |
F41 | Automatic Occupancy Sensor |
F42 | – |
F43 | – |
F44 | – |
F45 | Liftgate Motor |
F46 | Rear Heated Seats |
F47 | – |
F48 | – |
F49 | – |
F50 | – |
F51 | – |
F52 | Semi-Active Dampening System Module |
F53 | – |
F54 | External Object Calculating Remote System / Side Blind Zone Alert |
F55 | – |
F56 | Universal Remote System / Overhead Console / Humidity / Rain Sensor |
F57 | Hands Free Closure Release |
Circuit Breakers | |
CB1 | – |
CB2 | – |
CB3 | Rear Auxiliary Power Outlet |
Relays | |
K1 | – |
K2 | – |
2023
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2023)
№ | Usage |
---|---|
F1 | Body Control Module 6 |
F2 | Diagnostic Link |
F3 | Electric Steering Column Lock |
F4 | Rear USB Port |
F5 | Rear Sunshade / Park/ Reverse/Neutral/Drive/Low |
F6 | Heating, Ventilation, and Air Conditioning |
F7 | Body Control Module 3 |
F8 | Adaptive Front Lighting System |
F9 | Right Front Heated Seat |
F10 | Airbag |
F11 | – |
F12 | Amplifier |
F13 | Body Control Module 7 |
F14 | Left Front Heated Seat |
F15 | – |
F16 | Sunroof |
F17 | Communication Gateway Module |
F18 | Instrument Cluster / Head Up Display |
F19 | Body Control Module 1 |
F20 | Wireless Charger Module |
F21 | Body Control Module 4 |
F22 | Infotainment |
F23 | Body Control Module 2 |
F24 | Park/Reverse/Neutral/Drive/Low |
F25 | Park Assist / Shifter Interface Board |
F26 | Communications Integration Module |
F27 | Video |
F28 | Radio / Heating, Ventilation, and Air Conditioning Display |
F29 | Radio |
F30 | Steering Wheel Controls |
F31 | Front Blower |
F32 | DC AC Inverter |
F33 | Driver Power Seat |
F34 | Passenger Power Seat |
F35 | Feed / Body Control Module 4 |
F36 | Electric Power Steering |
F37 | Power Outlet / Wireless Charger / Accessory |
F38 | Body Control Module 8 |
F39 | – |
Circuit Breakers / Minifuse | |
F40 | – |
F41 | – |
F42 | Auxiliary Power Outlet (CB) / Lighter (Minifuse) |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2023)
№ | Usage |
---|---|
F1 | Antilock Brake System Pump |
F2 | Starter 1 |
F3 | DC DC Transformer 1 |
F4 | – |
F5 | DC DC Transformer 2 |
F6 | – |
F7 | – |
F8 | – |
F9 | Vacuum Pump |
F10 | Front Wiper |
F11 | – |
F12 | – |
F13 | Starter 2 |
F14 | – |
F15 | Rear Wiper |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
F22 | Electronic Brake Control Module |
F23 | Parking/Trailer Lamps |
F24 | Right Trailer Stoplamp / Turnlamp |
F25 | Steering Column Lock |
F26 | – |
F27 | Left Trailer Stoplamp / Turnlamp |
F28 | – |
F29 | – |
F30 | Washer Pump |
F31 | – |
F32 | Left Low-Beam Headlamp |
F33 | Daylight Running Lamps |
F34 | Horn |
F35 | – |
F36 | – |
F37 | Right Low-Beam Headlamp |
F38 | Automatic Headlamp Leveling Motor |
F39 | Transmission Control Module |
F40 | Left Rear Bus Electrical Center / lgnition |
F41 | Instrument Cluster |
F42 | Heating, Ventilation, and Air Conditioning |
F43 | Head-up Display / Reflective Light Auxiliary Display |
F44 | Communication Gateway Module / Run/ Crank |
F45 | – |
F46 | – |
F47 | – |
F48 | – |
F49 | Interior Rearview Mirror |
F50 | Fuel Tank Zone Module / Shifter Interface Board / Run/Crank |
F51 | Heated Steering Wheel |
F52 | Folding Seats Switch |
F53 | Coolant Pump |
F54 | – |
F55 | Air Conditioning Clutch |
F56 | – |
F57 | Engine Control Module / Ignition |
F58 | Transmission Control Module / lgnition |
F59 | Engine Control Module Battery |
F60 | Engine Control Module – Even |
F61 | O2 Sensor 1 / Air Flow |
F62 | – |
F63 | O2 Sensor 2 / Canister / Engine Oil / Turbo |
F64 | Aeroshutter |
F65 | Engine Control Module Powertrain 1 |
F66 | Engine Control Module Powertrain 2 |
F67 | Engine Control Module – Odd |
F68 | – |
F69 | – |
F70 | – |
F71 | – |
F72 | – |
F73 | – |
F74 | – |
F75 | – |
F76 | – |
F77 | – |
Relays | |
K1 | Starter 1 |
K2 | Run/Crank |
K3 | Vacuum Pump |
K4 | – |
K5 | Air Conditioning |
K6 | – |
K7 | Engine Control Module |
K8 | Folding Seats |
K9 | – |
K10 | Starter 2 |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2023)
№ | Usage |
---|---|
F1 | – |
F2 | Trailer |
F3 | Folding Seats |
F4 | Rear Blower |
F5 | Rear Drive Control |
F6 | – |
F7 | Right Window |
F8 | Rear Defogger |
F9 | Left Window |
F10 | – |
F11 | Trailer Reverse |
F12 | USB Port – Third Row Seats |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – / Air Quality Sensor |
F18 | – |
F19 | Ventilated Seats / Massage |
F20 | – |
F21 | – |
F22 | – |
F23 | – |
F24 | Lumbar |
F25 | – |
F26 | Trailer Brake Lamps |
F27 | Massage |
F28 | Passive Entry / Passive Start |
F29 | – |
F30 | Canister Vent |
F31 | – |
F32 | Heated Mirrors |
F33 | USB Port – Second Row Seats |
F34 | Liftgate Module |
F35 | Fuel System Control Module / Fuel Tank Zone Module |
F36 | – |
F37 | – |
F38 | Window Module |
F39 | Rear Closure |
F40 | Memory Seat Module |
F41 | Automatic Occupancy Sensor |
F42 | – |
F4B | – |
F44 | – |
F45 | Liftgate Motor |
F46 | Rear Heated Seats |
F47 | – |
F48 | – |
F49 | – |
F50 | – |
F51 | – |
F52 | Semi-Active Dampening System Module |
F53 | – |
F54 | External Object Calculating Remote System / Side Blind Zone Alert |
F55 | – |
F56 | Universal Remote System / Overhead Console / Humidity / Rain Sensor |
F57 | Hands Free Closure Release |
Circuit Breakers | |
CB1 | – |
CB2 | – |
CB3 | Rear Auxiliary Power Outlet |
Relays | |
K1 | – |
K2 | – |
2024
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2024)
№ | Usage |
---|---|
F1 | Body Control Module 6 |
F2 | Diagnostic Link |
F3 | Electric Steering Column Lock |
F4 | Rear USB Port |
F5 | Rear Sunshade / Park/Reverse/Neutral/Drive/Low |
F6 | Heating, Ventilation, and Air Conditioning |
F7 | Body Control Module 3 |
F8 | Adaptive Front Lighting System |
F9 | Right Front Heated Seat |
F10 | Airbag |
F11 | – |
F12 | Amplifier |
F13 | Body Control Module 7 |
F14 | Left Front Heated Seat |
F15 | – |
F16 | Sunroof |
F17 | Communication Gateway Module |
F18 | Instrument Cluster / Head Up Display |
FI 9 | Body Control Module 1 |
F20 | Wireless Charger Module |
F21 | Body Control Module 4 |
F22 | Infotainment |
F23 | Body Control Module 2 |
F24 | Park/Reverse/Neutral/Drive/Low |
F25 | Park Assist / Shifter Interface Board |
F26 | Communications Integration Module |
F27 | Video |
F28 | Radio / Heating, Ventilation, and Air Conditioning Display |
F29 | Radio |
F30 | Steering Wheel Controls |
F31 | Front Blower |
F32 | DC AC Inverter |
F33 | Driver Power Seat |
F34 | Passenger Power Seat |
F35 | Feed / Body Control Module 4 |
F36 | Electric Power Steering |
F37 | Power Outlet / Wireless Charger / Accessory |
F38 | Body Control Module 8 |
F39 | – |
Circuit Breakers / Minifuse | |
F40 | – |
F41 | – |
F42 | Auxiliary Power Outlet (CB) / Lighter (Minifuse) |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
№ | Usage |
---|---|
F1 | Antilock Brake System Pump |
F2 | Starter 1 |
F3 | DC DC Transformer 1 |
F4 | – |
F5 | DC DC Transformer 2 |
F6 | – |
F7 | – |
F8 | – |
F9 | Vacuum Pump |
F10 | Front Wiper |
F11 | – |
F12 | – |
F13 | Starter 2 |
F14 | – |
F15 | Rear Wiper |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
F22 | Electronic Brake Control Module |
F23 | Parking/Trailer Lamps |
F24 | Right Trailer Stoplamp / Turnlamp |
F25 | Steering Column Lock |
F26 | – |
F27 | Left Trailer Stoplamp / Turnlamp |
F28 | – |
F29 | – |
F30 | Washer Pump |
F31 | – |
F32 | Left Low-Beam Headlamp |
F33 | Daylight Running Lamps |
F34 | Horn |
F35 | – |
F36 | – |
F37 | Right Low-Beam Headlamp |
F38 | Automatic Headlamp Leveling Motor |
F39 | Transmission Control Module |
F40 | Left Rear Bus Electrical Center / lgnition |
F41 | Instrument Cluster |
F42 | Heating, Ventilation, and Air Conditioning |
F43 | Head-up Display / Reflective Light Auxiliary Display |
F44 | Communication Gateway Module / Run/ Crank |
F45 | – |
F46 | – |
F47 | – |
F48 | – |
F49 | Interior Rearview Mirror |
F50 | Fuel Tank Zone Module / Shifter Interface Board / Run/Crank |
F51 | Heated Steering Wheel |
F52 | Folding Seats Switch |
F53 | Coolant Pump |
F54 | – |
F55 | Air Conditioning Clutch |
F56 | – |
F57 | Engine Control Module / Ignition |
F58 | Transmission Control Module / lgnition |
F59 | Engine Control Module Battery |
F60 | Engine Control Module – Even |
F61 | O2 Sensor 1 / Air Flow |
F62 | – |
F63 | O2 Sensor 2 / Canister / Engine Oil / Turbo |
F64 | Aerosh utter |
F65 | Engine Control Module Powertrain 1 |
F66 | Engine Control Module Powertrain 2 |
F67 | Engine Control Module – Odd |
F68 | – |
F69 | – |
F70 | – |
F71 | – |
F72 | – |
F73 | – |
F74 | – |
F75 | – |
F76 | – |
F77 | – |
Relays | |
K1 | Starter 1 |
K2 | Run/Crank |
K3 | Vacuum Pump |
K4 | – |
K5 | Air Conditioning |
K6 | – |
K7 | Engine Control Module |
K8 | Folding Seats |
K9 | – |
K10 | Starter 2 |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2024)
№ | Usage |
---|---|
F1 | – |
F2 | Trailer |
F3 | Folding Seats |
F4 | Rear Blower |
F5 | Rear Drive Control |
F6 | – |
F7 | Right Window |
F8 | Rear Defogger |
F9 | Left Window |
F10 | – |
F11 | Trailer Reverse |
F12 | USB Port – Third Row Seats |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – /Air Quality Sensor |
F18 | – |
F19 | Ventilated Seats/ Massage |
F20 | – |
F21 | – |
F22 | – |
F23 | – |
F24 | Lumbar |
F25 | – |
F26 | Trailer Brake Lamps |
F27 | Massage |
F28 | Passive Entry / Passive Start |
F29 | – |
F30 | Canister Vent |
F31 | – |
F32 | Heated Mirrors |
F33 | USB Port – Second Row Seats |
F34 | Liftgate Module |
F35 | Fuel System Control Module / Fuel Tank Zone Module |
F36 | – |
F37 | – |
F38 | Window Module |
F39 | Rear Closure |
F40 | Memory Seat Module |
F41 | Automatic Occupancy Sensor |
F42 | – |
F43 | – |
F44 | – |
F45 | Liftgate Motor |
F46 | Rear Heated Seats |
F47 | – |
F48 | – |
F49 | – |
F50 | – |
F51 | – |
F52 | Semi-Active Dampening System Module |
F53 | – |
F54 | External Object Calculating Remote System / Side Blind Zone Alert |
F55 | – |
F56 | Universal Remote System / Overhead Console / Humidity / Rain Sensor |
F57 | Hands Free Closure Release |
Circuit Breakers | |
CB1 | – |
CB2 | – |
CB3 | Rear Auxiliary Power Outlet |
Relays | |
K1 | – |
K2 | – |
Conclusion
The Chevrolet Traverse (2022-2024) combines functionality with style, making it a family-friendly SUV. Regular checks of the fuse box and relays help ensure its dependable performance.
