Find fuse box and relay locations for the 2021-2024 Chevrolet TrailBlazer, with diagrams for reference. Key guide to maintain reliable electrical system performance.
The Chevrolet TrailBlazer (2021-2024) is a compact SUV with a sporty, modern design that appeals to drivers seeking a blend of practicality and style. Available in multiple trims, including the sporty RS and off-road-oriented ACTIV, the TrailBlazer offers both two-tone and monochromatic options, emphasizing its versatile and youthful character. With ample interior space, it comfortably accommodates five passengers and offers flexible cargo options, making it ideal for urban driving and weekend getaways.
Supporting the TrailBlazer’s advanced technology and convenience features, the electrical system depends on well-placed fuse boxes and relays. The main fuse box is located under the hood, while a secondary fuse box is typically found within the cabin, near the driver’s side. Relays within these boxes control high-power functions, such as the starter, headlights, and cooling systems, ensuring these essential features work seamlessly. Routine inspections of the fuse box and relays help maintain the vehicle’s reliability and performance.
MUST READ: DYI – How to Check Car Fuses?
(2021-2024) Chevrolet TrailBlazer fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet TrailBlazer 2021-2024 fuse assignment
Chevrolet TrailBlazer Year of production: 2021, 2022, 2023, 2023

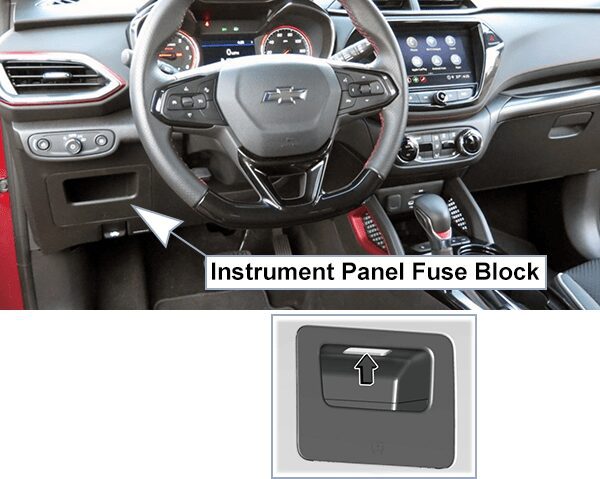

Instrument Panel Fuse Block:
The instrumental panel fuse block is situated beneath the driver’s side panel, close to the vehicle’s front. In order to extract the fuses, there is a provision positioned on the top of the cover; simply press on it and the storage compartment can be dislodged from the panel.

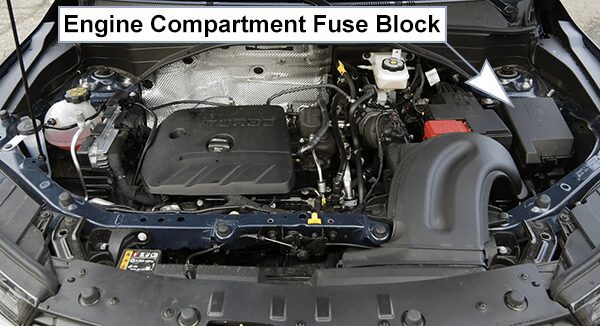

Engine Compartment Fuse Block:
To remove the fuse block cover, squeeze the clip and lift it up.

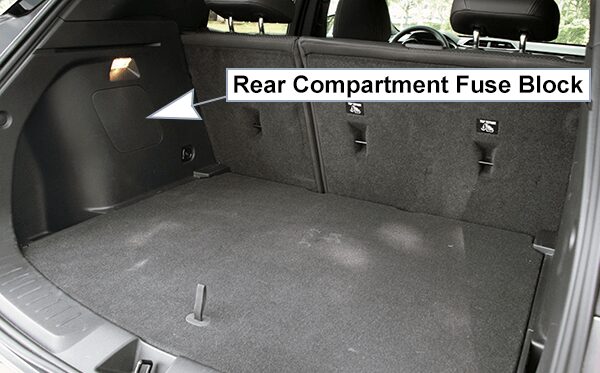

Rear Compartment Fuse Block:
The rear compartment fuse block is behind a cover on the driver side of the rear compartment. To access the fuses, remove the cover.
Fuse Box Diagrams
2021

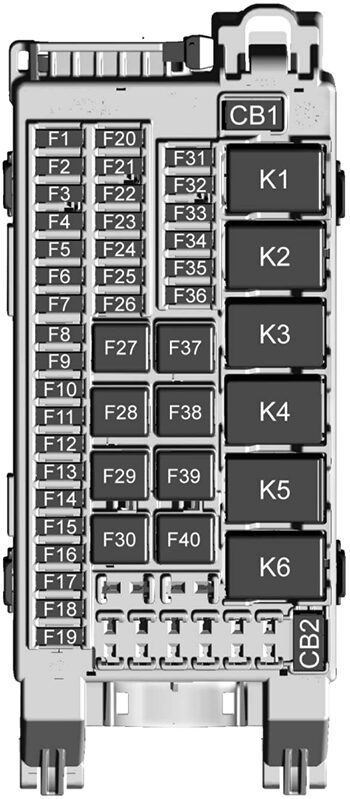

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2021)
№ | Usage |
---|---|
F01 | LUMBAR |
F02 | SUNROOF |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST_WHL_HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR |
F12 | PARK_ASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBAT_1 |
F17 | SWC BKLT |
F18 | – |
F19 | – |
F20 | CLOCK SPRING |
F21 | OCC SEN |
F22 | DLC |
F23 | SDM |
F24 | ICN_SW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT DC-DC MT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | SEC FUSE-1 |
F37 | PWR SEAT DR |
F38 | DC-DC 400W DC-DC 200W |
F39 | – |
F40 | HVAC_BLOWER |
Circuit Breakers | |
CB1 | N/A |
CB2 | APO |
Relays | |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | – |
K05 | – |
K06 | – |

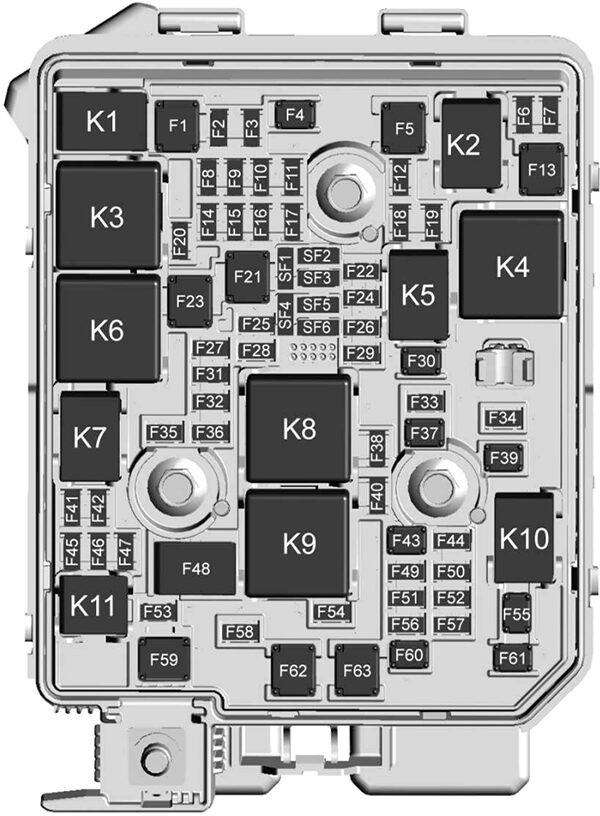

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2021)
№ | Usage |
---|---|
Micro Fuses | |
F02 | CLSTR |
F03 | – |
F06 | OSRVM DEFOG |
F07 | L/CATE RELSE |
F08 | AHL AFL MTR1 |
F09 | VENT SEAT |
F10 | – |
F11 | AHL AFL MTR2 |
F12 | – |
F14 | ISRVM REAR VIEW CAMERA |
F15 | DEFC MDL RUN/CRNK |
F16 | HDLP LVL |
F17 | N/A – DSL |
F18 | FTZM |
F19 | – |
F20 | – |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL- GAS ECM PT3 – DSL |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | AUX WATER PUMP |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | – |
F47 | ECM BATT – GAS ECM BATT – DSL |
F49 | HDLP HI LH |
F50 | – |
F51 | HDLP HI RH |
F52 | NOX SOOT SNSR – DSL TRLR ST/TRN RT – TRLR |
F53 | – |
F54 | PEPS |
F56 | CNSTR VENT SOL – GAS DEFC MDL – DSL |
F57 | DEFC MDL |
F58 | TCM BATT |
SF1-SF6 | SPARE FUSES |
ET Fuses | |
F48 | GLOW PLUG |
J-Case Fuses | |
F01 | – |
F05 | – |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | – |
F62 | FUEL HTR DSL |
F63 | – |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | – |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | DEF HTR |
F61 | – |
Mini Relays | |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | FUEL HTR DSL |
HC Micro Relays | |
K01 | – |
K02 | – |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | – |
Ultra Micro Relays | |
K11 | – |

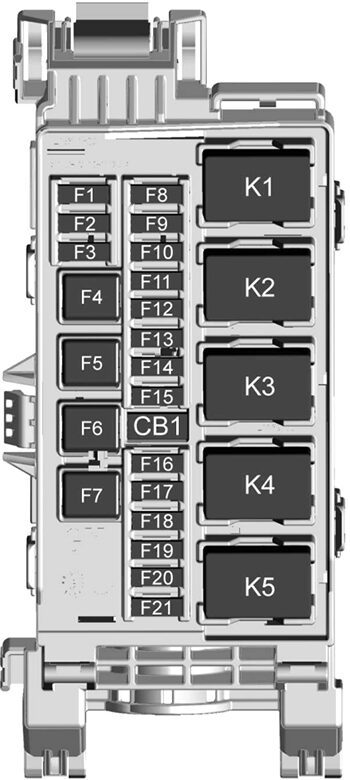

Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2021)
№ | Usage |
---|---|
F01 | – |
F02 | RDCM ELEC |
F03 | – |
F04 | – |
F05 | DC/AC INVERTER |
F06 | – |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | – |
F10 | RR SEAT HEAT PWR2 |
F11 | – |
F12 | – |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
Circuit Breakers | |
CB1 | – |
Relays | |
K01 | – |
K02 | – |
K03 | – |
K04 | – |
K05 | – |
2022
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2022)
№ | Usage |
---|---|
F01 | LUMBAR |
F02 | SUNROOF |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST_WHL_HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR (ERA) |
F12 | PARKASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBAT_1 |
F17 | SWC BKLT |
F18 | – |
F19 | – |
F20 | CLOCK SPRING |
F21 | OCC SEN |
F22 | DLC |
F23 | SDM |
F24 | ICN_SW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | ONSTAR (TCP) |
F37 | PWR SEAT DR |
F38 | DC-DC_400W |
F39 | SEC FUSE-1 |
F40 | HVAC_BLOWER |
Circuit Breakers | |
CB1 | – |
CB2 | APO |
Relays | |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | – |
K05 | – |
K06 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022)
№ | Usage |
---|---|
Micro Fuses | |
F02 | CLSTR |
F03 | – |
F06 | OSRVM DEFOG |
F07 | L/GATE RELSE |
F08 | AHL AFL MTR1 |
F09 | VENT SEAT |
F10 | – |
F11 | AHL AFL MTR2 |
F12 | – |
F14 | ISRVM REAR VIEW CAMERA |
F15 | DEFC MDL RUN/CRNK |
F16 | HDLP LVL |
F17 | N/A – DSL |
F18 | FTZM |
F19 | – |
F20 | – |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL – GAS ECM PT3 – DSL |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | AUX WATER PUMP |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | – |
F47 | ECM BATT – GAS ECM BATT – DSL |
F49 | HDLP HI LH |
F50 | – |
F51 | HDLP HI RH |
F52 | NOX SOOT SNSR – DSL TRLR ST/TRN RT – TRLR |
F53 | N/A |
F54 | PEPS |
F56 | CNSTR VENT SOL – GAS DEFC MDL – DSL |
F57 | DEFC MDL-DSL |
F58 | TCM BAH |
SF1-SF6 | SPARE FUSES |
ET Fuses | |
F48 | GLOW PLUG |
J-Case Fuses | |
F01 | – |
F05 | – |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | – |
F62 | FUEL HTR DSL |
F63 | – |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | – |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | DEF HTR |
F61 | – |
Mini Relays | |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | FUEL HTR DSL |
HC Micro Relays | |
K01 | – |
K02 | – |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | – |
Ultra Micro Relays | |
K11 | – |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2022)
№ | Usage |
---|---|
F01 | – |
F02 | RDCM ELEC |
F03 | – |
F04 | – |
F05 | DC/AC INVERTER |
F06 | – |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | – |
F10 | RR SEAT HEAT PWR2 |
F11 | – |
F12 | – |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
Circuit Breakers | |
CB1 | – |
Relays | |
K01 | – |
K02 | – |
K03 | – |
K04 | – |
K05 | – |
2023
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2023)
№ | Usage |
---|---|
F01 | LUMBAR |
F02 | SUNROOF |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST_WHL_HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR (ERA) |
F12 | PARK_ASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBAT_1 |
F17 | SWC BKLT |
F18 | – |
F19 | – |
F20 | CLOCK SPRING |
F21 | OCC SEN |
F22 | DLC |
F23 | SDM |
F24 | IGN_SW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | ONSTAR (TCP) |
F37 | PWR SEAT DR |
F38 | DC-DC_400W |
F39 | SEC FUSE-1 |
F40 | HVAC_BLOWER |
Circuit Breakers | |
CB1 | – |
CB2 | APO |
Relays | |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | – |
K05 | – |
K06 | – |
Engine Compartment Fuse Block
Type 1List of fuses in the Engine Compartment Fuse Block (Type 1) (2023)
№ | Usage |
---|---|
Micro Fuses | |
F02 | CLSTR |
F03 | – |
F06 | OSRVM DEFOG |
F07 | L/CATE RELSE |
F08 | AHL AFL MTR1 |
F09 | VENT SEAT |
F10 | – |
F11 | AHL AFL MTR2 |
F12 | – |
F14 | ISRVM REAR VIEW CAMERA |
F15 | DEFC MDL RUN/CRNK |
F16 | HDLP LVL |
F17 | N/A – DSL |
F18 | FTZM |
F19 | – |
F20 | – |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL – GAS ECM PT3 – DSL |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | AUX WATER PUMP |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | – |
F47 | ECM BATT – GAS ECM BATT – DSL |
F49 | HDLP HI LH |
F50 | – |
F51 | HDLP HI RH |
F52 | NOX SOOT SNSR – DSL TRLR ST/TRN RT – TRLR |
F5B | – |
F54 | PEPS |
F56 | CNSTR VENT SOL – GAS DEFC MDL – DSL |
F57 | DEFC MDL-DSL |
F58 | TCM BATT |
SF1-SF6 | SPARE FUSES |
ET Fuses | |
F48 | GLOW PLUG |
J-Case Fuses | |
F01 | – |
F05 | – |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | – |
F62 | FUEL HTR DSL |
F63 | N/A |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | – |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | DEF HTR |
F61 | – |
Mini Relays | |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | FUEL HTR DSL |
HC Micro Relays | |
K01 | – |
K02 | – |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | – |
Ultra Micro Relays | |
K11 | – |
Type 2List of fuses in the Engine Compartment Fuse Block (Type 2) (2023)
№ | Usage |
---|---|
Micro Fuses | |
F02 | CLSTR |
F03 | – |
F06 | OSRVM DEFOG |
F07 | L/GATE RELSE |
F08 | – |
F09 | VENT SEAT |
F10 | – |
F11 | – |
F12 | – |
F14 | ISRVM REAR VIEW CAMERA |
F15 | – |
F16 | HDLP LVL |
F17 | – |
F18 | FTZM |
F19 | – |
F20 | – |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL – GAS |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | – |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | – |
F47 | ECM BATT – GAS |
F49 | HDLP HI LH |
F50 | – |
F51 | HDLP HI RH |
F52 | TRLR ST/TRN RT – TRLR |
F53 | AUX WATER PUMP |
F54 | PEPS |
F56 | CNSTR VENT SOL – GAS / DEFC |
F57 | – |
F58 | TCM BATT |
SF1-SF6 | SPARE FUSES |
ET Fuses | |
F48 | – |
J-Case Fuses | |
F01 | – |
F05 | – |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | – |
F62 | – |
F63 | – |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | – |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | – |
F61 | – |
Mini Relays | |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | – |
HC Micro Relays | |
K01 | – |
K02 | – |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | – |
Ultra Micro Relays | |
K11 | – |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2023)
№ | Usage |
---|---|
F01 | – |
F02 | RDCM ELEC |
F03 | – |
F04 | – |
F05 | DC/AC INVERTER |
F06 | – |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | – |
F10 | RR SEAT HEAT PWR2 |
F11 | – |
F12 | – |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
Circuit Breakers | |
CB1 | – |
Relays | |
K01 | – |
K02 | – |
K03 | – |
K04 | – |
K05 | – |
2024
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2024)
№ | Usage |
---|---|
F01 | LUMBAR |
F02 | SUNROOF |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST WFHL HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR (ERA) |
F12 | PARK_ASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBAT_1 |
F17 | SWC BKLT |
F18 | – |
F19 | – |
F20 | CLOCK SPRING |
F21 | OCC SEN |
F22 | DLC |
F23 | SDM |
F24 | IGN_SW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | ONSTAR (TCP) |
F37 | PWR SEAT DR |
F38 | DC-DC_400W |
F39 | SEC FUSE-1 |
F40 | HVAC_BLOWER |
Circuit Breakers | |
CB1 | – |
CB2 | APO |
Relays | |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | – |
K05 | – |
K06 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
№ | Usage |
---|---|
Micro Fuses | |
F02 | CLSTR |
F03 | – |
F06 | OSRVM DEFOG |
F07 | L/CATE RELSE |
F08 | – |
F09 | VENT SEAT |
F10 | – |
F11 | – |
F12 | – |
F14 | ISRVM REAR VIEW CAMERA |
F15 | – |
F16 | HDLP LVL |
F17 | – |
F18 | FTZM |
F19 | – |
F20 | – |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL – GAS |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | – |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | – |
F47 | ECM BATT – GAS |
F49 | HDLP HI LH |
F50 | – |
F51 | HDLP HI RH |
F52 | TRLR ST/TRN RT – TRLR |
F53 | AUX WATER PUMP |
F54 | PEPS |
F56 | CNSTR VENT SOL – GAS |
F57 | – |
F58 | TCM BATT |
SF1-SF6 | SPARE FUSES |
ET Fuses | |
F48 | – |
J-Case Fuses | |
F01 | – |
F05 | – |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | – |
F62 | – |
F63 | – |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | – |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | – |
F61 | – |
Mini Relays | |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | – |
HC Micro Relays | |
K01 | – |
K02 | – |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | – |
Ultra Micro Relays | |
K11 | – |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2024)
№ | Usage |
---|---|
F01 | – |
F02 | RDCM ELEC |
F03 | – |
F04 | – |
F05 | DC/AC INVERTER |
F06 | – |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | – |
F10 | RR SEAT HEAT PWR2 |
F11 | – |
F12 | – |
F13 | – |
F14 | – |
F15 | – |
F16 | – |
F17 | – |
F18 | – |
F19 | – |
F20 | – |
F21 | – |
Circuit Breakers | |
CB1 | – |
Relays | |
K01 | – |
K02 | – |
K03 | – |
K04 | – |
K05 | – |
Conclusion
The Chevrolet TrailBlazer (2021-2024) offers style and versatility for compact SUV enthusiasts. Proper maintenance of its fuse box and relays ensures dependable operation of all key systems.
