Find the fuse box and relay locations for the Chevrolet Tahoe/Suburban 2021-2024. Detailed diagrams to ensure smooth and reliable electrical system operation.
The Chevrolet Tahoe and Suburban 2021-2024 are full-size SUVs that embody strength, luxury, and versatility. The Tahoe offers seating for up to nine passengers, while the Suburban provides even more interior space and cargo capacity. Both models feature a bold design, powerful engine options, and advanced technology to meet the needs of families, adventurers, and professionals alike. With their robust towing capabilities and smooth driving dynamics, they remain popular for both urban and off-road use.
For efficient operation of the electrical systems in these vehicles, the fuse box and relay are integral. The fuse box in both the Tahoe and Suburban is located under the hood, usually near the driver’s side, with additional fuse panels found inside the cabin, near the dashboard or under the glove compartment. These components control crucial systems such as the lighting, air conditioning, and infotainment system. Relays are responsible for higher-power systems like the starter and fuel pump. Regular inspection and maintenance of the fuse box and relay are essential for ensuring uninterrupted performance of all vehicle systems.
MUST READ: DYI – How to Check Car Fuses?
(2021-2024) Chevrolet Tahoe / Suburban fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Tahoe / Suburban 2021-2024 fuse assignment
Chevrolet Tahoe / Suburban Year of production: 2021, 2022, 2023, 2024

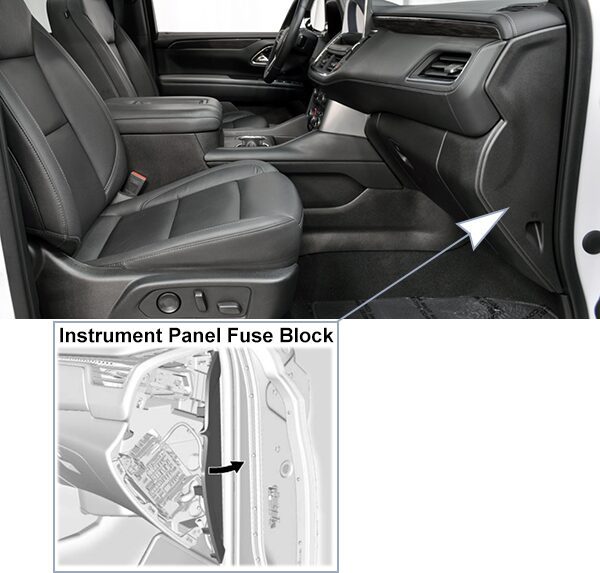

Instrument Panel Fuse Block:
The fuse block for the instrument panel can be located at the side of the instrument panel near the passenger’s seat. By pulling off the cover, you will have access to the fuse block. A fuse puller is stored on the right side of the instrument panel cap, which you can use for removing the fuses. Furthermore, the relays are situated at the back of the fuse block. Access to these relays can be gained by pressing the tabs and removing the fuse block altogether.

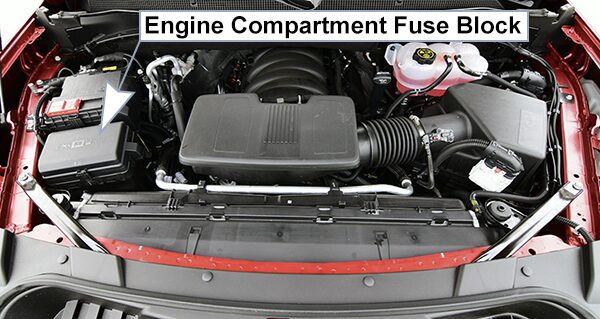

Engine Compartment Fuse Block:
The fuse block for the engine compartment is located in the engine bay, on the driver’s side of the car. To gain access to the fuse block, lift the cover.

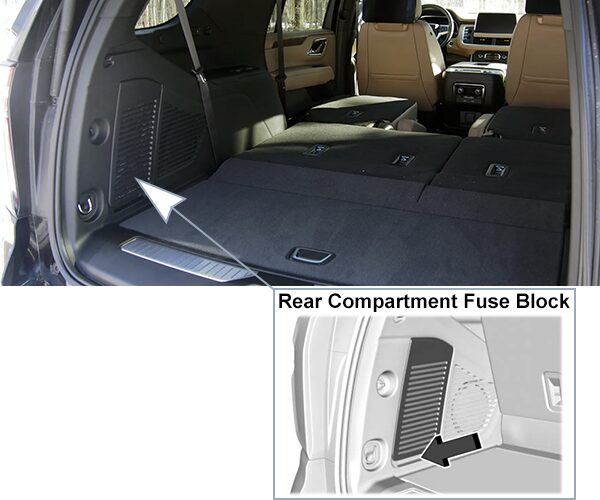

Rear Compartment Fuse Block:
To access the rear compartment fuse block, move to the left side of the car’s compartment. There exists a panel in front of the fuse block; should you require access, gently pull the panel outward using the finger access slot found on the rear edge of the panel.
Fuse Box Diagrams
2021

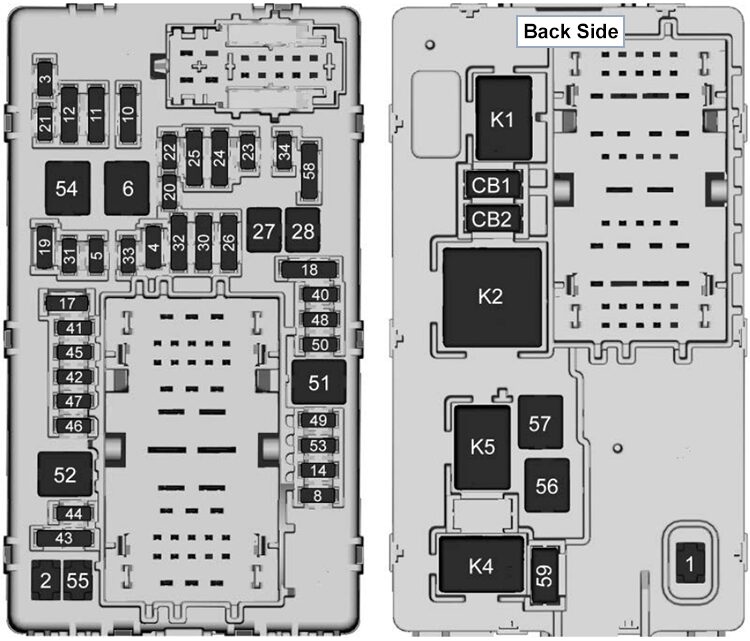

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2021)
| № | Usage |
|---|---|
| F1 | Right door |
| F2 | Left door |
| F3 | UGDO / OHC / camera |
| F4 | BCM 2 |
| F5 | Displays |
| F6 | Front blower |
| F8 | Left door panel |
| F10 | Tilt / column lock |
| F11 | USB / DLC |
| F12 | CGM / onstar |
| F14 | Right door panel |
| F17 | Steering wheel control |
| F18 | AVM 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated wheel |
| F23 | – |
| F24 | – |
| F25 | SEO / UPFITTER |
| F26 | USB / SEO RAP |
| F27 | APO / RAP |
| F28 | Spare |
| F30 | SDM AOS |
| F31 | BCM 3 |
| F32 | CSM / USB |
| F33 | BCM 4 |
| F34 | Out of park |
| F40 | – |
| F41 | – |
| F42 | Electric park brake switch |
| F43 | RSE |
| F44 | AVM 2 |
| F45 | Radio module |
| F46 | BCM 1A |
| F47 | – |
| F48 | TCM |
| F49 | BCM 1 |
| F50 | DMS |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 |
| F56 | DC/DC CNV BATT 1 |
| F57 | DC/DC CNV BATT 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB1 | APO 1 |
| CB2 | APO 2 |
| Relays | |
| K1 | – |
| K2 | RAP/ACCY 1 |
| K4 | RAP/ACCY 2 |
| K5 | – |

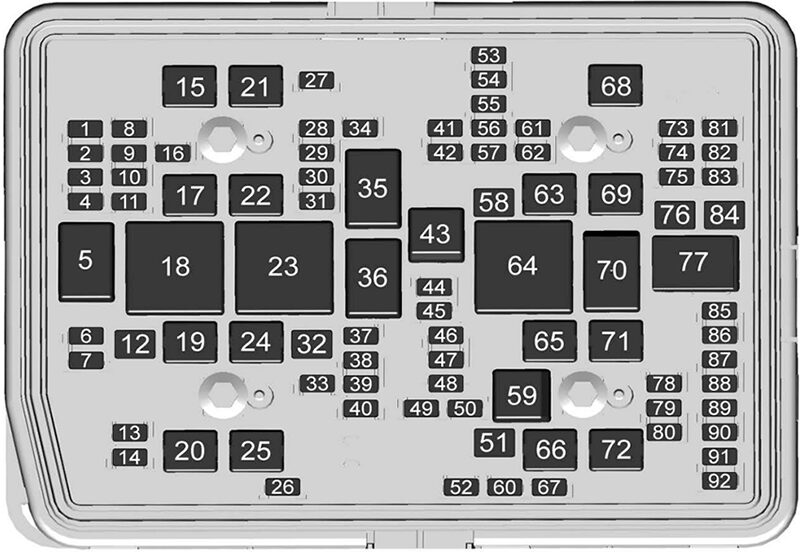

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2021)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 6 | ELM 7 |
| 7 | ELM 4 |
| 8 | – |
| 9 | ELM 5 |
| 10 | ELM 6 |
| 11 | Spare |
| 12 | – |
| 13 | Washer front |
| 14 | Washer rear |
| 15 | Rec 2 |
| 16 | Power sounder |
| 17 | Spare |
| 19 | DC/AC inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | EBCM |
| 25 | REC 1 |
| 26 | Camera wash |
| 27 | Horn |
| 28 | Headlamp RT |
| 29 | Headlamp LT |
| 30 | ELM 3 |
| 31 | ELM 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | OBD body |
| 38 | MISC body |
| 39 | Upfitter |
| 40 | MISC IP |
| 41 | Trailer parking lamps |
| 42 | Right taillamp |
| 44 | Trailer tow |
| 45 | Secondary axle motor |
| 46 | ECM Ignition |
| 47 | OBD engine |
| 48 | – |
| 49 | TCM |
| 50 | A/C clutch |
| 51 | TCCM |
| 52 | Front wiper |
| 53 | – |
| 54 | Left taillamps |
| 55 | Trailer back up lamp |
| 56 | SADS |
| 57 | Spare |
| 58 | Starter motor |
| 60 | AFM1 |
| 61 | ALC main |
| 62 | ICCM / CVS / DEF |
| 63 | Trailer brake |
| 65 | AUX UEC |
| 66 | Left cool fan motor |
| 67 | AFM2 |
| 68 | ALC motor |
| 69 | Starter pinion |
| 71 | Cool fan motor lower |
| 72 | Right cool fan motor / Lower |
| 73 | Left trailer stop turn lamp |
| 74 | TIM 2 |
| 75 | DEFC |
| 76 | ELEC RNG BDS |
| 78 | ECM |
| 79 | – |
| 80 | Cabin cool pump 17W |
| 81 | Right trailer stop turn lamp |
| 82 | TIM 1 |
| 83 | FTZM |
| 84 | Trailer battery |
| 85 | Engine |
| 86 | ECM |
| 87 | Injector B even |
| 88 | O2 B sensor |
| 89 | O2 A sensor |
| 90 | Injector A odd |
| 91 | ECM throttle control |
| 92 | Cool fan clutch AERO shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC inverter |
| 23 | – |
| 35 | Park lamp |
| 36 | Run/Crank |
| 43 | Secondary axle motor |
| 59 | A/C clutch |
| 64 | Starter motor |
| 70 | Starter pinion |
| 77 | Powertrain |

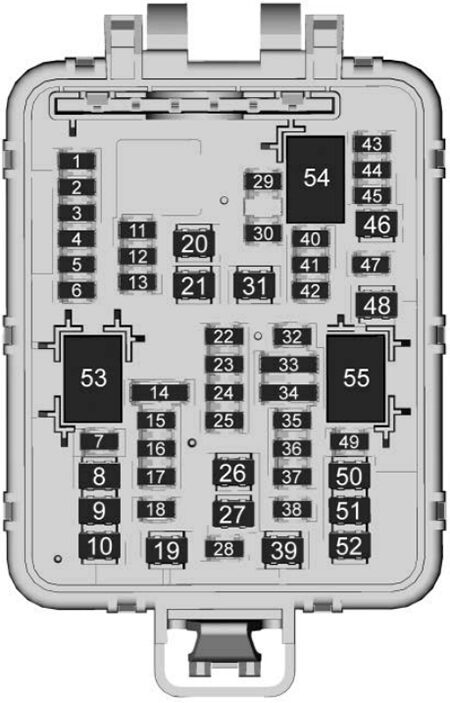

Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2021)
| № | Usage |
|---|---|
| F01 | RFA |
| F02 | WCM |
| F03 | Heated seat module row 1 (Battery 1) |
| F04 | MSM driver |
| F05 | – |
| F06 | – |
| F07 | Amp aux 2 |
| F08 | – |
| F09 | SEO UPFTR 2 |
| F10 | Motor seatbelt passenger |
| F11 | Power folding seat row 2 |
| F12 | GBS |
| F13 | – |
| F14 | – |
| F15 | Heated seat module row 1 (Battery 2) |
| FI 6 | RH CINCH latch |
| F17 | Memory seat module passenger |
| F18 | Rear wiper |
| F19 | Motor seatbelt driver |
| F20 | Rear defogger |
| F21 | – |
| F22 | Rear HVAC display control |
| F23 | EOCM |
| F24 | Amp aux 3 |
| F25 | OBS DET |
| F26 | RDCM |
| F27 | Amp aux 1 |
| F28 | VPM |
| F29 | – |
| F30 | – |
| F31 | Amp |
| F32 | – |
| F33 | ICCM |
| F34 | Heated seat module row 2 |
| F35 | HFCR |
| F36 | ELM |
| F37 | – |
| F38 | Power slide console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA |
| F44 | – |
| F45 | AFL AHL |
| F46 | Rear HVAC blower motor |
| F47 | LH CINCH latch |
| F48 | Power seat recline module |
| F49 | Lift glass |
| F50 | Driver power seat |
| F51 | Power liftgate module |
| F52 | Passenger power seat |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
2022
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2022)
| № | Usage |
|---|---|
| F1 | Right Door |
| F2 | Left Door |
| F3 | Universal Garage Door Opener (UGDO) / OnStar Hands-free Calling (OHC) / Camera |
| F4 | BCM 2 – Body Control Module 2 |
| F5 | Displays |
| F6 | Front Blower |
| F8 | Left Door Panel |
| F10 | Tilt/Column Lock |
| F11 | USB / Data Link Connector (DLC) |
| F12 | Central Gateway Module (CGM) / Onstar |
| F14 | Right Door Panel |
| F17 | Steering Wheel Control |
| F18 | AVM1 – Active Vibration Module 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Wheel |
| F23 | – |
| F24 | – |
| F25 | Special Equipment Option (SEO) / UPFITTER |
| F26 | USB / Special Equipment Option (SEO) Retained Accessory Power (RAP) |
| F27 | Auxiliary Power Outlet (APO) / Retained Accessory Power |
| F28 | Spare |
| F30 | SDM/AOS – Sensing and Diagnostic Module / Automatic Occupant Sensing |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | Center Stack Module (CSM) / USB |
| F33 | BCM 4 – Body Control Module 4 |
| F34 | Out of Park |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | RSE – Road Side Equipment |
| F44 | AVM 2 – Active Vibration Module 2 |
| F45 | Radio Module |
| F46 | BCM1A – Body Control Module 1A |
| F47 | – |
| F48 | TCM – Telematics Control Module |
| F49 | BCM 1 – Body Control Module 1 |
| F50 | DMS – Driver Monitoring System |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 – Auxiliary Power Outlet 3 |
| F56 | DC/DC CNV BATH – Direct Current / Direct Current Converter Battery 1 |
| F57 | DC/DC CNV BATT 2 – Direct Current / Direct Current Converter Battery 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB1 | APO 1 – Auxiliary Power Outlet 1 |
| CB2 | APO 2 – Auxiliary Power Outlet 2 |
| Relays | |
| K1 | – |
| K2 | RAP/ACCY1 – Retain Accessory Power / Accessory 1 |
| K4 | RAP/ACCY 2 – Retain Accessory Power / Accessory 2 |
| K5 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | – |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | Spare |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC2 – Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | Spare |
| 19 | DC/AC Inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | EBCM – Electronic Brake Control Module |
| 25 | REC1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | On Board Diagnostics (OBD) Body |
| 38 | MISC Body |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | TCM – Telematics Control Module |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | AFM1 – Active Fuel Management 1 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM/CVS/DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | AUX UEC – Auxiliary Underhood Electrical Center |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | ELEC RNG BDS |
| 78 | ECM – Engine Control Module |
| 79 | – |
| 80 | Cabin Cool Pump 17W |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Engine |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | – |
| 35 | Park Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2022)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row 1 (Battery 1) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux 2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Option Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS |
| F13 | – |
| F14 | – |
| F15 | Heated Seat Module Row 1 (Battery 2) |
| F16 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| F18 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux3 – Amplifier Auxiliary 3 |
| F25 | OBS DET |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Aux1 – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp – Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
2023
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2023)
| № | Usage |
|---|---|
| F1 | Right Door |
| F2 | Left Door |
| F3 | Universal Garage Door Opener (UGDO) / OnStar Hands-free Calling (OHC) / Camera |
| F4 | BCM2 – Body Control Module 2 |
| F5 | Displays |
| F6 | Front Blower |
| F8 | Left Door Panel |
| F10 | Tilt / Column Lock |
| F11 | USB / Data Link Connector (DLC) |
| F12 | Central Gateway Module (CGM) / Onstar |
| F14 | Right Door Panel |
| F17 | Steering Wheel Control |
| F18 | AVM1 – Active Vibration Module 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Wheel |
| F23 | – |
| F24 | – |
| F25 | Special Equipment Option (SEO) / UPFITTER |
| F26 | USB / Special Equipment Option (SEO) Retained Accessory Power (RAP) |
| F27 | Auxiliary Power Outlet (APO) / Retained Accessory Power |
| F28 | Spare |
| F30 | SDM/AOS – Sensing and Diagnostic Module / Automatic Occupant Sensing |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | Center Stack Module (CSMJ/USB |
| F33 | BCM 4 – Body Control Module 4 |
| F34 | Out of Park |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | RSE – Road Side Equipment |
| F44 | AVM 2 – Active Vibration Module 2 |
| F45 | Radio Module |
| F46 | BCM1A – Body Control Module 1A |
| F47 | – |
| F48 | TCM – Telematics Control Module |
| F49 | BCM 1 – Body Control Module 1 |
| F50 | DMS – Driver Monitoring System |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 – Auxiliary Power Outlet 3 |
| F56 | DC/DC CNV BATH – Direct Current / Direct Current Converter Battery 1 |
| F57 | DC/DC CNV BATT 2 – Direct Current / Direct Current Converter Battery 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB1 | APO 1 – Auxiliary Power Outlet 1 |
| CB2 | APO 2 – Auxiliary Power Outlet 2 |
| Relays | |
| K1 | – |
| K2 | RAP/ACCY1 – Retain Accessory Power / Accessory 1 |
| K4 | RAP/ACCY 2 – Retain Accessory Power / Accessory 2 |
| K5 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2023)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | – |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | Spare |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC2 – Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | Spare |
| 19 | DC/AC Inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | EBCM – Electronic Brake Control Module |
| 25 | REC1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | On Board Diagnostics (OBD) Body |
| 38 | MISC Body |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | TCM – Telematics Control Module |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | AFM1 – Active Fuel Management 1 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM/CVS/DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | AUX UEC – Auxiliary Underhood Electrical Center |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | ELEC RNG BDS |
| 78 | ECM – Engine Control Module |
| 79 | – |
| 80 | Cabin Cool Pump 17W |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Engine |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | – |
| 35 | Park Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2023)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row 1 (Battery 1) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Option Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS |
| F13 | – |
| F14 | – |
| F15 | Heated Seat Module Row 1 (Battery 2) |
| F16 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| F18 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux3 – Amplifier Auxiliary 3 |
| F25 | OBS DET |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Auxl – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp – Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS – Lift Glass |
2024
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2024)
| № | Usage |
|---|---|
| F1 | Right Door |
| F2 | Left Door |
| F3 | Universal Garage Door Opener (UGDO) / OnStar Hands-free Calling (OHC) / Camera |
| F4 | BCM 2 – Body Control Module 2 |
| F5 | Displays |
| F6 | Front Blower |
| F8 | Left Door Panel |
| F10 | Tilt/Column Lock |
| F11 | USB / Data Link Connector (DLC) |
| F12 | Central Gateway Module (CGM) / Onstar |
| F14 | Right Door Panel |
| F17 | Steering Wheel Control |
| F18 | AVM1 – Active Vibration Module 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Wheel |
| F23 | – |
| F24 | – |
| F25 | Special Equipment Option (SEO) / UPFITTER |
| F26 | USB / Special Equipment Option (SEO) Retained Accessory Power (RAP) |
| F27 | Auxiliary Power Outlet (APO) / Retained Accessory Power |
| F28 | Spare |
| F30 | SDM/AOS – Sensing and Diagnostic Module / Automatic Occupant Sensing |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | Center Stack Module (CSM) / USB |
| F33 | BCM 4 – Body Control Module 4 |
| F34 | Out of Park |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | RSE – Road Side Equipment |
| F44 | AVM 2 – Active Vibration Module 2 |
| F45 | Radio Module |
| F46 | BCM1A – Body Control Module 1A |
| F47 | – |
| F48 | TCM – Telematics Control Module |
| F49 | BCM 1 – Body Control Module 1 |
| F50 | DMS – Driver Monitoring System |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 – Auxiliary Power Outlet 3 |
| F56 | DC/DC CNV BATH – Direct Current / Direct Current Converter Battery 1 |
| F57 | DC/DC CNV BATT 2 – Direct Current / Direct Current Converter Battery 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB1 | APO 1 – Auxiliary Power Outlet 1 |
| CB2 | APO 2 – Auxiliary Power Outlet 2 |
| Relays | |
| K1 | – |
| K2 | RAP/ACCY1 – Retain Accessory Power / Accessory 1 |
| K4 | RAP/ACCY 2 – Retain Accessory Power / Accessory 2 |
| K5 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | – |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | Spare |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC2 – Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | Spare |
| 19 | DC/AC Inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | EBCM – Electronic Brake Control Module |
| 25 | REC1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | On Board Diagnostics (OBD) Body |
| 38 | MISC Body |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | TCM – Telematics Control Module |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | AFM1 – Active Fuel Management 1 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM/CVS/DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | AUX UEC – Auxiliary Underhood Electrical Center |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | ELEC RNG BDS |
| 78 | ECM – Engine Control Module |
| 79 | – |
| 80 | Cabin Cool Pump 17W |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Engine |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | – |
| 35 | Park Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2024)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row 1 (Battery 1) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Option Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS |
| F13 | – |
| F14 | – |
| FI 5 | Heated Seat Module Row 1 (Battery 2) |
| F16 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| F18 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux3 – Amplifier Auxiliary 3 |
| F25 | OBS DET |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Aux1 – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp – Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS – Lift Glass |
Conclusion
The 2021-2024 Chevrolet Tahoe and Suburban offer impressive capabilities and interior comfort, supported by a well-organized electrical system. Proper fuse box and relay maintenance ensures long-lasting reliability.
