(2003-2006) Chevrolet SSR fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet SSR 2003-2006 fuse assignment
- Cigar lighter (power outlet) fuses in the Chevrolet SSR are the fuses №. 15 (Auxiliary Power 2), №. 46 (Accessory Power Outlets) in the Floor console fuse block and №. 28 (2003-2004) or №. 16 (2005-2006) (Cigarette Lighter), №. 1 (2005-2006) (Auxiliary Power 2) in the Engine Compartment Fuse Box.
Year of production: from 2003, 2004, 2005, 2006
Floor Console Fuse Box
Fuse box location

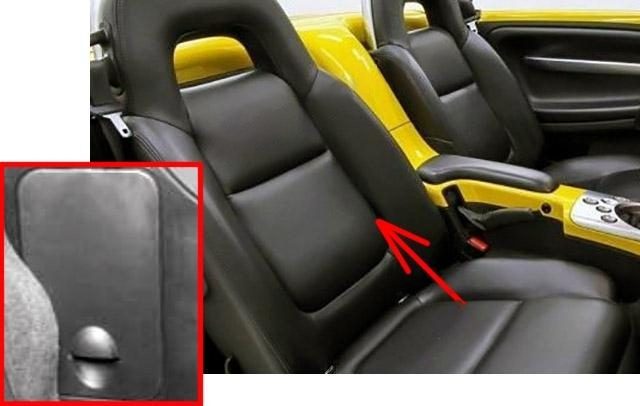

It is located on the center console between the two seats on the passenger’s side.
Move the passenger’s seat all the way forward and tilt the seatback forward, pull the handle on the fuse block cover toward you and then slide it to the side. You will then be able to remove the cover completely.

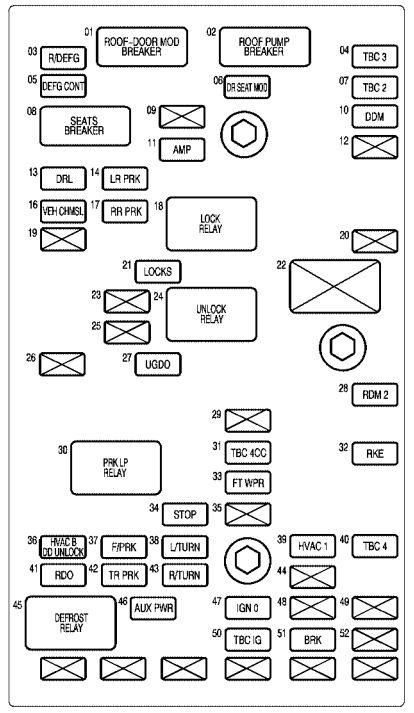

Fuse box diagram
Assignment of the fuses and relay in the Floor console fuse block
| № | Usage |
|---|---|
| 3 | Rear Window Defogger |
| 4 | Truck Body Controller |
| 5 | Rear Window Defogger |
| 6 | Driver Seat Module |
| 7 | Truck Body Controller |
| 9 | Blank |
| 10 | Driver’s Door Module, Power Mirrors |
| 11 | Amplifier |
| 12 | Blank |
| 13 | Daytime Running Lamps (DRL) |
| 14 | Driver’s Side Rear Parking Lamp |
| 15 | Auxiliary Power 2 |
| 16 | Center High-Mounted Stop Lamp |
| 17 | Passenger’s Side Rear Parking Lamp |
| 19 | Blank |
| 20 | Blank |
| 21 | Locks |
| 22 | Blank |
| 23 | Blank |
| 25 | Blank |
| 26 | Blank |
| 27 | HomeLink System |
| 28 | Roof Door Module |
| 29 | Transmission Control Module |
| 31 | Truck Body Controller |
| 32 | Remote Keyless Entry (RKE) |
| 33 | Windshield Wipers |
| 34 | Stoplamps |
| 35 | Blank |
| 36 | Climate Control System, Driver’s Door Unlock |
| 37 | Front Parking Lamps |
| 38 | Driver’s Side Turn Signal |
| 39 | Climate Control System |
| 40 | Truck Body Controller |
| 41 | Radio |
| 42 | Trailer Parking Lamps |
| 43 | Passenger’s Side Turn Signal |
| 44 | Blank |
| 46 | Accessory Power Outlets |
| 47 | Ignition |
| 48 | Blank |
| 49 | Blank |
| 50 | Truck Body Controller, Ignition |
| 51 | Brakes |
| 52 | Blank |
| Relays | |
| 18 | Locks |
| 24 | Unlock |
| 30 | Parking Lamps |
| 45 | Rear Window Defogger, Outside Power Heated Mirrors |
| Circuit Breaker | |
| 1 | Roof & Door Module |
| 2 | Roof Pump |
| 8 | Power Seats |
Engine Compartment Fuse Box
Fuse box location

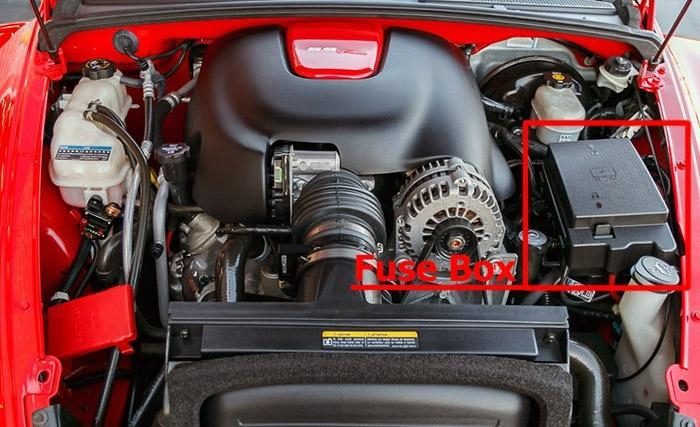

It is located in the engine compartment (on the driver’s side), under two covers.

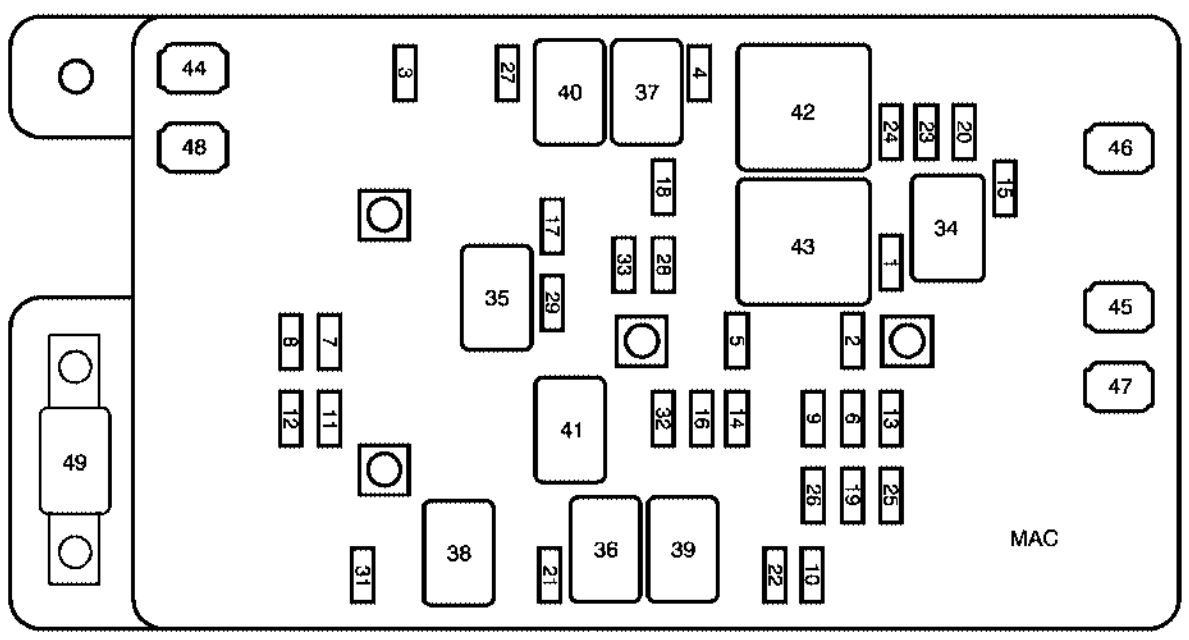

Fuse box diagram (2003, 2004)
Assignment of the fuses and relay in the Engine Compartment (2003, 2004)
| № | Usage |
|---|---|
| 1 | Air Conditioning |
| 2 | Automatic Transmission Shift Lock Control System |
| 3 | Canister, Fuel System |
| 4 | Ignition |
| 5 | Starter |
| 6 | Ignition |
| 7 | Driver’s Side High Beam Headlamp |
| 8 | Passenger’s Side High Beam Headlamp |
| 9 | Ignition |
| 10 | Instrument Panel Cluster, Driver Information Center (DIC) |
| 11 | Driver’s Side Low Beam Headlamp |
| 12 | Passenger’s Side Low Beam Headlamp |
| 13 | Powertrain Control Module (PCM) |
| 14 | Air Bag System |
| 15 | Truck Body Controller |
| 16 | Truck Body Control, Ignition |
| 17 | Driver’s Side Stoplamp/Turn Signals |
| 18 | Passenger’s Side Stoplamp/Turn Signals |
| 19 | Back-up Lamps |
| 20 | Throttle Actuator Control (TAC) |
| 21 | Fog Lamps |
| 22 | Horn |
| 23 | Injector A |
| 24 | Injector B |
| 25 | Oxygen Sensor A |
| 26 | Oxygen Sensor B |
| 27 | Windshield Washer |
| 28 | Cigarette Lighter |
| 29 | Powertrain Control Module (PCM) |
| 30 | Blank |
| 31 | Cargo Cover Release |
| 32 | Hazard Warning Flashers |
| 33 | Stoplamps |
| 44 | Engine Cooling Fan |
| 45 | Climate Control Fan |
| 46 | Ignition A |
| 47 | Ignition B |
| 48 | Anti-lock Brake System (ABS) |
| 49 | Body Fuse |
| Relays | |
| 34 | Air Conditioning |
| 35 | Fuel Pump |
| 36 | Fog Lamps |
| 37 | High Beam Headlamps |
| 38 | Cargo Cover Release |
| 39 | Horn |
| 40 | Windshield Washer |
| 41 | Headlamp Driver Module |
| 42 | Ignition |
| 43 | Starter |

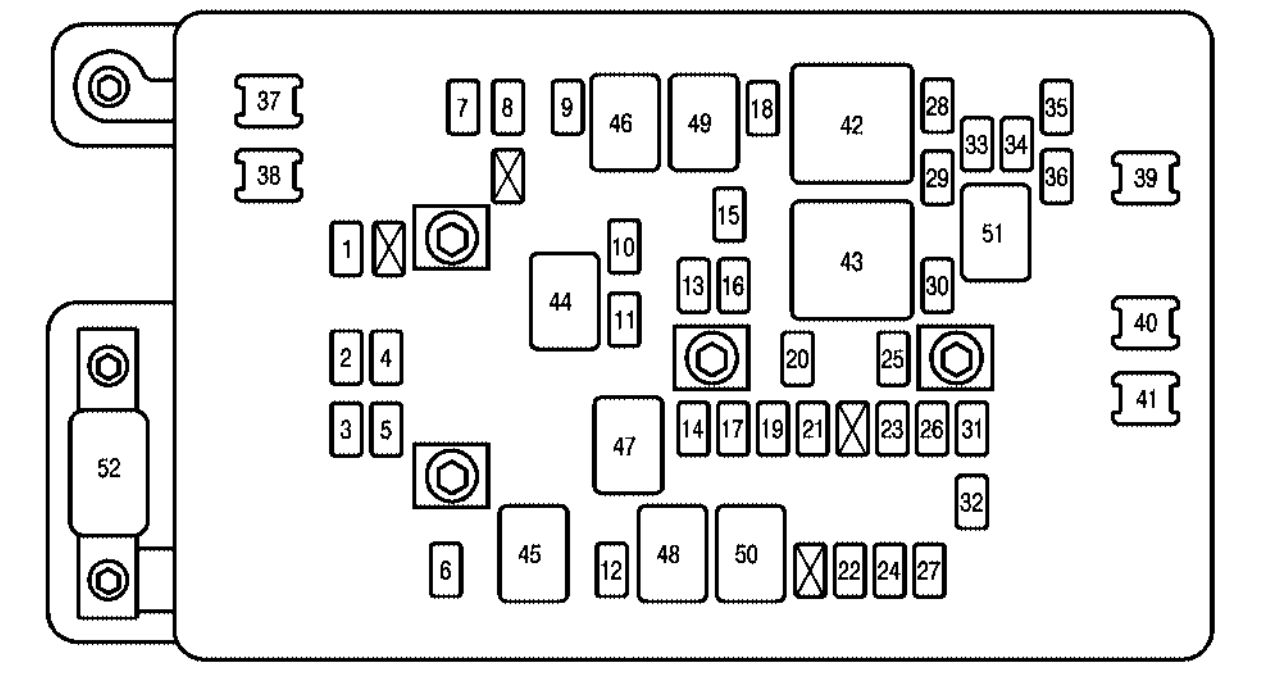

Fuse box diagram (2005, 2006)
Assignment of the fuses and relay in the Engine Compartment (2005, 2006)
| № | Usage |
|---|---|
| 1 | Auxiliary Power 2 |
| 2 | Passenger’s Side High Beam Headlamp |
| 3 | Passenger’s Side Low Beam Headlamp |
| 4 | Driver’s Side High Beam Headlamp |
| 5 | Driver’s Side Low Beam Headlamp |
| 6 | Cargo Cover Release |
| 7 | Transmission Control Module/Canister |
| 8 | Truck Body Controller |
| 9 | Windshield Washer |
| 10 | Driver’s Side Stoplamp/Turn Signals |
| 11 | Fuel Pump |
| 12 | Fog Lamps |
| 13 | Stoplamps |
| 14 | Headlamp Driver Module (HDM) |
| 15 | Passenger’s Side Stoplamp/Turn Signals |
| 16 | Cigarette Lighter |
| 17 | Hazard Warning Flashers |
| 18 | Coils |
| 19 | Truck Body Control, Ignition 1 |
| 20 | Starter |
| 21 | Airbag System |
| 22 | Horn |
| 23 | Ignition E |
| 24 | Instrument Panel Cluster, Driver Information Center (DIC) |
| 25 | Automatic Transmission Shift Interlock Control System |
| 26 | Back-up lamps, Lock Out |
| 27 | Engine Control Module |
| 28 | Oxygen Sensor B |
| 29 | Injector B |
| 30 | Air Conditioning |
| 31 | Engine Control Module (ECM), Transmission Control Module (TCM) |
| 32 | Transmission |
| 33 | Engine 1 |
| 34 | Engine Control Module, Electronic Brake Controller |
| 35 | Oxygen Sensor A |
| 36 | Injector A |
| 37 | Engine Cooling Fan |
| 38 | Anti-lock Brake System (ABS) |
| 39 | Ignition A |
| 40 | Climate Control Fan |
| 41 | Ignition B |
| 42 | Powertrain |
| 43 | Starter |
| 44 | Fuel Pump |
| 45 | Cargo Cover Release |
| 46 | Windshield Washer |
| 47 | Headlamp Driver Module (HDM) |
| 48 | Fog Lamps |
| 49 | High Beam Headlamps |
| 50 | Horn |
| 51 | Air Conditioning |
| 52 | Instrument Panel Battery |

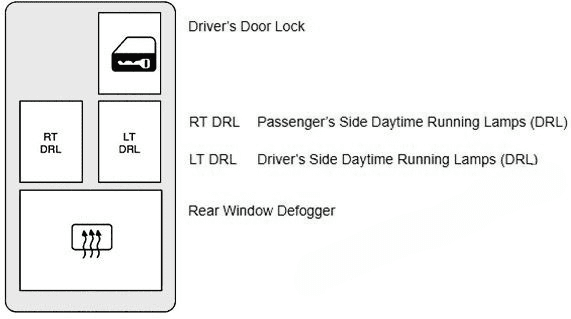

Relay Center

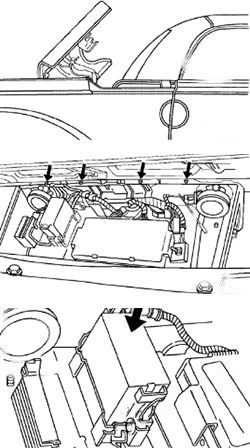

There is a relay center located in the area where the convertible top is stored when it is open
Open the convertible top until the roof tonneau and the boot cover panel are upright so that you can reach into the convertible top storage area as shown.
Locate the water-tight box that houses the relay center and remove the four nuts that secure the cover to the backside of the passenger compartment.
Press in the tabs on the sides of the cover and lift to remove the cover.
Locate the relay center inside the box. It is located toward the driver’s side of the vehicle. Press in the tabs at each end of the relay center cover and lift to remove.
Reverse the steps to reinstall the relay center cover and close the water-tight box.
