The Chevrolet Cavalier (1995-2005) depends on its fuse box and relays to regulate its electrical system. The fuse box is located under the dashboard on the driver’s side, managing critical functions such as the headlights, turn signals, radio, and wipers. Each fuse in the box is designed to protect specific circuits by cutting off power when an overload or short circuit occurs, preventing potential damage to the electrical system.

The Cavalier also utilizes relays to control high-power functions, including the cooling fan, starter motor, and fuel pump. These relays act as switches, allowing a small current to control larger electrical loads. If a relay malfunctions, it can disrupt vital operations, such as preventing the engine from starting or causing the cooling fan to stop working.

Regular inspection and replacement of fuses and relays in the Chevrolet Cavalier ensure that the vehicle’s electrical systems continue to function properly, avoiding common issues like blown fuses or faulty relays that could lead to system failures.

MUST READ: DYI – How to Check Car Fuses?

(1995-2005) Chevrolet Cavalier fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Cavalier 1995-2005 fuse assignment

  • Cigar lighter / power outlet fuses in the Chevrolet Cavalier are located in the Instrument panel fuse box (see fuses “CIG” (Cigarette Lighter) and “APO” (Accessory Power Outlet, if equipped)).

Year of production: from 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Fuse box location

Instrument Panel

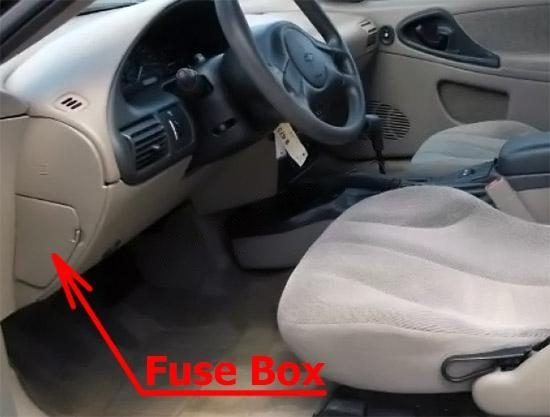

The location of the fuses in the passenger compartment: Chevrolet Cavalier (1995-2005)
The location of the fuses in the passenger compartment: Chevrolet Cavalier (1995-2005)

The fuse box is located on the driver’s side of the instrument panel, behind the cover.

Engine Compartment

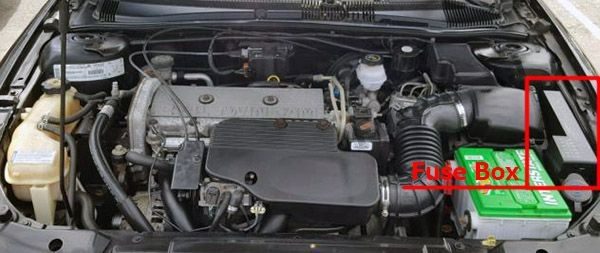

The location of the fuses in the engine compartment: Chevrolet Cavalier
The location of the fuses in the engine compartment: Chevrolet Cavalier

It is located in the engine compartment (left-side).

Fuse box diagrams

1995

Instrument Panel

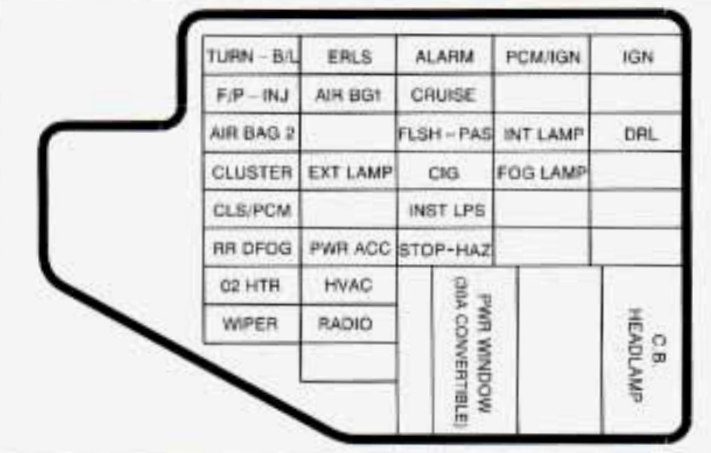

Instrument panel fuse box diagram: Chevrolet Cavalier (1995)
Instrument panel fuse box diagram: Chevrolet Cavalier (1995)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1995)

FuseCircuitry
AIR BG 1Air Bag-DERM (Diagnostic Energy Reserve Module) Power
AIR BG 2Air Bag-DERM Crank Signal
ALARMAlarm Module: Illuminated Entry, Warning Chimes
CIGCigar Lighter, Horn, Diagnostic Connector
CLS/PCMInstrument Cluster, Powertrain Control Module
CLUSTERInstrument Cluster, Anti-Lock Brake System
CRUISECruise Control
DRLDaytime Running Lamps
ERLSAutomatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Exhaust Gas Recirculation (2.2L Engine), Cannister Purge Valve, A/C High Pressure Switch (2.3L Engine)
EXT LAMPPark Lamps, Side Marker Lamps, Instrument Panel Lamp
F/P-INJFuel Pump, Fuel Injectors
FLSH-PASFlash To Pass Lamps
HEADLAMPHeadlamps
HVACHeater/A/C Control, Rear Window Defogger, Anti-lock Brake System, Engine Cooling Fan (2.2L Engine), Engine Vent Heater (2.3L Engine)
IGNEngine Ignition
INST LPSInstrument Panel Lamps
INT LAMPAlarm Module:  illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors
O2 HTRRear O2 HTR Sensor Heater (2.3L Engine, Cal. Auto)
PCM/IGNPowertrain Control Module
PWR ACCPower Door Lock
PWR WINDOWPower Windows, Power Sunroof
RADIORadio
RR DFOGRear Window Defogger
STOP-HAZStop Lamps, Hazard Lamps
TURN-B/UTurn Signal Lamps, Backup Lamps
WIPERWindshield Wipers, Windshield Washers
Engine Compartment

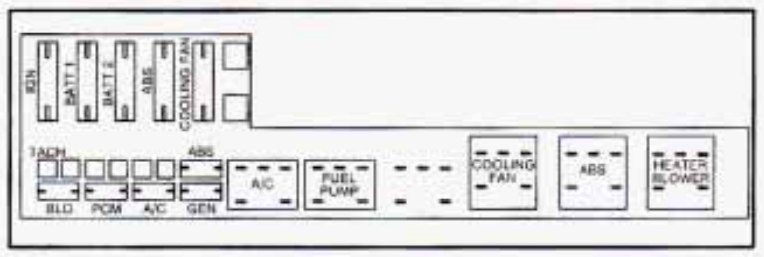

Under-hood fuse box diagram: Chevrolet Cavalier (1995)
Under-hood fuse box diagram: Chevrolet Cavalier (1995)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1995)

FuseCircuitry
A/CA/C Compressor (2.3L Engine)
ABSAnti-Lock Brake System
ABSElectronic Variable Orifice Steering, Anti-Lock Brake System
BATT 1Power ACC/Stop Lamp Circuits
BATT 2Lighting Circuits
BLOHeater/ A/C Blower
COOLING FANEngine Cooling Fan
GENGenerator-Voltage Sense
IGNIgnition Switch Circuits
PCMPowertrain Control Module

1996, 1997

Instrument Panel

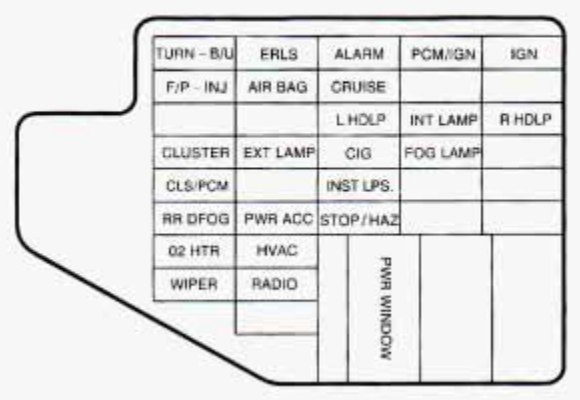

Instrument panel fuse box diagram: Chevrolet Cavalier (1996, 1997)
Instrument panel fuse box diagram: Chevrolet Cavalier (1996, 1997)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1996, 1997)

FuseCircuitry
TURN-B/UExterior Lamps, Back-up Lamps
F/P-INJFuel Pump, Fuel Injectors
CLUSTERInstrument Cluster, Anti-Lock Brake System
CLS/PCMInstrument Cluster, Powertrain Control Module, Daytime Running Lamps
RR DFOGRear Window Defogger
O2 HTRMultiport Fuel Injection
WIPERWindshield Wipers, Windshield Washers
ERLSAutomatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Multiport Fuel Injection
AIR BAGSupplemental Inflatable Restraint System
EXT LAMPExterior Lamps, Instrument Panel Lights
PWR ACCPower Door Locks, Convertible Top (Convertible Model)
HVACHeater and A/C Control, Anti-Lock Brake System, Engine Cooling Fan (2.2L Engine), Engine Vent Heater (2.4L Engine)
RADIORadio, Remote Keyless Entry
ALARMAlarm Module – Interior Lamps, Warning Chime
CRUISECruise Control
L HDLPLeft Headlamp
CIGCigarette Lighter, Horn, Interior Lamps, Diagnostic Connector
INST LPSInstrument Panel Lights, Warning Chimes
STOP/HAZExterior Lamps, Anti-Lock Brake System, Cruise Contro
PWR WINDOWPower Windows, Power Sunroof, Convertible Top Controls (Convertible Model) (Circuit Breaker)
PCM/IGNPowertrain Control Module
INT LAMPAlarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, Mapmeading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry
FOG LAMPFog Lamps (2-24 Only)
IGNEngine Ignition
R HDLPRight Headlamp
Engine Compartment

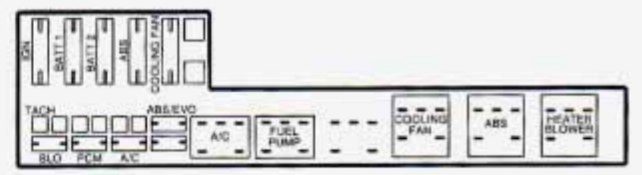

Under-hood fuse box diagram: Chevrolet Cavalier (1996, 1997)
Under-hood fuse box diagram: Chevrolet Cavalier (1996, 1997)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1996, 1997)

FuseCircuitry
IGNIgnition Switch Circuits
BATT 1Power ACC/Stoplamp Circuits
BATT 2Lighting Circuits
ABSElectronic Variable Orifice Steering, Anti-Lock Brake System
COOLING FANEngine Cooling Fan
BLOHeater and A/C Blower
PCMPowertrain Control Module
A/CA/C Compressor
ABS/EVOAnti-Lock Brake System
GENGen Voltage Sensor (2.2L Engine)

1998

Instrument Panel

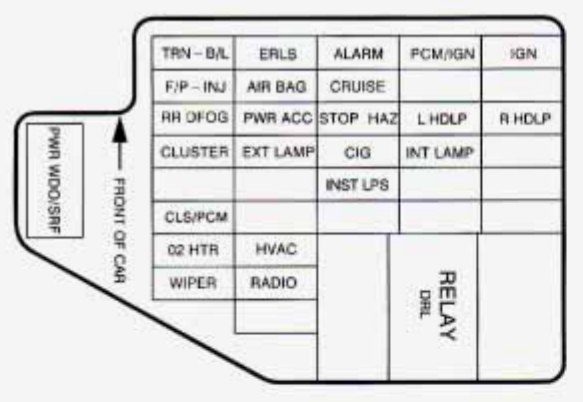

Instrument panel fuse box diagram: Chevrolet Cavalier (1998)
Instrument panel fuse box diagram: Chevrolet Cavalier (1998)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1998)

FuseCircuitry
TRN-BLExterior Lamps, Back-up Lamps
F/P-INJFuel Pump, Fuel Injectors
RR DFOGRear Window Defogger
CLUSTERInstrument Cluster, Anti-Lock Brake System
CLS/PCMInstrument Cluster, Powertrain Control Module, Daytime Running Lamps
O2 HTRMultiport Fuel Injection
WIPERWindshield Wipers, Windshield Washers
ERLSAutomatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Multiport Fuel Injection
AIR BAGSupplemental Inflatable Restraint System
PWR ACCPower Door Locks, Convertible Top (Convertible Model Only)
EXT LAMPExterior Lamps, Instrument Panel Lights
HVACHeater and A/C Control, Anti-lock Brake System, Engine Cooling Fan
RADIORadio, Remote Keyless Entry
ALARMAlarm Module – Interior Lamps, Warning Chime
CRUISECruise Control
STOP/HAZExterior Lamps, Anti-Lock Brake System, Cruise Control, Turn Signals
CIGCigarette Lighter, Horn, Interior Lamps, Diagnostic Connector
INST LPSInstrument Panel Lights, Warning Chimes
PCM/IGNPowertrain Control Module
L HDLPLeft Headlamp, Fog Lamp (2-24)
INT LAMPAlarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry
IGNEngine Ignition
R HDLPRight Headlamp, Fog Lamp (2-24)
PWR WDO/SRFPower Windows, Power Sunroof, Convertible Top Controls (Convertible Models) (Circuit Breaker)
DRLDaylight Running Lamps (Relay)
Engine Compartment

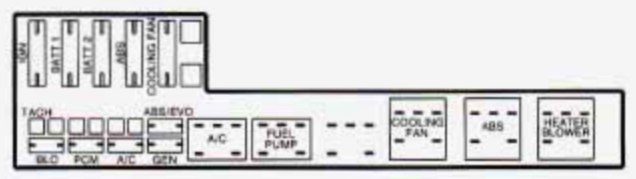

Under-hood fuse box diagram: Chevrolet Cavalier (1998)
Under-hood fuse box diagram: Chevrolet Cavalier (1998)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1998)

FuseCircuitry
IGNIgnition Switch Circuits
BATT 1Power ACC/Stoplamp Circuits
BATT 2Lighting Circuits
ABSAnti-Lock Brake System
COOLING FANEngine Cooling Fan
TACHTachometer
BLOHeater and A/C Blower
PCMPowertrain Control Module
A/CA/C Compressor
ABS/EVOAnti-Lock Brake System
GENGen Voltage Sensor (2.2L Engine)

1999

Instrument Panel

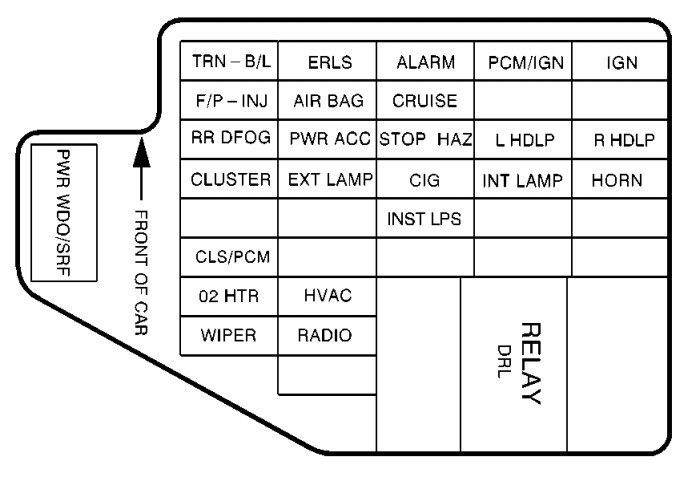

Instrument panel fuse box diagram: Chevrolet Cavalier (1999)
Instrument panel fuse box diagram: Chevrolet Cavalier (1999)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1999)

FuseCircuitry
TRN-BLExterior Lamps, Back-up Lamps
F/P-INJFuel Pump, Fuel Injectors
RR DFOGRear Window Defogger
CLUSTERInstrument Cluster, Anti-Lock Brake System
CLS/PCMInstrument Cluster, Powertrain Control Module, Daytime Running Lamps
O2 HTRRear O2 Sensor Heater
WIPERWindshield Wipers, Windshield Washers
ERLSAutomatic Transaxle, Brake Transaxle Shift Interlock (BTSI), A/C Compressor, Cruise Control, Multiport Fuel Injection
AIR BAGSupplemental Inflatable Restraint (SIR) System
PWR ACCPower Door Locks, Convertible Top (Convertible Model Only)
EXT LAMPExterior Lamps, Instrument Panel Lights
HVACHeater and A/C Control, Anti-lock Brake System, Engine Cooling Fan
RADIORadio, Remote Keyless Entry
ALARMAlarm Module – Interior Lamps, Warning Chime
CRUISECruise Control
STOP/HAZExterior Lamps, Anti-Lock Brake System, Cruise Control, Turn Signals
CIGCigarette Lighter
INST LPSInstrument Panel Lights, Warning Chimes
PCM/IGNPowertrain Control Module
L HDLPLeft Headlamp, Fog Lamp (Z-24 Model Only)
INT LAMPAlarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry
IGNEngine Ignition
R HDLPRight Headlamp, Fog Lamp (Z-24 Model Only)
HORNHorn, Diagnostic Connector
PWR WDO/SRFPower Windows, Power Sunroof, Convertible Top Controls (Convertible Model Only) (Circuit Breaker)
DRLDaylight Running Lamps (Relay)
Engine Compartment

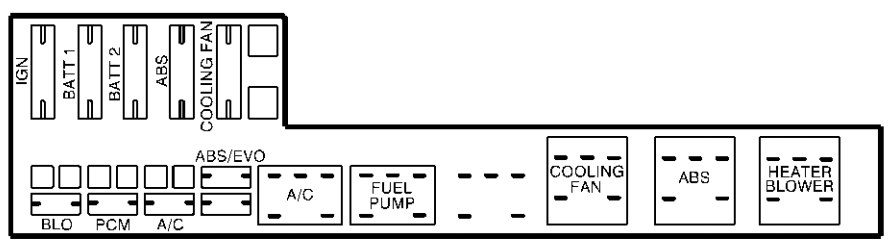

Under-hood fuse box diagram: Chevrolet Cavalier (1999)
Under-hood fuse box diagram: Chevrolet Cavalier (1999)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1999)

FuseCircuitry
IGNIgnition Switch Circuits
BATT 1Power ACC/Stoplamp Circuits
BATT 2Lighting Circuits
ABSAnti-Lock Brake System
COOLING FANEngine Cooling Fan
BLOHeater and A/C Blower
PCMPowertrain Control Module
A/CA/C Compressor
ABS/EVOAnti-Lock Brake System

2000, 2001

Instrument Panel

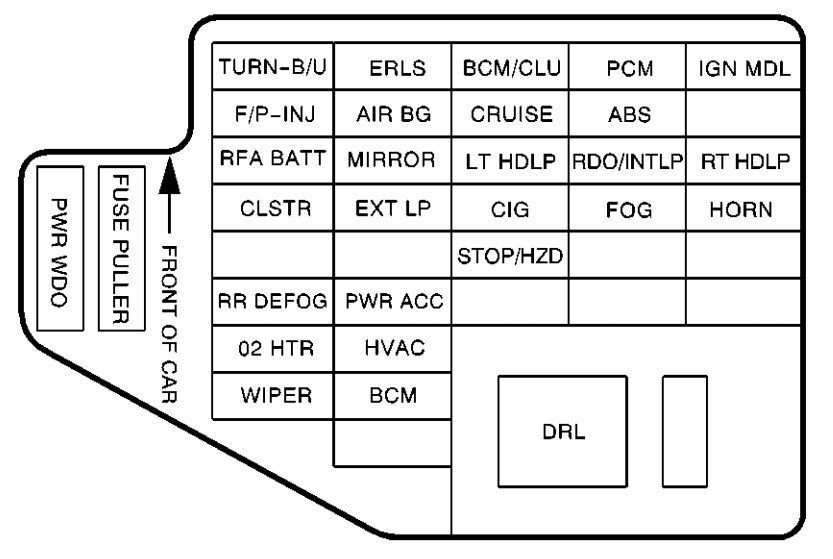

Instrument panel fuse box diagram: Chevrolet Cavalier (2000, 2001)
Instrument panel fuse box diagram: Chevrolet Cavalier (2000, 2001)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (2000, 2001)

FuseCircuitry
TURN-B/UTurn Signals, Back-Up Lamps
ERLSEngine Relays
BCM/CLUBody Control Module, Instrument Panel Cluster
PCMPowertrain Control Module
IGN MDLIgnition Module
F/P-INJFuel Pump, Fuel Injectors
AIR BGAir Bag
CRUISECruise Control Switch
ABSAnti-Lock Brake (Ignition)
BlankNot Used
RFA BATTRemote Keyless Entry System
MIRRORPower Mirror
LT HDLPLeft Headlamp
RDO/INTLPRadio, Interior Lamps
RT HDLPRight Headlamp
CLSTRInstrument Panel Cluster
EXT LPExterior Lamps
CIGCigarette Lighter, Diagnostic Link Connector
FOGFog Lamps
HORNHorn
BlankNot Used
BlankNot Used
STOP/HZDStop Lamps, Hazard Lamps
BlankNot Used
BlankNot Used
RR DEFOGRear Window Defogger
PWR ACCPower Door Locks, Convertible Top Switch
BlankNot Used
BlankNot Used
BlankNot Used
O2 HTROxygen Sensor Heater
HVACClimate Control System
WIPERWindshield Wiper
BCMBody Control Module
BlankNot Used
PWR WDOPower Windows, Sunroof, Convertible Top (Circuit Breaker)
DRLDaytime Running Lamps (Relay)
Engine Compartment

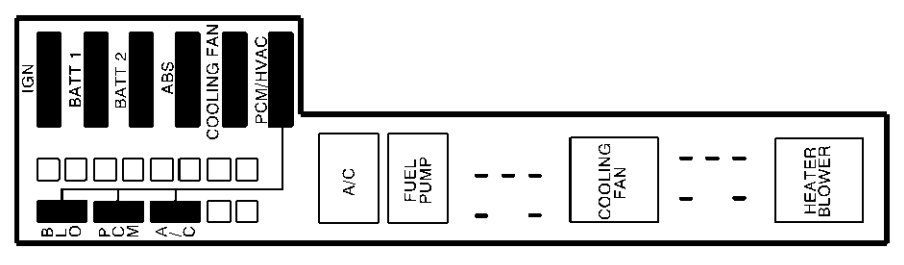

Under-hood fuse box diagram: Chevrolet Cavalier (2000, 2001)
Under-hood fuse box diagram: Chevrolet Cavalier (2000, 2001)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (2000, 2001)

FuseCircuitry
IGNIgnition Switch Circuits
BATT 1Power ACC/Stoplamp Circuits
BATT 2Lighting Circuits
ABSAnti-Lock Brake System
COOLING FANEngine Cooling Fan
PCM/HVACPowertrain Control Module, Heater and A/C Blower
BLOHeater and A/C Blower
PCMPowertrain Control Module
A/CA/C Compressor
FUEL PUMPFuel Pump
HEATER BLOWERHeater and A/C Blower

2002, 2003, 2004, 2005

Instrument Panel

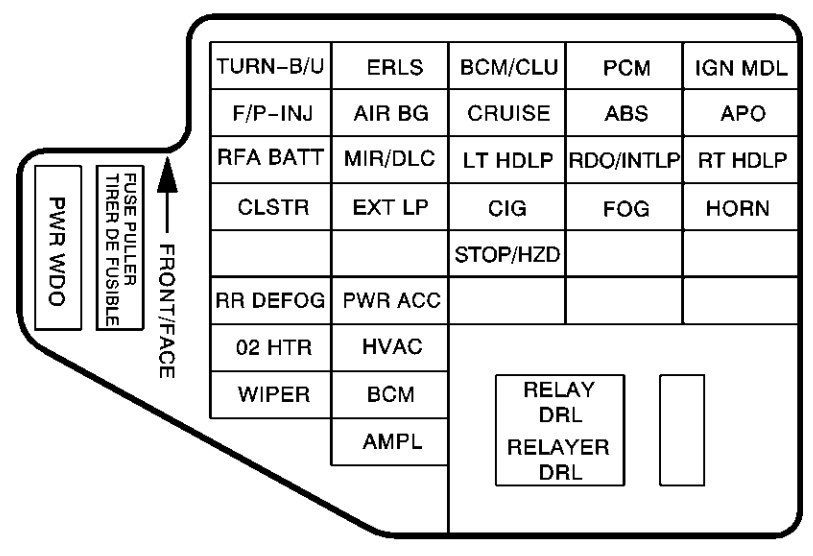

Instrument panel fuse box diagram: Chevrolet Cavalier (2003, 2004, 2005)
Instrument panel fuse box diagram: Chevrolet Cavalier (2003, 2004, 2005)

Assignment of the fuses and relay in the Instrument Panel Fuse Box (2002-2005)

FuseCircuitry
TURN-B/UTurn Signals, Back-Up Lamps
ERLSEngine Relays
BCM/CLUBody Control Module, Instrument Panel Cluster
PCMPowertrain Control Module
IGN MDLIgnition Module
F/P-INJFuel Pump, Fuel Injectors
AIR BGAir Bag
CRUISECruise Control Module/Switch
ABSAnti-Lock Brake (Ignition)
APOAccessory Power Outlet
RFA BATTRemote Keyless Entry System
MIR/DLCPower Mirror/Diagnostic Link Connector
LT HDLPLeft Headlamp
RDO/INTLPRadio, Interior Lamps
RT HDLPRight Headlamp
CLSTRInstrument Panel Cluster
EXT LPExterior Lamps
CIGCigarette Lighter
FOGFog Lamps
HORNHorn
BlankNot Used
BlankNot Used
STOP/HZDStop Lamps, Hazard Lamps
BlankNot Used
BlankNot Used
RR DEFOGRear Window Defogger
PWR ACCPower Door Locks
BlankNot Used
BlankNot Used
BlankNot Used
O2 HTROxygen Sensor Heater
HVACClimate Control System
WIPERWindshield Wiper
BCMBody Control Module
AMPLAudio Amplifier
PWR WDOPower Windows, Sunroof
RELAY DRLDaytime Running Lamps (Relay)
BlankNot Used
Engine Compartment

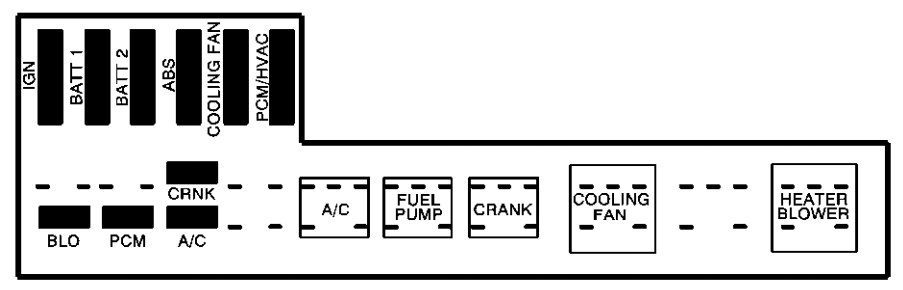

Under-hood fuse box diagram: Chevrolet Cavalier (2003, 2004, 2005)
Under-hood fuse box diagram: Chevrolet Cavalier (2003, 2004, 2005)

Assignment of the fuses and relay in the Engine Compartment Fuse Box (2002-2005)

FuseCircuitry
IGNIgnition Switch Circuits
BATT 1Exterior Lamps, Power Outlet, Horn, Audio Amplifier
BATT 2Rear Defogger, Starter, Power Locks, Stoplamps
ABSAnti-Lock Brake System
COOLING FANEngine Cooling Fan
PCM/HVACPowertrain Control Module, Heater and A/C Blower
CRNKStarter
BLOHeater and A/C Blower
PCMPowertrain Control Module
A/CA/C Compressor
A/CA/C Compressor
FUEL PUMPFuel Pump
CRNKStarter
COOLING FANEngine Cooling Fan
HEATER BLOWERHeater and A/C Blower

Conclusion

For owners and enthusiasts of classic Chevrolet Cavalier 1995-2005, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
