The Chevrolet Silverado Mk2 (2nd Gen), produced from 2007 to 2013, is a full-size pickup truck renowned for its robust performance, towing capacity, and versatility. A key component of its reliability is its well-organized electrical system, with fuse boxes and relays playing crucial roles.

The fuse box in the Chevrolet Silverado 2nd Gen is typically located in two primary locations: the engine compartment and the interior, often under the dashboard on the driver’s side. The engine compartment fuse box controls high-power components like the engine, transmission, and anti-lock brakes, while the interior fuse box manages accessories such as the radio, power windows, and interior lights. Each fuse is designed to protect a specific circuit by disconnecting power in the event of an overload or short circuit.

Relays in the Silverado function as electrically controlled switches that manage high-current circuits for components like the fuel pump, starter motor, and cooling fans. These relays ensure that high-power systems can be controlled safely by low-power electrical circuits. Maintaining the fuses and relays is essential for preventing electrical malfunctions and ensuring the truck’s systems operate efficiently and reliably.

MUST READ: DYI – How to Check Car Fuses?

(2007-2013) Chevrolet Silverado mk2 (2nd Gen) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Silverado mk2 (2nd Gen) 2007-2013 fuse assignment

  • Cigar lighter / power outlet fuses in the Chevrolet Silverado are the fuses №. 2 (Rear Accessory Power Outlet) and №. 16 (Accessory Power Outlets) in the Instrument panel fuse box.

Year of production: from 2007, 2008, 2009, 2010, 2011, 2012, 2013

Instrument Panel Fuse Box

Fuse box location

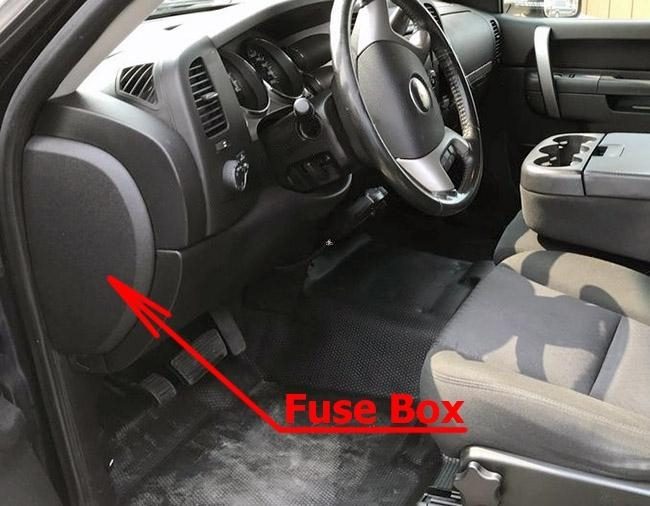

The location of the fuses in the passenger compartment: Chevrolet Silverado (mk2; 2007-2013)
The location of the fuses in the passenger compartment: Chevrolet Silverado (mk2; 2007-2013)

It is located on the driver’s side of the instrument panel, behind the cover.

Fuse box diagram

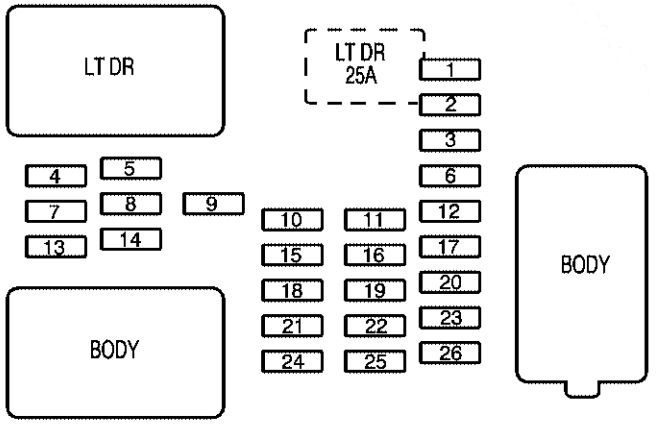

Instrument panel fuse box diagram: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
Instrument panel fuse box diagram: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Assignment of the fuses in the Instrument Panel

№/NameUsage
1Rear Seats
2Rear Accessory Power Outlet
3Steering Wheel Controls Backlight
4Driver Door Module
5Dome Lamps, Driver Side Turn Signal
6Driver Side Turn Signal, Stoplamp
7Instrument Panel Back Lighting
8Passenger Side Turn Signal, Stoplamp
92007-2008: Universal Home Remote
2009-2013: Passenger Door Module, Driver Unlock
10Power Door Lock 2 (Unlock Feature)
11Power Door Lock 2 (Lock Feature)
12Stoplamps, Center High-Mounted Stoplamp
13Rear Climate Controls
14Power Mirror
15Body Control Module (BCM)
16Accessory Power Outlets
17Interior Lamps
18Power Door Lock 1 (Unlock Feature)
19Rear Seat Entertainment
20Ultrasonic Rear Parking Assist, Power Liftgate
21Power Door Lock 1 (Lock Feature)
22Driver Information Center (DIC)
23Rear Wiper
24Cooled Seats
25Driver Seat Module, Remote Keyless Entry System
26Driver Power Door Lock (Unlock Feature)
Circuit Breaker
LT DRDriver Side Power Window Circuit Breaker
Harness Connector
LT DRDriver Door Harness Connection
BODYHarness Connector
BODYHarness Connector

Center instrument panel fuse box

It is located underneath the instrument panel, to the left of the steering column.

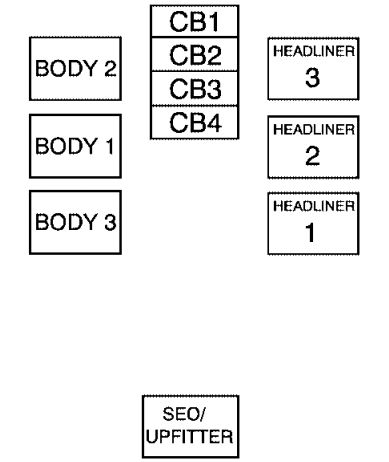

Center instrument panel fuse box: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
Center instrument panel fuse box: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
Harness ConnectorUsage
BODY 2Body Harness Connector 2
BODY 1Body Harness Connector 1
BODY 3Body Harness Connector 3
HEADLINER 3Headliner Harness Connector 3
HEADLINER 2Headliner Harness Connector 2
HEADLINER 1Headliner Harness Connector 1
SEO/ UPFITTERSpecial Equipment Option Upfitter Harness Connector
Circuit Breaker
CB1Passenger Side Power Window Circuit Breaker
CB2Passenger Seat Circuit Breaker
CB3Driver Seat Circuit Breaker
CB4Rear Sliding Window

Engine Compartment Fuse Box

Fuse box location

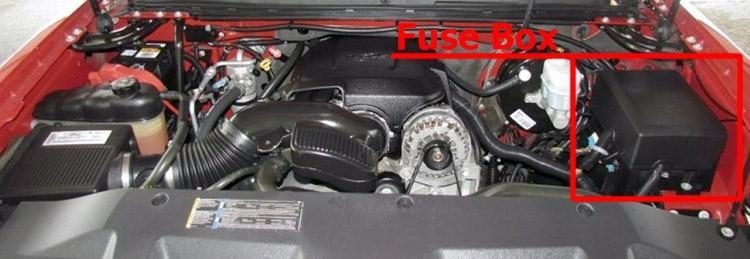

The location of the fuses in the engine compartment: Chevrolet Silverado (mk2; 2007-2013)
The location of the fuses in the engine compartment: Chevrolet Silverado (mk2; 2007-2013)

Fuse box diagram

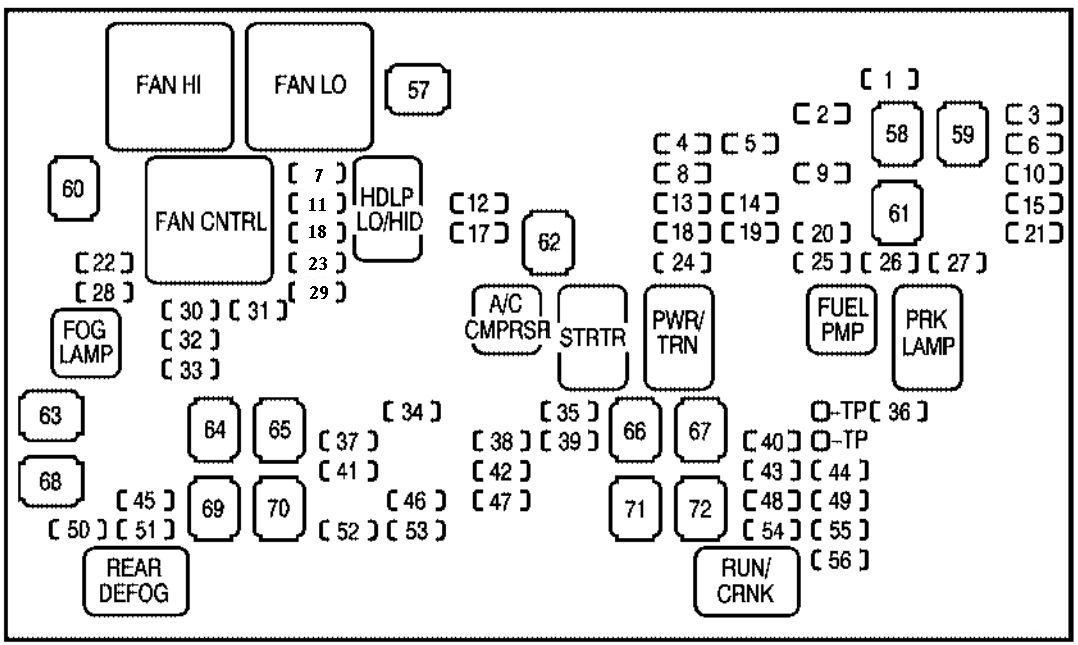

Under-hood fuse box diagram: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
Under-hood fuse box diagram: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Assignment of the fuses and relay in the Engine Compartment

№/NameUsage
1Right Trailer Stop/ Turn Lamp
2Electronic Suspension Control, Automatic Level Control Exhaust
3Left Trailer Stop/ Turn Lamp
4Engine Controls
5Engine Control Module, Throttle Control
6Trailer Brake Controller
7Front Washer
8Oxygen Sensor
9Antilock Brakes System 2
10Trailer Back-up Lamps
11Driver Side Low-Beam Headlamp
12Engine Control Module (Battery)
13Fuel Injectors, Ignition Coils (Right Side)
14Transmission Control Module (Battery)
15Vehicle Back-up Lamps
16Passenger Side Low-Beam Headlamp
17Air Conditioning Compressor
18Oxygen Sensors
19Transmission Controls (Ignition)
20Fuel Pump
21Fuel System Control Module
22Not Used
23Not Used
24Fuel Injectors, Ignition Coils (Left Side)
25Trailer Park Lamps
26Driver Side Park Lamps
27Passenger Side Park Lamps
28Fog Lamps
29Horn
30Passenger Side High-Beam Headlamp
31Daytime Running Lamps (DRL)
32Driver Side High-Beam Headlamp
33Daytime Running Lamps 2
34Sunroof
35Key Ignition System, Theft Deterrent System
36Windshield Wiper
37SEO B2 Upfitter Usage (Battery)
38Electric Adjustable Pedals
39Climate Controls (Battery)
40Airbag System (Ignition)
41Amplifier
42Audio System
43Miscellaneous (Ignition), Cruise Control
44Not Used
45Airbag System (Battery)
46Instrument Panel Cluster
47Power Take-Off
48Auxiliary Climate Control (Ignition)
Compass-Temperature Mirror
49Center High-Mounted Stoplamp (CHMSL)
50Rear Defogger
51Heated Mirrors
52SE0B1 Upfitter Usage (Battery)
53Cigarette Lighter, Accessory Power Outlet
54Automatic Level Control CompressorRelay
SEO Upfitter Usage
55Climate Controls (Ignition)
56Engine Control Module, Secondary Fuel Pump (Ignition)
J-Case Fuses
57Cooling Fan 1
58Not Used
59Heavy Duty Antilock Brake System
60Cooling Fan 2
61Antilock Brake System 1
62Starter
63Stud 2 (Trailer Brakes)
64Left Bussed Electrical Center 1
65Not Used
66Heated Windshield Washer System / Not Used
67Four-Wheel Drive System / Transfer Case
68Stud 1 (Trailer Connector Battery Power) (Optional -40A Fuse Required)
69Mid-Bussed Electrical Center 1
70Climate Control Blower
71Not Used
72Left Bussed Electrical Center 2
Relays
FAN HICooling Fan High Speed
FAN LOCooling Fan Low Speed
FAN CNTRLCooling Fan Control
HDLP LO/HIDLow-Beam Headlamp
FOG LAMPFront Fog Lamps
A/C CMPRSRAir Conditioning Compressor
STRTRStarter
PWR/TRNPowertrain
FUEL PMPFuel Pump
PRK LAMPParking Lamps
REAR DEFOGRear Defogger
RUN/CRNKSwitched Power

Hybrid Auxiliary Engine Compartment Fuse Block

The fuse block is located in the engine compartment near the front of the vehicle.

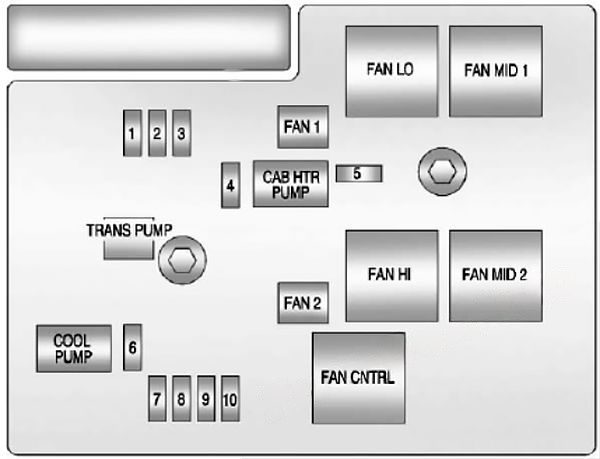

Hybrid Auxiliary Engine Compartment Fuse Block: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
Hybrid Auxiliary Engine Compartment Fuse Block: Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Hybrid Auxiliary Engine Compartment Fuse Block

№/NameUsage
1ACPO (SUV Only)
2BECM FAN
3ACCM
4CAB HTR PMP
5EMPTY
6COOL PUMP
7EPS
8Drive Motor/Generator Control Module 1
9Drive Motor/Generator Control Module 2
10BECM
J-Case fuses
FAN 1Cooling Fan 1
TRANS PUMPAuxiliary Transmission Fluid Pump
FAN 2Cooling Fan 2
CAB HTR PMPCab Heater Pump
Relays
CAB HTR PUMPCabin Heater Pump
COOL PUMPCoolant Pump
FAN LOWCooling Fan Low Speed Relay
FAN MID 1Cooling Fan Mid 1
FAN HICooling Fan High Speed Relay
FAN MID 2Cooling Fan Mid 2
FAN CNTRLCooling Fan Control

Conclusion

For owners and enthusiasts of classic Chevrolet Silverado mk2 (2nd Gen) 2007-2013, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
