Locate fuse box and relay positions for the Chevrolet Silverado (GMT T1XX) 2022-2024 with diagrams. Essential for maintaining electrical reliability and performance.

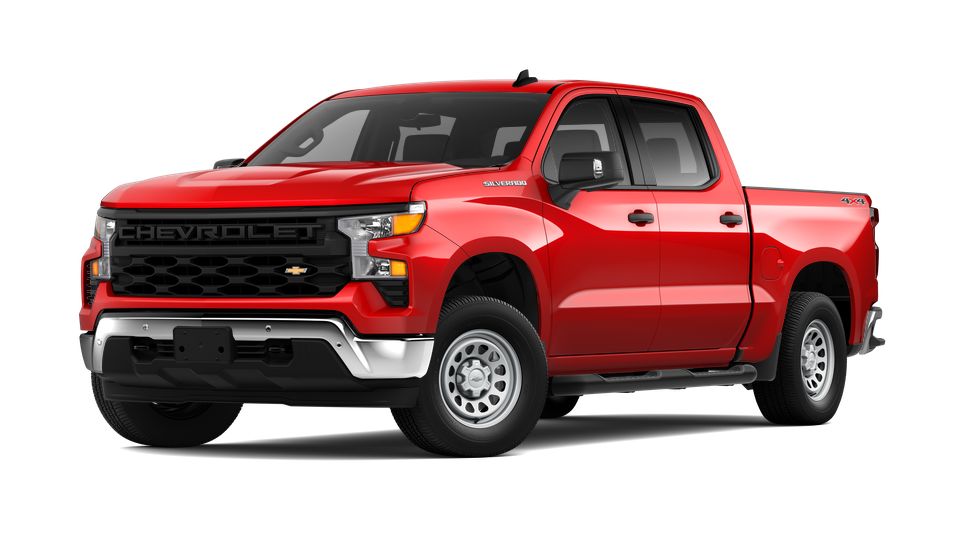

The Chevrolet Silverado (GMT T1XX) 2022-2024 is a rugged full-size pickup truck, offering multiple body styles, including Regular Cab, Double Cab, and Crew Cab. Each configuration provides different seating and cargo options, catering to a variety of needs, from work-focused tasks to family-friendly travel. Known for its powerful engine options and advanced towing technology, the Silverado is designed for performance and versatility, whether on the highway or off-road.
The Silverado’s electrical system supports a range of features, from safety technologies to infotainment. The truck has two primary fuse boxes: one in the engine compartment and another in the cabin, usually under the dashboard on the driver’s side. These fuse boxes house fuses and relays that control critical systems like lights, power accessories, and engine functions. Relays, positioned near the fuse boxes, help manage higher-power components such as the starter and fuel pump. Regular checks of these components are essential for reliable operation.
MUST READ: DYI – How to Check Car Fuses?
(2022-2024) Chevrolet Silverado (GMT T1XX) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Silverado (GMT T1XX) 2022-2024 fuse assignment
Chevrolet Silverado (GMT T1XX) Year of production: 2022, 2023, 2024
Instrument Panel Fuse Block (Left)

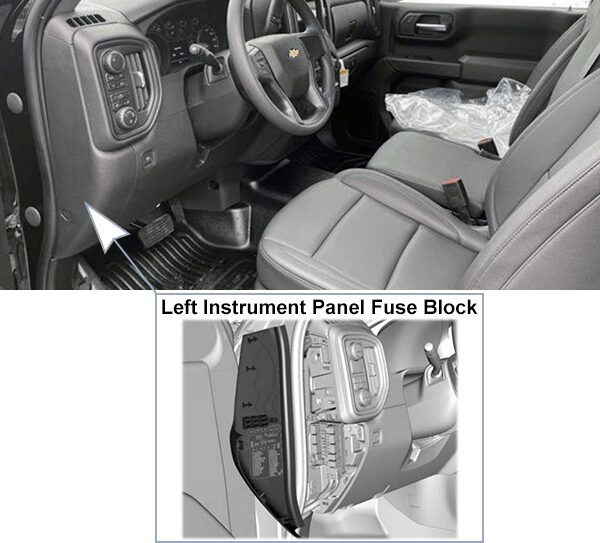

Version 1:
If equipped with a Work Truck or Custom trim, the left instrument panel fuse block access door is on the driver side edge of the instrument panel.

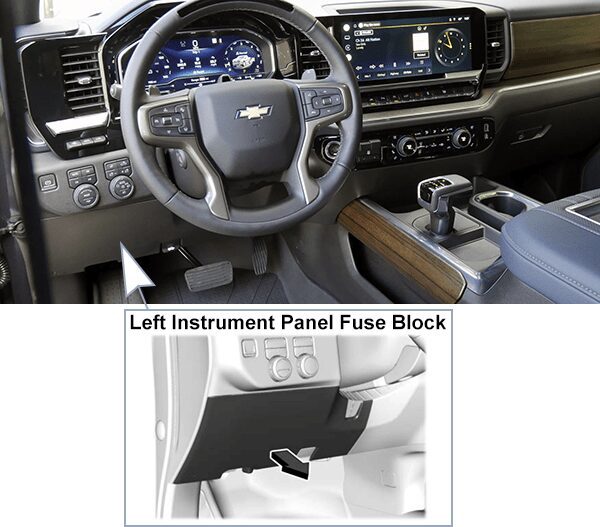

Version 2:
If equipped with a Uplevel or Base Level trim, the left instrument panel fuse block access door is under the steering wheel on the driver side. Pull off the cover to access the fuse block.

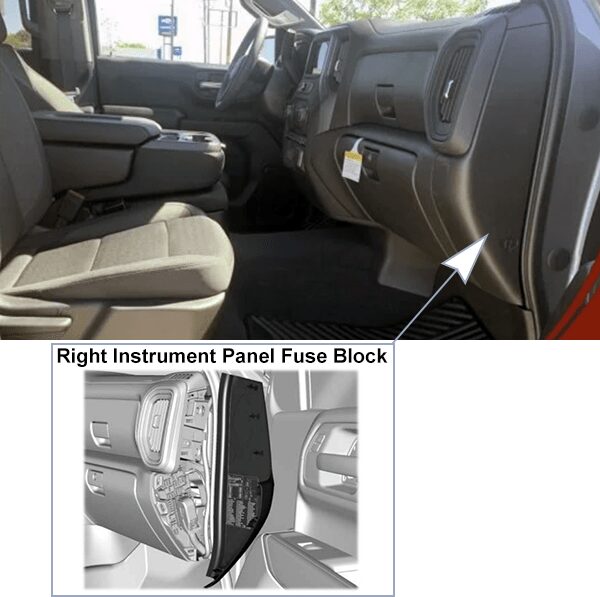

Instrument Panel Fuse Block (Right):
The right instrument panel fuse block access door is on the passenger side edge of the instrument panel. Pull off the cover to access the front of the fuse block.

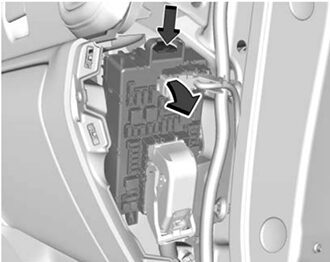

To access the back of the fuse block:
- Push the tab at the top of fuse block down.
- Pull the top of the fuse block outward.
- Reverse Steps 1-2 to reinstall.

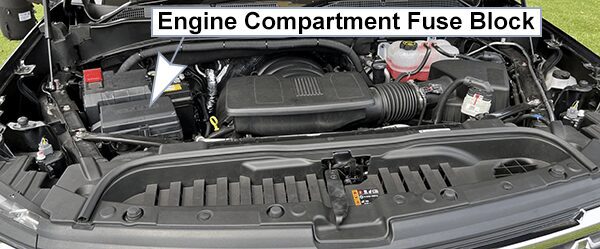

Engine Compartment Fuse Block:
The engine compartment fuse block is in the engine compartment, on the passenger side of the vehicle. Lift the cover to access the fuse block.
Fuse Box Diagrams
2022

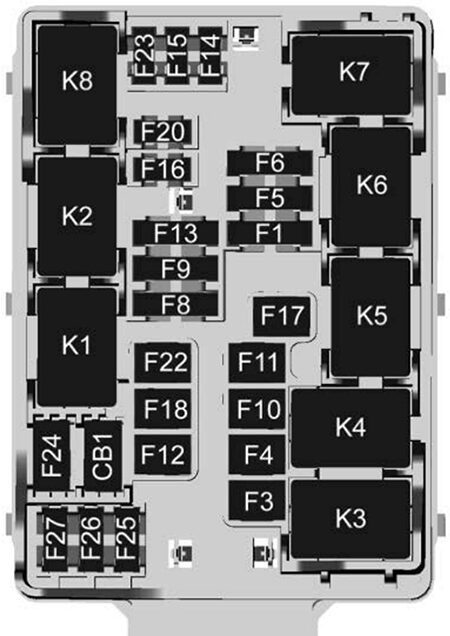

Instrument Panel Fuse Block (Left)
List of fuses in the Left Instrument Panel Fuse Block (2022)
| â„– | Usage |
|---|---|
| F1 | Rear Heated Seats Left/Right |
| F3 | – |
| F4 | – |
| F5 | Spare |
| F6 | Heated and Ventilated Seats Left/Right |
| F8 | – |
| F9 | EOCM – End Object Control Module / Park Assist |
| F10 | – |
| F11 | – |
| F12 | Passenger Power Seat |
| F13 | – |
| F14 | Data Link Connector |
| F15 | – |
| F16 | AMP |
| F17 | MFEG – Multifunction Endgate Control |
| F18 | – |
| F20 | Endgate |
| F22 | Rear Sliding Window |
| F23 | Driver and Passenger Memory Seat Module |
| F24 | – |
| F25 | – |
| F26 | – |
| F27 | – |
| Circuit Breakers | |
| CB1 | – |
| Relays | |
| K1 | Rear Sliding Window Open |
| K2 | Rear Sliding Window Close |
| K3 | MFEG – Multifunction Endgate Control High |
| K4 | – |
| K5 | MFEG – Multifunction Endgate Control Minor |
| K6 | MFEG – Multifunction Endgate Control Low |
| K7 | – |
| K8 | – |

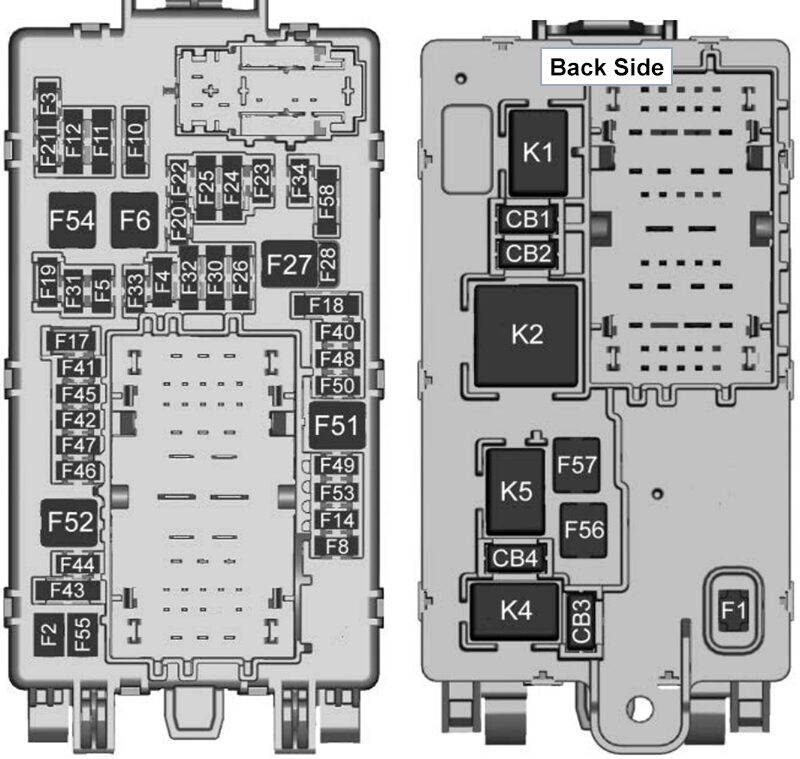

Instrument Panel Fuse Block (Right)
List of fuses in the Right Instrument Panel Fuse Block (2022)
| â„– | Usage |
|---|---|
| F1 | Right Doors |
| F2 | Left Doors |
| F3 | – |
| F4 | ELM – Exterior Lighting Module 2 |
| F5 | High Definition localization Module / lnstrument Panel Cluster / Heads-up Display / Humidity / lntegrated Center Stack |
| F6 | Front Blower |
| F8 | Left Front Window Switch |
| F10 | Steering Tilt (LD) / Upfitter Vehicle Module (HD) |
| F11 | Video Processing Module / Overhead Control Camera |
| F12 | Central Gateway Module / Telematics Control Platform / Column Lock / Driver Monitor System |
| F14 | – |
| F17 | Steering Wheel Controls |
| F18 | – |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Steering Wheel |
| F23 | – |
| F24 | – |
| F25 | Spot Lamp Left/Right |
| F26 | USB Ports / Special Equipment option Retained Accessory Power |
| F27 | Accessory Power Outlet / Retained Accessory Power |
| F28 | Accessory Power Outlet / Battery |
| F30 | Sensing and Diagnostic Module / Automatic Occupant Sensing |
| F31 | Body Control Module 3 |
| F32 | Remote Function Actuator / Wireless Charging Module / Aux Jack / Center Stack Module Aux Jack / Trailer Brake Control Switch |
| F33 | Body Control Module 4 |
| F34 | – |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | – |
| F44 | Shifter Interface Board |
| F45 | Radio Low |
| F46 | – |
| F47 | – |
| F48 | Transmission Control Module |
| F49 | Body Control Module 1 |
| F50 | – |
| F51 | Battery 1 |
| F52 | Battery 2 |
| F53 | – |
| F54 | Sunroof |
| F55 | Driver Power Seat |
| F56 | DC/DC Converter Battery 1 |
| F57 | DC/DC Converter Battery 2 |
| F58 | – |
| Circuit Breakers | |
| CB1 | Accessory Power Outlet 1 |
| CB2 | – |
| CB3 | – |
| CB4 | – |
| Relays | |
| K1 | – |
| K2 | Retained Accessory Power / Accessory 1 |
| K4 | – |
| K5 | – |

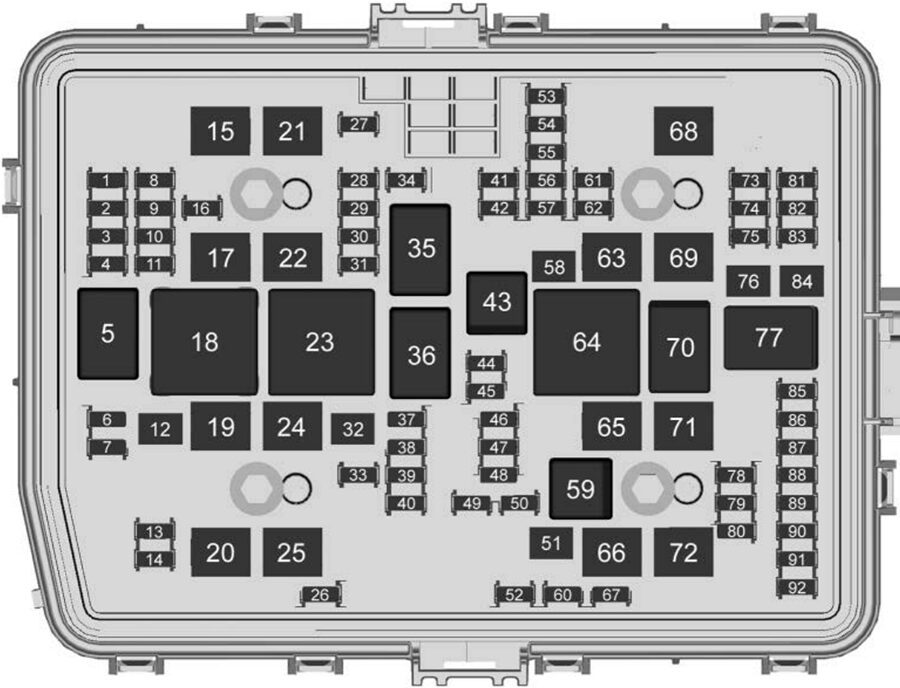

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022)
| â„– | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Headlamp Left |
| 4 | Headlamp Right |
| 6 | Exterior Lighting Module 7 |
| 7 | Exterior Lighting Module 4 |
| 8 | – |
| 9 | Exterior Lighting Module 5 |
| 10 | Exterior Lighting Module 6 |
| 11 | Body Control Module 2 |
| 12 | Rear Defog |
| 13 | Washer Front |
| 14 | – |
| 15 | – |
| 16 | – |
| 17 | IECL1 |
| 19 | DC/AC Inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | Fuel Heater |
| 25 | EBCM – Electronic Brake Control Module |
| 26 | – |
| 27 | Horn |
| 28 | Park Lamp Mirror / Grill |
| 29 | – |
| 30 | Exterior Lighting Module 3 |
| 31 | Exterior Lighting Module 1 |
| 32 | – |
| 33 | NOT R/C |
| 34 | Radars |
| 37 | MISC IP Headline Ignition |
| 38 | Seat Fan Ignition |
| 39 | – |
| 40 | MISC Body Ignition |
| 41 | Trailer Parking Lamp |
| 42 | – |
| 44 | Trailer Integration Module / DEFC / ICCM Ignition |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module / Transmission Control Module / lntegrated Chassis Control Ignition |
| 47 | – |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | Center High-Mounted Stoplamp |
| 54 | – |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | TTPM/SBZA – Side Blind Zone Alert |
| 58 | Starter Motor |
| 60 | PWR/TRN Sensors 2 |
| 61 | – |
| 62 | DEFC Battery 1 / Canister Vent Solenoid |
| 63 | Trailer Brake Control Module |
| 65 | – |
| 66 | Cooling Fan Motor Left |
| 67 | – |
| 68 | DEFC Battery 2 |
| 69 | Starter Pinion |
| 71 | Cooling Fan |
| 72 | Cooling Fan Right/Lower |
| 73 | Trailer Stop/Turn Lamp Left |
| 74 | Trailer Interface Module 2 |
| 75 | Integrated Chassis Control Module |
| 76 | Electric Running Board |
| 78 | Engine Control Module |
| 79 | Cabin Coll Pump |
| 80 | Powertrain Sensor 1 |
| 81 | Trailer Stop/Turn Lamp Right |
| 82 | Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | – |
| 86 | Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A sensor |
| 90 | Injector A Odd |
| 91 | – |
| 92 | Aeroshutter |
| Relays | |
| 5 | Rear Defog |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Park Lamp / Front Grille Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Motor |
| 77 | Powertrain |
2023
Instrument Panel Fuse Block (Left)
List of fuses in the Left Instrument Panel Fuse Block (2023)
| Fuses | Usage |
|---|---|
| F1 | Rear Heated Seats Left/Right |
| F3 | – |
| F4 | – |
| F5 | Spare |
| F6 | Heated and Ventilated Seats Left/Right |
| F8 | – |
| F9 | EOCM – End Object Control Module / Park Assist |
| F10 | – |
| F11 | – |
| F12 | Passenger Power Seat |
| F13 | – |
| F14 | Data Link Connector |
| F15 | – |
| F16 | AMP |
| F17 | MFEG – Multifunction Endgate Control |
| F18 | – |
| F20 | Endgate |
| F22 | Rear Sliding Window |
| F23 | Driver and Passenger Memory Seat Module |
| F24 | – |
| F25 | – |
| F26 | – |
| F27 | – |
| Circuit Breakers | |
| CB1 | – |
| Relays | |
| K1 | Rear Sliding Window Open |
| K2 | Rear Sliding Window Close |
| K3 | MFEG – Multifunction Endgate Control High |
| K4 | – |
| K5 | MFEG – Multifunction Endgate Control Minor |
| K6 | MFEG – Multifunction Endgate Control Low |
Instrument Panel Fuse Block (Right)
List of fuses in the Right Instrument Panel Fuse Block (2023)
| â„– | Usage |
|---|---|
| F1 | Right Doors |
| F2 | Left Doors |
| F3 | – |
| F4 | ELM – Exterior Lighting Module 2 |
| F5 | High Definition localization Module / lnstrument Panel Cluster / Heads-up Display / Humidity / lntegrated Center Stack |
| F6 | Front Blower |
| F8 | Left Front Window Switch |
| F10 | Steering Tilt (LD) / Upfitter Vehicle Module (HD) |
| F11 | Video Processing Module / Overhead Control Camera |
| F12 | Central Gateway Module / Telematics Control Platform / Column Lock / Driver Monitor System |
| F14 | – |
| F17 | Steering Wheel Controls |
| F18 | – |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Steering Wheel |
| F23 | – |
| F24 | – |
| F25 | Spot Lamp Left/Right |
| F26 | USB Ports / Special Equipment option Retained Accessory Power |
| F27 | Accessory Power Outlet / Retained Accessory Power |
| F28 | Accessory Power Outlet / Battery |
| F30 | Sensing and Diagnostic Module / Automatic Occupant Sensing |
| F31 | Body Control Module 3 |
| F32 | Remote Function Actuator / Wireless Charging Module / Aux Jack / Center Stack Module Aux Jack / Trailer Brake Control Switch |
| F33 | Body Control Module 4 |
| F34 | – |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | – |
| F44 | Shifter Interface Board |
| F45 | Radio Low |
| F46 | – |
| F47 | – |
| F48 | Transmission Control Module |
| F49 | Body Control Module 1 |
| F50 | – |
| F51 | Battery 1 |
| F52 | Battery 2 |
| F53 | – |
| F54 | Sunroof |
| F55 | Driver Power Seat |
| F56 | DC/DC Converter Battery 1 |
| F57 | DC/DC Converter Battery 2 |
| F58 | – |
| Circuit Breakers | |
| CB1 | Accessory Power Outlet 1 |
| CB2 | – |
| CB3 | – |
| CB4 | – |
| Relays | |
| K1 | – |
| K2 | Retained Accessory Power / Accessory 1 |
| K4 | – |
| K5 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2023)
| â„– | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Headlamp Left |
| 4 | Headlamp Right |
| 6 | Exterior Lighting Module 7 |
| 7 | Exterior Lighting Module 4 |
| 8 | – |
| 9 | Exterior Lighting Module 5 |
| 10 | Exterior Lighting Module 6 |
| 11 | Body Control Module 2 |
| 12 | Rear Defog |
| 13 | Washer Front |
| 14 | – |
| 15 | – |
| 16 | – |
| 17 | IECL1 |
| 19 | DC/AC Inverter |
| 20 | IECR2 |
| 21 | – |
| 22 | IECL2 |
| 24 | Fuel Heater |
| 25 | EBCM – Electronic Brake Control Module |
| 26 | – |
| 27 | Horn |
| 28 | Park Lamp Mirror / Grill |
| 29 | – |
| 30 | Exterior Lighting Module 3 |
| 31 | Exterior Lighting Module 1 |
| 32 | – |
| 33 | NOT R/C |
| 34 | Radars |
| 37 | MISC IP Headline Ignition |
| 38 | Seat Fan Ignition |
| 39 | – |
| 40 | MISC Body Ignition |
| 41 | Trailer Parking Lamp |
| 42 | – |
| 44 | Trailer Integration Module / DEFC / ICCM Ignition |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module / Transmission Control Module / lntegrated Chassis Control Ignition |
| 47 | – |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | Center High-Mounted Stoplamp |
| 54 | – |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | TTPM/SBZA – Side Blind Zone Alert |
| 58 | Starter Motor |
| 60 | PWR/TRN Sensors 2 |
| 61 | – |
| 62 | DEFC Battery 1 / Canister Vent Solenoid |
| 63 | Trailer Brake Control Module |
| 65 | – |
| 66 | Cooling Fan Motor Left |
| 67 | – |
| 68 | DEFC Battery 2 |
| 69 | Starter Pinion |
| 71 | Cooling Fan |
| 72 | Cooling Fan Right/Lower |
| 73 | Trailer Stop/Turn Lamp Left |
| 74 | Trailer Interface Module 2 |
| 75 | Integrated Chassis Control Module |
| 76 | Electric Running Board |
| 78 | Engine Control Module |
| 79 | Cabin Coll Pump |
| 80 | Powertrain Sensor 1 |
| 81 | Trailer Stop/Turn Lamp Right |
| 82 | Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | – |
| 86 | Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A sensor |
| 90 | Injector A Odd |
| 91 | – |
| 92 | Aeroshutter |
| Relays | |
| 5 | Rear Defog |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Park Lamp / Front Grille Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Motor |
| 77 | Powertrain |
2024
Instrument Panel Fuse Block (Left)
List of fuses in the Left Instrument Panel Fuse Block (2024)
| â„– | Usage |
|---|---|
| F1 | Rear Heated Seats Left/ Right |
| F3 | – |
| F4 | – |
| F5 | Spare |
| F6 | Heated and Ventilated Seats Left/Right |
| F8 | – |
| F9 | EOCM – End Object Control Module / Park Assist |
| F10 | – |
| F11 | – |
| F12 | Passenger Power Seat |
| F13 | – |
| F14 | Data Link Connector |
| F15 | – |
| F16 | AMP |
| F17 | MFEG – Multifunction Endgate Control |
| F18 | – |
| F20 | Endgate |
| F22 | Rear Sliding Window |
| F23 | Driver and Passenger Memory Seat Module |
| F24 | – |
| F25 | – |
| F26 | – |
| F27 | – |
| Circuit Breakers | |
| CB1 | – |
| Relays | |
| K1 | Rear Sliding Window Open |
| K2 | Rear Sliding Window Close |
| K3 | MFEG – Multifunction Endgate Control High |
| K4 | – |
| K5 | MFEG – Multifunction Endgate Control Minor |
| K6 | MFEG – Multifunction Endgate Control Low |
| K7 | – |
| K8 | – |
Instrument Panel Fuse Block (Right)
List of fuses in the Right Instrument Panel Fuse Block (2024)
| â„– | Usage |
|---|---|
| F1 | Right Doors |
| F2 | Left Doors |
| F3 | – |
| F4 | ELM – Exterior Lighting Module 2 |
| F5 | ELM – Exterior Lighting Module 7 |
| F6 | Front Blower |
| F8 | Left Front Window Switch |
| F10 | Steering Tilt / Upfitter Vehicle Module / Exterior Lighting Module 5 |
| F11 | Video Processing Module / Overhead Control Camera |
| F12 | Central Gateway Module / Telematics Control Platform / Column Lock / Driver Monitor System |
| F14 | – |
| F17 | Steering Wheel Controls |
| F18 | – |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Steering Wheel |
| F23 | – |
| F24 | – |
| F25 | Spot Lamp Left/Right |
| F26 | USB Ports / Special Equipment option Retained Accessory Power |
| F27 | Accessory Power Outlet / Retained Accessory Power |
| F28 | Accessory Power Outlet / Battery |
| F30 | Sensing and Diagnostic Module / Automatic Occupant Sensing / Integrated Center Stack / Instrument Panel Cluster / Heads-up Display / Humidity |
| F31 | Body Control Module 2 |
| F32 | Remote Function Actuator / Wireless Charging Module / Aux Jack / Center Stack Module Aux Jack / Trailer Brake Control Switch |
| F33 | Body Control Module 4 |
| F34 | – |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | – |
| F44 | Shifter Interface Board |
| F45 | Radio Low |
| F46 | – |
| F47 | – |
| F48 | Transmission Control Module |
| F49 | Body Control Module 1 |
| F50 | – |
| F51 | Battery 1 |
| F52 | Battery 2 |
| Circuit Breakers | |
| CB1 | Accessory Power Outlet 1 |
| CB2 | – |
| CB3 | – |
| CB4 | – |
| Relays | |
| K1 | – |
| K2 | Retained Accessory Power/ Accessory 1 |
| K4 | – |
| K5 | – |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
| â„– | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Headlamp Left |
| 4 | Headlamp Right |
| 6 | – |
| 7 | Exterior Lighting Module 4 |
| 8 | – |
| 9 | – |
| 10 | Exterior Lighting Module 6 |
| 11 | Body Control Module 3 |
| 12 | Rear Defog |
| 13 | Washer Front |
| 14 | – |
| 15 | – |
| 16 | – |
| 17 | IECL1 – Instrument Panel Fuse Block Left 1 |
| 19 | DC/AC Inverter |
| 20 | IECR2 – Instrument Panel Fuse Block Right 2 |
| 21 | – |
| 22 | IECL2 |
| 24 | Fuel Heater |
| 25 | EBCM – Electronic Brake Control Module |
| 26 | – |
| 27 | Horn |
| 28 | Park Lamp Mirror/Grill |
| 29 | – |
| 30 | Exterior Lighting Module 3 |
| 31 | Exterior Lighting Module 1 |
| 32 | – |
| 33 | NOT R/C |
| 34 | Radars |
| 37 | MISC IP Headline Ignition |
| 38 | Seat Fan Ignition |
| 39 | TIM IGN – Trailer Interface Module Ignition |
| 40 | MISC Body Ignition |
| 41 | Trailer Parking Lamp |
| 42 | – |
| 44 | DEFC Ignition – Diesel Exhaust Fluid Controller Ignition |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module / Transmission Control Module / lntegrated Chassis Control Ignition |
| 47 | – |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | Center High-Mounted Stoplamp |
| 54 | – |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | TTPM/SBZA – Side Blind Zone Alert |
| 58 | Starter Motor |
| 60 | PWR/TRN Sensors 2 |
| 61 | – |
| 62 | DEFC Battery 1 / Canister Vent Solenoid |
| 63 | Trailer Brake Control Module |
| 65 | – |
| 66 | Cooling Fan Motor Left |
| 67 | – |
| 68 | DEFC Battery 2 |
| 69 | Starter Pinion |
| 71 | Cooling Fan |
| 72 | Cooling Fan Right/Lower |
| 73 | Trailer Stop/Turn Lamp Left |
| 74 | Trailer Interface Module 2 |
| 75 | Integrated Chassis Control Module |
| 76 | Electric Running Board |
| 78 | Engine Control Module |
| 79 | Cabin Coll Pump |
| 80 | Powertrain Sensor 1 |
| 81 | Trailer Stop/Turn Lamp Right |
| 82 | Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | – |
| 86 | Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A sensor |
| 90 | Injector A Odd |
| 91 | – |
| 92 | Aeroshutter |
| Relays | |
| 5 | Rear Defog |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Park Lamp / Front Grille Lamp |
| 36 | Run/Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Motor |
| 77 | Powertrain |
Conclusion
The 2022-2024 Chevrolet Silverado (GMT T1XX) combines strength and utility in various body styles. Proper upkeep of its fuse box and relays ensures reliable functionality.
