The Chevrolet K1500 (1992-1994) is a popular full-size pickup truck known for its rugged durability and off-road capabilities. The truck’s electrical system is essential for its reliable performance, with the fuse box and relays playing critical roles in managing the vehicle’s various circuits.

The fuse box in the Chevrolet K1500 is generally located in the engine compartment, with an additional fuse panel under the dashboard on the driver’s side. The engine compartment fuse box is responsible for protecting high-current circuits, such as those for the engine, headlights, and ABS. The interior fuse panel manages lower-power circuits like the radio, interior lights, and power windows. Each fuse protects its respective circuit by breaking the connection if an overload or short circuit occurs, thus preventing potential damage.

Relays in the K1500 function as switches that control high-current components, such as the starter motor, cooling fan, and fuel pump. These relays allow the truck’s high-power systems to be operated safely via low-current control circuits. Regular maintenance of the fuses and relays is crucial for preventing electrical issues, ensuring the K1500’s systems function reliably, whether on the road or off it.

MUST READ: DYI – How to Check Car Fuses?

(1992-1994) Chevrolet K1500 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet K1500 (1992-1994) fuse assignment

Year of production: from 1992, 1993, 1994

Fuse Box diagram

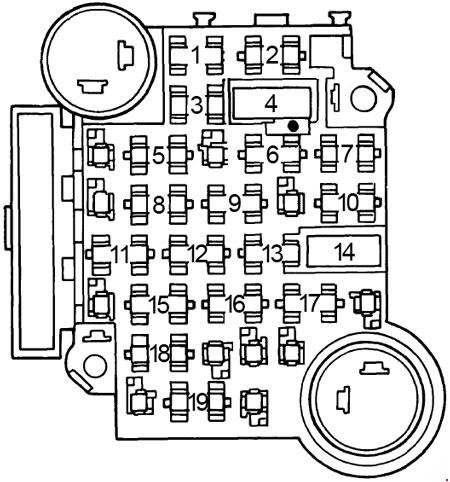

chevrolet k1500 fuse box diagram 1992 1994
Chevrolet K1500 – fuse box diagram
No.ACircuit Protected
120Cruise Control, Rear Window Defogger Timer, 4-Wheel Drive Display Illumination, Auxiliary Battery Relay, Seat Belt Reminder, Cluster Ignition Feed
215Back-Up Lights, Turn Signals
3 –
430Circuit breaker: Power Windows
55Discreet Crank
610Torque Converter Clutch, Air Injection Reactor Diverter, Electronic Spark Control, EGR, Electronic Control Module, Anti-Lock Switch
7254-Wheel Drive (4WD)
15Speedometer
810Throttle Body Injectors
915Anti-Lock Brakes, Cluster Speedometer
1025HVAC, 4-Wheel Drive, Auxiliary Battery
1120Courtesy Lights, Glove Box Light, Radio
1220Horn Relay, Horn Feed, Cigarette Lighter, Parking Lights
135Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
20Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
1430Circuit breaker: Door Locks, Rear Window Defogger
1515Hazard Flasher, Seat Belt Reminder, Stoplights, Rear Anti-lock Memory
1625Windshield Washer/Wiper
17 –
1810Radio Feed
1915Daytime Running Light

Conclusion

For owners and enthusiasts of classic Chevrolet K1500 (1992-1994), understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
