(2005-2006) Chevrolet HHR fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet HHR (2005-2006) fuse assignment

  • Cigar lighter (power outlet) fuses in the Chevrolet HHR are the fuses №7 (Rear Power Plug (Panel Van Only)), №12 (Rear Power Outlet (Panel Van Only)), №29 (Cigarette Lighter) and №30 (Power Outlet) in the Engine Compartment Fuse Box.

Year of production: from 2005, 2006

Floor console fuse block

The floor console fuse block is located on the passenger’s side of the console behind the forward panel.

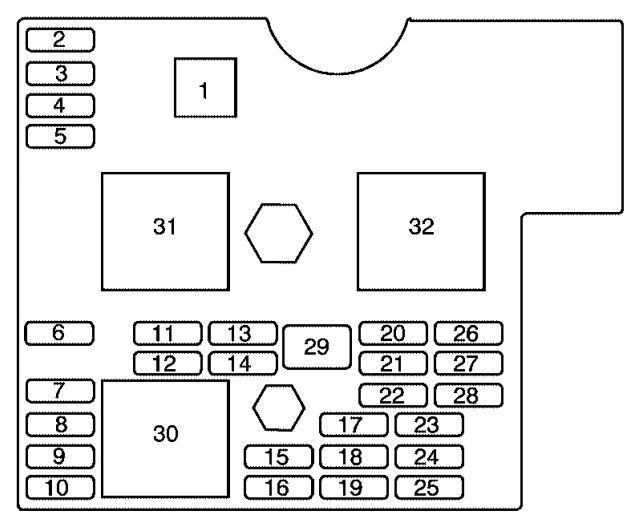

chevrolet hhr fuse box diagram floor console 2005 2006
Chevrolet HHR – fuse box diagram – floor console
FusesDescription
1Fuse Puller
2Spare
3Spare
4Spare
5Spare
6Amplifier
7Cluster
8Ignition Switch, PassKey
9Stoplamp
10Climate Control System, PassKey
11Empty
12Spare
13Airbag
14Spare
15Wiper
16Climate Control System, Ignition
17Blank
18Blank
19Electric Power Steering, Steering Wheel Controls
20Sunroof
21Spare
22Blank
23Radio
24Sensing and Diagnostic Module
25Engine Control Module, Transmission Control Module
26Door Locks
27Interior Lights
28Blank
29Power Windows
RelaysUsage
30Climate Control System
31Blank
32Retained Accessory Power

Engine compartment fuse block

The underhood fuse block is located on the driver side of the engine compartment.

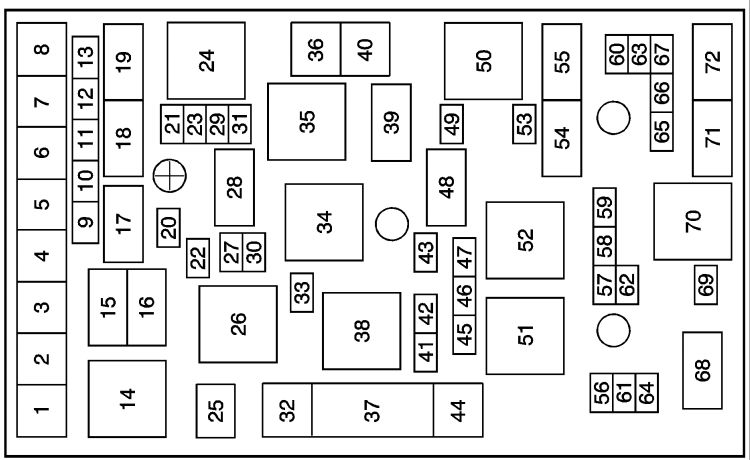

Chevrolet hhr fuse box engine compartment fuse block
Chevrolet HHR – fuse box – engine compartment fuse block
FusesDescription
1Electric Power Steering
2Rear Defogger
3Empty
4Body Control Module 3
5Starting System
6Body Control Module 2
7Empty
8Empty
9Air Conditioning Clutch Diode
10Liftgate, Sunroof
11Empty
12Empty
13Fuel Pump
15Air Conditioning Clutch
16Empty
17Rear Wiper
18Liftgate Release
19Fuel Pump
20Rear Wiper
21Mirror
22Air Conditioning
23Heated Seats (Option)
25Fuse Puller
27Empty
28Empty
29Cigarette Lighter
30Power Outlet
31Empty
32Empty
33Emissions
36Empty
37Power Seat (Option)
39Windshield Washer Pump
40Cooling Fan
41Empty
42Engine Control Module
43Engine Control Module, Transmission
44Antilock Brake System (Option)
45Injectors, Ignition Module
46Park, Neutral
47Heated Seat, Back-up Lamps
48Rear Windshield Washer
49Windshield Washer Pump
53Fog Lamps (Option)
55Horn
56Audio, OnStar®
57Antilock Brake System (Option)
58Windshield Wiper Diode
59Windshield Wiper
60Horn
61Antilock Brake System (Option)
62Instrument Panel, Ignition
63Driver Side High-Beam
64Canister Vent
65Driver Side Low-Beam
66Passenger Side Low-Beam
67Passenger Side High-Beam
69Parking Lamps
71Headlamp Low Beam
72Headlamp High Beam
RelaysDescription
14Rear Defogger Relay
24Empty
26Powertrain
34Starting System
35Empty
38Empty
50Cooling Fan
51Run, Crank
52Windshield Wiper
54Fog Lamps (Option)
68Parking Lamps
70Windshield Wipers
Other relays:

– A Center High-Mounted Stoplamp Relay and a Rear Access Panel Door Interlock Relay (Panel Van only) are located underhood in front of the left shock tower.

– The Left Rear Access Panel Door Relay (Panel Van Only), and the Right Rear Access Panel Door Relay (Panel Van Only) are located in the rear of the vehicle behind the right rear quarter trim panel.

– A Rear Power Plug mini fuse (Panel Van Only) is located near the battery in the rear of the vehicle.
