The Chevrolet Equinox (2018-2022) is a compact SUV known for its modern technology and reliable performance. The electrical system in the Equinox relies on a network of fuses and relays to protect and manage various components.

The fuse box in the Chevrolet Equinox is located in two primary areas: under the hood in the engine compartment and inside the cabin, typically on the passenger side. The engine compartment fuse box is responsible for safeguarding high-power circuits, such as the engine control system, cooling fans, and headlights. The interior fuse box handles lower-power circuits like the infotainment system, power windows, and interior lighting. Each fuse is designed to prevent electrical overloads by disconnecting the circuit if an issue arises.

Relays in the Equinox act as switches for high-current devices such as the starter motor, fuel pump, and air conditioning system. These relays ensure that high-power systems can be controlled efficiently by low-current circuits. Regular inspection and maintenance of the fuses and relays are important to prevent potential electrical issues and to ensure the smooth operation of the vehicle’s critical systems.

MUST READ: DYI – How to Check Car Fuses?

(2018-2022) Chevrolet Equinox fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Equinox 2018-2022 fuse assignment

  • Cigar lighter / power outlet fuses in the Chevrolet Equinox are the fuse â„–F37 (Cigarette lighter), circuit breakers CB1 (Front auxiliary power outlet) and CB2 (Auxiliary power outlet console) in the Instrument panel fuse box, and fuse â„–21 (Rear auxiliary power outlet) in the Luggage Compartment fuse box.

Year of production: from 2018, 2019, 2020, 2021, 2022

Fuse box location

Passenger Compartment

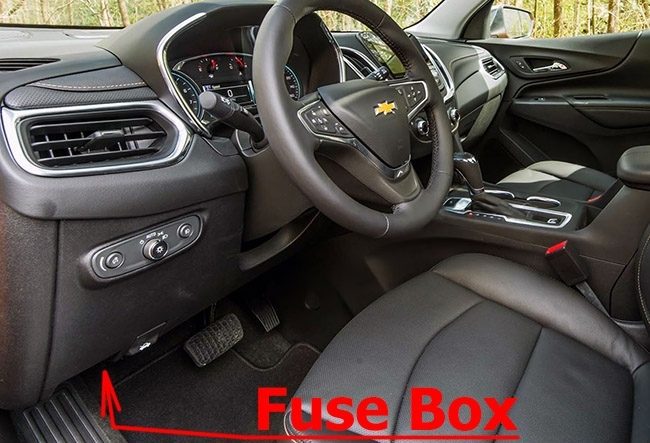

The location of the fuses in the passenger compartment: Chevrolet Equinox
The location of the fuses in the passenger compartment: Chevrolet Equinox

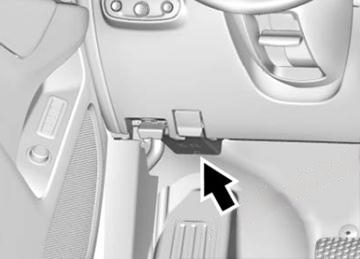

The instrument panel fuse block is under the instrument panel on the driver side.
To access, press and release the latch near the top center square.

Engine Compartment

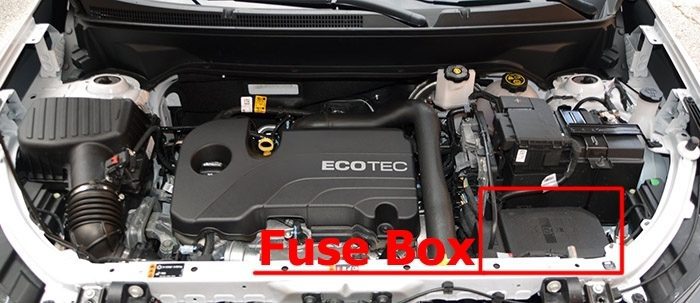

The location of the fuses in the engine compartment: Chevrolet Equinox
The location of the fuses in the engine compartment: Chevrolet Equinox

Luggage Compartment

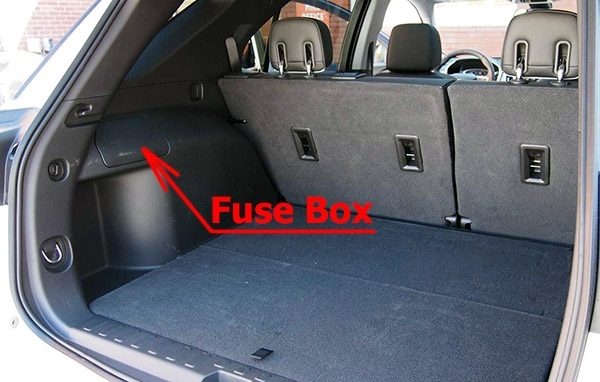

The location of the fuses in the trunk: Chevrolet Equinox
The location of the fuses in the trunk: Chevrolet Equinox

The rear compartment fuse block is behind a trim panel on the side of the rear compartment.

Fuse box diagrams

Instrument panel

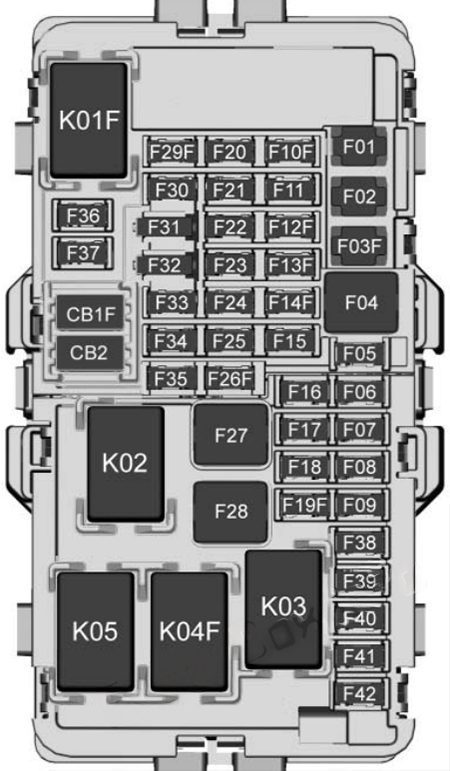

Instrument panel fuse box diagram: Chevrolet Equinox (2018, 2019)
Instrument panel fuse box diagram: Chevrolet Equinox (2018, 2019)

Assignment of the fuses and relays in the instrument panel

â„–Usage
F01DC AC inverter
F02Front windows
F03Trailer brake
F04Heating, ventilation, and air conditioning blower
F05Body control module 2
F06Central gateway module (CGM)
F07Not used
F08Body control module 3
F09Amplifier
F10Not used
F11Not used
F12Not used
F13Not used
F142018-2019: Electronic shifter.
2020-2022: Not Used
F15Transmission control module
F16Front heated seats
F17Left data link connector
F18Body control module 7
F19Exterior mirror
F20Body control module 1
F21Body control module 4
F22Body control module 6
F23Electric steering column lock
F24Sensing and diagnostic module
F25Occupancy sensor
F26Not used
F27Power seats
F28Rear windows
F29Not used
F302018-2019: Front heated seats switch.
2020-2022: Not Used
F31Steering wheel controls
F32Body control module 8
F33Heating, ventilation, and air conditioning
F34Passive entry, passive start
F35Liftgate latch
F362018: Shift charger
2019-2022: Wireless charger module/ USB accessory
F37Cigarette lighter
F38OnStar
F39Instrument panel USB
F40Camera module/ Liftgate module
F412018-2020: Parking assist module
2021-2022: Park assist module/ Center stack display/ Heating, ventilation and air conditioner display/ Universal garage door opener/ Overhead control switchbank
F42Radio
Relays
K012018-2019: Deadbolt.
2020-2022: Not Used
K02Retained accessory power
K03Liftgate
K04Not used
K05Logistics
Circuit Breakers
CB12018: Front auxiliary power outlet
2019-2022: Not Used
CB2Auxiliary power outlet console

Engine compartment

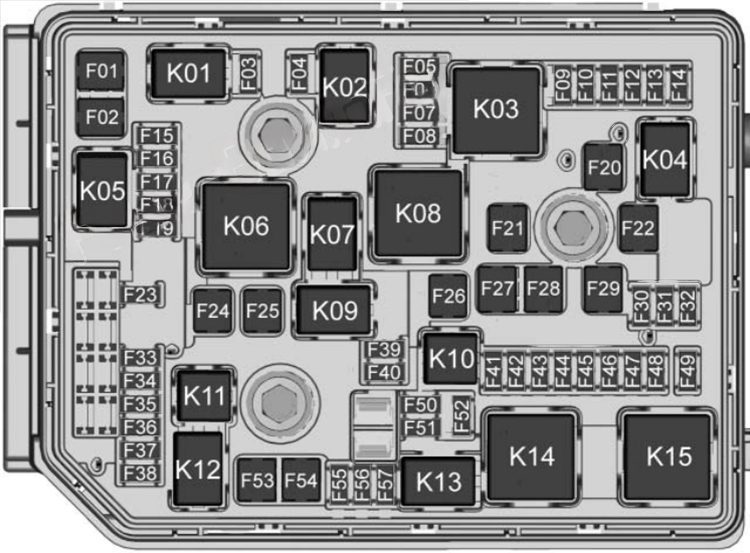

Under-hood fuse box diagram: Chevrolet Equinox (2018, 2019)
Under-hood fuse box diagram: Chevrolet Equinox (2018, 2019)

Assignment of the fuses and relays in the engine compartment

â„–Usage
F01Starter 1
F02Starter 2
F03Lambda sensor 1
F04Engine control module
F052018-2020: FlexFuel sensor
2021: FlexFuel sensor/ Aero shutter
2022: Aero Shutter/ Water Pump
F06Transmission control module
F07Not used
F082018-2021: Engine control module
F09Air conditioning clutch
F10Canister vent
F11Fuel system
F12Front heated seats
F132018-2019: Afterboil pump.
2020-2022: Engine coolant pump
F14Not used
F15Lambda sensor 2
F162018: Fuel injectors – odd
2019-2022: Ignition coils
F172018: Fuel injectors – even
2019-2022: Engine control module
F182018-2021: Not used/ Selective catalytic reduction module (diesel only)
2022: Engine Control Module
F19Not used/ NOx soot sensor (diesel only)
F20DC DC converter 2
F21Shift control
F22Antilock brake pump
F232018: Front washer
2019-2022: Front/Rear washer pump
F24Not used
F25Not used/ Diesel fuel heater (diesel only)
F26Not used
F27Antilock brake valves
F28LD trailer
F29Rear window defogger
F30Mirror defroster
F31Not used
F32Variable functions
F33Not used
F34Horn
F352018: Vacuum pump
2019-2022: Not Used
F362018-2021: Right high-beam headlamp
2022: Headlamps/ Daytime Running Lamps Right
F372018-2021: Left high-beam headlamp
F38Automatic headlamp leveling
F392018-2021: Fog lamps
F40Not used
F41Transmission range control module
F42Motorized headlamp
F432018: Fuel pump
2019-2022: Not Used
F44Interior rearview mirror
F452018: Canister vent solenoid
2019-2022: Passenger side ventilated seat
F46Driver side Ventilated Seat
F47Steering column lock assembly
F48Rear wiper
F49Not used
F50Heated steering wheel
F512018: Right headlamp
2019-2021: Right daytime running lamp
F52Engine control module/ Transmission control
F53Not used
F542018: Front wiper
2019-2022: Not Used
F55Front wiper speed/ Control
F56Not used
F572018: Left headlamp
2019-2021: Left daytime running lamp
2022: Headlamps/ Daytime Running Lamps Left
Relays
K01Starter solenoid
K02Air conditioning control
K032018: Not used
2019-2022: Engine control module
K042018: Wiper control
2019-2022: Front wiper control
K05Starter Solenoid/Pinion
K06Not used/ Fuel heater (diesel only)
K07Not used
K08Not used
K092018: Wiper speed
2019-2022: Front wiper speed
K10Not used
K11Not used
K122018-2021: High-beam headlamps
2022: Headlamps/ Daytime Running Lamps Right
K132018-2021: Headlamps/ Daytime running lamps
2022: Headlamps/ Daytime Running Lamps Left
K14Run/Crank
K15Rear window defogger
*K16Horn
*K17Selective catalytic reduction
*K18Fog lamps
*K19Coolant pump
*K20Not used
*K21Rear washer
*K22Front washer
*K232018: Wiper control
2019-2022: Rear wiper control
* PCB relays are not serviceable.

Luggage Compartment

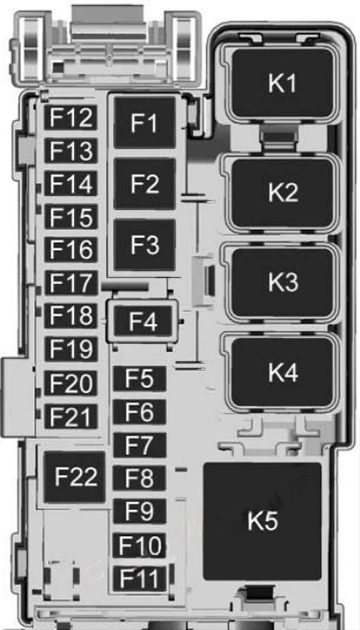

Trunk fuse box diagram: Chevrolet Equinox (2018, 2019)
Trunk fuse box diagram: Chevrolet Equinox (2018, 2019)

Assignment of the fuses and relays in the luggage compartment

â„–Usage
F12018-2019: Exhaust fuel heater.
2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only)
2022: Power Seat
F2Liftgate
F3Trailer auxiliary power
F42018: Power seats
2019-2021: Passenger Power Seat
F5Memory seat module
F6Sunroof
F7Side blind zone alert
F8Trailer reverse lamps
F9Rear heated seat 1
F102018: Parking assist
2019-2022: Park Lamps
F11Rear heated seat 2
F12Not used
F13Trailer parking lamp
F142018: Right trailer turn signal lamp
2019-2022: Right trailer stoplamp/ Turn signal lamp
F152018-2021: Left parking lamp
F162018-2021: Right parking lamp
F172018-2019: Not used.
2020-2022: Video processing module
F182018: Left trailer turn signal lamp
2019-2022: Left trailer stoplamp/ Turn signal lamp
F19All-wheel drive
F20Lumbar
F21Rear auxiliary power outlet
F22Rear drive unit
Relays
K1Right trailer stoplamp/Turn signal lamp
K2Trailer reverse lamps
K3Left trailer stoplamp/Turn signal lamp
K4Park lamps
K52018-2019: Selective catalytic reduction (SCR) – (diesel only).
2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only)

Conclusion

For owners and enthusiasts of classic Chevrolet Equinox (2018-2022), understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
