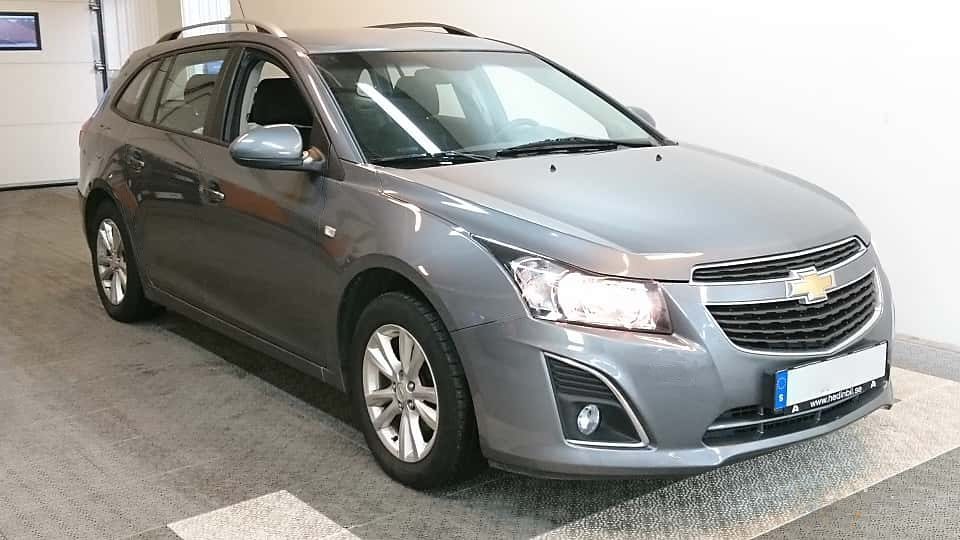

The 2013 Chevrolet Cruze Station Wagon is a practical and reliable compact car, offering extended cargo space and comfort. Like all modern vehicles, its electrical system relies on fuses and relays to ensure the safe and efficient operation of various components.
The fuse box in the Cruze Station Wagon is located in two primary locations: the engine compartment and inside the cabin. The engine compartment fuse box protects high-power systems like the engine control module, cooling fans, and headlights. Meanwhile, the interior fuse box manages lower-power systems such as the infotainment system, power windows, and interior lighting. Fuses act as circuit protectors, cutting off electrical flow when a circuit is overloaded or short-circuits occur.
Relays in the vehicle control high-current components like the fuel pump, starter motor, and air conditioning. These relays enable low-current signals to control high-power devices, ensuring they function safely. Regular checks and maintenance of both the fuses and relays are important to avoid electrical issues and ensure that all systems continue to run smoothly in the 2013 Chevrolet Cruze Station Wagon.
MUST READ: DYI – How to Check Car Fuses?
(2013) Chevrolet Cruze Station Wagon fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Cruze Station Wagon 2013 fuse assignment
- Cigar lighter / power outlet fuses in the Chevrolet Cruze are the fuses №6 (Cigar Lighter – Front) and №7 (Accessory Power Outlet – Centre Console 1/2) in the Instrument panel fuse box.
Year of production: from 2013

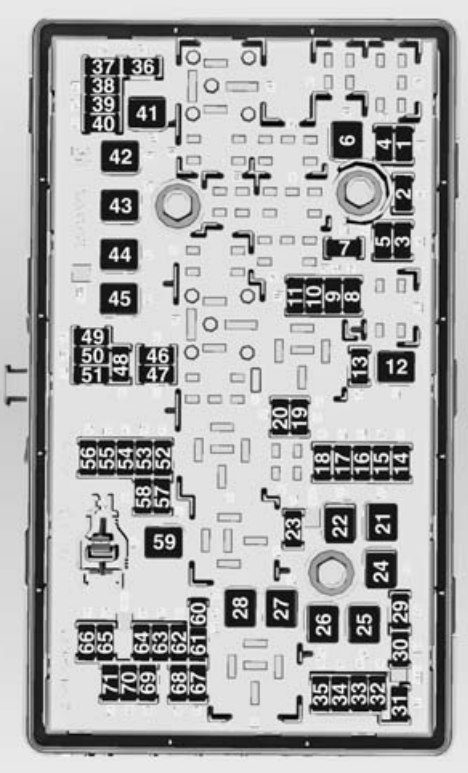

Engine compartment
The fuse box is in the front left of the engine compartment.
| Number | Circuit |
| 1 | Transmission control module |
| 2 | Engine control module |
| 3 | — |
| 4 | Canister vent solenoid |
| 5 | Ignition |
| 6 | Front wipers |
| 7 | — |
| 8 | Fuel injection |
| 9 | Fuel injection, ignition system |
| 10 | Engine control module |
| 11 | Lambda sensor |
| 12 | Starter solenoid |
| 13 | Canister vent solenoid |
| 14 | — |
| 15 | Rear wiper |
| 16 | Ignition, Air quality sensor |
| 17 | Ignition, Airbag |
| 18 | Fuel control module |
| 19 | — |
| 20 | Fuel pump |
| 21 | Rear power windows |
| 22 | — |
| 23 | — |
| 24 | Front power windows |
| 25 | Electronic vacuum pump |
| 26 | ABS |
| 27 | Electronic key system |
| 28 | Heated rear window |
| 29 | — |
| 30 | ABS |
| 31 | Body control module |
| 32 | Body control module |
| 33 | Front seat heating |
| 34 | Sunroof |
| 35 | Infotainment system, Amplifier |
| 36 | — |
| 37 | High beam, right side |
| 38 | High beam, left side |
| 39 | — |
| 40 | — |
| 41 | — |
| 42 | Cooling fan |
| 43 | — |
| 44 | — |
| 45 | Cooling fan |
| 46 | Cooling fan |
| 47 | Lambda sensor |
| 48 | Fog lights |
| 49 | — |
| 50 | — |
| 51 | Horn |
| 52 | Instrument panel |
| 53 | Electrochromatic mirror |
| 54 | Light switch, Light control |
| 55 | Mirror folding |
| 56 | Windscreen washer |
| 57 | Steering column lock |
| 58 | — |
| 59 | Diesel fuel heating |
| 60 | Mirror heating |
| 61 | Mirror heating |
| 62 | Air condition |
| 63 | Rear window sensor |
| 64 | Air quality sensor |
| 65 | Rear fog lamp |
| 66 | Rear washer |
| 67 | Fuel system control module |
| 68 | — |
| 69 | Battery voltage sensor |
| 70 | Rain sensor |
| 71 | — |

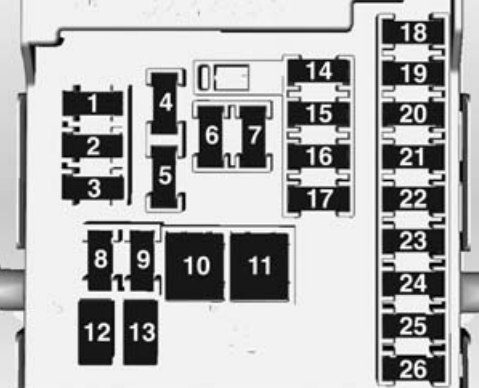

Instrument panel fuse box
The fuse box is behind the storage compartment in the instrument panel.
| Number | Circuit |
| 1 | Infotainment system, handsfree phone |
| 2 | DC/DC converter |
| 3 | Body control unit |
| 4 | Infotainment system |
| 5 | Info display, parking assist, power sounder |
| 6 | Cigarette lighter |
| 7 | Power outlet |
| 8 | Body control module |
| 9 | Body control module |
| 10 | Body control module |
| 11 | Interior fan |
| 12 | — |
| 13 | Heated seats |
| 14 | Diagnostic connector |
| 15 | Airbag |
| 16 | Central locking system, tailgate |
| 17 | Air conditioning system |
| 18 | Trailer |
| 19 | Shift lever |
| 20 | Shift lever, battery sensor |
| 21 | Instrument |
| 22 | Ignition, electronic key system |
| 23 | Body control module |
| 24 | Body control module |
| 25 | Steering column lock |
| 26 | Rear power outlet |
Conclusion
For owners and enthusiasts of classic Chevrolet Cruze Station Wagon 2013, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
