The Chevrolet Colorado (2012-2022) is a midsize pickup truck known for its versatility and capability. Its electrical system is protected and managed through fuses and relays, ensuring the smooth operation of various components.
The fuse box is located both in the engine compartment and inside the cabin. The engine compartment fuse box manages critical systems such as the engine control, headlights, and cooling fans. The cabin fuse box handles lower-power components like the infotainment system, power windows, and interior lights. If any circuit experiences an overload, the fuse will blow, cutting power to prevent damage.
Relays in the Colorado act as switches that control high-power systems, including the fuel pump, starter motor, and air conditioning system. These relays allow low-power circuits to operate high-current devices safely. If a relay fails, it can result in key components malfunctioning, such as the engine failing to start or the cooling fan not running.
Regular inspection and maintenance of the fuses and relays are essential for preventing electrical issues and ensuring that critical systems function properly in the Chevrolet Colorado.
MUST READ: DYI – How to Check Car Fuses?
(2012-2022) Chevrolet Colorado fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Colorado 2012-2022 fuse assignment
- Cigar lighter / power outlet fuses are the fuses F39 (Auxiliary Power Outlet 2), F40 (Auxiliary Power Outlet, if equipped), F41 (Auxiliary Power Outlet 1/Lighter), and F44 (Auxiliary Power Outlet, if equipped) in the Instrument panel fuse box.
Year of production: from 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Fuse box location

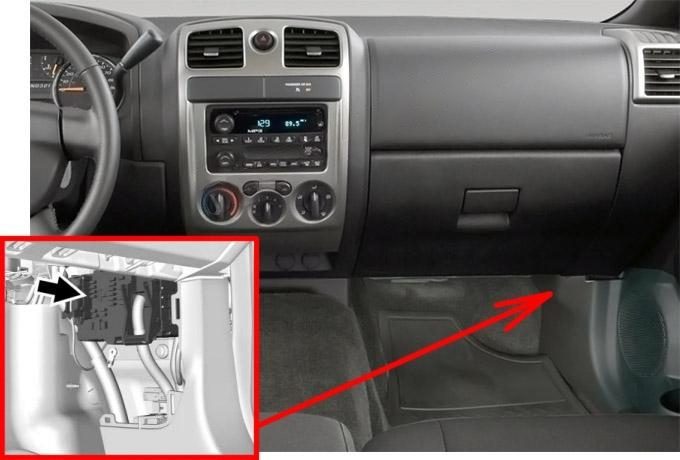

Instrument Panel
The instrument panel fuse box is located under the glowe box, behind the passenger side cowl side trim panel.

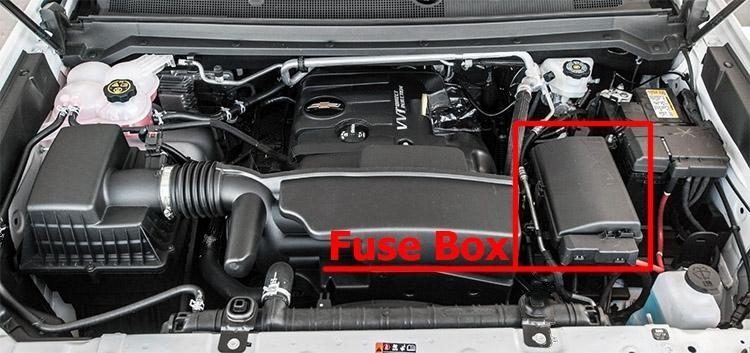

Engine Compartment
The fuse box is located in the engine compartment (on the driver’s side).
Fuse box diagrams
2015, 2016
Instrument Panel

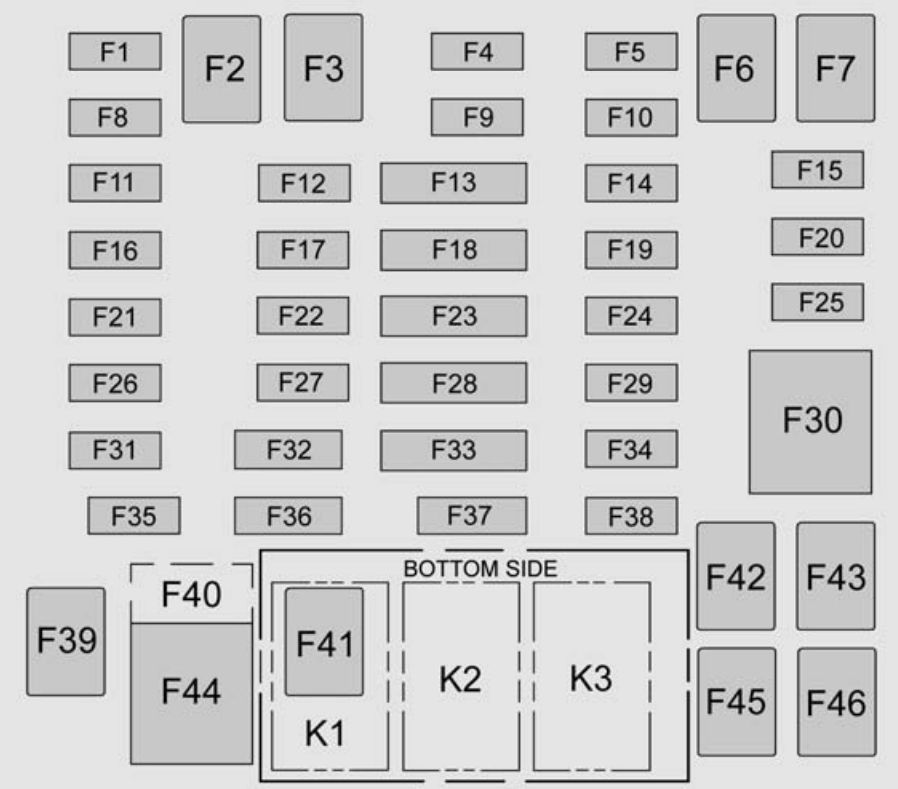

Assignment of the fuses and relay in the Instrument Panel (2015, 2016)
| № | Usage |
|---|---|
| Micro Fuse (2 Pin) | |
| F01 | Body Control Module 1 |
| F04 | Steering Wheel Controls |
| F05 | Body Control Module 2 |
| F08 | Mirror Window Module |
| F09 | Instrument Cluster |
| F10 | Not Used |
| F11 | Body Control Module 8 |
| F12 | Not Used |
| F14 | Radio/HMI |
| F15 | Body Control Module 6 |
| F16 | Not Used |
| F17 | Body Control Module 4 |
| F19 | Not Used |
| F20 | Amplifier (if equipped) |
| F21 | Not Used |
| F22 | Not Used |
| F24 | Heating, Ventilation, and Air Conditioning Ignition |
| F25 | Body Control Module 7 |
| F26 | Not Used |
| F27 | Not Used |
| F29 | Miscellaneous Ignition |
| F31 | Front Camera |
| F32 | Steering Wheel Controls Backlighting |
| F34 | Not Used |
| F35 | Park, Reverse, Neutral, Drive, Low |
| F36 | Discrete Logic Ignition Sensor |
| F38 | Not Used |
| Micro Fuse (3 Pin) | |
| F13 | OnStar/Heating, Ventilation, and Air Conditioning |
| F18 | Airbag |
| F23 | Data Link Connector/USDB |
| F28 | Instrument Panel/ Sensing and Diagnostic Module Ignition |
| F33 | Not Used |
| Micro J-Case Fuse | |
| F02 | Not Used |
| F03 | Not Used |
| F06 | Not Used |
| F07 | Not Used |
| F39 | Auxiliary Power Outlet 2 |
| F41 | Auxiliary Power Outlet 1/Lighter |
| F42 | Left Power Window |
| F43 | Driver Power Seat |
| F45 | Right Power Window |
| F46 | Passenger Power Seat |
| J-Case Fuse | |
| F30 | Not used |
| F40 | Auxiliary Power Outlet |
| F44 | Auxiliary Power Outlet |
| Mini Fuse (2 Pins) | |
| F37 | Not Used |
| Micro Relay | |
| K1 | Retained Accessory Power/Accessory |
| K2 | Run/Crank |
Engine Compartment

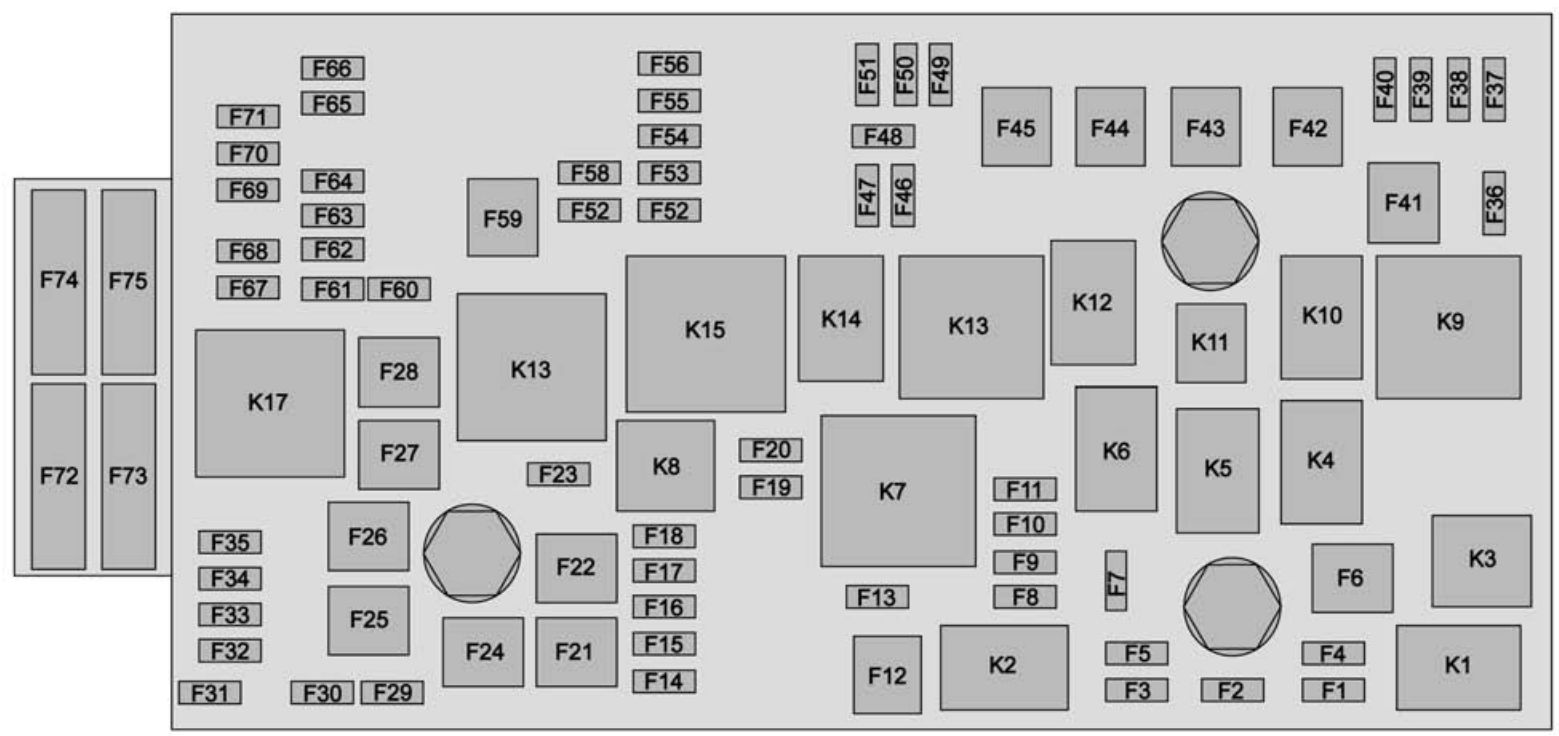

Assignment of the fuses and relay in the Engine Compartment (2015, 2016)
| № | Usage |
|---|---|
| Mini Fuses (2 pin) | |
| F01 | Traction Control Module Power |
| F02 | Engine Control Module Power |
| F03 | Air Conditioning Compressor Clutch |
| F04 | Not Used |
| F05 | Fuel Module Ignition |
| F07 | Cargo Lamp |
| F08 | Fuel Injectors – Even |
| F09 | Fuel Injectors – Odd |
| F10 | Engine Control Module |
| F11 | Miscellaneous 1 Ignition |
| F13 | Traction Control Module |
| F14 | Not Used |
| F15 | Not Used |
| F16 | Not Used |
| F17 | Front Axle Actuator |
| F18 | Not Used |
| F19 | Aeroshutters |
| F20 | Not Used |
| F23 | Not Used |
| F29 | Not Used |
| F30 | Heated Seat Power 1 |
| F31 | Not Used |
| F32 | Heated Seat Power 2 |
| F33 | Body Control Module 3 |
| F34 | Fuel System Control Module |
| F35 | Not Used |
| F36 | Center High Mounted Stop Lamp |
| F37 | Right High-Beam Headlamp |
| F38 | Left High-Beam Headlamp |
| F39 | Not Used |
| F40 | Not Used |
| F46 | Not Used |
| F47 | Miscellaneous 2 Ignition |
| F48 | Fog Lamps (If Equipped) |
| F49 | Not Used |
| F50 | Trailer Park Lamps |
| F51 | Horn |
| F52 | Not Used |
| F53 | Not Used |
| F54 | Not Used |
| F55 | Not Used |
| F56 | Washer Pump |
| F57 | Not Used |
| F58 | Not Used |
| F60 | Mirrors Defogger |
| F61 | Not Used |
| F62 | Canister Vent Solenoid |
| F63 | Not Used |
| F64 | Trailer Reverse Lamp |
| F65 | Left Trailer Stop/ Turn Lamps |
| F66 | Right Trailer Stop/ Turn Lamps |
| F67 | Electric Power Steering |
| F68 | Not Used |
| F69 | Battery Regulated Voltage Control |
| F70 | Not Used |
| F71 | Not Used |
| J-Case Fuses (Low Profile) | |
| F06 | Wipers |
| F12 | Starter |
| F21 | Front Blower |
| F22 | Antilock Brake System Valves |
| F24 | Trailer |
| F25 | Transfer Case Electronic Control |
| F26 | Antilock Brake System Pump |
| F27 | Trailer Brake Control Module |
| F28 | Rear Window Defogger |
| F41 | Not Used |
| F42 | Not Used |
| F43 | Cooling Fan |
| F44 | Not Used |
| F45 | Brake Vacuum Pump |
| F59 | Not Used |
| Midi Fuses | |
| F72 | Not Used |
| F73 | Not Used |
| F74 | Generator |
| F75 | Not Used |
| Micro relays | |
| K01 | Air Conditioning Compressor Clutch |
| K02 | Starter |
| K03 | Not Used |
| K04 | Wipers Speed |
| K05 | Wipers Control |
| K06 | Cargo Lamp |
| K08 | Not Used |
| K09 | Not Used |
| K10 | Not Used |
| K11 | Center High Mounted Stop Lamp |
| K12 | Not Used |
| K13 | Vacuum Pump |
| K14 | Park Lamps |
| Mini Relays | |
| K07 | Powertrain |
| K15 | Run/Crank |
| K17 | Rear Window Defogger |
| Solid State Relay | |
| K16 | Not Used |
2017
Instrument Panel
Assignment of the fuses and relay in the Instrument Panel (2017)
| № | Usage |
|---|---|
| Fuses | |
| F1 | Body Control Module 1 |
| F2 | — |
| F3 | — |
| F4 | Steering Wheel Controls |
| F5 | Body Control Module 2 |
| F6 | — |
| F7 | — |
| F8 | Mirror Window Module |
| F9 | Instrument Cluster |
| F10 | — |
| F11 | Body Control Module 8 |
| F12 | — |
| F13 | OnStar/HVAC |
| F14 | Radio/HMI |
| F15 | Body Control Module 6 |
| F16 | Communication gateway module |
| F17 | Body Control Module 4 |
| F19 | — |
| F20 | Amplifier (if equipped) |
| F21 | — |
| F22 | — |
| F23 | Data link connector/USB |
| F24 | HVAC ignition |
| F25 | Body Control Module 7 |
| F26 | — |
| F27 | — |
| F28 | Instrument panel/Sensing and diagnostic module/Ignition |
| F29 | Miscellaneous Ignition |
| F30 | — |
| F31 | Front Camera |
| F32 | Steering wheel controls backlighting |
| F33 | Heated steering wheel |
| F34 | Front ventilated seats |
| F35 | Park/Reverse/Neutral/Drive/Low/Wireless charging module |
| F36 | Discrete Logic Ignition Sensor |
| F37 | — |
| F38 | — |
| F39 | Auxiliary power outlet 2 |
| F40 | Auxiliary power outlet |
| F41 | Auxiliary power outlet 1/Lighter |
| F42 | Left power window |
| F43 | Driver power seat |
| F44 | — |
| F45 | Right power window |
| F46 | Passenger power seat |
| Micro Relay | |
| K1 | Retained accessory power |
| K2 | Run/Crank |
Engine Compartment
Assignment of the fuses and relay in the Engine Compartment (2017)
| № | Usage |
|---|---|
| Mini Fuses (2 pin) | |
| F01 | Traction Control Module Power |
| F02 | Engine Control Module Power |
| F03 | A/C Clutch |
| F04 | — |
| F05 | Engine control module/Integrated chassis control module/Fuel pump power module |
| F06 | Wipers |
| F07 | Cargo lamp/Bed lighting (if equipped) |
| F08 | Fuel Injectors – Even |
| F09 | Fuel Injectors – Odd |
| F10 | Engine Control Module 1 |
| F11 | Miscellaneous 1 / Ignition |
| F12 | Starter |
| F13 | Traction Control Module |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | Front Axle Actuator |
| F18 | — |
| F19 | Aeroshutters |
| F20 | — |
| F21 | Front blower |
| F22 | Antilock brake system valves |
| F23 | — |
| F24 | Trailer |
| F25 | Transfer case electronic control |
| F26 | Antilock brake system pump |
| F27 | Trailer brake control module |
| F28 | Rear window defogger |
| F29 | — |
| F30 | Driver heated seat |
| F31 | — |
| F32 | Passenger heated seat |
| F33 | Body Control Module 3 |
| F34 | Fuel System Control Module |
| F35 | Integrated chassis control module (if equipped) |
| F36 | Center high-mounted stoplamp |
| F37 | Right high-beam headlamp |
| F38 | Left high-beam headlamp |
| F39 | — |
| F40 | — |
| F41 | — |
| F42 | — |
| F43 | Cooling fan |
| F44 | Vacuum pump |
| F45 | — |
| F46 | Engine control module 2 |
| F47 | Miscellaneous 2/Ignition |
| F48 | Fog Lamps (If Equipped) |
| F49 | — |
| F50 | Trailer Park Lamps |
| F51 | Horn |
| F52 | — |
| F53 | — |
| F54 | — |
| F55 | — |
| F56 | Washer Pump |
| F57 | — |
| F58 | — |
| F60 | Mirrors Defogger |
| F61 | — |
| F62 | Canister Vent Solenoid |
| F63 | — |
| F64 | Trailer Reverse Lamp |
| F65 | Left trailer stoplamp/Turn signal lamps |
| F66 | Right trailer stoplamp/Turn signal lamps |
| F67 | Electric Power Steering |
| F68 | — |
| F69 | Battery Regulated Voltage Control |
| F70 | — |
| F71 | — |
| F72 | — |
| F73 | — |
| F74 | Generator |
| F75 | — |
| Relays | |
| K1 | A/C clutch |
| K2 | Starter |
| K3 | — |
| K4 | Wipers Speed |
| K5 | Wipers Control |
| K6 | Cargo lamp/Bed lighting (if equipped) |
| K7 | Powertrain |
| K8 | — |
| K9 | — |
| K10 | — |
| K11 | Center high-mounted stoplamp |
| K12 | Vacuum pump |
| K13 | Vacuum pump |
| K14 | Trailer parking lamps |
| K15 | Run/Crank |
| K16 | — |
| K17 | Rear window defogger |
2018
Instrument Panel

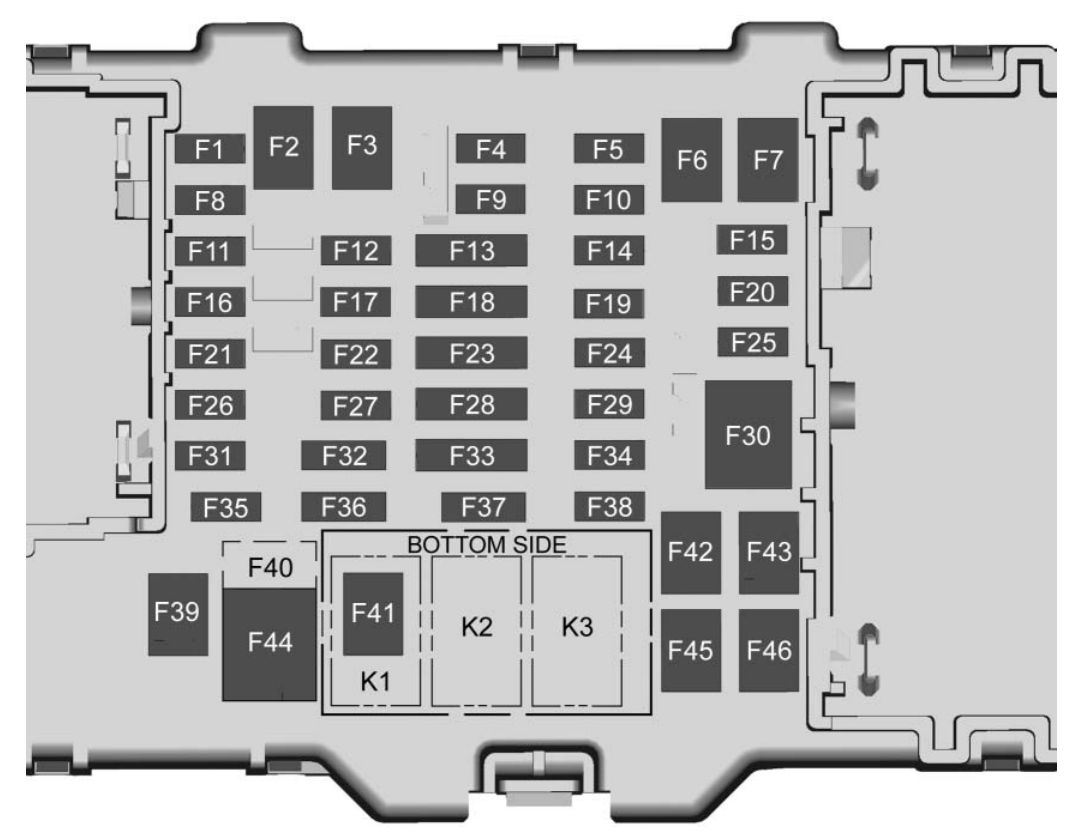

Assignment of the fuses and relay in the Instrument Panel (2018)
| № | Usage |
|---|---|
| Fuses | |
| F1 | Body Control Module 1 |
| F2 | — |
| F3 | — |
| F4 | Steering Wheel Controls |
| F5 | Body Control Module 2 |
| F6 | — |
| F7 | — |
| F8 | Mirror Window Module |
| F9 | Instrument Cluster |
| F10 | — |
| F11 | Body Control Module 8 |
| F12 | — |
| F13 | OnStar/HVAC |
| F14 | Radio/Infotainment |
| F15 | Body Control Module 6 |
| F16 | Communication gateway module |
| F17 | Body Control Module 4 |
| F18 | Airbag |
| F19 | — |
| F20 | Amplifier (if equipped) |
| F21 | — |
| F22 | — |
| F23 | Data link connector/USB |
| F24 | HVAC ignition |
| F25 | Body Control Module 7 |
| F26 | — |
| F27 | — |
| F28 | Instrument panel/Sensing and diagnostic module/Ignition |
| F29 | Miscellaneous Ignition |
| F30 | — |
| F31 | Front Camera |
| F32 | Steering wheel controls backlighting |
| F33 | Heated steering wheel |
| F34 | Front ventilated seats |
| F35 | Park/Reverse/Neutral/Drive/Low/Wireless charging module |
| F36 | Discrete Logic Ignition Sensor |
| F37 | — |
| F38 | — |
| F39 | Auxiliary power outlet 2 |
| F40 | Auxiliary power outlet |
| F41 | Auxiliary power outlet 1/Lighter |
| F42 | Left power window |
| F43 | Driver power seat |
| F44 | — |
| F45 | Right power window |
| F46 | Passenger power seat |
| Micro Relay | |
| K1 | Retained accessory power |
| K2 | Run/Crank |
Engine Compartment
Assignment of the fuses and relay in the Engine Compartment (2018)
| № | Usage |
|---|---|
| Mini Fuses (2 pin) | |
| F01 | Traction Control Module Power |
| F02 | Engine Control Module Power |
| F03 | A/C Clutch |
| F04 | — |
| F05 | Engine control module/Integrated chassis control module/Fuel pump power module |
| F06 | Wipers |
| F07 | Cargo lamp/Bed lighting (if equipped) |
| F08 | Fuel Injectors – Even |
| F09 | Fuel Injectors – Odd |
| F10 | Engine Control Module 1 |
| F11 | Miscellaneous 1 / Ignition |
| F12 | Starter |
| F13 | Traction Control Module |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | Front Axle Actuator |
| F18 | — |
| F19 | — |
| F20 | — |
| F21 | Front blower |
| F22 | Antilock brake system valves |
| F23 | — |
| F24 | Trailer |
| F25 | Transfer case electronic control |
| F26 | Antilock brake system pump |
| F27 | Trailer brake control module (if equipped)/Trailer wiring |
| F28 | Rear window defogger |
| F29 | — |
| F30 | Driver heated seat |
| F31 | — |
| F32 | Passenger heated seat |
| F33 | Body Control Module 3 |
| F34 | Fuel System Control Module |
| F35 | Integrated chassis control module (if equipped) |
| F36 | Center high-mounted stoplamp |
| F37 | Right high-beam headlamp |
| F38 | Left high-beam headlamp |
| F39 | Rear differential lock actuators (ZR2 only) |
| F40 | Front differential lock actuators (ZR2 only) |
| F41 | — |
| F42 | — |
| F43 | — |
| F44 | Vacuum pump |
| F45 | — |
| F46 | Engine control module 2 |
| F47 | Miscellaneous 2/Ignition |
| F48 | Fog Lamps (If Equipped) |
| F49 | — |
| F50 | Trailer Park Lamps |
| F51 | Horn |
| F52 | — |
| F53 | — |
| F54 | — |
| F55 | — |
| F56 | Washer Pump |
| F57 | — |
| F58 | — |
| F59 | — |
| F60 | Mirrors Defogger |
| F61 | — |
| F62 | Canister Vent Solenoid |
| F63 | — |
| F64 | Trailer Reverse Lamp |
| F65 | Left trailer stoplamp/Turn signal lamps |
| F66 | Right trailer stoplamp/Turn signal lamps |
| F67 | Electric Power Steering |
| F68 | — |
| F69 | Battery Regulated Voltage Control |
| F70 | — |
| F71 | — |
| F72 | — |
| F73 | — |
| F74 | Generator |
| F75 | — |
| Relays | |
| K1 | A/C clutch |
| K2 | Starter |
| K3 | — |
| K4 | Wipers Speed |
| K5 | Wipers Control |
| K6 | Cargo lamp/Bed lighting (if equipped) |
| K7 | Powertrain |
| K8 | — |
| K9 | Front differential lock actuators (ZR2 only) |
| K10 | Rear differential lock actuators (ZR2 only) |
| K11 | Center high-mounted stoplamp |
| K12 | Vacuum pump |
| K13 | — |
| K14 | Trailer parking lamps |
| K15 | Run/Crank |
| K16 | — |
| K17 | Rear window/Mirror defogger |
2019, 2020, 2021
Instrument Panel
Assignment of the fuses and relay in the Instrument Panel (2019, 2020, 2021)
| № | Usage |
|---|---|
| F1 | Run/Crank relay control/ Horn switch/Dome lamps |
| F2 | — |
| F3 | — |
| F4 | Steering wheel controls |
| F5 | Left headlamp low beam/ Front left park lamp/Left front side marker/Left rear side marker |
| F6 | — |
| F7 | — |
| F8 | Mirror window module |
| F9 | Instrument panel cluster |
| F10 | — |
| F11 | Door latches |
| F12 | — |
| F13 | OnStar/HVAC |
| F14 | Radio/Infotainment |
| F15 | RAP accessory relay control/Shifter control/ Shifter solenoid/Wiper relay control/Washer pump relay control/Rear defog relay control |
| F16 | CGM (Communication gateway module) |
| F17 | Left rear side marker/ Right front turn lamp/Left rear stop lamp/Left front turn lamp/Right rear stop lamp |
| F18 | Airbag/Sensing and diagnostic module/ Automatic occupant sensing module |
| F19 | — |
| F20 | Amplifier |
| F21 | — |
| F22 | — |
| F23 | Data link connector/USB front |
| F24 | 2019: HVAC ignition. 2020-2021: HVAC ignition/ Auxiliary heater |
| F25 | Driver door latch |
| F26 | — |
| F27 | — |
| F28 | Instrument panel cluster and automatic sensing display |
| F29 | Rear vision camera/ Transfer case control module (4WD)/lnside rear view |
| F30 | — |
| F31 | Front camera/Rear park assist |
| F32 | Steering wheel controls backlighting |
| F33 | 2019-2020: Heated steering wheel/ Spare 2021: Heated steering wheel/ Communication gateway module ignition |
| F34 | 2019: Spare. 2020-2021: Front ventilated seats |
| F35 | Park/Reverse/Neutral/ Drive/Low display/ Wireless charging module/USB rear |
| F36 | Discrete logic ignition sensor |
| F37 | — |
| F38 | _ |
| F39 | Auxiliary power outlet 2 |
| F40 | — |
| F41 | Auxiliary power outlet 1/ Cigarette lighter |
| F42 | Left power window |
| F43 | Driver power seat |
| F44 | Auxiliary power outlet |
| F45 | Right power window |
| F46 | Passenger power seat |
| Relays | |
| K1 | Retained accessory power |
| K2 | Run/Crank |
| K3 | — |
Engine Compartment

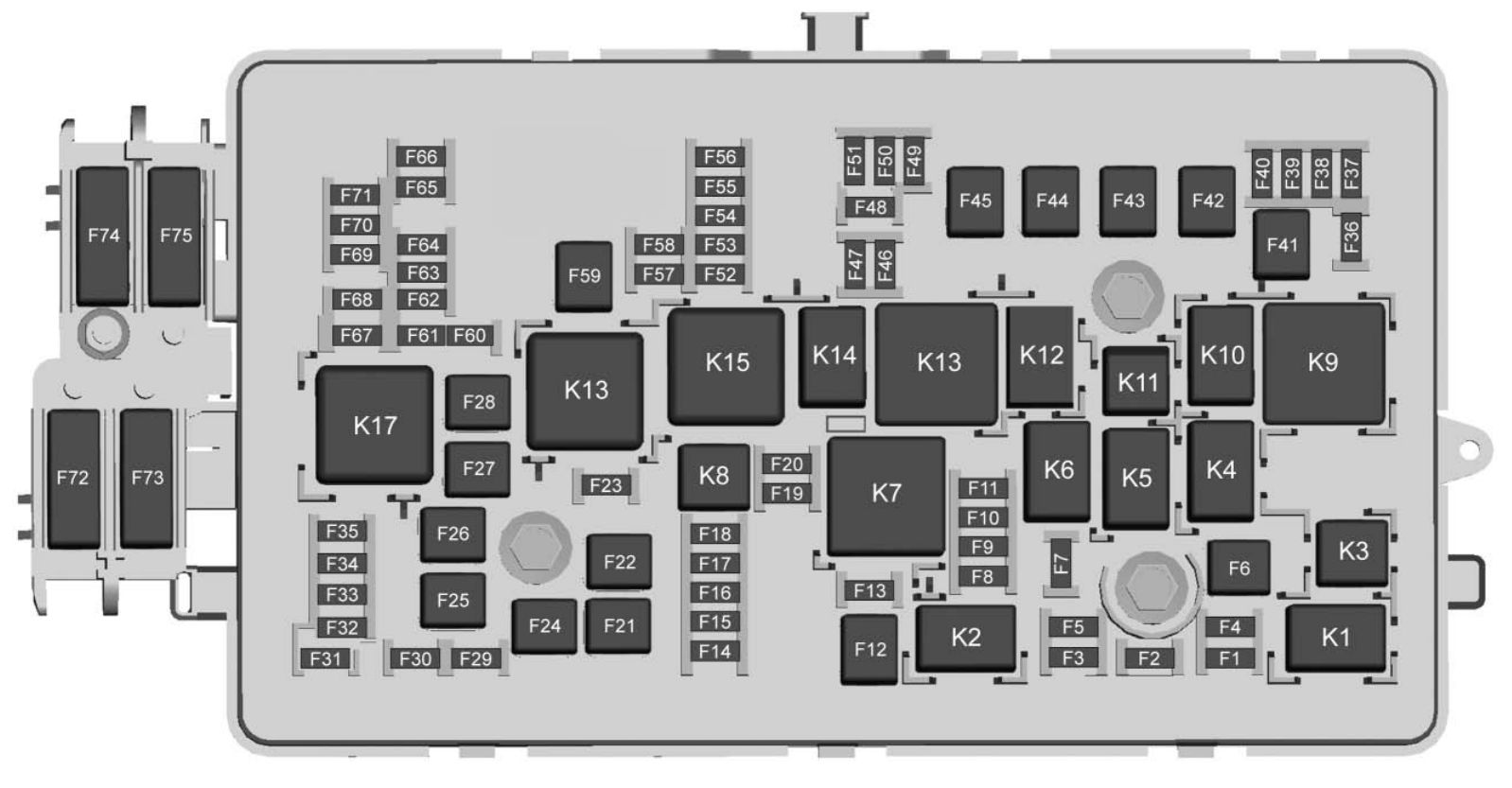

Assignment of the fuses and relay in the Engine Compartment (2019, 2020, 2021)
| № | Usage |
|---|---|
| F1 | Traction control module power |
| F2 | Engine control module power |
| F3 | Air conditioning clutch |
| F4 | — |
| F5 | Engine control module/ Integrated chassis control module/Fuel pump power module |
| F6 | Wipers |
| F7 | Cargo lamp/Bed lighting |
| F8 | Fuel injectors-even |
| F9 | Fuel injectors-odd |
| F10 | Engine control module ignition 1 |
| F11 | Oxygen/Mass air flow/ Humidity/lnduction air temperature/Throttle inlet pressure sensors |
| F12 | Starter |
| F13 | Traction control module |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | Front axle actuator |
| F18 | — |
| F19 | Aeroshutters |
| F20 | — |
| F21 | Front blower |
| F22 | Antilock brake system valves |
| F23 | — |
| F24 | Trailer |
| F25 | Transfer case electronic control |
| F26 | Antilock brake system pump |
| F27 | 2019: Trailer brake control module. 2020-2021: Trailer brake control module/Trailer wiring |
| F28 | Rear window defogger |
| F29 | — |
| F30 | Driver heated seat |
| F31 | — |
| F32 | Passenger heated seat |
| F33 | Right headlamp low beam/FRT right park lamp/Right front side marker/Right rear side marker |
| F34 | Fuel pump power module |
| F35 | Integrated chassis control module |
| F36 | Center high-mounted stoplamp |
| F37 | Right high-beam headlamp |
| F38 | Left high-beam headlamp |
| F39 | Rear differential lock actuators |
| F40 | Front differential lock actuators |
| F41 | — |
| F42 | — |
| F43 | — |
| F44 | — |
| F45 | Vacuum pump |
| F46 | Engine control module ignition 2 |
| F47 | Mid park phase lock/ Active fuel management/Engine oil and canister purge solenoid(s)/Oxygen sensor//Engine thermostat heater |
| F48 | Fog lamps |
| F49 | — |
| F50 | Trailer parking lamps |
| F51 | Horn |
| F52 | — |
| F53 | — |
| F54 | — |
| F55 | — |
| F56 | Washer pump |
| F57 | — |
| F58 | — |
| F59 | — |
| F60 | Mirrors defogger |
| F61 | — |
| F62 | Canister vent solenoid |
| F63 | — |
| F64 | Trailer reverse lamp |
| F65 | Left trailer stoplamp/ Turn signal lamps |
| F66 | Right trailer stoplamp/ Turn signal lamps |
| F67 | Electric power steering |
| F68 | — |
| F69 | Battery regulated voltage control |
| F70 | — |
| F71 | — |
| F72 | — |
| F73 | — |
| F74 | Generator |
| F75 | — |
| Relays | |
| K1 | Air conditioning clutch |
| K2 | Starter |
| K3 | — |
| K4 | Wipers speed |
| K5 | Wipers control |
| K6 | Cargo lamp/Bed lighting |
| K7 | Powertrain |
| K8 | — |
| K9 | 2019: Rear differential lock actuators. 2020-2021: Front differential lock actuators |
| K10 | 2019: Front differential lock actuators. 2020-2021: Rear differential lock actuators |
| K11 | Center high-mounted stoplamp |
| K12 | — |
| K13 | Vacuum pump |
| K14 | Trailer parking lamps |
| K15 | Run/Crank |
| K16 | — |
| K17 | Rear window/Mirror defogger |
2022
Instrument Panel
Assignment of the fuses and relay in the Instrument Panel Fuse Box (2022)
| № | Usage |
|---|---|
| F1 | Body Control Module 1 – Indicator Dimming Control, Retained Accessory Power (RAP) Relay Coil Control, Rear License Lamp Supply Voltage, Windshield Washer Relay Control, Run/ Crank Relay Coil Control, Cruise/Electronic Torque Control/Torque Converter Clutch Brake Signal, Run Ignition 3 Voltage |
| F2 | – |
| F3 | – |
| F4 | Steering Wheel Controls |
| F5 | Body Control Module 2 – Interior Lamp Control, Accessory Voltage (1), Backup Lamp Relay Control, Park Lock Solenoid Control, Trailer Brake Apply Signal |
| F6 | – |
| F7 | – |
| F8 | Mirror Window Module |
| F9 | Instrument Panel Cluster |
| F10 | – |
| F11 | Body Control Module 8 – Door Lock Actuator Lock Control 2, Door Lock Control (2), Door Lock Actuator Unlock Control |
| F12 | – |
| F13 | OnStar/HVAC |
| F14 | Radio/ Infotainment |
| F15 | Body Control Module 6 – LED Backlight Dimming Control, Interior Lamps, Lights Exterior Reverse/Backup Lamps Direct Drive, Stop Lamp Relay Coil Supply Voltage |
| F16 | Communication Gateway Module |
| F17 | Body Control Module 4 – Left Headlamp Low Beam Supply Voltage, Right Park Lamp Supply Voltage, Left Rear Stop Lamp Supply Voltage, Right Rear Park Lamp Supply Voltage |
| F18 | Airbag/Sensing and Diagnostic Module/ Automatic Occupant Sensing Module |
| F19 | – |
| F20 | Amplifier |
| F21 | – |
| F22 | – |
| F23 | Data Link Connector/ USB Front |
| F24 | HVAC Ignition/Auxiliary Heater |
| F25 | Body Control Module 7 – Right Rear Stop Lamp Supply Voltage, Left Front Turn Signal Lamp Supply Voltage, Standing Lamp Relay Control |
| F26 | – |
| F27 | – |
| F28 | Instrument Panel Cluster/ Automatic Occupant Sensing Display |
| F29 | Rear Vision Camera/Transfer Case Control Module (4WD)/Inside Rear View Mirror |
| F30 | – |
| F31 | Front Camera/Rear Park Assist |
| F32 | Steering Wheel Controls Backlighting |
| F33 | Heated Steering Wheel/ Communication Gateway Module Ignition |
| F34 | Front Vented Seats |
| F35 | Park/Reverse/Neutral/ Drive/Low Display/Wireless Charging Module/USB Rear |
| F36 | Discrete Logic Ignition Sensor |
| F37 | – |
| F38 | – |
| F39 | Auxiliary Power Outlet 2 |
| F40 | – |
| F41 | Auxiliary Power Outlet 1/Cigarrette Lighter |
| F42 | Left Power Window |
| F43 | Driver Power Seat |
| F44 | Auxiliary Power Outlet |
| F45 | Right Power Window |
| F46 | Passenger Power Seats |
| Relays | |
| K1 | Retained Accessory Power |
| K2 | Run/Crank |
| K3 | – |
Engine Compartment
Assignment of the fuses and relay in the Engine Compartment Fuse Box (2022)
| № | Usage |
|---|---|
| F1 | Traction Control Module Power |
| F2 | Engine Control Module Power |
| F3 | Air Conditioning Clutch |
| F4 | — |
| F5 | 4 CYL Engine – Engine Control Module Run/Crank / Fuel Pump Power Module Run Crank 6 CYL Engine – Integrated Chassis Control Module Run/Crank / Engine Control Module Run/Crank / Fuel Pump Power Module Run Crank |
| F6 | Front Wipers |
| F7 | Cargo Lamp/Bed Lighting |
| F8 | 4 CYL Engine – Spare 6 CYL Engine – Fuel Injectors Even |
| F9 | 4 CYL Engine – Injectors 6 CYL Engine – Fuel Injectors Odd |
| F10 | Engine Control Module Ignition |
| F11 | Oxygen/Mass Air Flow/Humidity/Induction Air Temperature/Throttle Inlet Pressure Sensors |
| F12 | Starter |
| F1B | Traction Control Module Run/Crank |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | Front Axle Actuator |
| F18 | — |
| F19 | Aeroshutters |
| F20 | — |
| F21 | Front Blower |
| F22 | Antilock Brake System Valves |
| F23 | — |
| F24 | Trailer |
| F25 | Transfer Case Electronic Control |
| F26 | Antilock Brake System Pump |
| F27 | Trailer Brake Control Module |
| F28 | Rear Window Defogger |
| F29 | — |
| F30 | Driver Heated Seat |
| F31 | — |
| F32 | Passenger Heated Seat |
| F33 | Body Control Module 3 – Right Headlamp Low Beam Supply Voltage, Right Front Turn Signal Lamp Supply Voltage, Left Park Lamp Supply Voltage, Left Rear Park Lamp Supply Voltage |
| F34 | Fuel Pump Power Module |
| F35 | 4 CYL Engine – Not Used 6 CYL Engine – Integrated Chassis Control Module |
| F36 | Center High Mounted Stoplamp |
| F37 | Right High-beam Headlamp |
| F38 | Left High-beam Headlamp |
| F39 | 4 CYL Engine – Not Used 6 CYL Engine – Not Used 6 CYL Engine BISON – Rear Differential Lock Actuators |
| F40 | 4 CYL Engine – Not Used 6 CYL Engine – Not Used 6 CYL Engine BISON – Front Differential Lock Actuators |
| F41 | — |
| F42 | — |
| F43 | 4 CYL Engine – Cooling Fan 6 CYL Engine – Not Used |
| F44 | — |
| F45 | 4 CYL Engine – Not Used 6 CYL Engine – Brake Vacuum Pump |
| F46 | 4 CYL Engine – Not Used 6 CYL Engine – Engine Control Module 2 |
| F47 | Mid Park Phase Lock/Active Fuel Management/Engine Oil and Canister Purge Solenoid(s)/ Oxygen Sensor |
| F48 | Fog lamps |
| F49 | — |
| F50 | Trailer Parking Lamp |
| F51 | Horn |
| F52 | — |
| F5B | — |
| F54 | — |
| F55 | — |
| F56 | Washer Pump |
| F57 | — |
| F58 | — |
| F59 | — |
| F60 | Mirror Defogger |
| F61 | — |
| F62 | Canister Vent Solenoid |
| F6B | — |
| F64 | Trailer Reverse Lamps |
| F65 | Left Trailer Stoplamp/ Turnlamp |
| F66 | Right Trailer Stoplamp/ Turnlamp |
| F67 | Electric Power Steering |
| F68 | — |
| F69 | Battery Regulated Voltage Control |
| F70 | — |
| F71 | — |
| F72 | — |
| F73 | — |
| F74 | Generator |
| F75 | — |
| Relays | |
| K1 | Air Conditioning Clutch |
| K2 | Starter |
| KB | — |
| K4 | Wiper Speed |
| K5 | Wiper Control |
| K6 | Cargo Lamp/Bed Lighting |
| K7 | Powertrain |
| K8 | — |
| K9 | 4 CYL Engine – Not Used 6 CYL Engine – Not Used 6 CYL Engine BISON – Front Differential Lock Actuators |
| K10 | 4 CYL Engine – Not Used 6 CYL Engine – Not Used 6 CYL Engine BISON – Front Differential Lock Actuators |
| K11 | Center High Mounted Stop Lamp |
| K12 | — |
| K13 | 4 CYL Engine – Not Used 6 CYL Engine – Brake Vacuum Pump |
| K14 | Trailer Park Lamps |
| K15 | Run/Crank |
| K16 | — |
| K17 | Rear Window/ Mirror Defogger |
Conclusion
For owners and enthusiasts of classic Chevrolet Colorado 2012-2022, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
