The Chevrolet Captiva (2011-2015) is a compact SUV designed for versatility, combining a bold, rugged exterior with a spacious, practical interior. Available in both five- and seven-seat configurations, the Captiva accommodates families and offers flexible cargo space with foldable rear seats. Its design emphasizes a balanced combination of comfort and functionality, making it a popular choice for urban driving and light off-road adventures.

The Captiva’s electrical system supports numerous features, such as power windows, climate control, and safety systems, all managed through strategically placed fuse boxes and relays. The main fuse box is located in the engine compartment, while an additional fuse box can be found in the interior, typically under the dashboard on the passenger side. Relays near these fuse boxes control high-power components like the fuel pump and radiator fan. Regular inspection of these elements is essential to ensure that all electrical systems function properly and that the vehicle remains reliable.

MUST READ: DYI – How to Check Car Fuses?

(2011-2015) Chevrolet Captiva fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Captiva 2011-2015 fuse assignment

Chevrolet Captiva Year of production: 2011, 2012, 2013, 2014, 2015

Location of Fuse Boxes

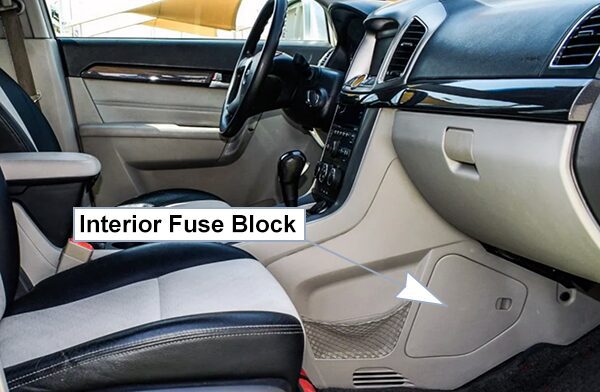

Chevrolet Captiva (2011-2015): Passenger compartment fuse panel location

Interior Fuse Block:

Interior fuse block is located in the left side of the front passenger foot well.

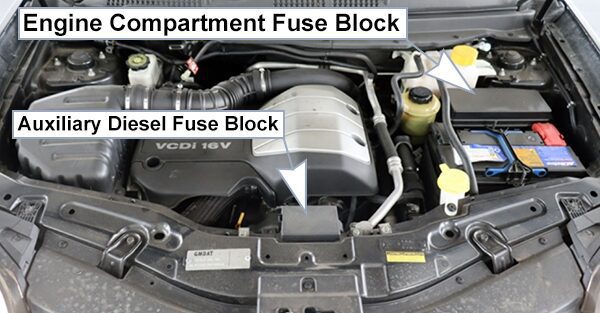

Chevrolet Captiva (2011-2015): Engine compartment fuse box location

Engine Compartment Fuse Block:

Engine room fuse block is next to the coolant reservoir. Auxiliary engine room fuse block (Diesel only) is located in the centre of the front panel.


Fuse Box Diagrams

2015

Interior Fuse Block Diagram

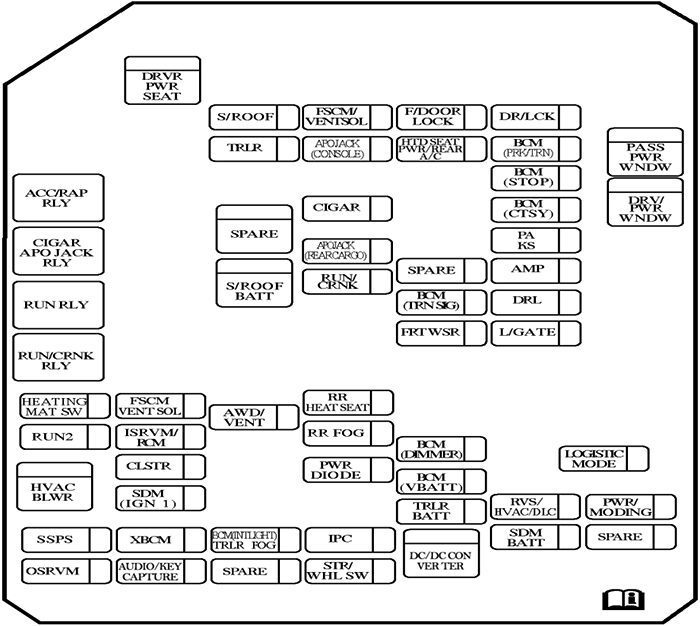

Chevrolet Captiva (2015): Passenger compartment fuse panel diagram
Engine Compartment Fuse Block Diagram

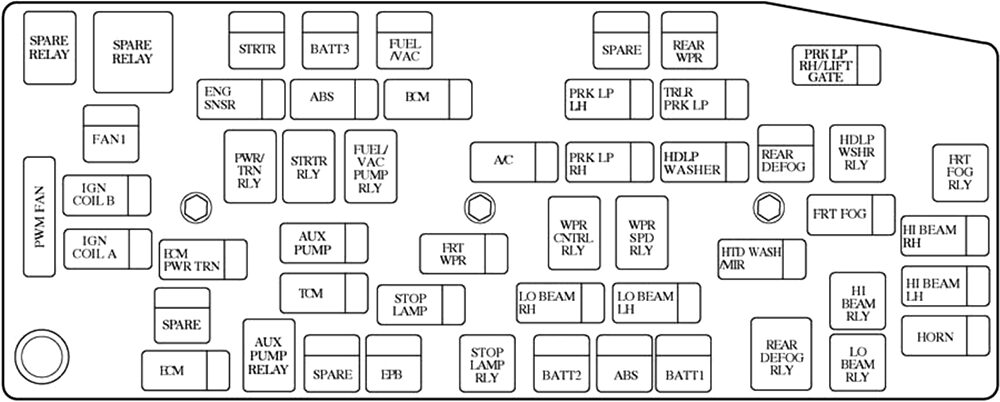

Chevrolet Captiva (2015): Engine compartment fuse box diagram

Conclusion

The Chevrolet Captiva (2011-2015) offers versatility and comfort in an SUV package. Regular maintenance of the fuse box and relays is essential for consistent performance.
