The Chevrolet Bolt EUV (2022-2023) is an electric utility vehicle with a range of up to 247 miles on a single charge. It offers spacious seating, advanced technology, and GM’s Super Cruise hands-free driving system for highway use. Its key features include a 10.2-inch touchscreen, wireless Apple CarPlay/Android Auto, and available adaptive cruise control.
The fuse box and relays are integral to the Bolt EUV’s electrical systems, ensuring the smooth operation of its advanced technology and drivetrain. The fuse box, located under the hood and in the interior, protects crucial components like the electric motor, infotainment, and climate control by preventing power surges.
The relays manage high-power functions, such as the electric drivetrain and battery systems, by allowing low-power controls to operate these high-power systems safely. If a relay fails, it may cause issues like charging problems or impact the vehicle’s motor performance.
Routine checks of the fuses and relays ensure that the Bolt EUV’s features and electric systems operate effectively, keeping the vehicle’s tech and powertrain functioning as designed.
MUST READ: DYI – How to Check Car Fuses?
(2022-2023) Chevrolet Bolt EUV fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Bolt EUV 2022-2023 fuse assignment
Year of production: from 2022, 2023
Instrument Panel Fuse Box

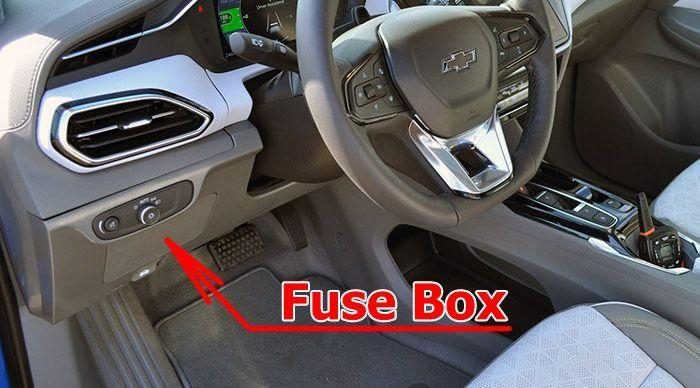

Fuse Box Location
The instrument panel fuse block is on the left side of the instrument panel.
To access the fuses, open the fuse panel door by pulling out.

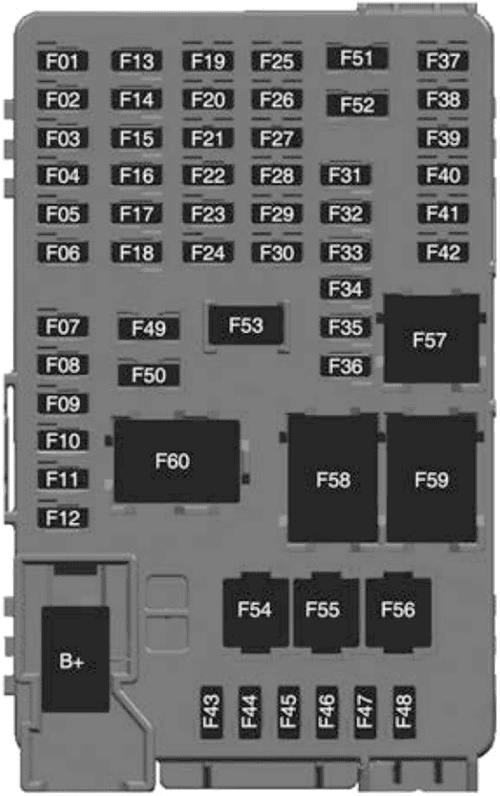

Fuse Box Diagram
Assignment of the fuses in the instrument panel
| № | Usage |
|---|---|
| F01 | Video Processing Module |
| F02 | 2022: Indicator Light Solar Sensor 2023: Telematics Control Platform (OnStar) |
| F03 | Side Blind Zone Alert |
| F04 | Passive Entry, Passive Start |
| F05 | Central Gateway Module |
| F06 | Body Control Module 4 |
| F07 | Body Control Module 3 |
| F08 | Body Control Module 2 |
| F09 | Body Control Module 1 |
| F10 | Sunroof |
| F11 | Amplifier |
| F12 | Body Control Module 8 |
| F13 | Data Link Connector |
| F14 | Parking Assist |
| F15 | Headlamp (left) |
| F16 | Single Power Inverter Module 1 |
| F17 | Body Control Module 6 |
| F18 | Body Control Module 5 |
| F19 | External Object Calculation Module 2A |
| F20 | Advanced Driver Assist Map Module |
| F21 | Driver Monitoring System |
| F22 | – |
| F23 | USB |
| F24 | Wireless Charging Module |
| F25 | Reflected LED Alert Display |
| F26 | Heated Steering Wheel |
| F27 | Central Gateway Module 2 |
| F28 | Instrument Cluster 2 |
| F29 | POLICE_SSV |
| F30 | – |
| F31 | 2022: Telemetics Control Platform (OnStar) |
| F32 | – |
| F33 | Heating, Ventilation, and Air Conditioning Module |
| F34 | HVAC Display/lntegrated Center Stack Display |
| F35 | Instrument Cluster 1 |
| F36 | Center Stack Module |
| F37 | – |
| F38 | – |
| F39 | – |
| F40 | 2023: Indicator Light Solar Sensor |
| F41 | – |
| F42 | – |
| F43 | Body Control Module 7 |
| F44 | Sensing and Diagnostic Module |
| F45 | Front Camera Module |
| F46 | Vehicle Integration Control Module |
| F47 | Single Power Inverter Module 2 |
| F48 | Headlamp (right) |
| F49 | Auxiliary Jack |
| F50 | Steering Wheel Controls |
| F51 | – |
| F52 | – |
| F5B | Auxiliary Power Outlet |
| F54 | – |
| F55 | Logistic |
| F56 | POLICE_SSV |
| Relays | |
| F57 | POLICE_SSV |
| F58 | Logistics Relay |
| F59 | – |
| F60 | Accessory / Retained Accessory Power Relay |
Underhood Compartment Fuse Box

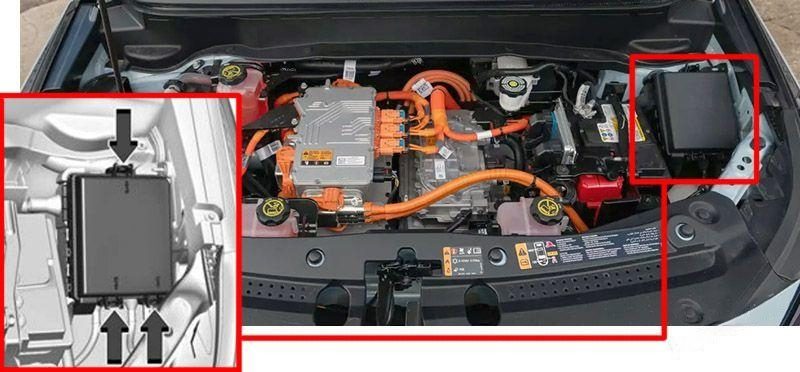

Fuse Box Location
To open the fuse block cover, press the clips at the side and back and pull the cover up.
A fuse puller is in the underhood compartment fuse block.

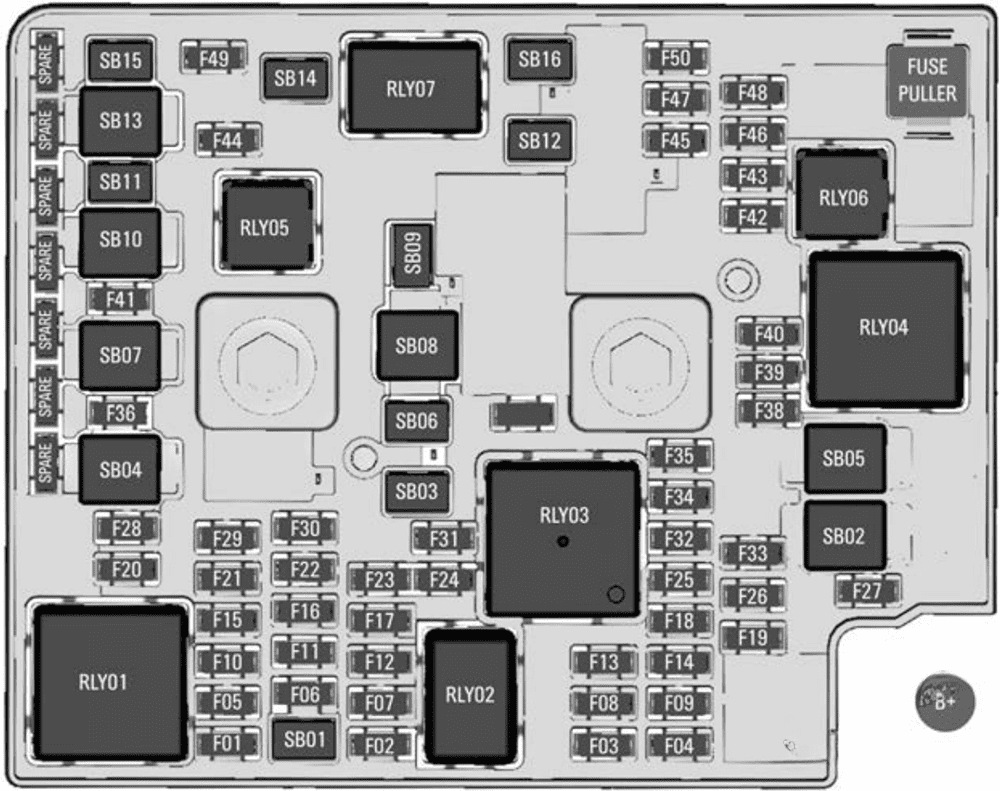

Fuse Box Diagram
Assignment of the fuses in the underhood compartment
| № | Usage |
|---|---|
| Micro Fuses | |
| F01 | External Object Calculation Module |
| F02 | Vehicle Integration Control Module |
| F03 | Air Conditioning Compressor Module |
| F04 | Transmission Range Control Module |
| F05 | Power Seat Lumbar |
| F06 | Power Line Communication Module |
| F07 | E-booster |
| F08 | External Object Calculation Module |
| F09 | External Object Calculation Module |
| F10 | Pedestrian Friendly Alert Function |
| F11 | Shifter Interface Board |
| F12 | Shifter Interface Board |
| F13 | Engine Control Module |
| F14 | Single Power Inverter |
| F15 | Voltage, Current, Temperature Module |
| F16 | Power Window Switch / Exterior Rearview Mirror |
| F17 | Interior Rearview Mirror |
| F18 | On-board Charging Module |
| F19 | Auxiliary Heater Pump Motor |
| F20 | Exterior Rearview Mirror |
| F21 | Rain Light Humidity Sensor / Humidity Sensor |
| F22 | Automatic Occupant Sensing |
| F23 | Ventilated Seat |
| F24 | – |
| F25 | HVAC Electric Heater |
| F26 | Engine Control Module |
| F27 | Drive Unit Controller |
| F28 | Rear Window Defogger |
| F29 | E-booster(ECU SRC) |
| F30 | Rechargeable Energy Storage System |
| F31 | – |
| F32 | Power Electronics Coolant Pump |
| F33 | Powertrain Relay |
| F34 | Air Conditioning Compressor Module |
| F35 | Rechargeable Energy Storage System Coolant Pump |
| F36 | – |
| F37 | Headlamp Leveling |
| F38 | Auxiliary oil Pump |
| F39 | Aeroshutter |
| F40 | Transmission Range Control Module |
| F41 | Rear Wiper |
| F42 | – |
| F43 | – |
| F44 | Liftgate |
| F45 | Horn / Dual Horn |
| F46 | – |
| F47 | Long Range Radar Sensor |
| F48 | – |
| F49 | Rechargeable Energy Storage System 1 |
| F50 | Washer |
| M-case Fuses | |
| SB01 | Rear Heated Seat |
| SB03 | In-panel Bussed Electrical Center Inline |
| SB06 | Power Window Front |
| SB09 | Power Seat Driver |
| SB11 | In-panel Bussed Electrical Center Power Feed |
| SB12 | Front Wiper |
| SB14 | Front Heated Seat |
| SB15 | Power Window Rear |
| SB16 | – |
| J-case Fuses | |
| SB02 | Transmission Range Control Module 1 |
| SB04 | E-booster (Motor SRC) |
| SB05 | Electric Cooling Fan |
| SB07 | Electronic Brake Control Module |
| SB08 | – |
| SB10 | Electronic Brake Control Module Power 2 |
| SB13 | Linear Power Module |
| Relays | |
| RLY01 | Rear Window Defogger |
| RLY02 | Second Run/Crank |
| RLY03 | Run/Crank |
| RLY04 | Powertrain |
| RLY05 | Liftgate |
| RLY06 | – |
| RLY07 | Rear Pedestrian Friendly Alert Function |
