The 2024 Chevrolet Blazer EV is an all-electric midsize SUV that combines a modern, sporty design with advanced technology. Available in various trims, including performance-oriented SS and more practical configurations, the Blazer EV offers a range of body styles to suit diverse preferences. The exterior features sharp lines, bold LED lighting, and a sleek, aerodynamic profile, while the interior is spacious and tech-focused, designed to cater to both family needs and adventurous drivers.
Although the Blazer EV operates on an electric platform, it still utilizes fuse boxes and relays to manage and protect its electrical systems. The fuse box, often located under the hood or within the cabin, regulates and safeguards circuits powering everything from lighting to infotainment and safety features. Relays near these fuse boxes help manage higher-current components, such as the motor control system and climate functions. Regular inspection of these components is essential for ensuring consistent performance of the Blazer EV’s electrical systems.
MUST READ: DYI – How to Check Car Fuses?
(2024) Chevrolet Blazer EV fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Blazer EV 2024 fuse assignment
Chevrolet Blazer EV Year of production: 2024
Location of Fuse Boxes

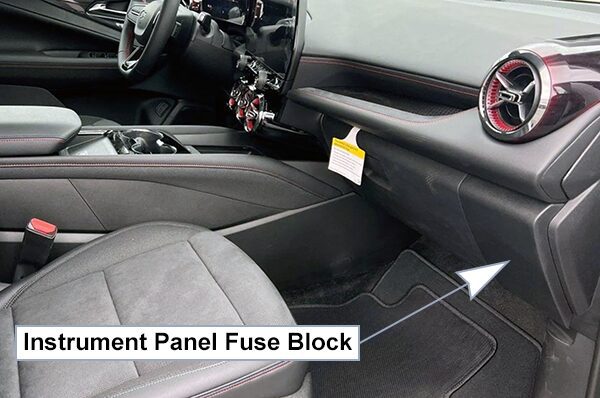

Instrument Panel Fuse Block:
The instrument panel fuse block is to the right of the glove box.
To Access the Fuses:
- Remove the panel, starting at the top.
- Once the panel clips disengage, the tabs along the bottom of the door can disengage from the instrument panel to remove the door.
- To reinstall the door, place the bottom tabs into the slots, and rotate the door into position, engaging the clips.

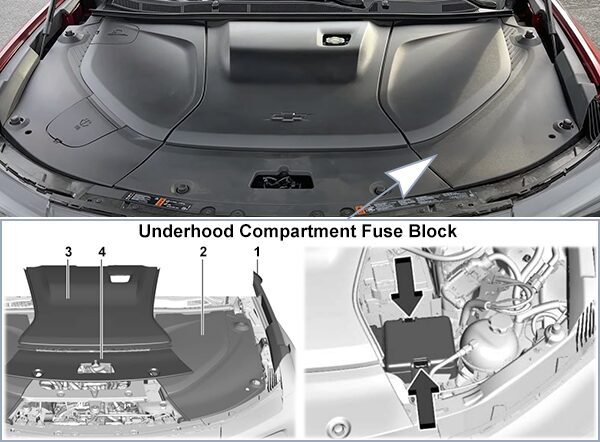

Underhood Compartment Fuse Block:
To Access:
- The underhood compartment fuse block is below the underhood access covers. The covers interlock with various tabs and clips, and must be removed and replaced in a certain order. The center covers (3) and (4) and edge covers (1) must be removed before removing the right side cover (2).
- To open the fuse block cover, press the clips at the side and back and pull the cover up.
Fuse Box Diagrams
2024

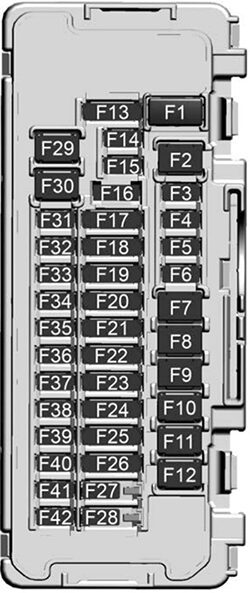

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2024).
| â„– | Fuse | Usage |
|---|---|---|
| F1 | – | – |
| F2 | APO/CIGAR LTR | Auxiliary Power Outlet Instrument Panel / Cigar Lighter |
| F3 | – | – |
| F4 | USB PORT/APO AC 150W | Universal Serial Bus Port / Auxiliary Power Outlet Alternating Current 150W |
| F5 | STRG COL LOCK | RUN/CRANK Steering Column Lock |
| F6 | ELM 1 | Exterior Lighting Module 1 |
| F7 | AMP-BASE | Amplifier-Base |
| F8 | RT DR LATCH | Right Door Latch |
| F9 | LT DR LATCH | Left Door Latch |
| F10 | STRG COL POS MDL | Steering Column Position Module |
| F11 | ACP 4 | ADAS Compute Platform 4 |
| F12 | – | – |
| F13 | EUROPE-TRLR CON & ECP_E/ECP_S/VICM | RUN/CRANK Europe – Trailer Control and Electrification Control Processor (Traction Power Inverter 1 and 2) / Vehicle Integration Control Module |
| F14 | HEADLAMPS | RUN/CRANK Headlamps |
| F15 | HDLP RT | Headlamp Right |
| F16 | STRG COL/CLOCK SPRING | Steering Column Lock / Clock Spring |
| F17 | SEAT FAN PASS & SEAT FAN DRVR | RUN/CRANK Seat Fan Passenger and Seat Fan Driver |
| F18 | VCD & SRR | Virtual Cockpit Display and Short Range Radar |
| F19 | MISC 2 & MISC 1 | RUN/CRANK Miscellaneous 2 Switch Bank / Electronic Toll Collection / Interior Particulate Matter Sensor / Reflective Light Auxiliary Display and Miscellaneous 1 Electronic Brake Control Module / Exterior Lighting Module / Sensing and Diagnostic Module / Inside Rear View Mirror |
| F20 | BCM 1 & VICM | Body Control Module 1 and Vehicle Integration Control Module |
| F21 | LRR-RR & EPBS/ESM | Long Range Radar – Rear and Electric Park Brake Switch / Electronic Transmission Range Select Shifter Module |
| F22 | VKM/VKMB/AUX JACK & ACP3 | Virtual Key Module / Virtual Key Backup Module / Auxiliary Jack and ADAS Compute Platform 3 |
| F23 | T/LAMP RT & T/LAMP LT | Tail Lamp Right and Tail Lamp Left |
| F24 | UPA/APA/SBZA & SDM/ AOS | Universal Park Assist / Automatic Park Assist / Side Blind Zone Alert and Sensing Diagnostic Module / Automatic Occupant Sensing Module |
| F25 | ACP 2/EOCM_LC/FCM/MFC & DMS/CGM/DLC/VDM | ADAS Compute Platform 2 / External Object Calculating Module / Front Camera Module / Multi Function Control and Driver Monitoring System / Central Gateway Module / Diagnostic Link Connector / Vehicle Data Monitor |
| F26 | ECP_E_BATT 2/ACEC & HUD/HVAC DISPLAY | Electrification Control Processor Battery 2 / Air Condition Electric Compressor and Heads-Up Display / Heating, Ventilation and Air Conditioning Display |
| F27 | BCM 3 | Body Control Module 3 |
| F28 | BCM 2 | Body Control Module 2 |
| F29 | AMP-UPLEVEL | Amplifier – Uplevel |
| F30 | BCM 4 | Body Control Module 4 |
| F31 | VPM/SD CARD/ILSS/OHC | Video Processing Module / SD Card / Indicator Light and Solar Sensor / Over Head Console |
| F32 | HSWM | Heated Steering Wheel Module |
| F33 | LRR FR/LIDAR | Long Range Radar Front / Light Detection and Ranging |
| F34 | ELM 2 | Exterior Lighting Module 2 |
| F35 | HDLP LT | Headlamp Left |
| F36 | VCU BATT 1 | Virtual Cockpit Unit Battery 1 |
| F37 | TCP (OnStar) | Telematics Communication Platform |
| F38 | WCM | Wireless Charger Module |
| F39 | HI VOLTAGE SYS LCKOUT | High Voltage System Lockout |
| F40 | VCU Batt 2 | Virtual Cockpit Unit Battery 2 |
| F41 | ELM 6 | Exterior Lighting Module 6 |
| F42 | – | – |

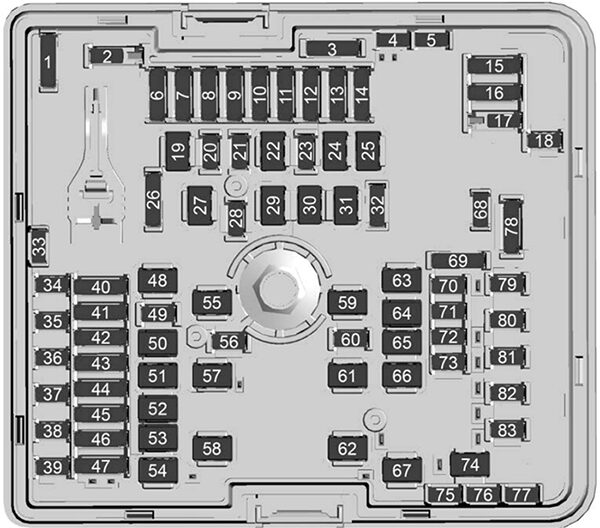

Underhood Compartment Fuse Block
List of fuses in the Underhood Compartment Fuse Block (2024)
| â„– | Fuse | Usage |
|---|---|---|
| F01 | – | Spare |
| F02 | – | – |
| F03 | – | Spare |
| F04 | – | Spare |
| F05 | – | Spare |
| F06 | MSM | Memory Seat Module |
| F07 | PEEV/PCEV & ECFV/CHFV | Primary Evaporator Expansion Valve / Primary Chiller Expansion Valve and External Condenser Flow Valve / Condensing Heater Flow Valve |
| F08 | MCV & PLCM | Main Coolant Valve and Power Line Communication Module |
| F09 | – | – |
| F10 | – | – |
| F11 | – | – |
| F12 | OBCM 2 | On Board Charging Module 2 |
| F13 | ESSCP & PECP | Energy Storage System Coolant Pump and Power Electric Cooling Pump |
| F14 | – | – |
| F15 | TRLR PRK LAMPS | Trailer Park Lamps |
| F16 | – | – |
| F17 | – | – |
| F18 | – | – |
| F19 | – | – |
| F20 | – | – |
| F21 | CPDM | Charge Port Door Motor |
| F22 | – | – |
| F23 | ECP_S | Electrification Control Processor |
| F24 | – | – |
| F25 | – | – |
| F26 | – | Spare |
| F27 | – | – |
| F28 | ETC Mod | Electronic Toll Control Module |
| F29 | – | – |
| F30 | – | – |
| F31 | – | – |
| F32 | – | Spare |
| F33 | – | Spare |
| F34 | ELM BAT 5 | Exterior Lighting Module Battery 5 |
| F35 | ELM BAT 4 | Exterior Lighting Module Battery 4 |
| F36 | – | – |
| F37 | RR WPR | Rear Wiper |
| F38 | ELM BAT 7 | Exterior Lighting Module Battery 7 |
| F39 | ELM BAT 3 | Exterior Lighting Module Battery 3 |
| F40 | – | – |
| F41 | DSP LF/DSP RF | Left Front and Right Front Door Switch Panel |
| F42 | SEAT SW & VKM/RLH | Seat Position Switch and Virtual Key Module / Rain Light Humidity |
| F43 | ECP E BATT1 | Electrification Control Processor Battery 1 |
| F44 | ACM | Air Conditioning Module |
| F45 | RFR & HFRC | Remote Function Receiver and Handsfree Rear Closure |
| F46 | PFA | Pedestrian Friendly Alert |
| F47 | PRK EMBLEM | Park Emblem |
| F48 | PTM | Power Tailgate Module |
| F49 | ECP E BATT3 | Electrification Control Processor Battery 3 |
| F50 | PWE L/DSP LR | Left Power Window Electronics / Left Rear Door Switch Panel |
| F51 | – | – |
| F52 | PWE R/DSP R | Right Power Window Electronics / Right Rear Door Switch Panel |
| F53 | FRT WPR | Front Wiper |
| F54 | – | – |
| F55 | – | – |
| F56 | – | – |
| F57 | EBCM 1 | Electronic Brake Control Module 1 |
| F58 | FRT BLWR MTR | Front Blower Motor |
| F59 | – | – |
| F60 | HORN | Horn |
| F61 | Rear Defog | |
| F62 | – | – |
| F63 | SRC | Sunroof Controller |
| F64 | MSM DR/SAET SW DR | Driver Memory Seat Module / Power Seat Driver |
| F65 | PWR SEAT CODR | Power Seat Co-driver |
| F66 | CFM | Condenser Fan Module |
| F67 | Heated Wiper (De-Ice) | |
| F68 | – | Spare |
| F69 | – | Spare |
| F70 | RELAY’S COIL | |
| F71 | HSM_ROW2_SRC2 | Heated Seat Module Row 2 Source 2 |
| F72 | HSM_SRC1 | Heated Seat Module Source 1 |
| F73 | – | – |
| F74 | – | – |
| F75 | – | Spare |
| F76 | – | Spare |
| F77 | – | Spare |
| F78 | TRLR ST/TRN RT & TRLR ST/TRN LT | Trailer Stop Turn Right and Trailer Stop Turn Left |
| F79 | HSM_ROW2_SRC1 | Heated Seat Module Row 2 Source 1 |
| F80 | HSM_SRC2 | Heated Seat Module Source 2 |
| F81 | – | – |
| F82 | Wash Pump | |
| F83 | Rear Wiper |
