The Chery Exeed TX / TXL, produced from 2019 to 2022, is a premium SUV that has garnered attention for its sophisticated design, advanced technology, and high performance. As with any modern vehicle, the electrical system, which includes the fuse box and relay components, is crucial for the proper functioning and reliability of the Exeed TX / TXL.
Fuse Box in the Chery Exeed TX / TXL (2019-2022)
The fuse box in the Chery Exeed TX / TXL houses an array of fuses, each designed to protect specific electrical circuits within the vehicle. These circuits power essential components such as the engine control module, lighting systems, infotainment features, climate control, and other electronic systems. The role of each fuse is to interrupt the electrical flow in the event of an overload or short circuit, thereby preventing damage to the components and maintaining the safety of the vehicle’s electrical system.
Typically, the fuse box in the Exeed TX / TXL is located in two primary areas: under the dashboard inside the cabin and in the engine compartment. Each fuse box contains a detailed diagram indicating the function of each fuse, which aids in quick identification and replacement if necessary.
Relays in the Chery Exeed TX / TXL (2019-2022)
Relays in the Chery Exeed TX / TXL act as electrically operated switches that control circuits requiring high current. These relays are integral to the precise activation and deactivation of various high-power functions, such as the starter motor, fuel pump, air conditioning compressor, power windows, and other electrical accessories. Relays enable efficient management of power distribution within the vehicle, ensuring reliable operation of these components.
Relays are usually located near the fuse box, either in the engine compartment or under the dashboard. They are designed to handle higher current loads than fuses, making them crucial for the proper functioning of high-demand electrical systems in the Exeed TX / TXL.
Maintenance and Troubleshooting
Regular inspection and maintenance of the fuse box and relays are essential to ensure the Chery Exeed TX / TXL operates smoothly. This involves checking for blown fuses, inspecting relays for signs of wear or failure, and promptly replacing any damaged components. Ensuring that all electrical connections are secure and free from corrosion is also important for maintaining the vehicle’s electrical integrity.
Common Electrical Issues
Owners of the Chery Exeed TX / TXL should be aware of common electrical issues that may arise, such as blown fuses, faulty relays, and loose or corroded connections. Addressing these issues early can prevent more significant problems and ensure that the vehicle remains reliable and safe to drive.
MUST READ: DYI – How to Check Car Fuses?
(2019-2022) Chery Exeed TX / TXL fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chery Exeed TX / TXL 2019-2022 fuse assignment
Year of production: 2019, 2020, 2021, 2022
Passenger Compartment Fuse Box

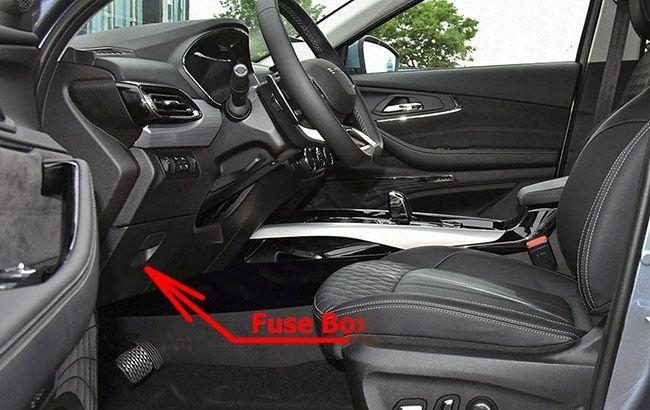

Fuse Box Location
The fuse box is located in the lower left of instrument panel.

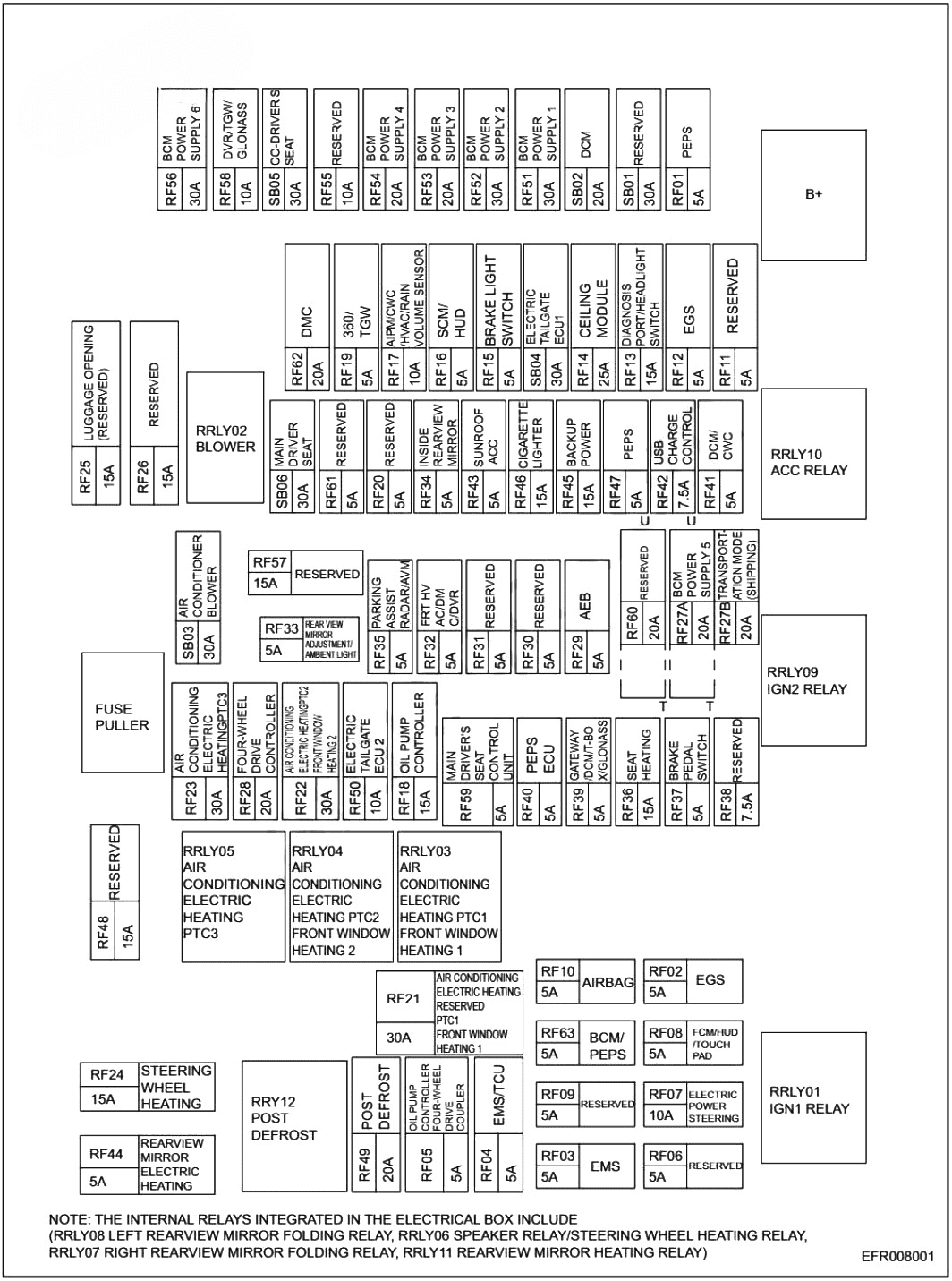

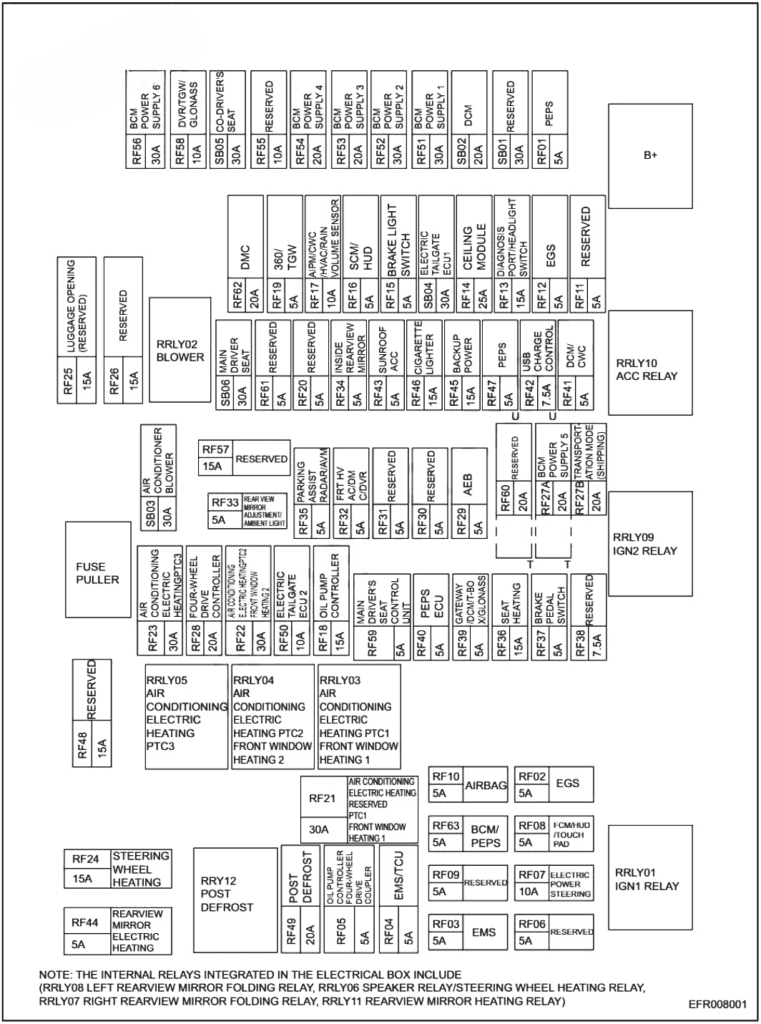

Fuse Box Diagram
Engine Compartment Fuse Box

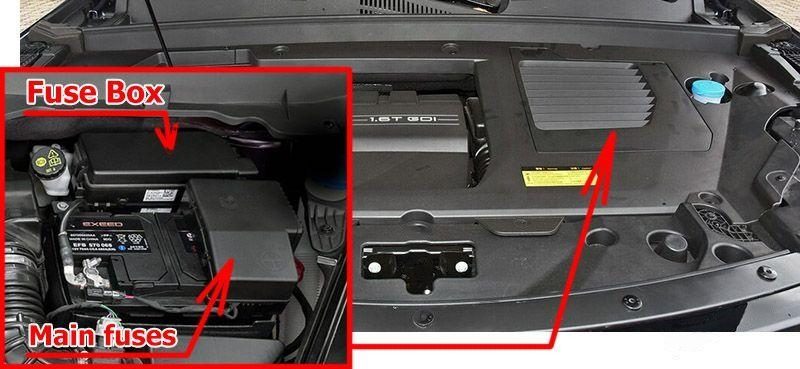

Fuse Box Location

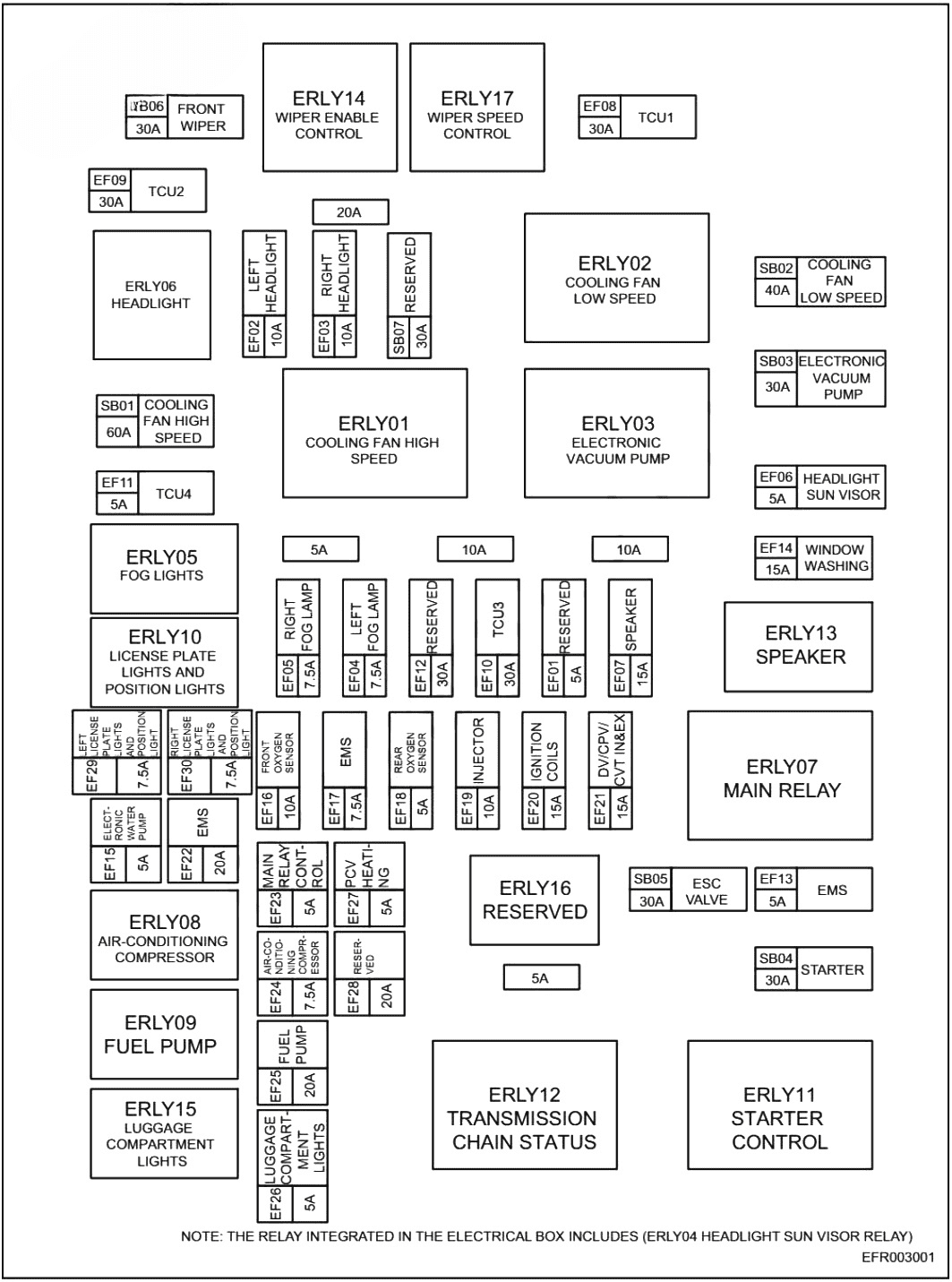

Fuse Box Diagram

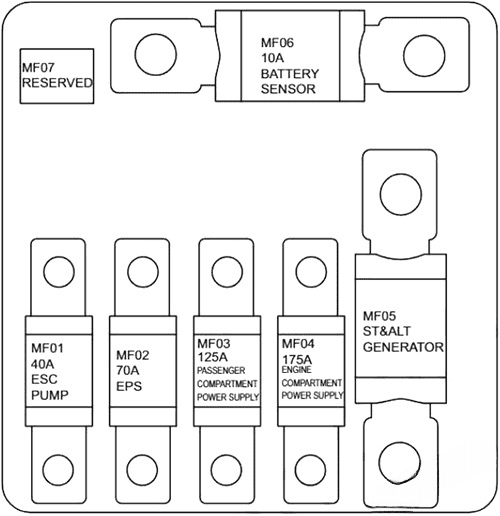

Main fuses
Conclusion
The fuse box and relay components of the Chery Exeed TX / TXL (2019-2022) are critical to the vehicle’s electrical system. Proper maintenance and regular inspection of these components are vital for ensuring reliable operation and preventing electrical issues. By understanding the importance of the fuse box and relays, owners can maintain the performance and safety of their Exeed TX / TXL, enhancing their overall driving experience.
