The Cadillac Fleetwood of 1995 was a flagship luxury sedan renowned for its spaciousness, comfort, and powerful performance. Its electrical system, including the fuse box and relay components, was pivotal in ensuring smooth operation and reliability.

The fuse box in the Cadillac Fleetwood ’95 housed multiple fuses that protected various electrical circuits throughout the vehicle. These circuits powered critical components such as the engine control module, lighting systems, climate control, and entertainment features. Fuses were designed to prevent electrical overload by breaking the circuit if necessary, thereby safeguarding components from damage.

Relays in the Cadillac Fleetwood ‘95 functioned as electrically operated switches responsible for managing high-current circuits. They facilitated the precise activation and deactivation of functions such as the starter motor, fuel pump, air conditioning compressor, and power windows or seats. This efficient power distribution ensured reliable performance of the vehicle’s electrical systems.

Regular inspection and maintenance of the fuse box and relays were essential to uphold the Cadillac Fleetwood’s operational efficiency. This involved checking fuses for signs of wear or damage, ensuring relay connections were secure, and promptly addressing any electrical issues that arose. Proper care of these components contributed to maintaining the vehicle’s electrical integrity, enhancing safety and driving satisfaction in the Cadillac Fleetwood 1995.

MUST READ: DYI – How to Check Car Fuses?

(1995) Cadillac Fleetwood fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac Fleetwood 1995 fuse assignment

Year of production: 1995

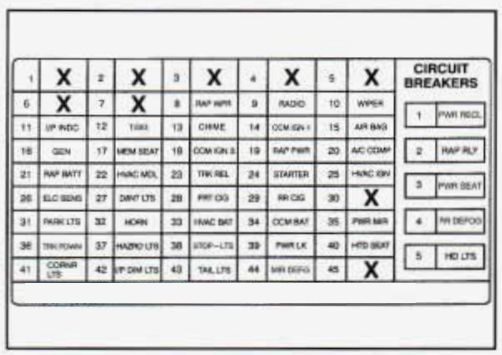

Instrument panel fuse block

cadillac fleetwood fuse box diagram instrument panel 1995
cadillac fleetwood fuse box diagram instrument panel 1995
FuseUsage
RAP WPRComponent Center (RAP Wiper) Relay
RADIORadio Receiver
WIPERWindshield Wipermasher Switch
I/P INDCInflatable Restraint Diagnostic Energy Reserve (with Sensor) Module, Instrument Panel Cluste
TISIGParmeutral Position and Backup Lamp Switch, Turn Signal Lamp Flasher
CHIMEWarnin Alarm Cruise Control Release Switch, Inside Rearview Mirror,%ear dindow Defogge! Relay, Parmeutral Position and Backup Lamp Switch, Automatic Level Control Sensor
CCM IGN 1Central Control Module (CCM)
AIR BAGInflatable Restraint Diagnostic Energy Reserve (with Sensor) Module
GENGenerator, Secondary Engine Cooling Fan Relay
MEM SEATDriver’s Seat Ad’uster Memory Module, Heated Driver’s Seat Switch, Heated 4 assenger’s Seat Swltch
CCM IGN 3Central Control Module (CCM) Remote Control Door Lock Receiver and Theft Deterrent dodule, Cruise Control Module, Cruise Control Swtcht
RAP PWRAccessory Time Delay Cut-Off (RAP Power) Relay
A/C COMPA/C Compressor Relay, Primary Engine Cooling Fan Relay
RAP BATTComponent Center (RAP Wiper) Relay
HVAC MDLBlower Motor Control Module
TRK RELRear Compartment Lid Release Switch
STARTERTheft Deterrent Relay, Inflatable Restraint Diagnostic Energy Reserve (with Sensor) Module
HVAC IGNInstrument Cluster, Heater-A/C Control, Vacum/Electric Solenoid, Electric Actuator
ELC SENSAutomatic Level Control Sensor, Rear Compartment Courtesy Lamp
D/INT LTSCompartment Center Relay
FRT CIGFront Cigar Lighter
RR CIGRear Cigar Lighter
PARK LTSPark Lamp Relay
HORNHorn Relay
HVAC BATWarning Alarm, Heater-A/C Control, Instrument Cluster, Headlamp Switch, Radio Reciver
CCM BATCenter Control Module (CCM)
PWR MIRDoor Lock Switches, Outside Rearview Mirrors, Ignition Key Disable Relay Assembly
TRK PDWNRear Compartment Lid Pull-Down Actutor
HAZARD LTSHazard Lamp Flasher
STOP-LTSStoplamps Switch
PWR LKDoor Lock Relay
HTD SEATHeated Driver’s and Passenger’s Seat Control Modules
CORNR LTSInstrument Cluster, Radio Control, Cornering Lamps, Turn Signal Switch, Front Park Lamps
I/P DIM LTSHeadlamp Switch Control for Interior Lamps, Dimming
TAIL LTSRear Taillamps, Rear Side Marker Lamps, License Lamp
MIR DEFGOutside Rearview Mirror Defogger
Circuit BreakerUsage
PWR RECLLumbar, Power Antenna
RAP RLYAccesory, Time Delay Cut-Off (RAP Power) Relay
PWR SEATDriver’s amd Passenger’s Adjuster Switches, Driver’s Seat Adjuster Memory Module, Driver’s and Passenger’s Seats Recline Switches
RR DEFOGRear Defogger Relay
HD LTSHeadlamp Relay, Daytime Running Lamps (DRL) Relay

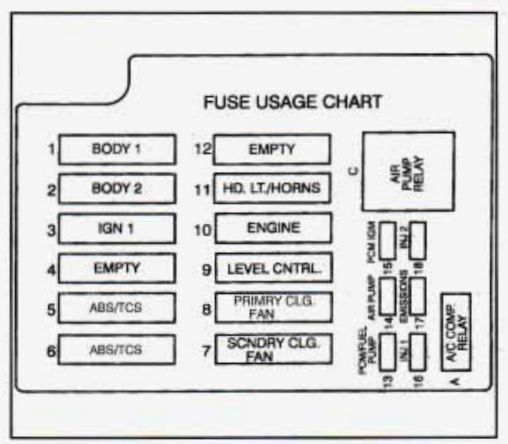

Underhood Electrical Center

The electrical center is located on the passenger side wheel housing in the engine compartment.

cadillac fleetwood fuse box diagram underhood electrical center 1995
cadillac fleetwood fuse box diagram underhood electrical center 1995
Maxi FuseUsage
BODY 1Circuit Breakers: PWR SEAT, RRDEFOG; I/P Fuses: TRK PDWN, WRD LTS, HTD SEAT, STOP-LTS, PWR LK
BODY 2Circuit Breaker: RAP RLY, I/P Fuses: RAP BAm, HVAC MDL, ELC SENS, D/INT LTS, FRT CIG, RRCIG, HVAC BAT, CCM BAT, PWR MIR
IGN 1Concealed Fuse; I/p Fuses: RAP WPR, RADIO, WIPER, I/P INDC, T/SIG, CHIME, .CCM IGN 1, AIR BAG, STARTER; U/H Electrical Center: PCM IGN, INJ1, EMISSIONS, I
ABSECS (#5)ABS/TCS Brake Pressure.Modulator Valve
ABSECS (#6)ABS/TCS Brake Pressure.Modulator Valve
SCNDRY CLG FANSecondary Engine Cooling Fan Rel
PRIMRY CLG FANPfimary .Engine Cooling Fan Relay
LEVEL CONTROLAutomatic Level Control Air Compress
ENGINEU/H Electrical Center: PCM/FUEL PUMP, AIR PUMP
HEADLIGHTS/
HORNS
Circuit-Breaker: HD LTS; I/P Fuses: PARK LTS, HORN
Mini FuseUsage
PCM/FUEL PUMPFuel Pump Relay, Fuel Pump/Engine Oil Pressure Indicator Switch, Powertrain Control Module (PCM)
AIR PUMPSeconday Air’Injection (AIR) Pump Relay
PCM/IGNPowertrain Control Module (PCM), Ignition Coil
INJ 1Fuel Injectors Cylinders 1,4,6,7
EMISSIONSExhaust Gas.Recirculation (EGR); Vacuum Control Signal Solenoid Valve, Secondary Air Injection (AIR), Pump Relay (Coil), Mass-&Flow Sensor, Electronic Transmission, Left and Right Heated Oxygen Sensors, Evaporative Emission (EVAP)l Canisterpurge Solenoid Valve
INJ 2Fuel Injectors Cylinders 2,3,5, 8
RelayUsage
A/C COMP RELAYA/C Compressor Relay
AIR PUMP RELAYSecondary Air Injection -(AIR) Pump Relay

Conclusion

For owners and enthusiasts of classic Cadillac Fleetwood 1995, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Cadillac’s craftsmanship and innovation in the automotive industry during that era.
