(1997) Cadillac DeVille fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac DeVille 1997 fuse assignment

  • Cigar lighter / power outlet fuses in the Cadillac DeVille are the fuses №. 22 and 23 in the Engine compartment fuse box and fuse №65 in the Rear Underseat fuse box.

Year of production: 1997

MaxiFuse/Relay Center

The MaxiFuses and relays are located next to the engine compartment fuse block on the driver’s side of the engine

cadillac deville fuse box diagram maxi fuse relay center 1997
cadillac deville fuse box diagram maxi fuse relay center 1997
FuseUsage
BODY 1Real Time Dampening (RTD) Fuse, Convenience Fuse, BATT Fuse, Passenger and Driver Seat Belt Comfort Solenoids, Trunk and Fuel Door Release Solenoids and Relays, Door Lock/Unlock Relays, DPR Relay, Park Lamp Relay, Right and Left Park Fuse, Rear Fog Lamp Relay
BODY 2Defog Relay, Pull-Down Fuse, Right and Left Heated Seat Fuse, Electronic Level Control (ELC) FuseRelay, Antenna Fuse, Heated Mirror Fuse
BODY 3Controlled Power Relay, Controlled Power Back-up Relay, Cluster Fuse, Platform Zone Module (PZM) Fuse, Radio Fuse, DAB Relay, Trunk and Fuel Door Release Relay, High Beam Relay, Comfort Fuse, Controlled Power Relay, AMP Bose Only Fuse, Right and Left Bose Relay
INADVERTInadvertent Power Relay, Interior Lamps Fuse, Cigarette Lighter- 1 Fuse, Cigarette Lighter-2 Fuse
LAMPSHeadlamp Wash Relay (Export), Headlamps Fusemelay, High/Low
Beam Control Relay, Fog LampDRL Fuse, Hazard Fuse, Mirror Fuse, Inadvertent Power Relay, Right and Left High Beam Fuse, Right and Left Low Beam Fuse, Stop Fuse, Fog Lamp Relay (DeVille Concours Only), DRL Relay
IGN 1Rear Ignition- 1 Relay, Wiper Fuse, Relay Ignition-1 Fuse, Supplemental Inflatable Restraint (SIR) Fuse, Accessory Rela
WINDOWSDelayed Accessory Bus (DAB) Relay
SEATSHorn Relay, Driver and Passenger Lumbar In/Out Relays, Driver and Passenger Upmown Relays
BATT 3Steering Column Ignition Switch
BATT 2Steering Column Ignition Switche
IGN 1*Front and Rear Ignition- 1 Relay, BATT 2 Steering Column Ignition Switch BATT 3 Steering Column Ignition Switch Usage Oxygen Sensor 1 and 2 Fuse, Fuel Fuse, Cruise Fuse, DRL Relay, Front and Rear Fog Lamp Relay, Control Power Back-up Relay, Ignition- 1 Fuse
BATT 1Starter Relay and Solenoid, ParMRev Fuse, Park Relay, PCM Fuse, AC Compressor Fuse and Relay, Fan Relay
BRAKESABS Brake Modulator
COOL FNSCooling Fan Relays 1 and 3
* Do not alter OBD II related fuses or circuit breaker

Engine compartment fuse block

The fuse block is located next to the air filter on the driver’s side of the engine

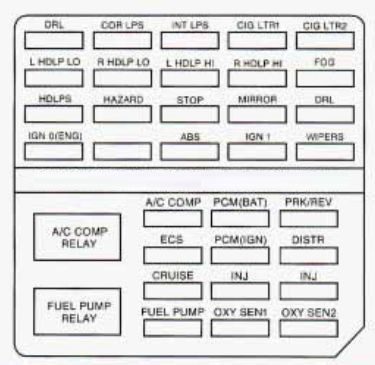

cadillac deville fuse box diagram engine compartment 1997
cadillac deville fuse box diagram engine compartment 1997
Fuse nameUsage
DRLDaytime Running Lamps (DRL)
COR LPSCornering Lamp Switch, Right and Left Cornering Lamps
INT LPSTrunk Lamp, Courtesy Lamps, Front Vanity Lamps, Glove Box Lamp, Garage Door Opener, Courtesy Lamp Relay
CIG LTR 1Front and Rear Cigarette Lighters (Full Console Only)
CIG LTR 2Right and Left Rear Cigarette Lighters
L HDLP LOLeft Low-Beam Headlamp
R HDLP LORight Low-Beam Headlam
L HDLP HILeft High-Beam Headlamp
R HDLP HIRight High-Beam Headlamp
FOGRight and Left Front Fog Lamps Relay (Deville Concours Only)
HDLPSHeadlamp Switch and Relay, High/Low Beam Control Relay, Right and Left Low Beam @-Beam), Right and Left High Beam
HAZARDElectronic Flasher Module, Turn/Hazard Switch, Right and Left Front Turn Lamps, Right and Left Rear Turn Lamps, Right and Left Repeater Lamps (Export), Cluster
STOPStoplamp Switch, Turn Hazard Switch, ABS Controller, Stepper Motor Cruise Control, Right and Left Rear Stoplamps (Export)
MIRRORInadvertent Power Relay, Left Outside Rearview Mirror Switch, ALDL, Memory Mirror Module Dimmer Switch, Cluster
DRLDaytime Running Lamp (DRL) Relay, Left and Right Low Beam in DRL Mode, DRL Switc
IGN (ENG)*Powertrain Control Module (PCM)
ABSAnti-Lock Brake System (ABS)/Traction Control System
IGN 1Rear Ignition-1 Relay, Front and Rear Fog Lamp Relays, Control Power Back-up, DRL Relay
WIPERSAccessory Relay, Wiper Switch
A/C COMPAC Compressor Relay, Cooling Fan Relays 1,2,3, Compressor
A/C COMPA/C Compressor
PCM (BAT)*PCM
PRK/REVTCC and Exterior Travel Brake Switch, Revberse Relay, Electrochromic Mirror (in Header), Park Relay, Brake Transaxle-Shift Interlock (BTSI) Switch, BTSI, PZM
ECS*Transaxle Shift Solenoids, Mass Airflow, Canister Purge, PCM, Linear Exhaust Gas Recirculation (EGR), Front Ignition- 1 Relay, Torque Converter
PCM (IGN)*Powertrain Control Module (PCM)
DISTR*Electronic Ignition Control Module
CRUISEStepper Motor Cruise Control, Power Steering Pressure Switch, Low Refrigerant Pressure Cutoff Switch, Park Relay
INJ*Injectors 1, 4, 6, 7
INJ*Injectors 2, 3, 5, 8
FUEL PUMPPCM, Fuel Pump Relay, Fuel Pump
FUEL PUMPFuel Pump
OXY SEN1*Oxygen Sensor Front, CAT Front Oxygen Sensor
OXY SEN2*Oxygen Sensor Rear, Catalytic Convener (CAT) Rear Oxygen Sensor
* Do not alter OBD I1 related fuses or circuit breakers.

Rear Compartment Fuse Block

The fuse block is located on the front wall of the trunk (behind the rear seat) on the driver’s side.

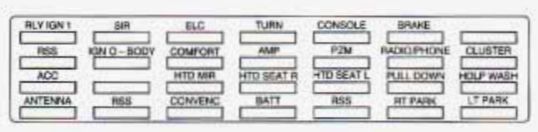

cadillac deville fuse box diagram rear compartment 1997
cadillac deville fuse box diagram rear compartment 1997
FuseUsage
RLY IGN 1Cluster, Cruise in Stalk, PZM, Catalytic Converter Overtemp Amplifier (Export), TCC Switch
SIRSDM, Left and Right Door Sensor
ELCELC Relay, Vacuum Pump, ALC Sensor
TURNElectronic Flasher, Turn/Hazard Switch
CONSOLERear Zone Blower, Right and Left Heated Seat Switches (Optional)
BRAKEBrake, Vacuum Pump (VP) Relay, VP Motor, VP Pressure Switch
RSSCV-RTD (CV-RSS)(DeVille Concours Only)
IGN 0-BODYPRNDL, Dual Zone Switch, PZM, Cluster, Air Control Module (ACM), Upper Zone Motor, Lower Zone Motor (Optional), HVAC Solenoids, Climate Control Panel Analog Cluster (Console Shift Only),
COMFORTCD Player, Remote Keyless Entry (RKE), Controlled Power Relay, Air Control Module (ACM), PZM
AMP (Bose Only) (Optional)Right and Left Hand Bose Relay, Right and Left Front Speakers (On Door), Right and Left Rear Speakers
PZMPZM
RADIO/PHONERadio Receiver, Radio Interface Module (RIM)(Bose Only), Phone, DAB Relay, Trunk Release Relay, Fuel Door Release Relay, HighLow Beam Relay
CLUSTERSteering Wheel Controls, Cluster
ACCPZM, Electrochromic Mirror, Rain Sensor (Optional), Accessory Relay
HTD MIRRight and Left Outside Heated Mirror
HTD SEAT RPassenger Heated Seat Relay (Optional)
HTD SEAT LDriver Heated Seat Relay (Optional)
PULL DOWNTrunk Pull-Down Motor
HDLP WASHHeadlamp Wash Relay (Export), Headlamp Wash Motor
ANTENNAPower Mast Antenna
RSSCV-RTD Module (CV-RSS) (DeVille Concours Only)
CONVENCTrunk Release Relay, Trunk Release Solenoid, Fuel Door Release Relay, Fuel Filler Door Release Solenoid, Door Lock Relay, Left Front Door Motors, PZM, Door Unlock Rel
BATTDriver and Passenger Seat Lumbar Switch (Optional), Memory Seat Module
RSSCV-RTD (CV-RSS) (DeVille Concours Only)
RT PARKHeadlamp Switches, Rear Fog Lamp Relay, Right Front and Rear Sidemarker Lamps, Right Rear Back-up Lamp (Export), Park Position Lamp (Export), Rear ParWTurn Lamps
LT PARKLeft Front and Rear Sidemarker Lamps, Front Parking Lamps, Left Turn/Stop/Tail Lamps, Right and Left License Plate Lamps, Park Position Lamp (Export)
* Do not alter OBD II related fuses or circuit breakers
