Buick Rainier (2007–2008) fuse box and relay Diagrams

The Buick Rainier, produced between 2007 and 2008, epitomizes Buick’s dedication to blending luxury with robust performance in the SUV segment. The vehicle’s sophisticated electrical system includes essential components such as the fuse box and relays.

The fuse box in the Buick Rainier 2007–2008 houses fuses designed to protect electrical circuits from overloads and short circuits, safeguarding critical components like headlights, taillights, and power windows. Relays, operating as electrically controlled switches, manage the flow of electricity to systems such as the starter motor, fuel pump, and cooling fans, ensuring efficient and reliable operation.

Additional advanced electrical components in the Buick Rainier of this era include climate control systems, power-adjustable seats, and premium audio systems. These features rely on a robust electrical infrastructure to enhance comfort, convenience, and entertainment for occupants.

Understanding the layout and function of the fuse box and relays is crucial for maintaining and troubleshooting the Buick Rainier 2007–2008’s electrical systems. Regular inspection and maintenance of these components help ensure the vehicle’s reliability and performance, continuing its legacy as a refined and dependable SUV in Buick’s lineup.

MUST READ: DYI – How to Check Car Fuses?

(2007–2008) Buick Rainier fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Rainier 2007–2008 fuse assignment

Year of production: 2007, 2008

Engine Compartment Fuse Block

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

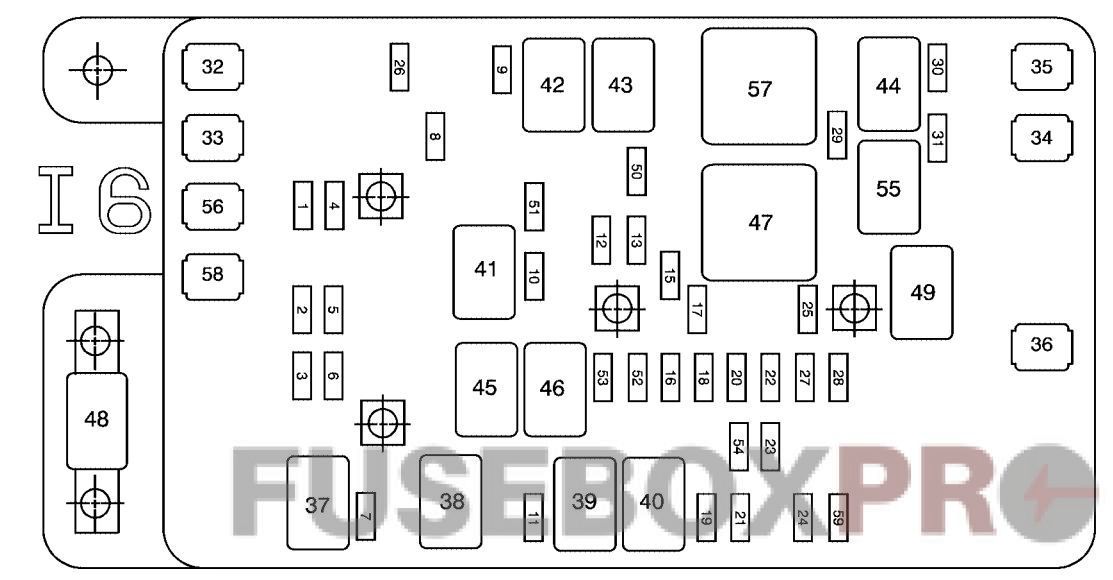

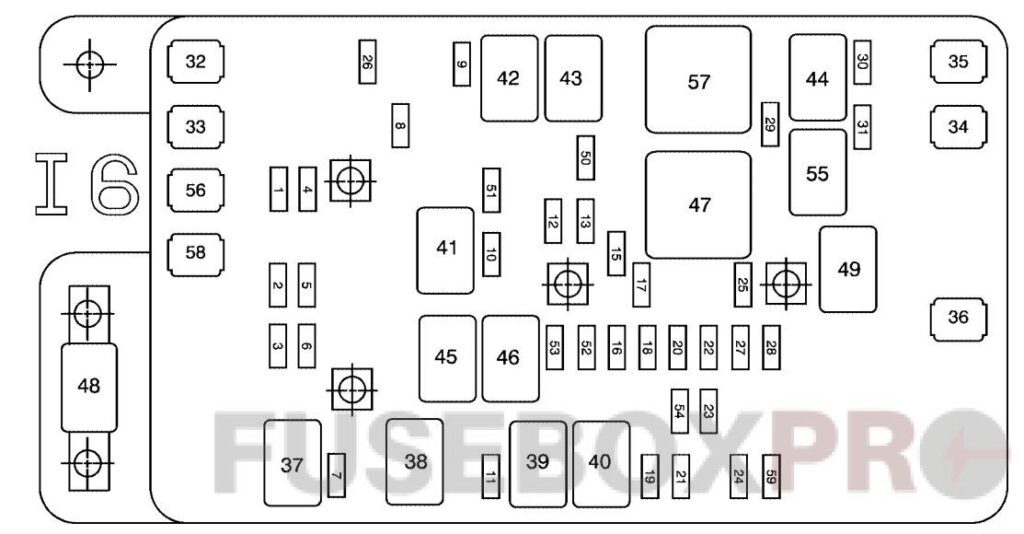

Engine L6

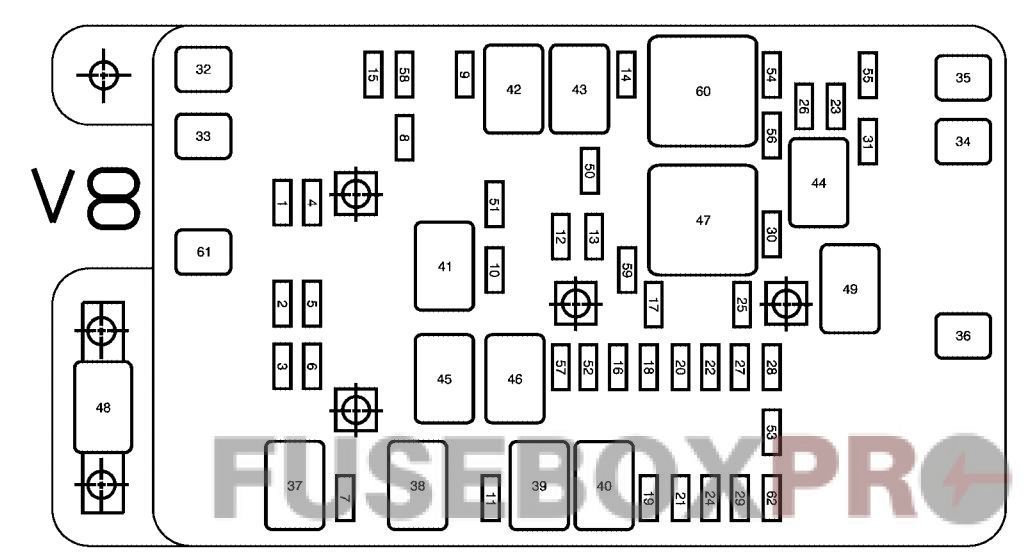

Engine V8

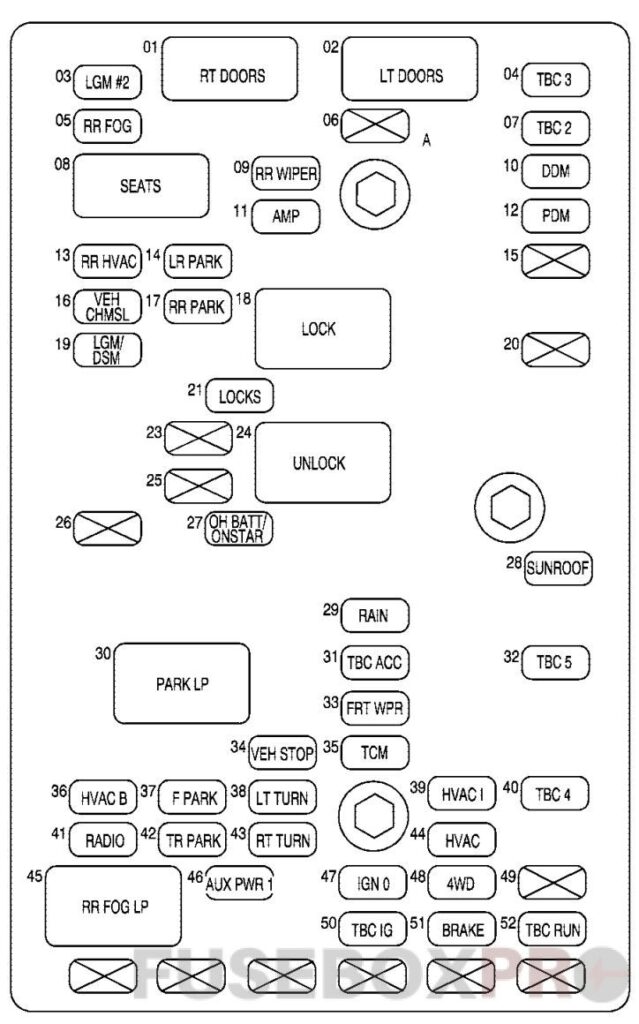

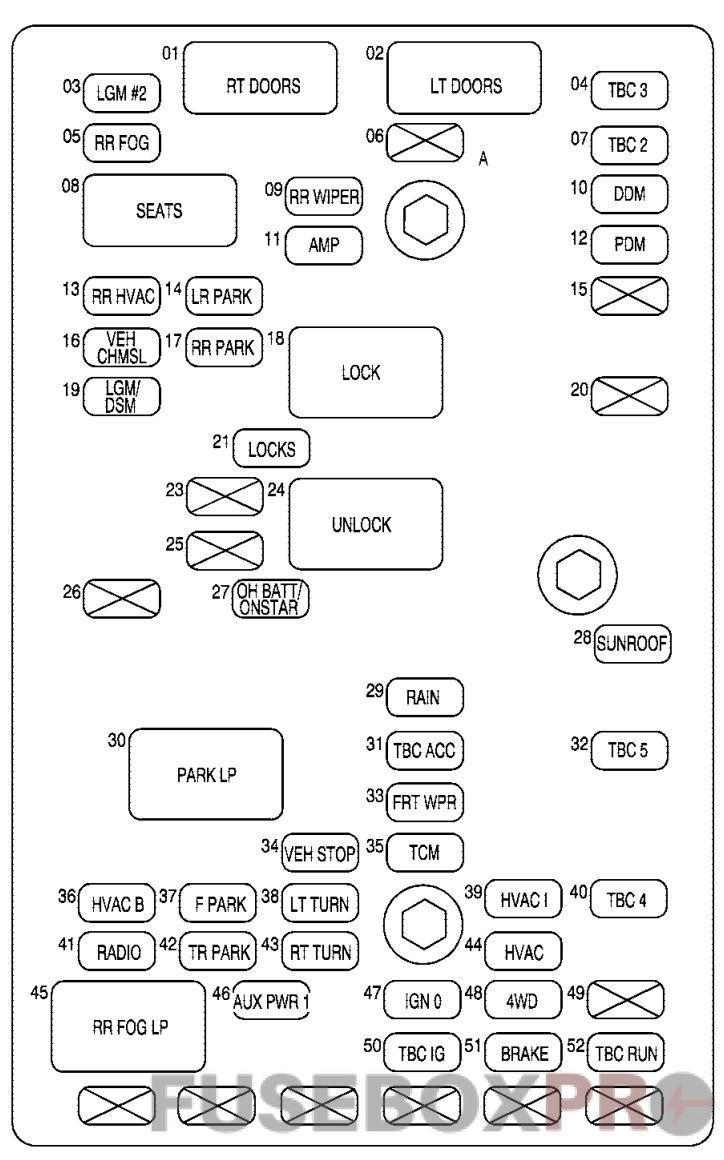

Rear Underseat Fuse Block

Conclusion

For owners and enthusiasts of classic Buick Rainier models from 2007–2008, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
