Buick LaCrosse (2005–2009) fuse box and relay Diagrams

The Buick LaCrosse, produced from 2005 to 2009, demonstrates Buick’s commitment to blending comfort with performance in the mid-size sedan segment. Its advanced electrical system includes essential components such as the fuse box and relays.

The fuse box in the Buick LaCrosse 2005–2009 houses fuses designed to protect electrical circuits from overloads and short circuits, ensuring the safety of critical components like headlights, taillights, and power windows. Relays, serving as electrically controlled switches, manage the flow of electricity to systems such as the starter motor, fuel pump, and cooling fans, ensuring efficient and reliable operation.

Additional sophisticated electrical components in the Buick LaCrosse of this era include climate control systems, power-adjustable seats, and premium audio systems. These features rely on a robust electrical infrastructure to enhance comfort, convenience, and entertainment for occupants.

Understanding the layout and function of the fuse box and relays is crucial for maintaining and troubleshooting the Buick LaCrosse 2005–2009’s electrical systems. Regular inspection and maintenance of these components help ensure the vehicle’s reliability and performance, maintaining its reputation as a refined and dependable sedan in Buick’s lineup.

MUST READ: DYI – How to Check Car Fuses?

(2005–2009) Buick LaCrosse fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick LaCrosse 2005–2009 fuse assignment

Year of production: 2005, 2006, 2007, 2008, 2009

Passenger compartment fuse box

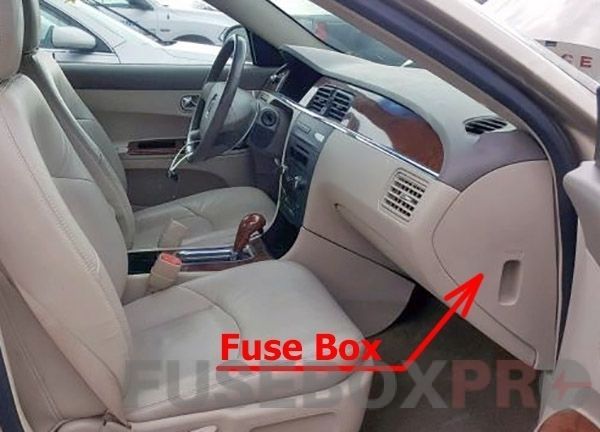

Fuse Box Location

It is located on the right side of the instrument panel, behind the cover.

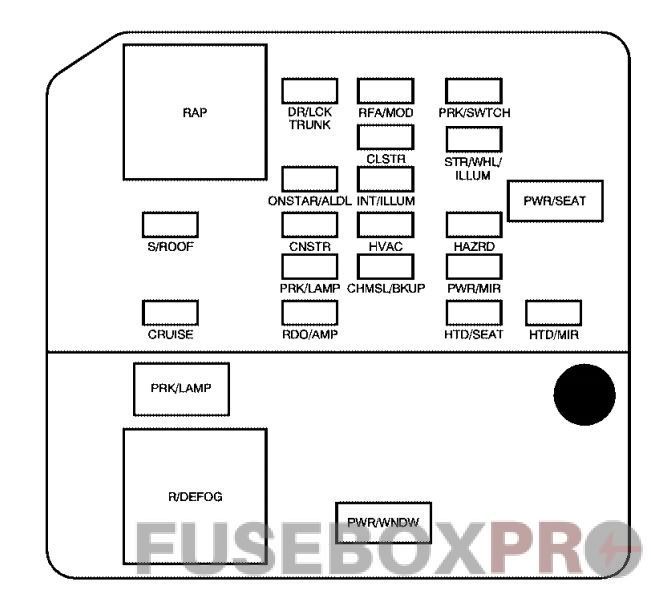

Fuse box diagram

Assignment of the fuses and relays in the Passenger compartment

Fuse Box in the engine compartment

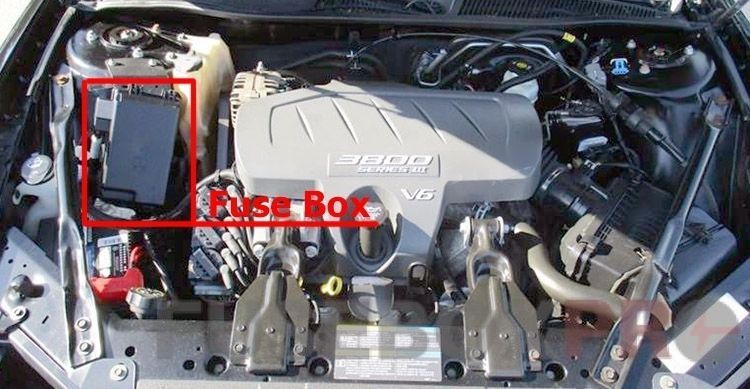

Fuse Box Location

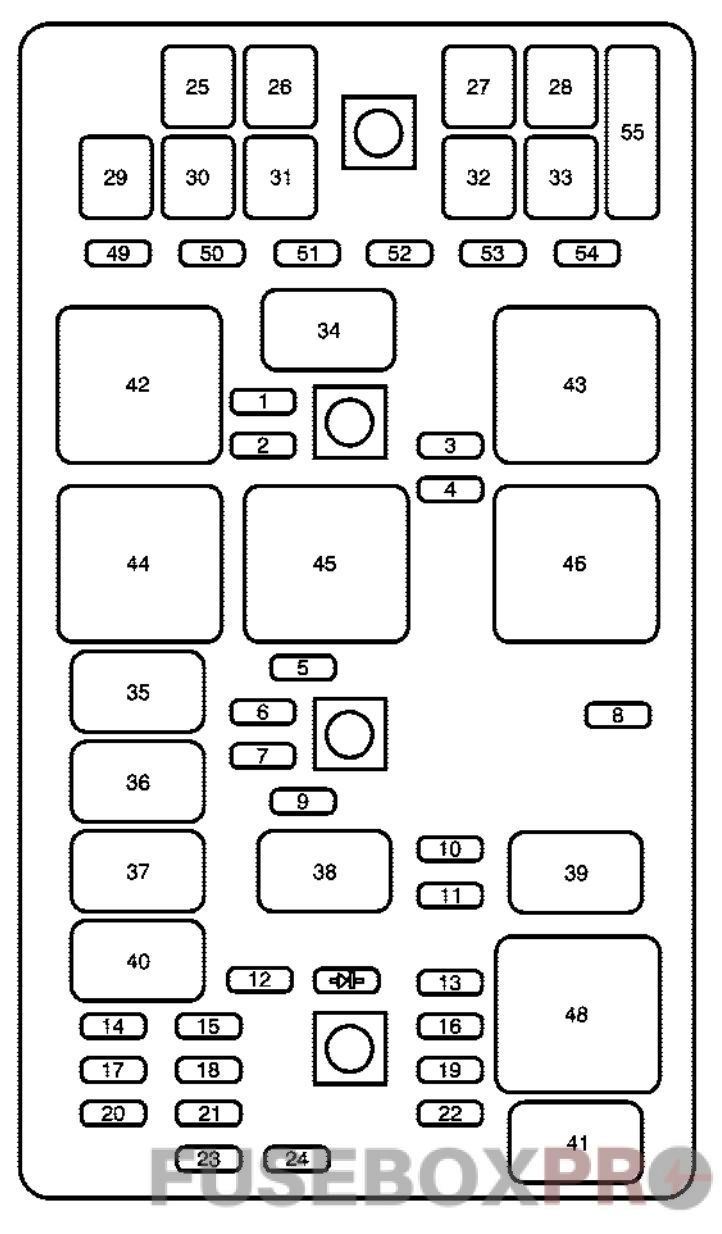

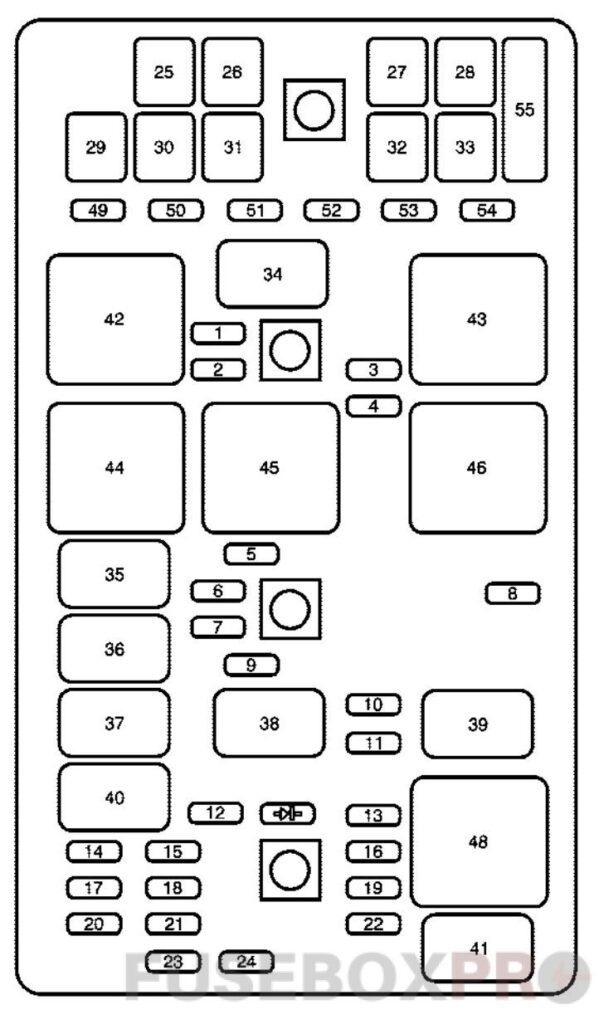

Fuse box diagram (3.6L and 3.8L V6 engines)

Assignment of the fuses and relays in the engine compartment (3.6L & 3.8L V6 engines)

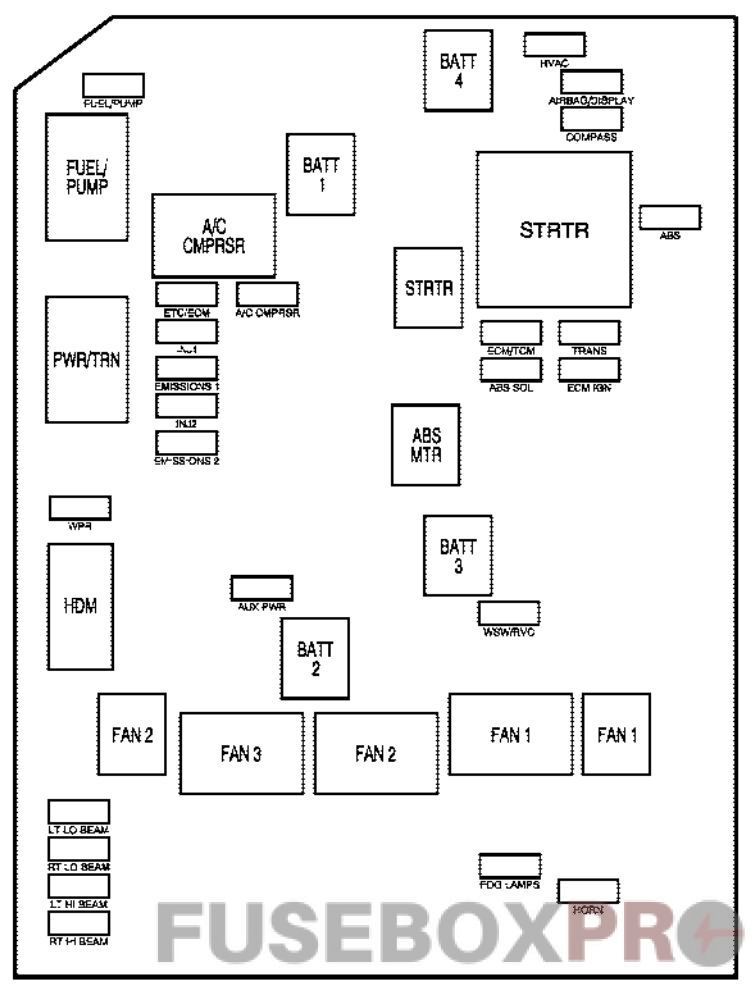

Fuse box diagram (5.3L V8 Engine)

Assignment of the fuses and relays in the engine compartment (5.3L V8 Engine)

Conclusion

For owners and enthusiasts of classic Buick LaCrosse models from 2005–2009, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
