(2021-2023) Buick Envision fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Envision 2021-2023 fuse assignment
Year of production: 2021, 2022, 2023
Passenger Compartment

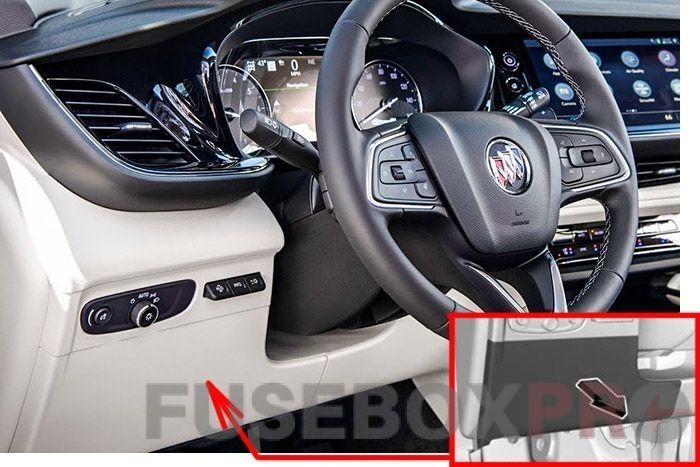

The instrument panel fuse block is on the driver side of the instrument panel, between the steering wheel and the door. To access the fuses, remove the panel, starting at the top. Once clips are disengaged, the tabs along the bottom of the door can be disengaged from the instrument panel to remove the door.

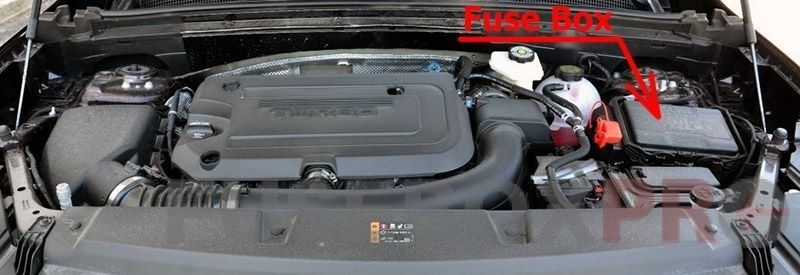

Engine Compartment
To remove the fuse block cover, squeeze the clips on the cover and lift it straight up.
Fuse Box Diagrams

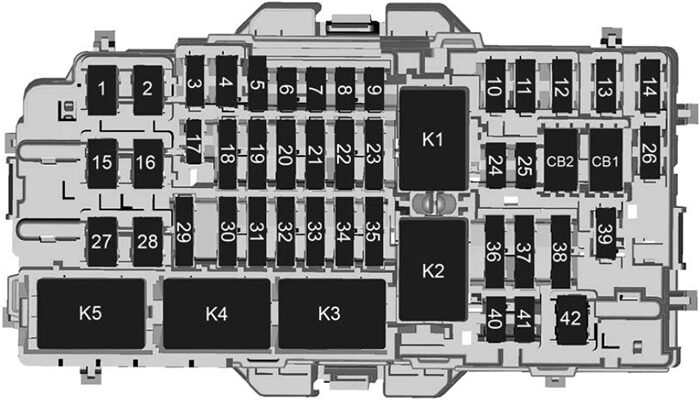

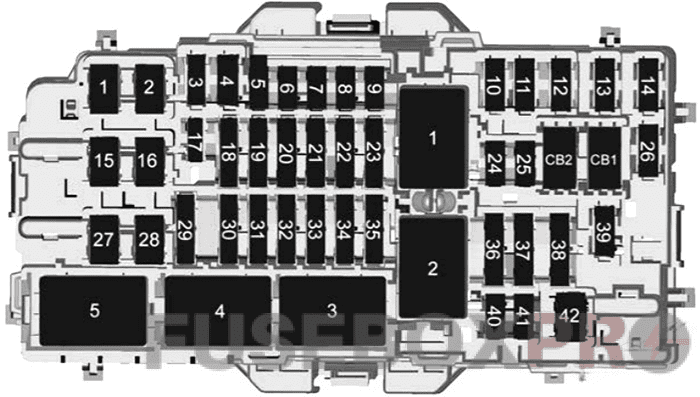

Instrument Panel Fuse Box Diagram
Assignment of the fuses in the Instrument Panel Fuse Box
| № | Amps | Usage |
|---|---|---|
| F1 | 40A | Direct current to direct current converter 2 (DC-DC) |
| F2 | 30A | Body control module 4 |
| F3 | — | — |
| F4 | — | — |
| F5 | 25A | Body control module 2 |
| F6 | 20A | Body control module 3 |
| F7 | — | — |
| F8 | 20A | Exterior lighting module 5 |
| F9 | — | — |
| F10 | 5A | Steering column lock |
| F11 | 10A | Body control module 1 |
| F12 | — | — |
| F13 | — | — |
| F14 | — | — |
| F15 | 15A | Auxiliary power outlet rear cargo |
| F16 | — | — |
| F17 | 20A | Exterior lighting module 7 |
| F18 | 10A | Uplevel tail lamp |
| F19 | 10A | 2021: Steering column lock assembly 2022: Overhead Console Module/ Universal Garage Door Opener/Rain Sensor/Electronic Toll Collector |
| F20 | 10A | Sensing diagnostic module/Automatic occupant sensing/ Data link connection/ Wireless charger |
| F21 | 5A | 2021: Central gateway module/ Telematics control platform module 2022: Central Gateway Module/ OnStar |
| F22 | 10A | External object calculating module/ Long range radar/ Park assist/front camera module/ Side blind zone alert |
| F23 | 10A | Video processing module |
| F24 | — | — |
| F25 | 10A | AC power outlet/ Auxiliary USB |
| F26 | — | — |
| F27 | 30A | Amplifier |
| F28 | 60A | 2021: Jumper 2022: Heated Steering Wheel Module/ Exterior Lighting Module Battery 2/ Direct Current/ AC Inverter |
| F29 | 10A | Instrument duster/ Heads up display/ Air quality ionizer module/ Center stack display/ Heating ventilation air conditioning display |
| F30 | — | — |
| F31 | — | 2022: Run/Crank Auxiliary Power Module/ Battery System Manager/ Motor Control Unit |
| F32 | 10A | Run crank for misc. 3 humidity sensor/ Exterior lighting module/ Electronic brake control module/ Air quality sensor exterior/ Headlamp manual leveling left Right/ Inside rear view mirror/ lnterior particulate matter sensor/ Seat fan control cushion and back driver co driver |
| F33 | — | — |
| F34 | 10A | Run crank for misc. 1 & 2 shifter interface board module/ Instrument panel cluster/ Transmission control module/ Sensing & diagnostic module/Headlamp manual leveling switch/Reflective light auxiliary display |
| F35 | 15A | Run crank for engine control module |
| F36 | 10A | Electric park brake switch/ Shifter interface board |
| F37 | 15A | Radio/Center stack module/ Auxiliary jack |
| F38 | — | — |
| F39 | 2A | Steering wheel clock spring |
| F40 | 20A | Exterior lighting module 2 |
| F41 | 7.5A | Heated steering wheel module |
| F42 | 20A | Direct current to alternate current inverter module |
| CB1 | — | — |
| CB2 | 15A | Auxiliary power outlet console |
| Relays | ||
| K01 | Retained accessory power accessory | |
| K02 | Run/crank | |
| K03 | — | |
| K04 | — | |
| K05 | — |

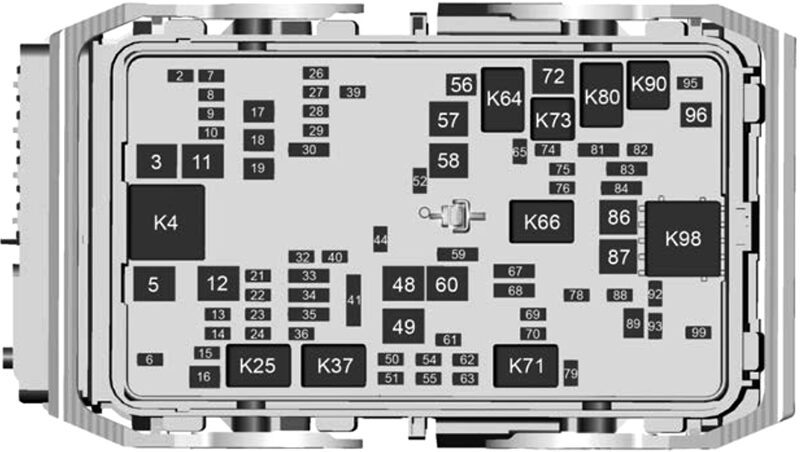

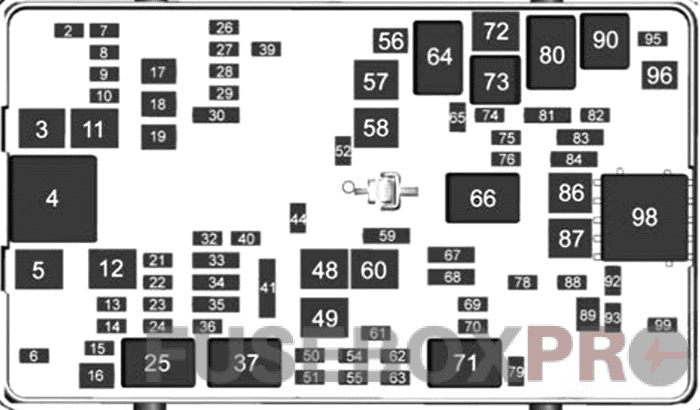

Engine Compartment Fuse Box Diagram
Assignment of the fuses in the Engine Compartment Fuse Box
| № | Usage |
|---|---|
| F02 | Trailer stop/turn right |
| F03 | Electronic brake control module |
| F05 | Rear defog |
| F06 | — |
| F07 | Trailer stop/turn left |
| F08 | 2021: Overhead console module/ Universal garage door opener/ Rain sensor |
| F09 | Suspension control semi active dampen system module |
| F10 | Adaptive forward lighting/rear drive control module |
| F11 | Direct current to direct current converter 1 |
| F12 | Power tailgate |
| F13 | — |
| F14 | Canister vent solenoid |
| F15 | — |
| F16 | Front wiper |
| F17 | Passenger power seat |
| F18 | Motor window lifter left |
| F19 | Motor window lifter right |
| F21 | Exterior lighting module 1 |
| F22 | Exterior lighting module 3 |
| F23 | Exterior lighting module 6 |
| F24 | — |
| F26 | Transmission control module direct current converter |
| F27 | Remote function actuator |
| F28 | — |
| F29 | Exterior lighting module 4 |
| F30 | Memory seat module driver |
| F32 | Headlamp right |
| F33 | Front heated seat |
| F34 | Rear heated seat |
| F35 | Door panel / Seat position driver and passenger switch |
| F36 | Fuel tank zone module |
| F39 | Handsfree closure module |
| F40 | Headlamp left |
| F41 | — |
| F44 | Rear wiper |
| F48 | Blower motor |
| F49 | — |
| F50 | — |
| F51 | — |
| F52 | — |
| F54 | — |
| F55 | — |
| F56 | Starter motor |
| F57 | Driver power seat / Memory seat module |
| F58 | Rear drive control module |
| F59 | — |
| F60 | — |
| F61 | — |
| F62 | — |
| F63 | — |
| F65 | Air conditioning control |
| F67 | — |
| F68 | — |
| F69 | — |
| F70 | — |
| F72 | Starter pinion |
| F74 | — |
| F75 | Engine control module main |
| F76 | Engine control module 2 |
| F78 | Horn |
| F79 | Washer pump |
| F81 | — |
| F82 | Engine control module battery |
| F83 | Engine control module/ Ignition coil |
| F84 | 2021: Off engine 1/off engine 2 2022: Mass Airflow/ Oxygen/ Inlet Air Temperature/ Throttle Inlet Absolute Pressure and Humidity/ Oxygen Heated Sensor/Block Coolant Valve/ Evaporative Emission Purge Pump/ Wide Range Air Fuel Oxygen Sensor/Canister Purge, Turbo Bypass, Step Cam Intake, Step Cam Exhaust, Engine Oil Control Solenoids |
| F86 | — |
| F87 | Sunroof |
| F88 | Aero shutter |
| F89 | — |
| F93 | Trailer park lamp |
| F95 | — |
| F96 | — |
| F99 | — |
| Relays | |
| K04 | Rear defog |
| K25 | Front wiper control |
| K37 | Front wiper speed |
| K64 | Starter motor |
| K66 | Powertrain |
| K71 | — |
| K73 | Air conditioning control |
| K80 | Starter pinion |
| K90 | — |
| K98 | — |
2022-2023
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022-2023)
| № | Usage |
|---|---|
| F02 | TRLR ST/TRN RT – Trailer Stop/Turn Lamp Right |
| F03 | EBCM – Electronic Brake Control Module |
| F05 | Rear Defog |
| F06 | – |
| F07 | TRLR ST/TRIM LT – Trailer Stop/Turn Lamp Left |
| F08 | – |
| F09 | SADS – Suspension Control Semi Active Damper System Module |
| F10 | AFS/RDCM – Adaptive Front Lighting System / Rear Drive Control Module |
| F11 | DC DC CNV1 – Direct Current to Direct Current Converter 1 |
| F12 | PWR T/GATE – Power Tailgate |
| F13 | – |
| F14 | CNSTR VENT SOL – Canister Vent Solenoid |
| F15 | – |
| F16 | FRT/WPR – Front Wiper |
| F17 | PASS PWR/SEAT – Passenger Power Seat |
| F18 | DRVR PWR WNDW – Driver Power Window |
| F19 | PASS PWR WNDW – Passenger Power Window |
| F21 | ELM 1 – Exterior Lighting Module 1 |
| F22 | ELM 3 – Exterior Lighting Module 3 |
| F23 | ELM 6 – Exterior Lighting Module 6 |
| F24 | – |
| F26 | TCM – Transmission Control Module |
| F27 | RFA – Remote Function Actuator |
| F28 | – |
| F29 | ELM 4 – Exterior Lighting Module 4 |
| F30 | MSM DRVR – Driver Memory Seat Module |
| F32 | HDLP RT – Right Headlamp |
| F33 | FRT HTD/SEAT – Front Heated Seats |
| F34 | REAR HTD/SEAT – Rear Heated Seats |
| F35 | DR SW/ST POS DRVR/ PASS SW – Door Switch Panel / Seat Position Driver and Passenger Switch |
| F36 | FTZM – Fuel Tank Zone Module |
| F39 | HANDSFREE CLOSURE MDL – Handsfree Closure Module |
| F40 | HDLP LT – Left Headlamp |
| F41 | SPARE |
| F44 | REAR/WPR – Rear Wiper |
| F48 | BLWR MTR – Blower Motor |
| F49 | – |
| F50 | SPARE |
| F51 | SPARE |
| F52 | – |
| F54 | SPARE |
| F55 | SPARE |
| F56 | STRTR MTR – Starter Motor |
| F57 | DRVR PWR SEAT/MSM – Driver Power Seat/ Memory Seat Module |
| F58 | RDCM – Rear Drive Control Module |
| F59 | – |
| F60 | – |
| F61 | SPARE |
| F62 | SPARE |
| F63 | SPARE |
| F65 | A/C CNTRL – Air Conditioning Control |
| F67 | SPARE |
| F68 | SPARE |
| F69 | – |
| F70 | – |
| F72 | STRTR PINION – Starter Pinion |
| F74 | – |
| F75 | ECM IGN1 – Engine Control Module Ignition 1 |
| F76 | ECM IGN 2 – Engine Control Module Ignition 2 |
| F78 | Horn |
| F79 | WASH PUMP – Washer Pump |
| F81 | – |
| F82 | ECM BATT – Engine Control Module Battery |
| F83 | ECM/IGN COIL – Engine Control Module/lgnition Coils |
| F84 | MISC1 – Mass Airflow / Oxygen / lnlet Air Temperature / Throttle Inlet Absolute Pressure and Humidit y /Oxygen Heated Sensor / Block Coolant Valve / Evaporative Emission Purge Pump / Wide Range Air Fuel Oxygen Sensor / Canister Purge, Turbo Bypass, Step Cam Intake, Step Cam Exhaust, Engine Oil Control Solenoids |
| F86 | – |
| F87 | S/ROOF – Sunroof |
| F88 | AERO SH – Aeroshutter |
| F89 | – |
| F93 | TRLR PRK LAMP – Trailer Park Lamp |
| F95 | – |
| F96 | – |
| F99 | – |
| Relays | |
| K4 | REAR DEFOG – Rear Window Defog |
| K25 | FRT/WPR/CNTRL – Front Wiper Control |
| K37 | FRT/WPR/SPD – Front Wiper Speed |
| K64 | STRTR MTR – Starter Motor |
| K66 | PWR/TRN – Power Train |
| K71 | – |
| K73 | A/C Control – Air Conditioning Control |
| K80 | STRTR PINION – Starter Pinion |
| K90 | – |
| K98 | – |
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2022-2023)
| № | Usage |
|---|---|
| F1 | DC-DC CONVERTER 2 – Direct Current to Direct Current Converter 2 |
| F2 | Body Control Module 4 |
| F3 | – |
| F4 | – |
| F5 | Body Control Module 2 |
| F6 | Body Control Module 3 |
| F7 | – |
| F8 | Exterior Lighting Module 5 |
| F9 | – |
| F10 | Steering Column Lock |
| F11 | Body Control Module 1 |
| F12 | – |
| F13 | – |
| F14 | – |
| F15 | APO REAR CARGO – Auxiliary Power Outlet Rear Cargo |
| F16 | – |
| F17 | Exterior Lighting Module 7 |
| F18 | UPLVL T/LAMP – Uplevel Tail Lamp |
| F19 | MISC 5 – Overhead Console Module / Universal Garage Door Opener / Rain Sensor / Electronic Toll Collector |
| F20 | SDM/AOS/DLC/ WCM – Sensing Diagnostic Module / Automatic Occupant Sensing / Data Link Connector / Wireless Charger Module |
| F21 | CGM/OnStar – Central Gateway Module / OnStar |
| F22 | EOCM/LRR/PRK Assist/FCM/SBZA – External Object Calculating Module / Long Range Radar / Park Assist / Front Camera Module / Side Blind Zone Alert |
| F23 | Video Processing Module |
| F24 | – |
| F25 | AC POWER OUTLET/USB CHARGE PORT – Alternate Current Power Outlet / USB Charge Port |
| F26 | – |
| F27 | Amplifier |
| F28 | MISC 4 – Heated Steering Wheel Module / Exterior Lighting Module Battery 2 / Direct Current / Alternate Current Inverter |
| F29 | IPC/HUD/AQI MDL/CS & HVAC DISPLAYS – Instrument Panel Cluster / Heads Up Display / Air Quality Ionizer Module / Center Stack Display / Heating Ventilation and Air Conditioning Display |
| F30 | – |
| F31 | Run/Crank Auxiliary Power Module/Battery System Manager/ Motor Control Unit |
| F32 | RUN/CRANK MISC3 – Humidity Sensors / Exterior Lighting Module / Electronic Brake Control Module / Exterior Air Quality Sensor / Manual Headlamp Leveling / lnside Rear View Mirror / Interior Particulate Matter Sensor / Seat Fan Control Cushion and Back Driver and Passenger |
| F33 | – |
| F34 | RUN/CRANK MISC1 & 2 – Shifter Interface Board Module / Instrument Panel Cluster / Transmission Control Module (MISC 1) / Sensing and Diagnostic Module / Headlamp Manual Leveling Switch / Reflective Light Auxiliary Display (MISC 2) |
| F35 | RUN CRANK ECM IGN – RUN/CRANK Engine Control Module Ignition |
| F36 | EPB SWITCH / SHIFTER INTERFACE BOARD – Electric Park Brake Switch / Shifter Interface Board |
| F37 | RADIO/CSM / AUXILIARY JACK – Radio / Center Stack Module / Auxiliary Jack |
| F38 | – |
| F39 | STR/WHL/CNTRLS SWS – SW Controls – Cruise / Fast Idle Switches |
| F40 | Exterior Lighting Module 2 |
| F41 | Heated Steering Wheel Module |
| F42 | Direct Current to Alternate Current Inverter Module |
| CB1 | – |
| CB2 | APO CONSOLE – Auxiliary Power Outlet Console |
| Relays | |
| K01 | RAP/ACCY – Retained Accessory Power |
| K02 | Run/Crank |
| K03 | – |
| K04 | – |
| K05 | – |
