The Buick Encore GX, spanning from 2020 to 2022, represents Buick’s commitment to blending versatility, efficiency, and modern technology in the compact SUV segment. Its advanced electrical system includes essential components such as the fuse box and relays.

The fuse box in the Buick Encore GX 2020–2022 houses fuses designed to protect electrical circuits from overloads and short circuits, ensuring the safety of critical components like headlights, taillights, and power windows. Relays, serving as electrically controlled switches, manage the flow of electricity to systems such as the starter motor, fuel pump, and cooling fans, ensuring efficient and reliable operation.

Additional sophisticated electrical components in the Buick Encore GX of this era include advanced infotainment systems, climate control features, power-adjustable seats, and advanced driver assistance systems (ADAS). These features rely on a robust electrical infrastructure to enhance comfort, convenience, and safety for occupants.

Understanding the layout and function of the fuse box and relays is crucial for maintaining and troubleshooting the Buick Encore GX 2020–2022’s electrical systems. Regular inspection and maintenance of these components help ensure the vehicle’s reliability and performance, maintaining its reputation as a versatile and dependable SUV in Buick’s lineup.

MUST READ: DYI – How to Check Car Fuses?

(2020–2022) Buick Encore GX fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Encore GX 2020–2022 fuse assignment

Year of production: 2020, 2021, 2020

Passenger Compartment

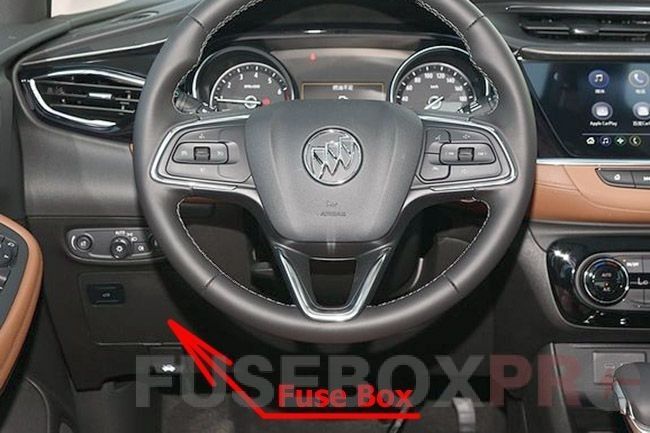

The location of the fuses in the passenger compartment: Buick Encore GX (2020, 2021, 2022)
The location of the fuses in the passenger compartment: Buick Encore GX (2020, 2021, 2022)

The instrument panel fuse block is on the underside of the driver side instrument panel. To access the fuses, open the fuse cover by pulling out.

Engine Compartment

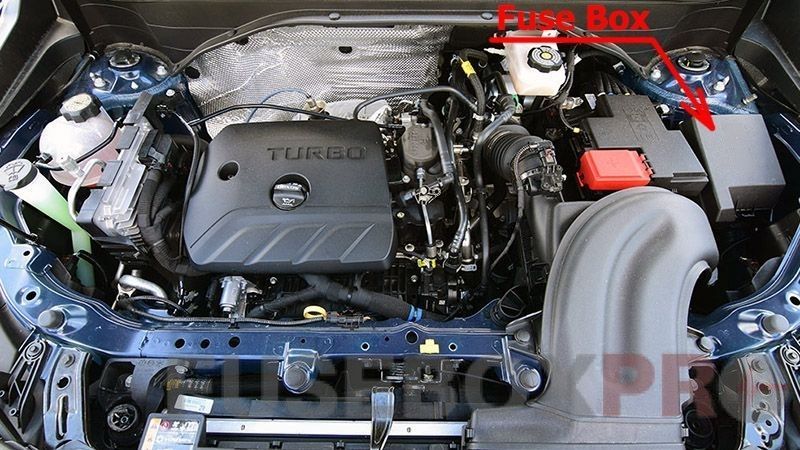

The location of the fuses in the engine compartment: Buick Encore GX (2020, 2021, 2022)
The location of the fuses in the engine compartment: Buick Encore GX (2020, 2021, 2022)

To remove the fuse block cover, squeeze the clip and lift it up.

Luggage Compartment

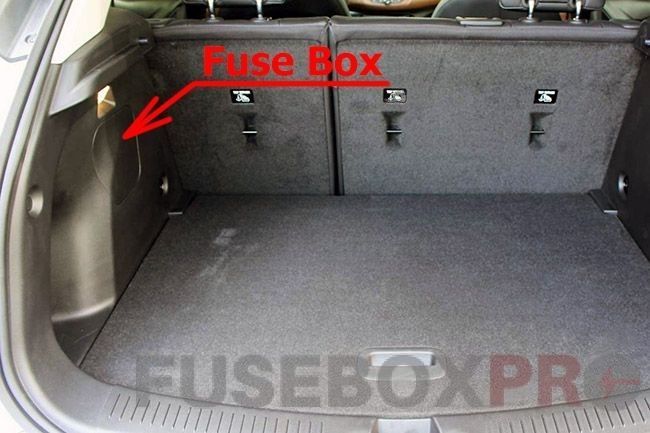

The location of the fuses in the trunk: Buick Encore GX (2020, 2021, 2022)
The location of the fuses in the trunk: Buick Encore GX (2020, 2021, 2022)

The rear compartment fuse block is behind a cover on the driver side of the rear compartment. To access the fuses, remove the cover.

Fuse Box Diagrams

Instrument Panel Fuse Box

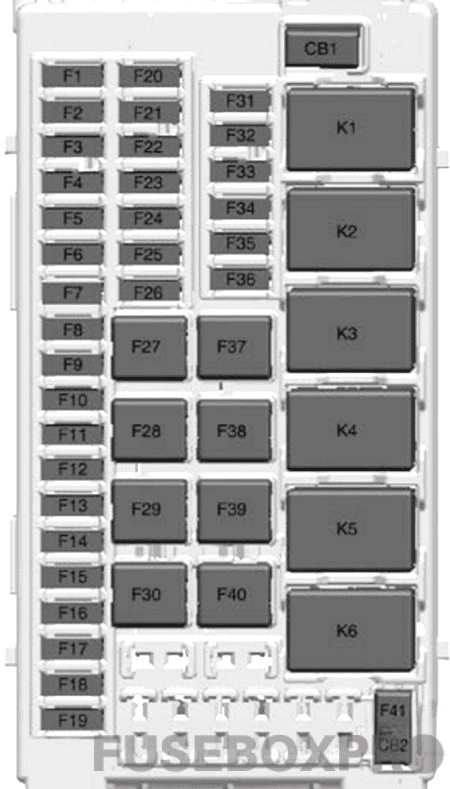

Instrument panel fuse box diagram: Buick Encore GX (2020, 2021, 2022)

Assignment of the fuses in the Instrument Panel Fuse Box

№Usage
F01LUMBAR
F02SUNROOF
F03VBAT_3
F04VBAT_7
F05VBAT_6
F06AUTO HVAC
F07CGM
F08ST_WHL_HTR
F09DISPLAY
F10RADIO
F11ONSTAR (ERA)
F12PARKASSIST
F13MAN. HVAC
F14WL CHARGER
F15VBAT_2
F16VBATJ
F17SWC BKLT
F18N/A
F19N/A
F20CLOCK SPRING
F21OCC SEN
F22DLC
F23SDM
F24IGNSW/ESCL
F25PWR L-GATE MDL
F26SEC FUSE-2
F27PWR SEAT CO-DR
F28VBAT_8
F29DC-DC AT
F30PWR L-GATE MDL
F31OSRVM
F32FRT HS PWR-1
F33VBAT_4
F34FRT HS PWR-2
F35AMPLIFIER
F36ONSTAR (TCP)
F37PWR SEAT DR
F38DC-DC_400W
F39SEC FUSE-1
F40HVAC_BLOWER
Circuit Breaker
CB1N/A
CB2APO
Relays
K01i-RAP_ACC
K02RUN
K03LOGISTICS
K04N/A
K05N/A
K06N/A

Engine Compartment Fuse Box

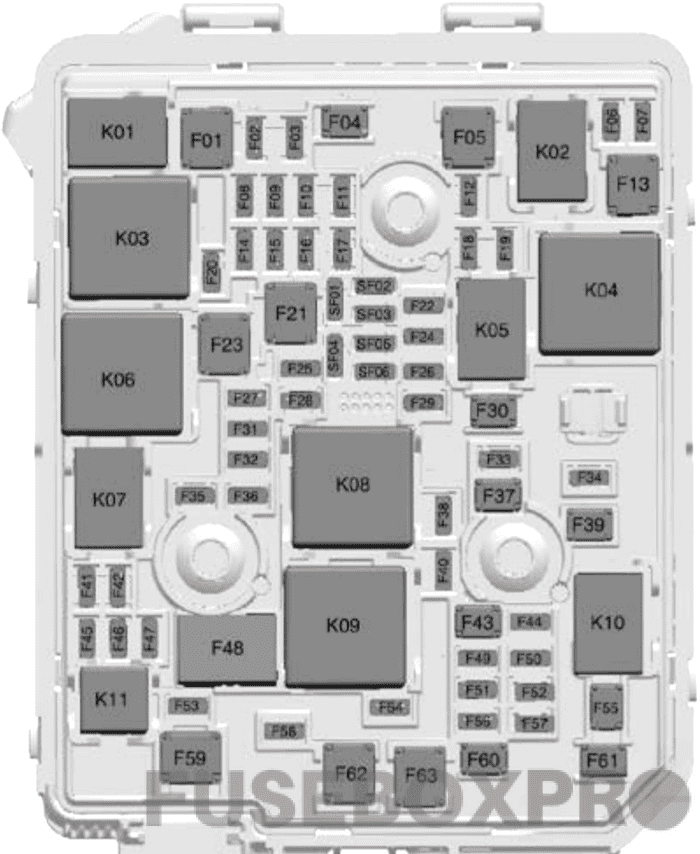

Under-hood fuse box diagram: Buick Encore GX (2020, 2021, 2022)

Assignment of the fuses in the Engine Compartment Fuse Box

№Usage
Micro Fuses
F02CLSTR
F03N/A
F06OSRVM DEFOG
F07L/GATE RELSE
F08AHL AFL MTR1
F09VENT SEAT
F10N/A
F11AHL AFL MTR2
F12N/A
F14ISRVM REAR VIEW CAMERA
F15DEFC MDL RUN/CRNK
F16HDLP LVL
F17N/A-DSL
F18FTZM
F19N/A
F20N/A
F22TRLR ST/TRN LT – TRLR
F24ESCL
F25ECM TCM RUN/CRNK
F26FRT/REAR WSW PUMP
F27IGN COIL-GAS
ECM PT3-DSL
F28AERO SH
F29AHL AFL MDL
F31ECM PT2
F32ENG COMP2
F33RVC
F34FRT FOG LP
F35ENG COMP1
F36ECM PT1
F38TRLR PRK LAMP – TRLR
F40AUX WATER PUMP
F41REAR WPR
F42HORN
F44REAR WPR PRK
F45A/C CLTCH
F46N/A
F47ECM BATT-GAS
ECM BATT-DSL
F49HDLP HI LH
F50N/A
F51HDLP HI RH
F52NOX SOOT SNSR – DSL
TRLR ST/TRN RT – TRLR
F53N/A
F54PEPS
F56CNSTR VENT SOL-GAS/DEFC
MDL-DSL
F57DEFC MDL-DSL
F58TCM BATT
SF01-SF06Spare Fuses
ET Fuses
F48GLOW PLUG
J-Case Fuses
F01N/A
F05N/A
F13REAR WNDW DEFOG
F21E-BOOST PWR1
F23STRTR PINION
F59N/A
F62FUEL HTR DSL
F63N/A
M-case Fuses
F04FRT WPR
F30STRTR SOL
F37AUX OIL PUMP
F39N/A
F43PWR WNDW RT
F55PWR WNDW LT
F60DEF HTR
F61N/A
Relays
K01N/A
K02N/A
K03RUN/CRNK
K04REAR DEFOG
K05STRTR SOL
K06STRTR PINION
K07A/C CNTRL
K08PT RLY
K09FUEL HTR DSL
K10N/A
K11N/A

Rear Compartment Fuse Box

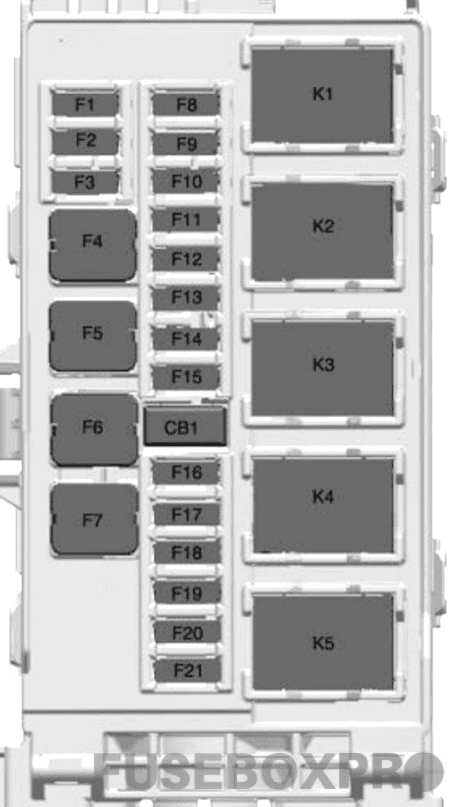

Trunk fuse box diagram: Buick Encore GX (2020, 2021, 2022)
Trunk fuse box diagram: Buick Encore GX (2020, 2021, 2022)

Assignment of the fuses in the Rear Compartment Fuse Box

№Usage
F01N/A
F02RDCM ELEC
F03N/A
F04N/A
F05DC/AC INVERTER
F06N/A
F07RDCM
F08RR SEAT HEAT PWR1
F09N/A
F10RR SEAT HEAT PWR2
F11N/A
F12N/A
F13N/A
F14N/A
F15N/A
F16N/A
F17N/A
F18N/A
F19N/A
F20N/A
F21N/A
Circuit Breakers
CB1N/A
Relays
K01N/A
K02N/A
K03N/A
K04N/A
K05N/A

Conclusion

For owners and enthusiasts of classic Buick Encore GX models from 2020-2022, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
