(2013-2022) Buick Encore fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Encore 2013-2022 fuse assignment
- Cigar lighter / power outlet fuses in the Buick Encore are the fuses №. F22 and F21 in the Passenger compartment fuse box.
Year of production: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Passenger compartment fuse box

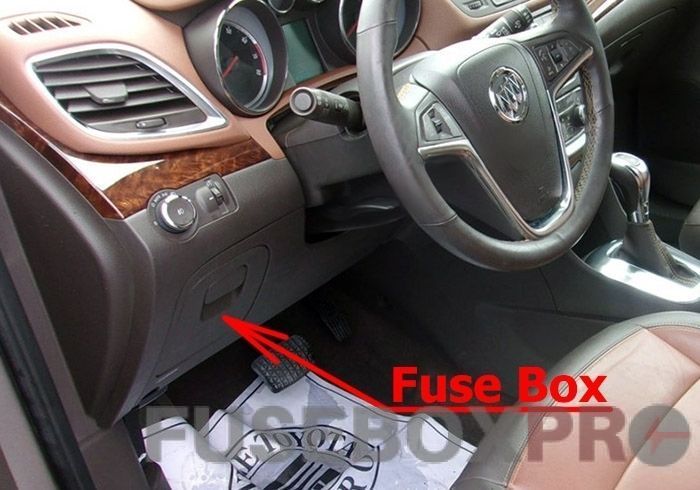

Fuse Box Location
It is located in the instrument panel, behind the storage compartment.

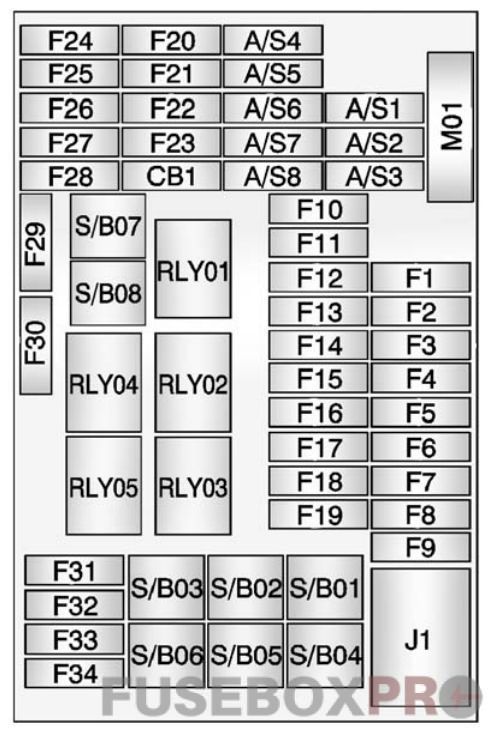

Fuse box diagram (2013-2016)
Assignment of the fuses and relays in the Passenger compartment (2013-2016)
| № | Description |
|---|---|
| Fuses | |
| F1 | Body control module 1 |
| F2 | Body control module 2 |
| F3 | Body control module 3 |
| F4 | Body control module 4 |
| F5 | Body control module 5 |
| F6 | Body control module 6 |
| F7 | Body control module 7 |
| F8 | Body control module 8 |
| F9 | Discrete logic ignition switch |
| F10 | Sensing Diagnostic Module Battery |
| F11 | Data link connector |
| F12 | Heater, Ventilation, and Air Conditioning MDL/ICS |
| F13 | Liftgate relay |
| F14 | UPA Module |
| F15 | LDW Module/Inside Rearview Mirror |
| F16 | Adaptive forward lighting module |
| F17 | Power WNDWSW DR |
| F18 | Rain Sensor |
| F19 | Body Control Module Regulated Voltage Contro |
| F20 | Steering Wheel Switch Backlighting |
| F21 | A/C Accessory Power Outlet/ PRND |
| F22 | Cigar Lighter/DC Accessory Power Outlet |
| F23 | Spare |
| F24 | Spare |
| F25 | Spare |
| F26 | Automatic Occupant Sensing Display |
| F27 | IPC/PTC Control/ Clutch Switch |
| F28 | Headlamp Switch/ AFL/DC Converter |
| F29 | Spare |
| F30 | 2013-2015: Spare 2016: Transmission Control Module Battery |
| F31 | IPC Battery |
| F32 | Radio/Chime/ Aux Jack |
| F33 | Display/Faceplate |
| F34 | OnStar/UHP/DAB |
| Midi Fuses | |
| M01 | PTC |
| S/B Fuses | |
| S/B01 | Spare |
| S/B02 | Spare |
| S/B03 | Power Window Motor Front |
| S/B04 | Power Window Motor Rear |
| S/B05 | Logistic mode relay |
| S/B06 | Spare |
| S/B07 | Spare |
| S/B08 | Spare |
| Circuit Breaker | |
| CB1 | Spare |
| Relays | |
| RLY01 | Accessory/Retained accessory power |
| RLY02 | Liftgate |
| RLY03 | Spare |
| RLY04 | Spare |
| RLY05 | Logistic mode |

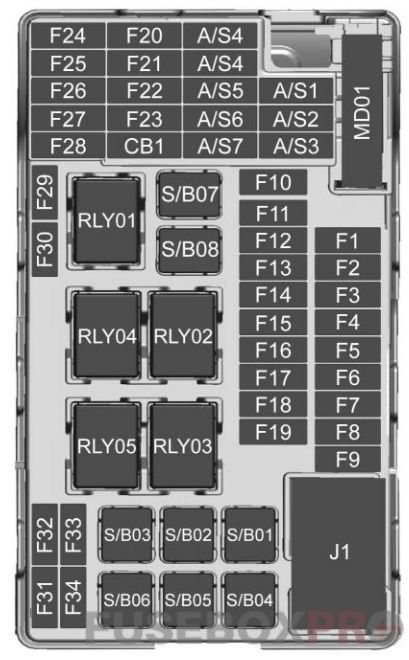

Fuse box diagram (2017-2020)
Assignment of the fuses and relays in the Passenger compartment (2017-2022)
| № | Description |
|---|---|
| Fuses | |
| F1 | Body control module 1 |
| F2 | Body control module 2 |
| F3 | Body control module 3 |
| F4 | Body control module 4 |
| F5 | Body control module 5 |
| F6 | Body control module 6 |
| F7 | Body control module 7 |
| F8 | Body control module 8 |
| F9 | Discrete logic ignition switch |
| F10 | Sensing diagnostic module battery |
| F11 | Data link connector |
| F12 | HVAC module/ICS |
| F13 | Liftgate relay |
| F14 | Central gateway module |
| F15 | 2017-2021: Lane departure warning/GENTEX |
| F16 | 2017-2020: Adaptive forward lighting module |
| F17 | 2017-2020: Electrical steering column lock |
| F18 | Parking assist module/Side blind zone alert |
| F19 | Body control module/Regulated voltage control |
| F20 | Clock spring |
| F21 | A/C/Accessory power outlet/PRNDL |
| F22 | Auxiliary power outlet/DC center |
| F23 | 2017-2020: HVAC module/ICS |
| F24 | — |
| F25 | OnStar module/ Eraglonass |
| F26 | 2017-2020: Heated steering wheel |
| F27 | 2017-2021: Instrument panel cluster/Auxiliary heater/Auxiliary virtual image display 2022: Instrument cluster |
| F28 | 2017-2020: Trailer feed 2 |
| F29 | 2017: Faceplate 2018-2021: Infotainment system |
| F30 | 2017-2020: DC/DC 400W |
| F31 | Instrument panel cluster module battery |
| F32 | Silver box audio module/Navigation |
| F33 | 2017-2020: Trailer feed 1 |
| F34 | Passive entry/ Passive start |
| Midi Fuses | |
| M01 | 2017-2021: Positive temperature coefficient |
| S/B Fuses | |
| S/B01 | 2017-2021: Passenger power seat 2022: HVAC Aux heater – 1 |
| S/B02 | 2022: HVAC Aux heater – 2 |
| S/B03 | Front power windows |
| S/B04 | Rear power windows |
| S/B05 | Logistic mode relay |
| S/B06 | Driver power seat |
| S/B07 | — |
| S/B08 | 2017-2020: Trailer interface module |
| Circuit Breaker | |
| CB1 | — |
| Relays | |
| RLY01 | Accessory/Retained accessory power |
| RLY02 | Liftgate |
| RLY03 | — |
| RLY04 | 2022: Blower |
| RLY05 | Logistic mode |
Fuse Box in the engine compartment

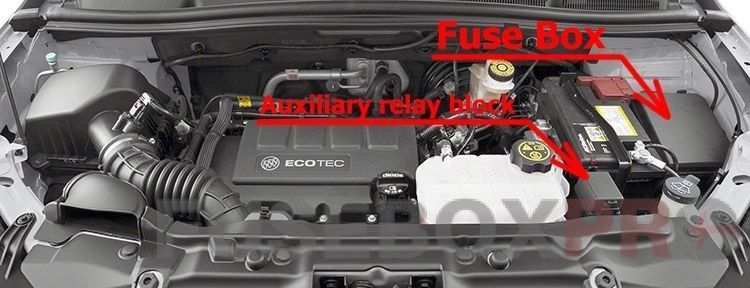

Fuse Box Location

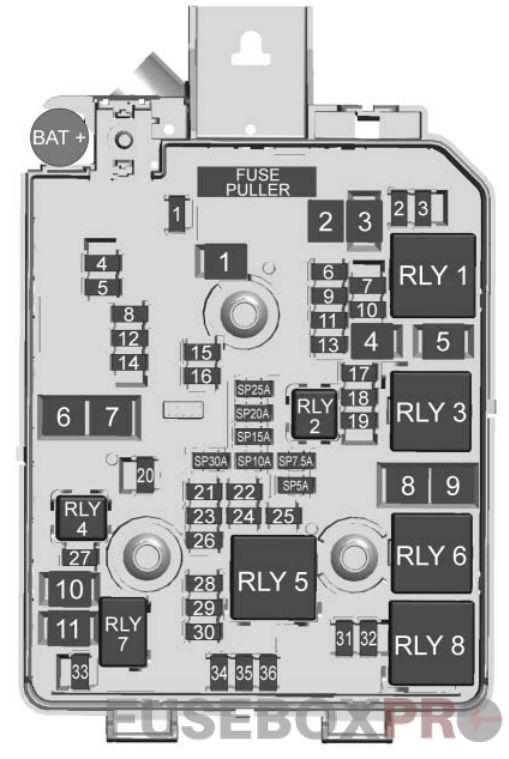

Fuse box diagram (2013-2016)
Assignment of the fuses and relays in the Engine compartment (2013-2016)
| № | Description |
|---|---|
| Mini Fuses | |
| 1 | Sunroof |
| 2 | Outside Rearview Mirror Switch |
| 3 | Canister vent solenoid |
| 4 | Not used |
| 5 | Electronic brake control module valve |
| 6 | 2013-2015: Not Used 2016: Intelligent battery sensor |
| 7 | Not used |
| 8 | Transmission control module battery |
| 9 | 2013-2015: BCM Regulated Voltage Control 2016: Not used |
| 10 | Fuel System Control Module R/C/ Headlamp Leveling |
| 11 | Rear wiper |
| 12 | Rear window defogger |
| 13 | Not used |
| 14 | Outside Rearview Mirror Heater |
| 15 | Fuel system control module battery |
| 16 | Heated seat module/ Memory module |
| 17 | Transmission Control Module R/C |
| 18 | Engine Control Module R/C |
| 19 | Fuel pump |
| 20 | Not used |
| 21 | Fan Relay (Auxiliary Fuse Block) |
| 22 | Not used |
| 23 | Ignition coil/ Injector |
| 24 | Washer pump |
| 25 | Not used |
| 26 | Canister Purge Solenoid/Water Valve Solenoid/ Oxygen Sensors – Pre and Post/Turbo Wastegate Solenoid (1.4L)/Turbo Bypass Solenoid (1.4L) |
| 27 | 2013-2015: Not Used 2016: Auxiliary Heater Pump |
| 28 | 2013-2015: Not Used 2016: Engine Control Module Powertrain Ignition 1 |
| 29 | Engine Control Module Powertrain Ignition 2 |
| 30 | Mass Air Flow Sensor |
| 31 | Left high-beam headlamp |
| 32 | Right high-beam headlamp |
| 33 | Engine control module battery |
| 34 | Horn |
| 35 | Air Conditioning Compressor Clutch |
| 36 | Front fog lamps |
| J-Case Fuses | |
| 1 | Electronic brake control module pump |
| 2 | Front wipe |
| 3 | Blower Motor |
| 4 | IEC RC |
| 5 | Not Used |
| 6 | Not Used |
| 7 | 2013-2015: Not Used 2016: Starter Solenoid (Automatic Transmission), Not Used (Manual Transmission) |
| 8 | Cooling Fan Low/Mid |
| 9 | Cooling Fan High |
| 10 | EVP |
| 11 | 2013-2015: Starter Solenoid 2016: Pinion Starter Solenoid (Automatic Transmission), Starter Solenoid (Manual Transmission) |
| U-Micro Relays | |
| 2 | 2013-2015: Not Used 2016: Fuel pump |
| 4 | Starter/Spare |
| HC-Micro Relays | |
| 7 | Starter/Starter pinion |
| Mini Relays | |
| 1 | Run/Crank |
| 3 | Cooling fan – mid |
| 5 | Powertrain relay |
| 8 | Cooling fan – low |
| HC-Mini Relays | |
| 6 | Cooling fan – high |
Fuse box diagram (2017-2020)
Assignment of the fuses and relays in the engine compartment (2017-2022)
| № | Description |
|---|---|
| Mini Fuses | |
| 1 | Sunroof |
| 2 | 2018-2020: Exterior rearview mirror switch/Driver side power window/ Rain sensor/ Universal garage door opener 2021-2022: Exterior mirror switch/ Driver side power window/ Rain sensor |
| 3 | Canister vent solenoid |
| 4 | – |
| 5 | Electronic brake control module valve |
| 6 | 2018-2021: Intelligent battery sensor |
| 7 | 2018-2020: Electric steering column lock |
| 8 | Transmission control module/FICM |
| 9 | Automatic occupancy sensing module |
| 10 | Headlamp leveling switch/Headlamp leveling motor/Rear vision camera/ Interior rearview mirror |
| 11 | Rear wiper |
| 12 | Rear window defogger |
| 13 | Power lumbar switch |
| 14 | Exterior rearview mirror heater |
| 15 | Fuel system control module battery |
| 16 | 2018-2020: Heated seat module/ Memory module |
| 17 | 2018-2021: TIM DC DC converter/Fuel system control module RC/ Compass module 2022: Fuel system control module RC |
| 18 | Engine control module RC/ Transmission control module RC/ FICM RC |
| 19 | 2018-2020: Fuel pump |
| 20 | – |
| 21 | Fan relay (auxiliary BEC) |
| 22 | – |
| 23 | Ignition coil/ Injector coil |
| 24 | Washer pump |
| 25 | Automatic headlamp leveling |
| 26 | EMS Var 1 |
| 27 | –/Auxiliary heater pump |
| 28 | –/Engine control module powertrain/ Ignition 3 |
| 29 | Engine control module powertrain/ Ignition 1/Ignition 2 |
| 30 | EMS Var 2 |
| 31 | Left high-beam headlamp |
| 32 | Right high-beam headlamp |
| 33 | Engine control module battery |
| 34 | Horn |
| 35 | A/C clutch |
| 36 | 2018-2020: Front fog lamps |
| J-Case Fuses | |
| 1 | Electronic brake control module pump |
| 2 | Front wipe |
| 3 | Linear power module blower |
| 4 | IEC RC |
| 5 | – |
| 7 | –/Starter solenoid |
| 8 | Cooling fan low – mid |
| 9 | Cooling fan – high |
| 10 | 2018-2021: EVP |
| 11 | Starter solenoid/ Starter pinion |
| U-Micro Relays | |
| 2 | 2018-2020: Fuel pump |
| 4 | 2018-2020: –/Auxiliary heater pump |
| HC-Micro Relays | |
| 7 | Starter/ Starter pinion |
| 10 | 2018-2020: Starter solenoid |
| Mini Relays | |
| 1 | Run/Crank |
| 3 | Cooling fan – mid |
| 5 | Powertrain relay |
| 8 | Cooling fan – low |
| HC-Mini Relays | |
| 6 | Cooling fan – high |

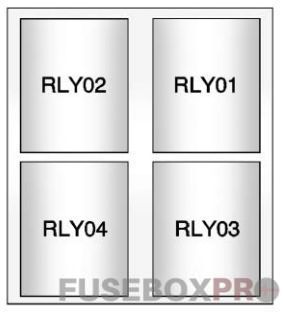

Auxiliary Relay Block
Auxiliary Relay Block
| № | Relays |
|---|---|
| RLY01 | Electric vacuum pump |
| RLY02 | Cooling fan control 1 |
| RLY03 | Cooling fan control 2 |
| RLY04 | Not Used or Trailer N/A |
Fuse Box in the luggage compartment
Fuse Box Location

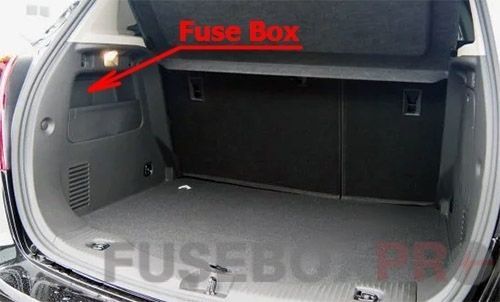

It is located in the left side of the luggage compartment, behind the cover.

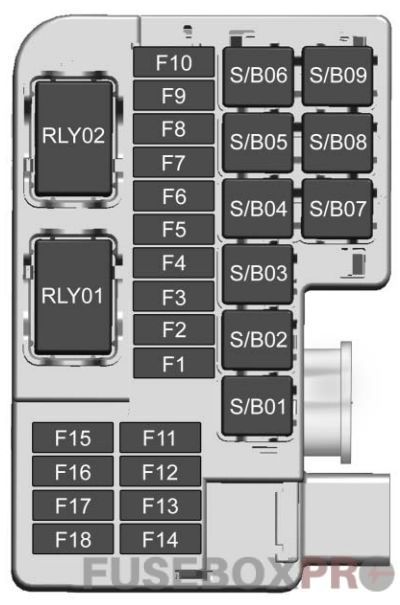

Fuse box diagram (2013-2016)
Assignment of the fuses and relays in the Luggage compartment (2013-2016)
| № | Description |
|---|---|
| Mini Fuses | |
| F1 | Driver Seat Power Lumbar Switch |
| F2 | Passenger Seat Power Lumbar Switch |
| F3 | Amplifier |
| F4 | Trailer Socket (N/A) |
| F5 | All-Wheel Drive Module |
| F6 | Automatic Occupant Sensing Module |
| F7 | Spare/LPG Module Battery |
| F8 | Trailer Parking Lamps (N/A) |
| F9 | Spare |
| F10 | Spare/Side Blind Zone Alert Module |
| F11 | Trailer Module (N/A) |
| F12 | Nav Dock |
| F13 | Heated Steering Wheel |
| F14 | Trailer Socket (N/A) |
| F15 | Spare/EVP Switch |
| F16 | Water In Fuel Sensor |
| F17 | Inside Rearview Mirror/Rear Vision Camera |
| F18 | Spare/LPG Module Run/Crank |
| S/B Fuses | |
| S/B01 | Driver Power Seat Switch/Memory Module |
| S/B02 | Passenger Power Seat Switch |
| S/B03 | Trailer Module (N/A) |
| S/B04 | A/C-D/C Inverter |
| S/B05 | Battery |
| S/B06 | Headlamp Washer |
| S/B07 | 2013-2015: Spare 2016: DC/DC Source 1 |
| S/B08 | 2013-2015: Spare 2016: DC/DC Source 1 |
| S/B09 | Spare |
| Relays | |
| RLY01 | Ignition Relay |
| RLY02 | Run Relay |

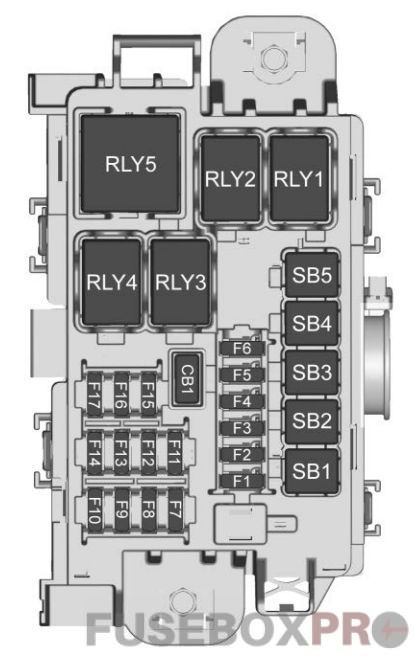

Fuse box diagram (2017)
Assignment of the fuses and relays in the Luggage compartment (2017)
| № | Description |
|---|---|
| Fuses | |
| F1 | — |
| F2 | — |
| F3 | Amplifier audio |
| F4 | — |
| F5 | Rear drive control module |
| F6 | Left cornering lamp |
| F7 | Right cornering lamp |
| F8 | — |
| F9 | — |
| F10 | — |
| F11 | — |
| F12 | — |
| F13 | — |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | — |
| F18 | — |
| S/B Fuses | |
| S/B01 | — |
| S/B02 | — |
| S/B03 | — |
| S/B04 | DC/AC inverter module |
| S/B05 | — |
| S/B06 | — |
| S/B07 | DC-DC transformer 400W |
| S/B08 | DC-DC transformer 400W |
| S/B09 | — |
| Relays | |
| RLY01 | Right cornering lamp |
| RLY02 | Left cornering lamp |
Fuse box diagram (2018-2022)
Assignment of the fuses and relays in the Luggage compartment (2018-2022)
| № | Description |
|---|---|
| Fuses | |
| F1 | 2018-2021: Amplifier audio |
| F2 | Rear drive control module |
| F3 | — |
| F4 | — |
| F5 | — |
| F6 | — |
| F7 | — |
| F8 | — |
| F9 | — |
| F10 | — |
| F11 | — |
| F12 | — |
| F13 | — |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | — |
| S/B Fuses | |
| S/B01 | 2018-2020: DC-DC transformer 400W |
| S/B02 | 2018-2020: DC-DC transformer 400W |
| S/B03 | DC/AC inverter module |
| S/B04 | — |
| S/B05 | — |
| Relays | |
| RLY01 | — |
| RLY02 | — |
| RLY03 | — |
| RLY04 | — |
| RLY05 | — |
| Circuit Breaker | |
| CB1 | — |
Conclusion
For owners and enthusiasts of classic Buick Encore models from 2013-2022, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
