The Buick Century, manufactured in 1993, exemplifies Buick’s commitment to luxury and performance in the mid-size sedan segment. Its advanced electrical system includes essential components such as the fuse box and relays.

The fuse box in the Buick Century 1993 houses fuses designed to protect electrical circuits from overloads and short circuits, ensuring the safety of critical components like headlights, taillights, and power windows. Relays, serving as electrically controlled switches, manage the flow of electricity to systems such as the starter motor, fuel pump, and cooling fans, ensuring efficient and reliable operation.

Additional sophisticated electrical components in the Buick Century of this era include climate control systems, power-adjustable seats, and premium audio systems. These features rely on a robust electrical infrastructure to enhance comfort, convenience, and entertainment for occupants.

Understanding the layout and function of the fuse box and relays is crucial for maintaining and troubleshooting the Buick Century 1993’s electrical systems. Regular inspection and maintenance of these components help ensure the vehicle’s reliability and performance, maintaining its reputation as a luxurious and dependable sedan in Buick’s lineup.

(1993) Buick Century fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century 1993 fuse assignment

  • Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor.

Year of production: 1993

Instrument Panel Fuse Block

The fuse panel is located inside the glove box, on the left side.

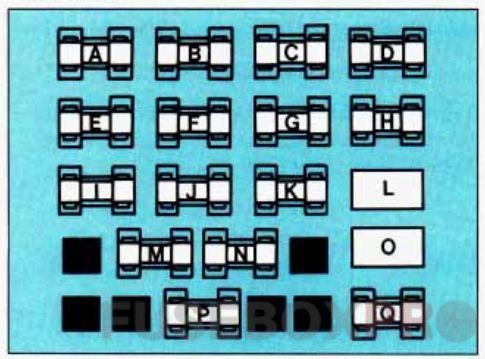

buick century fuse box diagram instrument panel 1992
buick century fuse box diagram instrument panel 1992
FuseAmpere rating [A]Usage
A15AECM; MAF Sensor (3300 Engine only)
B20AECM Injectors/Coil
C10AEng. A/C Relay; EGR Solenoid; Canister Purge Solenoid
D10AFan/Elect; Generator; DRL Module
E15ATurn Signal Flasher; Back-up Lights; Trunk/Liftgate Release
F10ASupplemental Inflatable Restraint (Air Bagj
G20ATail; Park; Side Marker; License Plate; Stop/Turn Signa
H20AHeater/Air Conditioner
I10AGages; Warning Indicators; Torque Convert Clutch; Audible Warning System; Computer Command Control; Trunk Release; Brake Warning Indicator; Rear Defog Switch; Speedometer
J20AStop Lights; Hazard Flashers
K20AInterior, Underhood, Courtesy, I/P, Trunk Lights; Door Locks; Horn Relay, Passive Restraint System, Deck Lid Release, Power Antenna
L30*Liftgate Release; Power Windows
M5AIllumination for: I/P, Radio, Pod Lights, Ashtray, Console Light, Heater-A/C Control, Defog Switch, Headlight Switch
N10ARadio, Cruise Control
O30*Seats, Door Locks, Rear Defog
P25AWindshield Wipe/Was
Q20ACigarette Lighter
15ASafety Belt/Chirne (ICAM) Module (Located behind the fuse block, above the hush panel.
15ARemote Lock Control (Located behind the fuse block, above the hush panel.
15AFuel Pump, ECM (Located under the hood.)
*Circuit Breaker

Conclusion

For owners and enthusiasts of classic Buick Century 1993, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
