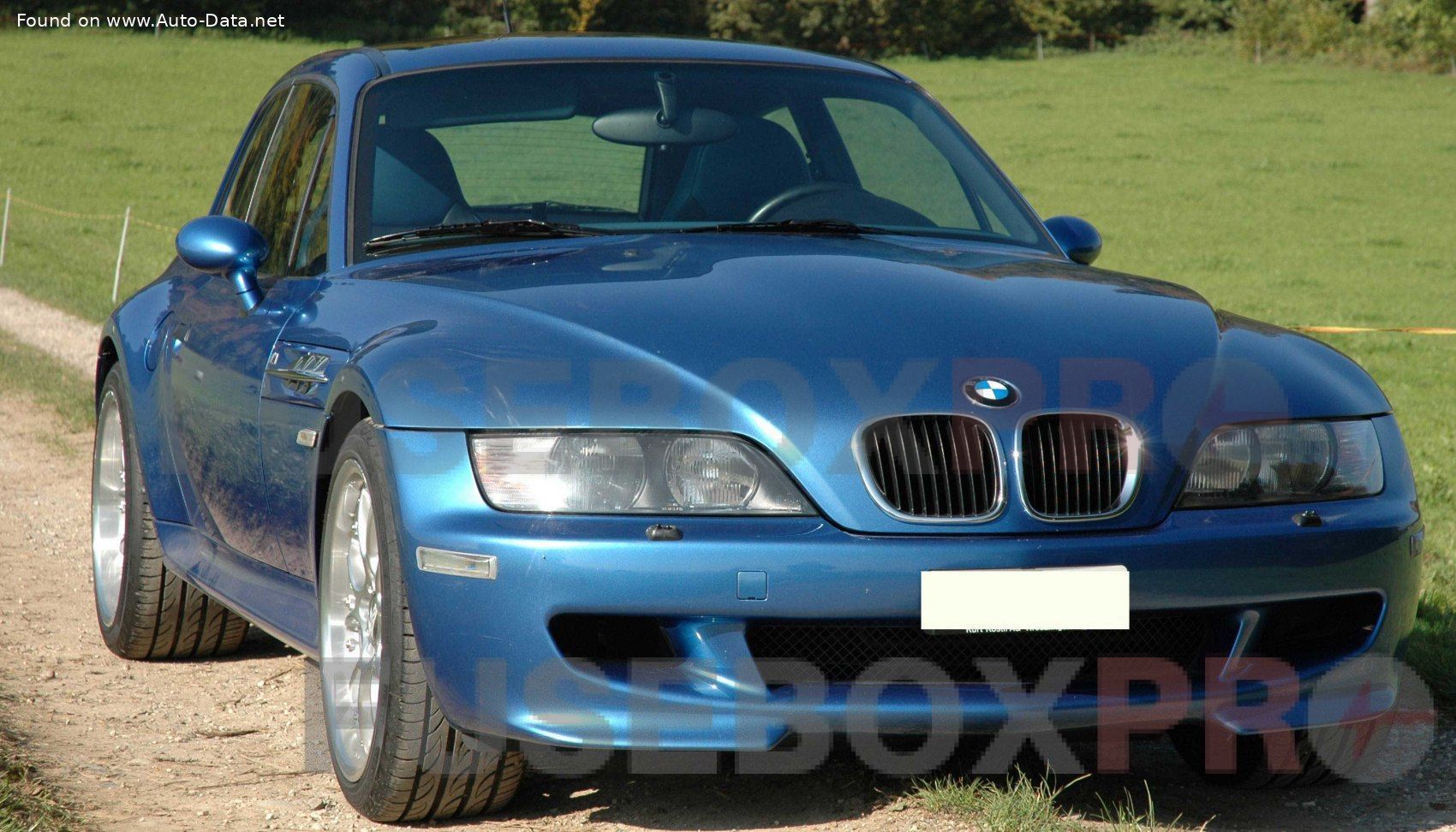

The BMW Z3 E36, produced from 1996 to 2002, is a renowned sports car that embodies BMW’s commitment to performance and driving pleasure. Known for its distinctive styling and responsive handling, the Z3 E36 remains a popular choice among enthusiasts and collectors alike. Beyond its iconic design and powerful engines, the BMW Z3 E36 incorporates various advanced electrical components that contribute to its functionality and reliability. Understanding the fuse box and relay system of this car is crucial for maintaining its electrical health and ensuring optimal performance.
Design and Performance
The BMW Z3 E36 is celebrated for its timeless design, characterized by a classic roadster silhouette with long hood proportions and short overhangs. The interior reflects BMW’s emphasis on driver-focused ergonomics, featuring premium materials and intuitive controls. Under the hood, the Z3 E36 offers a range of engine options, from the spirited 1.9-liter inline-four to the robust 3.2-liter inline-six in the iconic M version. This diversity allows drivers to experience various levels of performance, each delivering exhilarating acceleration and precise handling.
The electrical system of the Z3 E36 supports its performance capabilities with sophisticated components. The fuse box, located typically in the glove compartment or under the hood, houses fuses that protect circuits from electrical overload. These fuses are critical in safeguarding components like the headlights, stereo system, and climate control from damage due to excessive current. Additionally, relays act as electrically operated switches, controlling the power flow to various systems such as the fuel pump and cooling fan. Proper maintenance of these components ensures uninterrupted functionality and prevents electrical faults that could affect driving dynamics and safety.
Features and Technology
Equipped with advanced technology for its time, the BMW Z3 E36 incorporates features that enhance both comfort and performance. From the optional traction control system to the innovative roll-over protection system in later models, the Z3 E36 demonstrates BMW’s commitment to driver safety and enjoyment. Inside the cabin, amenities like power-adjustable seats, a premium sound system, and climate control contribute to a luxurious driving experience. The electrical components responsible for these features rely on the fuse box and relays to operate smoothly and reliably.
(1996-2002) BMW Z3 E36 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
BMW Z3 E36 1996-2002 fuse assignment

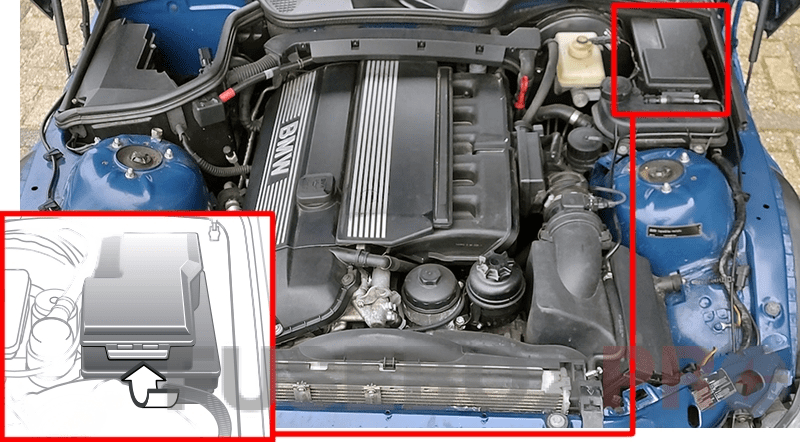

To access the fuse box (electrical distribution center), locate it on the left-hand side of the engine compartment. Press the retaining flap inward and lift off the cover to gain access.

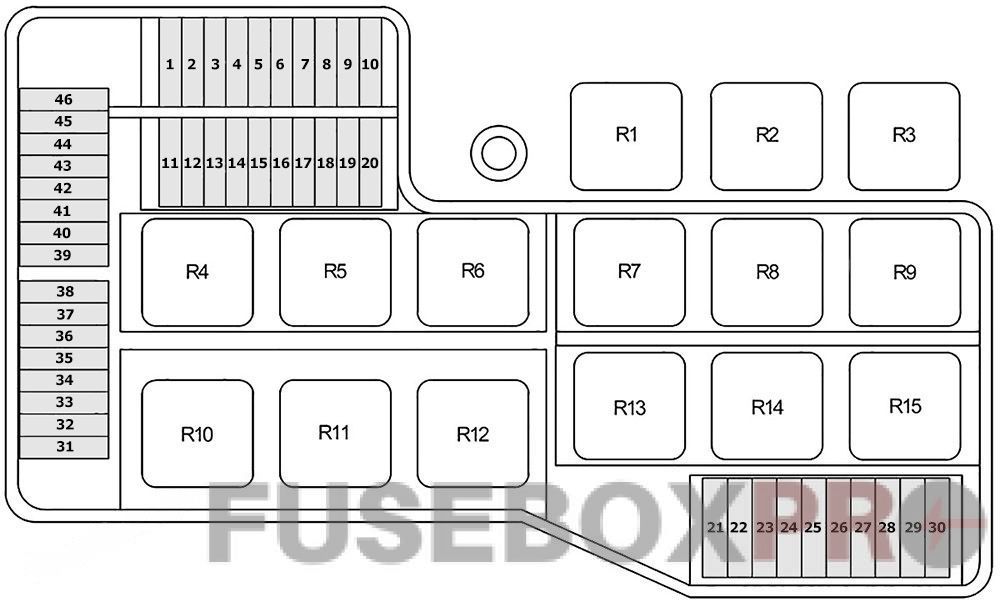

Fuse Box Diagram
Assignment of the fuses in the electrical distribution center
| № | Amps | Assignment/Designation |
|---|---|---|
| 1 | 30A | Sunroof |
| 2 | 15A | Trailer connector |
| 3 | 30A | Headlight washers |
| 4 | 15A | Heated seats |
| 5 | 30A | Driver’s seat |
| 6 | 20A | Heated rear windscreen |
| 7 | 5A | Heated door lock Central locking Central control unit Remote control Folding roof Transmission SMG Engine management, CNG |
| 8 | 15A | Horns |
| 9 | 20A | Radio |
| 10 | 30A | ABS Stability control (ASC) |
| 11 | 7.5A | Left dipped beam: Headlights Front fog lights Crash sensor Alarm system On-board computer |
| 12 | 7.5A | Right dipped beam: Headlights Front fog lights Crash sensor Alarm system On-board computer |
| 13 | 5A | Windows / Engine control unit |
| 14 | 30A | Front windows Body control unit / Central control unit |
| 15 | 15A | Headlights Front fog lights |
| 16 | 5A | Heating and ventilation Engine control unit |
| 17 | 7.5A/10A | 1996-1997: Front fog lights 1998-2002: Rear fog light |
| 18 | 15A | Engine control unit |
| 19 | 30A | Windows / Seats |
| 20 | 30A | Heating and air conditioning |
| 21 | 5A | ABS Stability control (ASC) |
| 22 | 5A | Light switch Headlights |
| 23 | 5A | Heated seats Flasher unit Instrument panel Clock Headlights Heated rear windscreen Heating and air conditioning On-board computer ABS |
| 24 | 10A | Heated washers Heated mirrors Parking distance control |
| 25 | 5A | Crash sensor Alarm system Headlights Tail lights Parking lights Light switch Engine compartment lights |
| 26 | 10A | 1996-1997: Reversing lights Automatic transmission Clock Parking distance control On-board computer Immobiliser Mirrors Alternator 1998-2002: Engine control unit Alternator Cooling fan Automatic transmission |
| 27 | 5A | Airbag ABS Stability control (ASC) Instrument panel Folding roof On-board computer Engine control unit |
| 28 | 5A | Starter motor Automatic transmission Engine control unit Cruise control Immobiliser |
| 29 | 7.5A | Headlights Fog lights |
| 30 | 7.5A | Headlights Fog lights |
| 31 | 5A | On-board computer Instrument panel Clock Body control unit Heating and air conditioning Immobiliser Parking distance control Starter motor |
| 32 | 30A | Passenger compartment |
| 33 | 10A | Sidelights Number plate lights Light switch Tail lights Interior lights Telephone Radio On-board computer Heated door locks Body control unit |
| 34 | 15A | Hazard warning lights Crash sensor Alarm sensor Direction indicators |
| 35 | 25A | Central locking Body control unit Folding roof Heated door locks |
| 36 | 30A | Wash/wipe system |
| 37 | 10A | 1996-1997: Interior lights Wash/wipe system Heating and air conditioning On-board computer Light switch Headlights Fog lights Number plate lights Parking lights Tail lights 1998-2002: Headlight levelling Sidelights Number plate lights Tail lights Interior lights Passenger compartment Wash/wipe system |
| 38 | 30A | ABS Stability control (ASC) Heating and ventilation |
| 39 | 7.5A | Heating and air conditioning Engine control unit |
| 40 | 30A | Seats / Heating and air conditioning |
| 41 | 30A | Heating and ventilation Airbag |
| 42 | 7.5A | Airbag Folding roof |
| 43 | 5A | Interior lights Central locking Remote control Telephone Alarm system Body control unit Airbag Folding roof Mirrors |
| 44 | 15A | Interior Radio Wash/wipe system Body control unit Headlight washers |
| 45 | 7.5A | On-board computer Wash/wipe system Clock Instrument panel Immobiliser |
| 46 | 15A | Instrument panel On-board computer Immobiliser Cruise control Clock ABS Stability control (ASC) Automatic transmission Brake lights Remote control |
| R1 | Fuel pump relay or Number plate lights Right sidelights | |
| R2 | DME relay or Left sidelights relay | |
| R3 | Oxygen sensor relay or Daylight running system relay | |
| R4 | Horn relay | |
| R5 | Front fog lights relay or Air conditioning relay | |
| R6 | Main beam relay | |
| R7 | Dipped beam relay | |
| R8 | Flasher unit relay | |
| R9 | Blower relay | |
| R10 | Cooling fan relay, stage 1 | |
| R11 | Air-conditioning compressor relay | |
| R12 | Cooling fan relay, stage 2 | |
| R13 | ABS pump relay | |
| R14 | ABS main relay | |
| R15 | Heated rear windscreen relay or Discharge relay |
In conclusion, the BMW Z3 E36 1996-2002 continues to captivate automotive enthusiasts with its blend of iconic design, exhilarating performance, and advanced electrical systems. Proper understanding and maintenance of the fuse box and relay diagrams are essential for ensuring the longevity and optimal functioning of the car’s electrical components. Whether on a spirited drive through winding roads or cruising along the coastline, the Z3 E36 remains a symbol of BMW’s commitment to engineering excellence and driving pleasure.
Maintaining the electrical health of your BMW Z3 E36, including regularly checking the fuse box and relay diagrams, is key to preserving its performance and reliability. By staying informed about these essential components, owners can enjoy the exhilarating driving experience that defines the Z3 E36 while ensuring its longevity for years to come.
