(2003-2010) BMW 5-Series (E60, E61) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.

BMW 5-Series (E60, E61) 2003-2010 fuse assignment

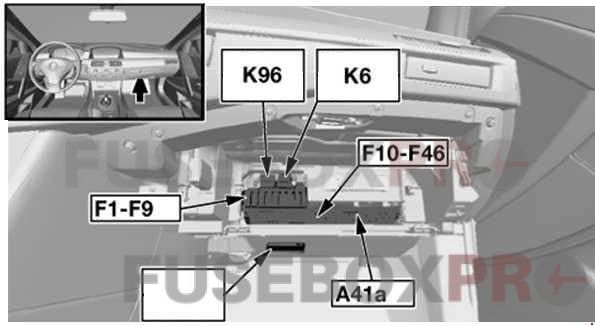

Fuse box on the dashboard

bmw 5 series e60 and e61 2003 2010 fuse box on the dashboard
bmw 5 series e60 and e61 2003 2010 fuse box on the dashboard

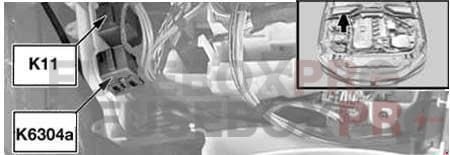

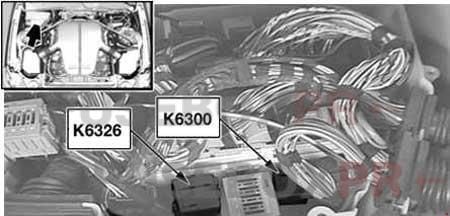

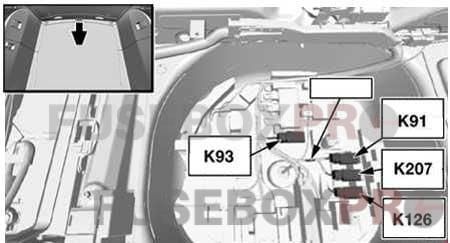

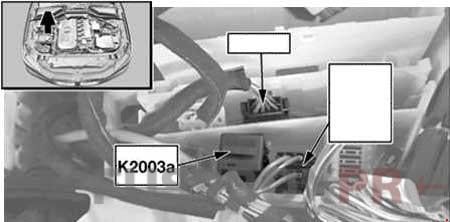

  • K6 – Relay, headlight washer, K93 – Relay, electronic damper control (as of 09.2005)

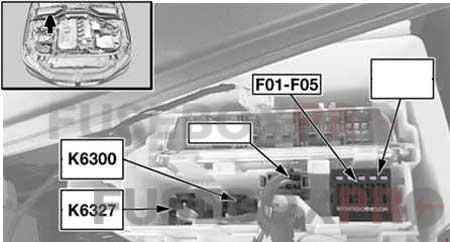

  • K96 – Fuel pump relay (M54 or N62), K9 – Power-saving relay, terminal 15 (as of 09.2005)

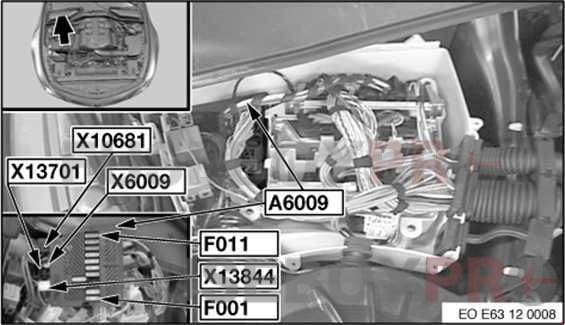

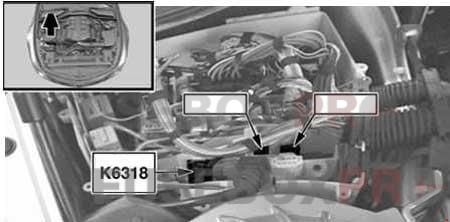

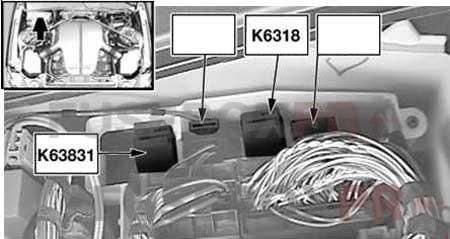

  • A41a – Fuse box
No.AmpsAssignment/Designation
150ADynamic stability  control (DSC)
260APetrol: Secondary air pump relay
Diesel: Fuel heater
340ABlower output stage
440Aup to 09.2005: Active steering
20Aas of 09.2005: Power-saving relay, electronic  damper control
550ALight module
650ALight module
750ACar access system
30Aup to 09.2005: Active Steering
860AM54:
   B+ potential distributor
      DME control unit
      DME relay

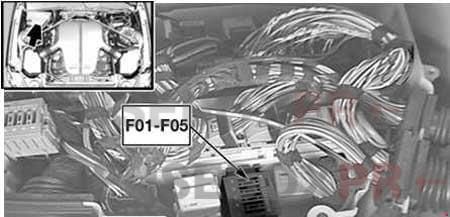

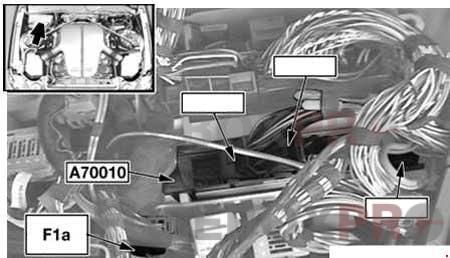

      Fuse carrier, engine electronics:

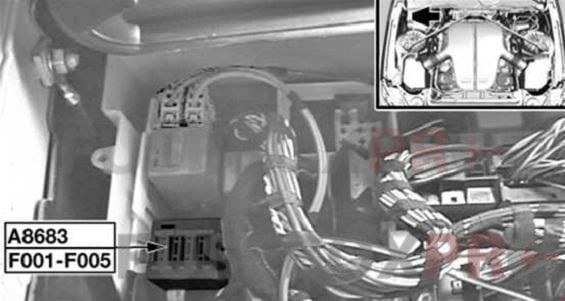

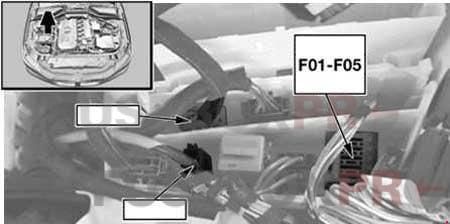

         F001: Hydraulic pump relay, SMG
         F05: Relay, fuel injectors

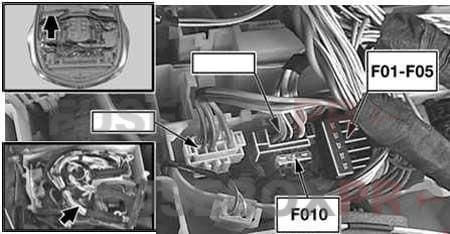

N62:
   Integrated supply module (IVM)
N62 with SMG:
   Fuse carrier, engine electronics (F01: Hydraulic pump relay, SMG)
S85:
   B+ potential distributor
      DME relay
      Fuse carrier, engine electronics (F01)
N52:
   B+ potential distributor
      DME control unit
      DME relay

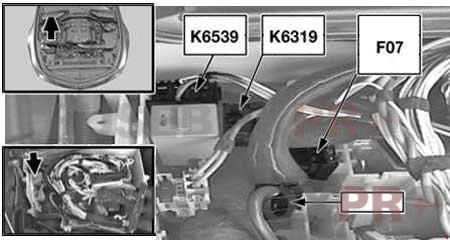

      Fuse carrier, engine electronics:
         F05: Relay, fuel injectors
         F07: VVT relay

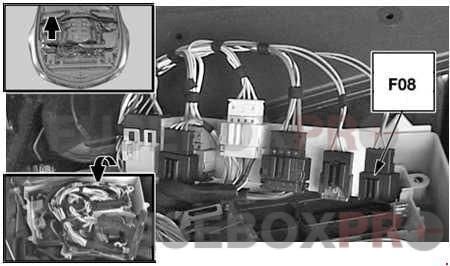

         F08: Hydraulic pump relay, SMG
         F010: Engine breather heating relay
960AElectric fan
1030Aup to 09.2005: Driver’s door module
as of 09.2005: Body-gateway module (LHD: window lift, driver’s side; RHD: window lift, passenger’s side)
115ABasic body module (central locking system, window lift, windscreen wiper relay)
1230Aup to 09.2005: Passenger’s door module
as of 09.2005: Body-gateway module (LHD: window lift, passenger’s side; RHD: window lift, driver’s side)
137.5Aup to 09.2005: Instrument cluster control unit
30AVTG transfer case; as of 09.2005:  Control unit, transfer box
15AS85; as of 09.2005: Sequential manual transmission (SMG)
1430ASeat module, front right (not semi-electric basic seat)
Switch, passenger’s seat adjustment (RHD; semi-electric basic seat)
Passenger’s lumbar support switch (RHD; semi-electric basic seat)
Switch, driver’s seat adjustment (LHD; semi-electric basic seat)
Driver’s lumbar support switch (LHD; semi-electric basic seat)
155ACar access system
1630AWindscreen wiper relay
1715AS85; up to 09.2005: Sequential manual transmission (SMG)
5Aas of 09.2005: Steering column switch cluster
1830Aup to 09.2005: Relay, headlight washer
as of 09.2005: Body-gateway module
195AUSA: Gear indicator lighting
S85: EDC Electronic damper control
2020ASHZH independent/auxiliary heater: Heater Independent auxiliary heater
EDC Damper Control: Power-saving relay, electronic damper control
2130ASeat module, front right (not semi-electric basic seat)
Switch, driver’s seat adjustment (RHD; semi-electric basic seat)
Driver’s lumbar support switch (RHD; semi-electric basic seat)
Switch, passenger’s seat adjustment (LHD; semi-electric basic seat)
Passenger’s lumbar support switch (LHD; semi-electric basic seat)
2230ABasic body module (LHD: window lift rear, driver’s side; RHD: window lift rear, passenger’s side)
2330AS85; as of 09.2005: Relay, electric vacuum pump
2430ABasic body module (LHD: window lift rear, passenger’s side; RHD: window lift rear, driver’s side)
2530ADynamic stability control (DSC)
267.5AIHKA Basic: Heating/air conditioning system
20Aas of 09.2005: Power-saving relay, terminal 15
2730ABasic body module (central locking system)
2820ASteering column  switch cluster
2910AOBDII socket
Airbag
3015AIHKA High: Heating/air conditioning system
20AFuel pump output stage
Fuel pump relay
3130ALHD: Seat module, front left (heated, active backrest-width adjustment, active seat)
RHD: Seat module, front right (heated, active backrest-width adjustment, active seat)
3210Aup to 09.2005: Dynamic drive
S85; up to 09.2005: Relay, electric vacuum pump
as of 09.2005:
   Switch block, driver’s door
   Electrochromic outside mirror, driver’s side
   Electrochromic outside mirror, passenger’s side
3330ACentre console switch centre
LHD: Seat module, front right (heated, active backrest-width adjustment, active seat)
RHD: Seat module, front left (heated, active backrest-width adjustment, active seat)
3430Aup to 09.2005: CCC/M-ASK
20Aas of 09.2005: CCC/M-ASK
355ANavigation system
367.5AComfort access control unit
Outer door handle electronic module, driver’s side
Outer door handle electronic module, passenger’s side
Electronic outer door handle module, rear left
Electronic outer door handle module, rear right
3710Aup to 09.2005:
   TCU (telematics control unit)
   ULF (universal charging & hands-free unit)
   Eject box
5A09.2005-03.2007:
   TCU (telematics control unit)
   ULF (universal charging & hands-free unit)
   Eject box
as of 03.2007:
   ULF-SBX interface box
   TCU (telematics control unit)
   ULF-SBX-H interface box High
   USB hub
   Eject box
3810Aup to 09.2005: CD changer
5Aas of 09.2005: CD changer
39Not used
4010ADVD changer
415Aas of 09.2005: Instrument cluster  control unit
4215AS85: Sequential manual transmission (SMG)
43Not used
44Not used
45Not used
46Not used

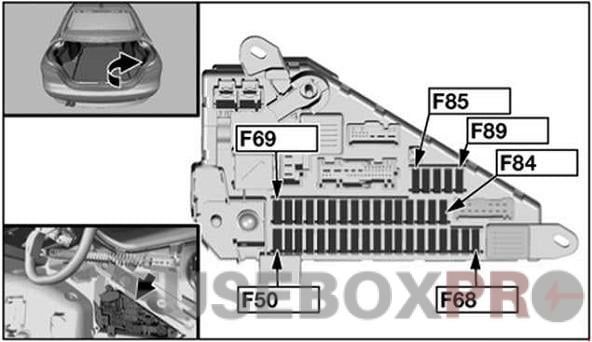

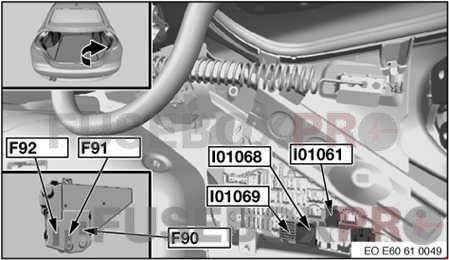

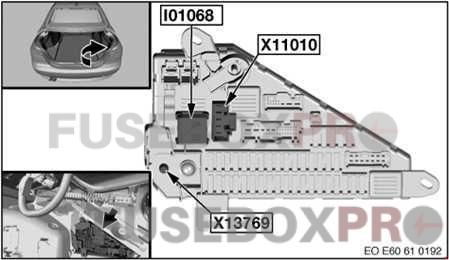

Fuse box in the rear

up to 09.2005

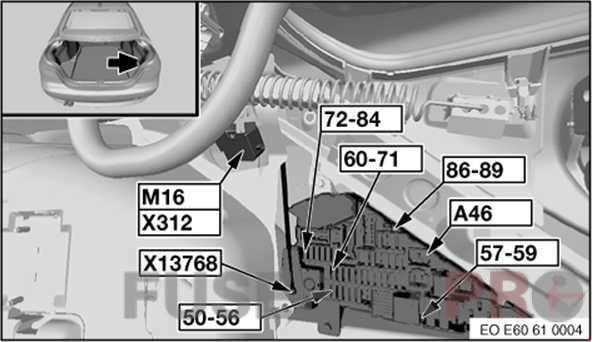

ru09021004

as of 09.2009

u09014041

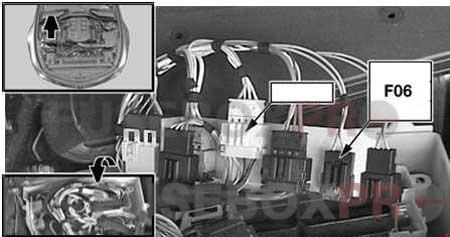

K6 – Relay, headlight washer

No.AmpsAssignment/Designation
5020AM54, N62: Fuel pump relay
N52, diesel: Fuel pump control  (EKPS)
S85: Fuel pump output stage
30Aas of 09.2005: Headlight washer pump
515AE60, E61:
   Siren and tilt alarm  sensor
   Electrochromic interior rear view mirror
   Antitheft alarm system with ultrasonic interior sensor
E63, E64:
   Siren and tilt alarm  sensor
   Electrochromic interior rear view mirror
   Microwave sensor, driver’s door
   Microwave sensor, passenger’s door
   Microwave sensor, rear left
   Microwave sensor, rear right
5210AMicro-power module
40AE61: Relay, compressor, air suspension
E64:
   Relay, convertible top 1
   Relay, convertible top 2
537.5Aup to 09.2005: Automatic soft-close drive, boot lid/tailgate
09.2004-09.2005:
   Comfort access control unit
   Outer door handle electronic module, driver’s side
   Outer door handle electronic module, passenger’s side
   Electronic outer door handle module, rear left
   Electronic outer door handle module, rear right
30Aas of 09.2005:
   Active backrest width adjustment, passenger
   Active backrest width adjustment, driver
5420Aup to 09.2005: Power-saving relay, terminal 15
40Aas of 09.2005: Rear window defogger
555Aup to 09.2005: Rain/headlight sensor
40Aas of 09.2005: Boot lid lift
565Aas of 09.2005: Rain/headlight sensor
5720Aup to 09.2005: Micro-power module
5AIHKA Basic; as of 09.2005: Heating/air conditioning system
5840Aup to 09.2005: Rear window defogger
20Aas of 09.2005: Rear wiper relay
595AAerial tuner with remote control receiver
605Aas of 09.2005: Rollover protection controller
6120Aup to 09.2005:
   Front cigar lighter
   Charging socket, glovebox
7.5Aas of 09.2005: Cooler box
625Aup to 09.2005: Power-saving relay, terminal 15
30Aas of 09.2005:
    E60, E61: Trailer module
    Convertible:
      Relay for lowering rear window
      Relay for raising rear window
635Aup to 09.2005:
   Electrochromic interior rearview mirror
   Park distance control (PDC)
20Aas of 09.2005: Independent auxiliary heater
6410Aup to 09.2005:
   Rear compartment display
   Central information display
   Controller
15AIHKA High; as of 09.2005: Heating/air conditioning system
6510Aup to 09.2005:
   Headset connection module
   Head-up display
665Aup to 09.2005:
   Dynamic stability control (DSC)
    VTG Transfer case:
       Dynamic stability control (DSC)
       Control unit, transfer box
20AE60: Sunroof
E61, E63: Panorama glass roof
E64: Convertible top module
6710Aup to 03.2006:
   Video module
   Satellite receiver
20Aas of 03.2006:
   Automatic soft-close drive, passenger’s door (LHD)
   Automatic soft-close drive, driver’s door (RHD)
   Automatic soft-close drive, rear right
685Aup to 03.2006:
   Centre console switch center
   Switch, driver’s seat adjustment
   Switch, passenger’s seat adjustment
20Aas of 03.2006:
   Automatic soft-close drive, driver’s door (LHD)
   Automatic soft-close drive, passenger’s door (RHD)
   Automatic soft-close drive, rear left
695APark distance control (PDC)
705Aup to 09.2005: Adaptive headlight
10A09.2005-03.2007: Active cruise control
as of 03.2007:
   Active cruise control
   Far-range sensor
   Close-range sensor, right
   Close-range sensor, left
7120Aup to 09.2005:
   Rear wiper relay
   S85: Fuel pump output stage
30Aas of 09.2005: Centre console  switch center
7240Aup to 09.2005:
   E61: Relay, compressor, air suspension
   E64:
      Relay, convertible top 1
      Relay, convertible top 2
20AN62: Fuel pump relay
N52, diesel: Fuel pump control (EKPS)
7330Aup to 09.2005:
   E60, E61, E63: Trailer module
   E63:
      Relay for lowering rear window
      Relay for raising rear window
09.2005-03.2007:
   Hifi amplifier
40Aas of 03.2007: Hifi amplifier
7420Aup to 09.2005: Trailer socket
10Aas of 09.2005:
   Centre console switch centre
   Switch, driver’s seat adjustment
   Switch, passenger’s seat adjustment
7.5AE60, E61; as of 09.2007:
   Centre console switch center
   Switch, driver’s seat adjustment
   Switch, passenger’s seat adjustment
7530AE60, E61; as of 09.2007:
   Centre console switch center
   Switch, driver’s seat adjustment
   Switch, passenger’s seat adjustment
10Aas of 09.2005:
   Satellite receiver
   Digital tuner
   Video module
7640Aup to 09.2005: Boot lid lift
10Aas of 09.2005: Dynamic drive
775Aup to 09.2005: Aerial tuner with remote control receive
10Aas of 09.2005:
   Head-up display
   Headset connection module
785Aas of 09.2005:
   Dynamic stability control (DSC)
   Control unit, transfer box
797.5Aup to 09.2005: Electronic ride height control
10Aas of 09.2005:
   Central information display
   Controller
8030Aup to 09.2005: HiFi amplifier
10Aas of 09.2005:
   Selector lever
   Gear indicator lighting
   Eject box
   TCU (telematics control unit)
   Compensator (mobile phone)
   Fan, spare wheel well
   Electronic night vision module
817.5Aas of 09.2005: Electronic ride height control
8220Aup to 09.2005:
   Luggage compartment socket outlet
   Rear cigarette lighter
   Socket outlet, rear
7.5Aas of 09.2005: Tyre pressure control (RDC)
8320Aup to 09.2005:
   E60: Sunroof
    E61, E63: Panorama glass roof
    E64: Convertible top module
30Aas of 09.2005:
   Active backrest width adjustment, driver (LHD)
   Active backrest width adjustment, passenger (RHD)
8410Aup to 09.2005: Active cruise control
15Aas of 09.2005:
   Transmission control
   Sequential manual transmission (SMG)
857.5Aas of 09.2005: Sequential manual transmission  (SMG)
8615Aup to 09.2005:
   Transmission control
   Sequential manual transmission (SMG)
40Aas of 09.2005: Active steering
8720Aas of 09.2005:
   Front cigar lighter
   Charging socket,  glovebox
8830Aup to 09.2005: Centre console switch centre
20Aas of 09.2005:
   Luggage compartment socket outlet
   Rear cigarette lighter
   Socket outlet, rear
8910Aup to 09.2005:
   Fan, MMC
   Gear indicator lighting
   Selector lever
   Gear indicator lighting
   Fan, spare wheel well
   TCU (telematics control unit)
   ULF (universal charging & hands-free unit)
   Eject box
5Aas of 09.2005:
   Electrochromic interior rear view mirror
   Power-saving relay, terminal 15
ru09021920
ru09022824
No.AmpsAssignment/Designation
90200AFuse holder, front (fuse 1-33)
91100ADiesel: DDE main relay
N62, TU:
   Integrated supply module (IVM)
   VVT relay 1
   VVT relay 2
   Variable valve timing gear control unit
92100AElectric auxiliary heater
Relay
I01061Rear deffogger
I01068Terminal 30G
I01069Terminal 15

Fuse in the engine compartment

M54

u09021529
  • K6300 – DME relay
  • K6327 – Relay, fuel injectors

Diesel engine

u09021746

S85

ru09021930

N52

ru09022319
ru09023607
u09023859
  • K6319 – VVT relay
  • K6539 – Engine breather heating relay
ru09024114
No.AmpsAssignment/Designation
F0130AM54: Ignition coil (1, 2, 3, 4, 5, 6)
N62: Hydraulic pump relay, SMG
N52:
   Interference suppression capacitor for ignition coils
   Ignition coil (1, 2, 3, 4, 5, 6)
20AM57, TU:
   Hall-effect sensor, camshaft 1
   Hot-film air mass meter
   Rail pressure control valve
   Volume control valve
   Solenoid valve, boost pressure control
   Heating, crankcase breather
S85:
   Power-saving relay, terminal 15
      Fuel injector (1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
M57 TUTOP:
   Hall-effect sensor, camshaft 1
   Hot-film air mass meter
   Rail pressure control valve
   Throttle valve
   Turbine control valve
   Volume control valve
   Solenoid valve, boost pressure control
   Heating, crankcase breather
M47 TU2:
   Boost pressure adjuster 1
   Hall-effect sensor, camshaft 1
   Rail pressure control valve
   Throttle valve
   Volume control valve
F0220AM57, TU:
   Solenoid valve, exhaust gas recirculation
   Oil level sensor
   Electric changeover valve, swirl flaps
   Preheating control unit
   Electrical changeover valve, engine mount
   Heating, crankcase breather
   Boost pressure adjuster 1
   Oxygen sensor be-fore catalytic converter
M57 TUTOP:
   Solenoid valve, exhaust gas recirculation
   Oil level sensor
   Electric changeover valve, swirl flaps
   Preheating control unit
   Electrical changeover valve, engine mount
   Oxygen sensor be-fore catalytic converter
   Wastegate valve
   Compressor bypass valve
M47 TU2:
   Solenoid valve, exhaust gas recirculation
   Electrical changeover valve, engine mount
   Heating, crankcase breather
   Electric changeover valve, swirl flaps
   Oxygen sensor be-fore catalytic converter
   Preheating control unit
   Oil level sensor
S85:
   Oxygen sensor be-fore catalytic converter
   Oxygen sensor 2 be-fore catalytic converter
   Oxygen sensor after catalytic converter
   Oxygen sensor 2 after catalytic converter
30AM54:
   DME control unit
   Fuel pump relay
   VANOS solenoid valve, intake
   VANOS solenoid valve, exhaust
   Valve, individual control intake system
   Fuel tank vent valve
   Idle actuator
   Secondary air pump valve
   Secondary air pump relay
   Hot-film air mass meter
   Diagnostic module for fuel tank leakage
   Solenoid, radiator shutter
N52:
   Electric coolant pump
   Thermostat, characteristic map cooling
   Intake camshaft sensor
   Exhaust camshaft sensor
   VANOS solenoid valve, intake
   VANOS solenoid valve, exhaust
F0330ADiesel: Digital diesel electronics control unit
S85: DME control unit
20AM54:
   Hot-film air mass meter
   Crankshaft sensor
   Camshaft sensor I
   Camshaft sensor II
   Characteristic map thermostat
N52:
   DME control unit
   Oil condition sensor
   DISA actuator 1
   DISA actuator 2
   Fuel tank vent valve
   Crankshaft sensor
   Hot-film air mass meter
N46 TU2:
   DME control unit
   Electrical changeover valve, engine mount
   Characteristic map thermostat
   Intake camshaft sensor
   Exhaust camshaft sensor
   VANOS solenoid valve, intake
   VANOS solenoid valve, exhaust
   Heating, crankcase breather
   Oil condition sensor
F0410ADiesel:
   Solenoid, radiator shutter
   Solenoid valve, boost pressure control
   E-box fan
   Exhaust flap
Diese; as of 03.2007l:
   Solenoid, radiator shutter
   E-box fan
   Exhaust flap
   Brake air flap sensor, left
   Brake air flap sensor, right
   AUC sensor
S85: Ionic current control unit
30AM54:
   Oxygen sensor before catalytic converter
   Oxygen sensor 2 before catalytic converter
   Oxygen sensor after the catalytic converter
   Oxygen sensor 2 after the catalytic converter
   Sequential manual transmission (SMG)
N52:
   Sequential manual transmission (SMG)
   Oxygen sensor before the catalytic converter
   Oxygen sensor 2 before catalytic converter
   Oxygen sensor after the catalytic converter
   Oxygen sensor 2 after the catalytic converter
   Crankshaft breather heating 1
F0530AM54: Relay, fuel injectors
S85:
   Pressure accumulator valve VANOS
   Fuel tank vent valve 2
   Intake camshaft sensor 2
   Exhaust camshaft sensor 2
   Air mass flow sensor 2
   Idle actuator
   Air mass flow sensor
   Oil condition sensor
   Intake camshaft sensor
   Exhaust camshaft sensor
   Secondary air pump valve
   Charcoal filter valve
F0610AN52; up to 03.2007:
   Solenoid, radiator shutte
   Secondary air pump relay
   Exhaust flap
   E-box fan
   Diagnostic module for fuel tank leakage
   Secondary air-hot-film air-mass meter
as of 03.2007:
   Solenoid, radiator shutte
   Secondary air pump relay
   Exhaust flap
   E-box fan
   AUC sensor
   Brake air flap sensor, left
   Brake air flap sensor, right
   Nitrogen oxide module
   Diagnostic module for fuel tank leakage
   Secondary air-hot-film air-mass meter
F0740AN52: VVT relay
F0830AN52: Hydraulic pump relay, SMG

N62, TU

ru09023308

S85

ru09023328
No.AmpsAssignment/Designation
F00130AN62:
   DME control unit
   Variable valve timing gear control unit
   Fuel injector (5, 6, 7, 8)
   Sequential manual transmission (SMG)
20AS85: Idle actuator, cylinder bank 1
M54: Hydraulic pump relay, SMG
F00220AN62, TU:
   DME control unit
   Fuel tank vent valve
   Intake camshaft sensor 2
   Exhaust camshaft sensor 2
   VANOS solenoid valve 2, intake
   VANOS solenoid valve 2, exhaust
S85: Idle actuator, cylinder bank 2
F00320AN62: Ignition coil (1, 2, 3, 4)
30AS85: Electric throttle valve, bank 1
F00420AN62: Ignition coil (5, 6, 7, 8)
10AS85: Ionic current control unit 2
F00530AN62, TU:
   DME control unit
   Crankshaft sensor
   Hot-film air mass meter
   Intake camshaft sensor
   Exhaust camshaft sensor
   Characteristic map thermostat
   VANOS solenoid valve, intake
   VANOS solenoid valve, exhaust
S85: Electric throttle valve, bank 2
F00620AN62:
   DME control unit
   Fuel injector (1, 2, 3, 4)
F00720AN62:
   DME control unit
   Sequential manual transmission (SMG)
F00830AN62:
   DME control unit
   Oxygen sensor 2 after the catalytic converter
   Oxygen sensor before the catalytic converter
   Oxygen sensor 2 before the catalytic converter
   Oxygen sensor after the catalytic converter
   Oil quality sensor
F00910Aup to 03.2007:
   Fuel pump relay
   Exhaust flap
   Solenoid, radiator shutter
   E-box fan
   Diagnostic module for fuel tank leakage
   Secondary air pump relay
as of 03.2007:
   Fuel pump relay
   Exhaust flap
   Solenoid, radiator shutter
   E-box fan
   Diagnostic module for fuel tank leakage
   Secondary air pump relay
   Brake air flap sensor, left
   Brake air flap sensor, right
   AUC sensor
F01040AN62, TU: Variable valve timing gear control unit
5AN52: Engine breather heating relay
F01140AN62, TU: Variable valve timing gear control unit
ru09024741
A70010 – Sequential manual transmission control unit
No.AmpsAssignment/Designation
F1a10AS85:
   Solenoid, radiator shutter
   E-box fan
   Gear indicator lighting
   Selector lever
   Shift lock selector lever lock
   Power-saving relay, electronic damper control
   Bonnet switch, right
   Bonnet switch, left
   Rpm sensor, transmission main shaft
   Relay, electric vacuum pump
   Diagnostic module for fuel tank leakage
   Secondary air-hot-film air-mass meter
   Secondary air pump relay

Windscreen Wiper Relay (K11), Secondary Air Pump Relay (K6304a)

u09021128

Relay in the trunk (E61)

ru09021641
  • K91 – Rear wiper relay
  • K93 – Relay, electronic damper control
  • K126 – Relay, compressor, air suspension
  • K207 – Relay, automatic soft-close

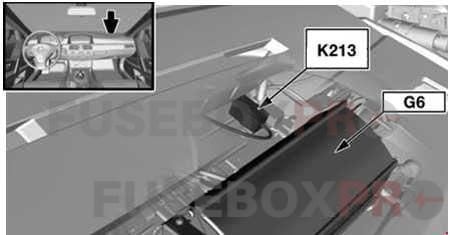

Relay, electric vacuum pump (K213)

u09022340
u09022340

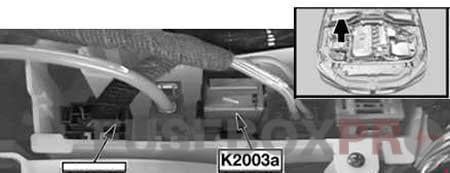

DDE main relay (K2003a)

M57 TU

ru09022730

M57, M57 TUTOP, M47 TU2

ru09022806

DDE relay (K6300)

M54

ru09021529
K6327 – Relay, fuel injectors

S85

u09035707
K3626 – Power-saving relay, terminal 15

N52

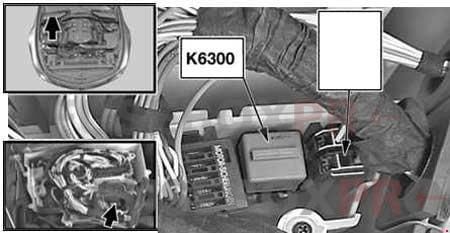

ru09035928

N43

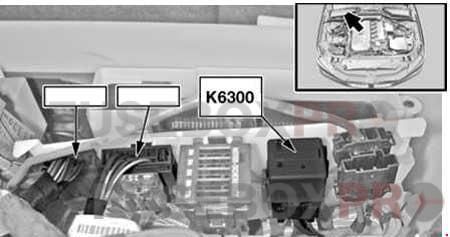

ru09030116

Hydraulic pump relay, SMG (K6318)

N62

ru09031246

S85

ru09030922
K63831 – Transmission fluid pump relay

The BMW 5-Series E60 and E61 are impressive cars that are packed with advanced features. Understanding the car’s electrical system, including the fuse box and relays, can help you maintain your car’s performance and troubleshoot any electrical problems that may arise. We hope this article has provided you with valuable insights into the BMW 5-Series E60 and E61’s electrical system, making it easier for you to keep your car running smoothly.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
