(1989-1991) Audi 100 and Audi 200 (C3) fuse box and relay with Diagram

Engine Compartment Fuse Box

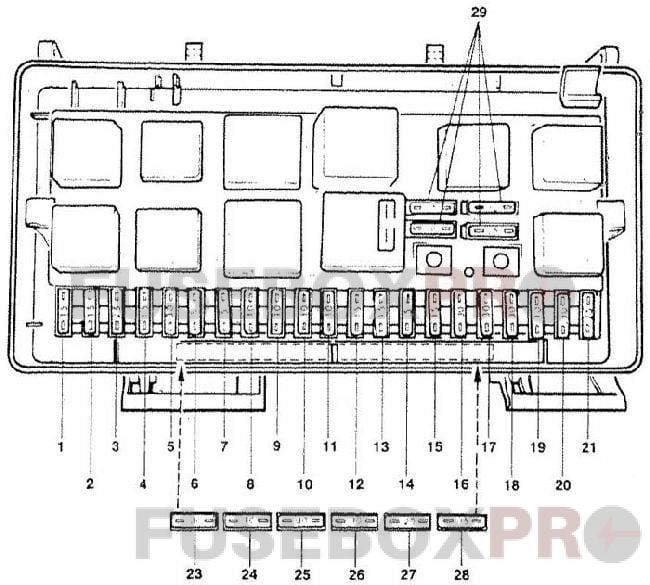

audi 100 and audi 200 c3 1989 1991 engine compartment fuse box
audi 100 and audi 200 c3 1989 1991 engine compartment fuse box
 № Amps Hi-beam headlight left
115AFog lights, rear fog lights
215AEmergency flashers
325AHorn, brake lights
415AReading lights, luggage compartment, cigar lighter, interior lights, make-up mirror, Board Computer
530ANot used
65ASide marker, park lights, right
75ASide marker, park lights, left
810AHi-beam headlight, hi-beam indicator light
910AHi-beam headlight, left
1010ALow beam, headlight, right
1110ALow beam, headlight, left
1215AInstrument cluster, back-up lights, cruise control, electronic thermoswitch
1315AFuel pump
145AGlove compartment, engine compartment, license plate lights
1525AWindshield wipers
1630ARear window heat element, outside mirror heat element
1730AFresh air blower
185ARear wiper (wagon)
1910ACentral locking system and fuel injection control unit 100, 100 Quattro
2030AHeated seats with Memory Seat
2125ANot used
22Not used
2330ANot used
2410ANot used
2530APower seats with memory, passenger power seat
265AAuto-Check, power mirrors, driver’s seat memory control
2710AIgnition control unit 100, 100 Quattro
2815AFuel injection control unit II
29Spare fuses

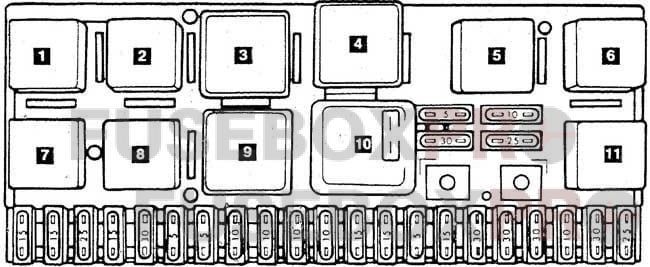

audi 100 and audi 200 c3 1989 1991 relay box
audi 100 and audi 200 c3 1989 1991 relay box
Assignment/Designation
1Open
2Radiator cooling fan (stage 2)
3100 models — radiator cooling fan after-run
200 models — radiator cooling fan (stage 1)
4Not used
5Load reduction relay
6Not used
7Horn
8Anti-theft relay
9Intermittent washer/wiper
10Fuel pump
11A/C relay

Auxiliary relay panel

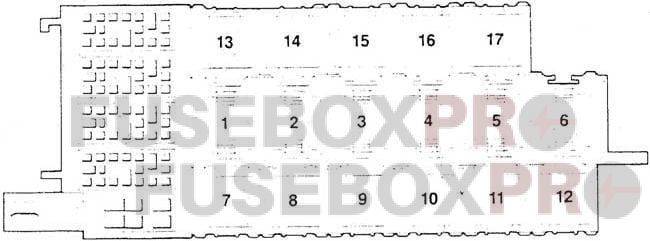

audi 100 and audi 200 c3 1989 1991 auxiliary relay box
audi 100 and audi 200 c3 1989 1991 auxiliary relay box
Assignment/Designation
1Open
2Seat belt/park light radio warning control unit
3Interior light delay control unit
4Open
5Lamp control unit, front
6Open
7Rad coolant fan relay 3rd stage
8ABS combination relay
9Intensive washer relay
10Power window control unit
11Power window control unit
12Driver-heated seat relay
13Open
14Circuit breaker for windows
15Driver heated seat relay
16Passenger heated seat relay
17Open
