The AMC Hornet is a compact car produced by American Motors Corporation (AMC) from 1970 to 1977. The 1975 AMC Hornet is a classic American car that is built for drivers who wanted a small and sporty car. It is designed to compete with the likes of the Ford Pinto and Chevrolet Vega and is available as a two-door coupe or a four-door sedan.

The 1975 AMC Hornet is known for its powerful engine and excellent handling. It is also known for its reliability and durability. It is equipped with a 4.2-liter inline-six engine that produced 100 horsepower and 177 lb-ft of torque. The engine is mated to a three-speed automatic transmission, which is standard on all models. The car also featured front disc brakes, power steering, and a rear sway bar.

AMC Hornet 1975 Electrical System

The electrical system of the AMC Hornet 1975 consists of various components, including the fuse box and relay. These components are responsible for protecting the electrical system from overloading and short-circuiting. The fuse box is located under the dashboard on the driver’s side of the car. It contains fuses that protect various circuits in the car, such as the headlights, turn signals, and power windows.

The relay is a switch that is controlled by an electrical signal. It is responsible for controlling various electrical components in the car, such as the horn and the starter. The relay is located in the engine compartment, near the battery. It is important to ensure that the relay is functioning properly, as a faulty relay can cause various electrical problems in the car. It is also important to ensure that the fuses in the fuse box are not blown, as a blown fuse can cause various electrical components in the car to malfunction.

(1975) AMC Hornet fuse box and relay with Diagram

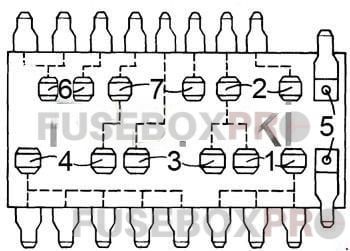

amc hornet 1975 fuse box
amc hornet 1975 fuse box
No.AmpsAssignment/Designation
19ADome light, cargo, courtesy, clock, glove box, and trunk light
214ATail, park and instrument lights, light switch, windshield wiper, heater, cigar lighter, clock, license light, transmission, air conditioning thermostat, radio, tachometer, ashtray light, seat belt module, and key buzzer
320AStop light and hazard warning flasher
420ATail, park, and instrument lights, light switch, windshield wiper, heater, cigar lighter, clock, license light, transmission, air conditioning thermostat, radio, tachometer, ashtray light, seat belt module, and key buzzer
52½APanel lights
64AGauges
720AFan

Circuit Breaker:

  • Headlights — 20 amp. the circuit breaker in the headlight switch.
  • Windshield Wiper – 6 amp. the circuit breaker in the wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in the instrument panel.

The AMC Hornet 1975 is a classic American car that is known for its powerful engine and excellent handling. The car’s electrical system, including the fuse box and relay, is an important component of the car’s overall reliability and durability. It is important for owners of the car to ensure that the electrical system is functioning properly, as a faulty electrical system can cause various problems in the car. Regular maintenance and inspection of the electrical system, including the fuse box and relay, is crucial to keeping the AMC Hornet 1975 running smoothly and reliably.
