(2003-2010) Alfa Romeo GT fuse box and relay with Diagram
Engine Compartment Fuse Box

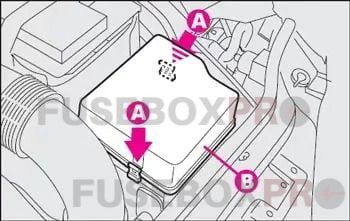

Access is gained to the control box next to the battery releasing the perimetral catches (A) and removing the protective cover (B).

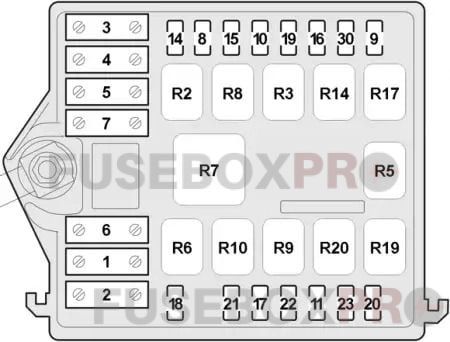

|1||50A||Diesel: Glow Plug Preheating|
|2||50A||Dashboard Control Unit|
|3||30A||Selespeed Transmission Pump|
|4||60A||’03→?: ABS Control Unit|
|50A||?→’08→?: ABS Control Unit|
|5||40A||Climate control fan|
|6||40A||Diesel: Radiator Fan (First Speed)|
|30A||Petrol: Radiator Fan (First Speed)|
|7||50A||Petrol: Radiator Fan (Second Speed)|
|60A||Diesel: Radiator Fan (Second Speed)|
|8||30A||Additional Heater (PTC)|
|11||15A||Secondary Services (Electronic Injection)|
|14||10A||Right Main-Beam Headlight|
|15||10A||Left Main-Beam Headlight|
|16||7.5A||Electronic Injection System|
|17||7.5A||Primary Services (Electronic Injection)|
|18||7.5A||Electronic Injection Control Unit (+30)|
|19||7.5A||Climate Control Compressor|
|20||20A||Diesel: Heated Fuel Oil Filter|
|21||15A||Fuel Pump, Ignition Coils|
|R6||Radiator Fan 1st Speed|
|R7||Radiator Fan 2st Speed|
|R8||Additional Heater (PTC)|
|R9||Fuel Injection Main|
|R19||Diesel: Heated Fuel Oil Filter|

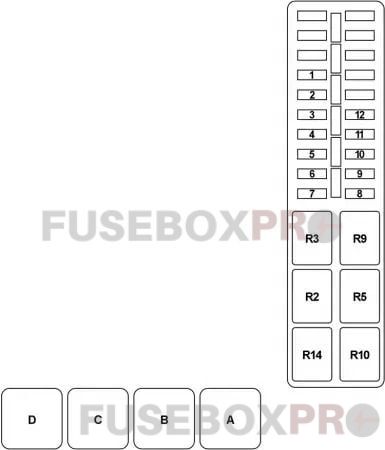

Engine Compartment Fuse Box No.2 (only 3.2)
|6||7.5A||Electronic Injection System|
|8||7.5A||Primary Services (Electronic Injection)|
|9||15A||Secondary Services (Electronic Injection)|
|12||7.5A||Electronic Injection System (15/54)|
|A||Radiator Fan Relay No.1|
|B||Radiator Fan Relay No.2|
|C||Radiator Fan Relay No.2|

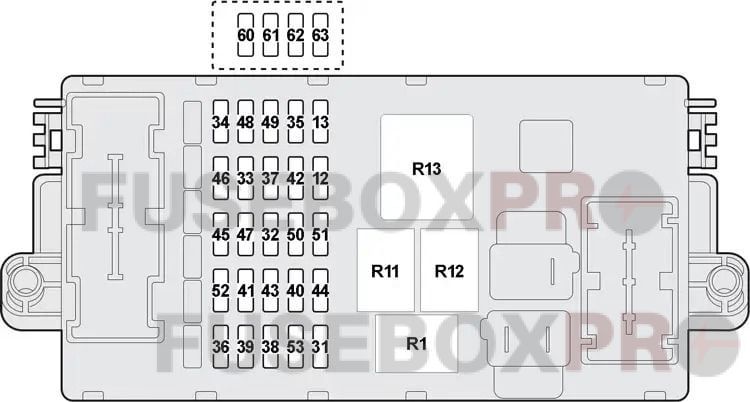

Passenger Compartment Fuse Box

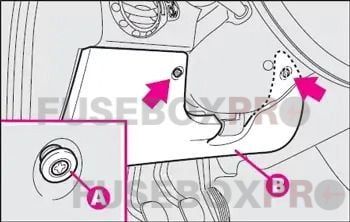

To gain access to the fuses in the fuse box on the dashboard, loosen the two retainers (A) and remove the protective cover (B).
|12||10A||Right Dipped-Beam Headlight|
|13||10A||Left Dipped-Beam Headlight, Headlight Aiming Device|
|31||7.5A||Climate Control System, Heater Unit Relay Coils|
|32||15A||Selespeed Transmission, Key-Operated +30|
|33||20A||Rear Left Power Window|
|34||20A||Rear Right Power Window|
|35||7.5A||Reversing Light, Cruise Control, Climate Control System Control Lighting|
|36||10A||Trailer Control Unit|
|37||10A||Braking Light, Instrument Cluster|
|38||20A||Central Door Locking|
|39||15A||Climate Control System, Radio, Navigator, Services + 30, Volumetric Sensors, EOBD System Diagnosis Socket, Cell Phone Provision, Driver’s Door Control Unit, Boot Control Unit|
|41||7.5A||Heated Mirrors, Heated Nozzles|
|42||7.5A||VDC System Sensor, Steering Angle Sensor, ABS Control Unit|
|43||30A||Windscreen, Rearscreen Washer (Two-Way Pump)|
|47||20A||Driver’s Door Control Unit Supply|
|48||20A||Passenger’s Door Control Unit Supply|
|49||7.5A||Secondary Services, Control Lighting|
|50||7.5A||Air Bag Control Unit|
|53||10A||Hazard Lights, +30 Direction Indicators, Instrument Cluster|
|62||15A||Electric Windows Control units|

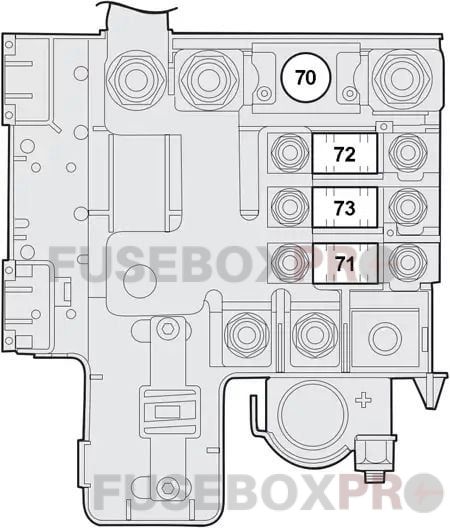

Control Box on Battery Positive Pole
To gain access to the fuses in the fusebox on the battery post, remove the protective cover by pressing the opening catches (front).
|70||125A||Petrol: Engine Compartment Control Box|
|150A||Diesel: Engine Compartment Control Box|
|71||70A||Dashboard Control Unit|
