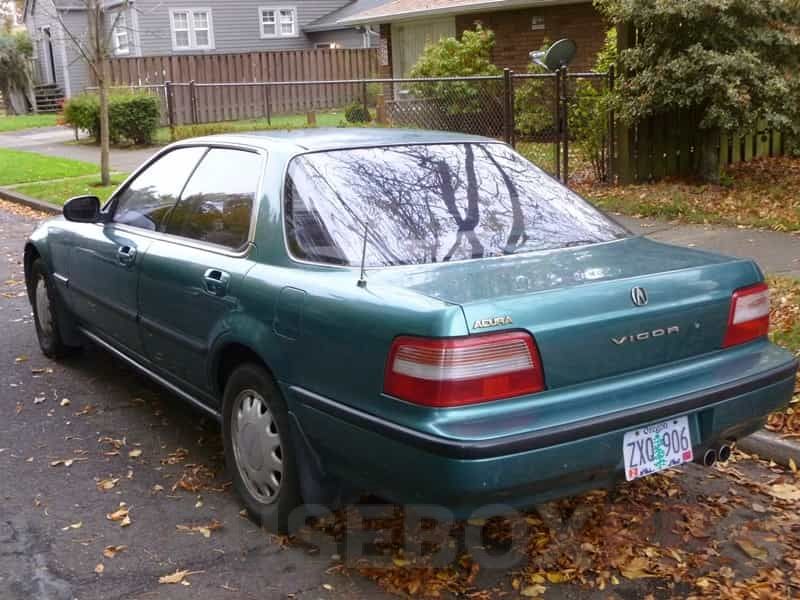

The Acura Vigor (1992-1994) is a midsize luxury sedan that offers a blend of sportiness and refinement. It comes in a sleek four-door sedan body style, characterized by its sharp lines, understated elegance, and premium features. With a front-engine, front-wheel-drive layout, the Vigor is powered by a unique 2.5-liter inline-five-cylinder engine, offering smooth performance and strong mid-range power.
Inside, the Vigor boasts a spacious and well-appointed cabin, with leather upholstery, power-adjustable seats, and advanced climate control for a comfortable driving experience. The dashboard is ergonomically designed, giving drivers easy access to controls and features.
In terms of electrical components, the Vigor relies on a well-organized fuse box and relays to manage various systems, including lighting, audio, and power windows. The fuse box is located under the dashboard and in the engine compartment, protecting critical circuits from overloads. Relays, which are found near the fuse box, help control high-power electrical components like the starter motor and fuel pump. Proper maintenance of these systems is essential for ensuring that the car’s electrical features remain reliable and functional over time.
Acura Vigor fuse box and relay Diagram (1992-1994)
Passenger compartment fuse box
| No. | Amps | Description/Circuits Protected |
| 1 | 10A | Gauge and warning indicator lights, Clock, Back-up lights, Speed sensor, Integrated control unit |
| 2 | 15A | ECU, ELD unit, Voltage regulator (IG1), Fuel pump, Fan timer unit, SRS unit (VA) |
| 3 | 10A | SRS unit (VB) |
| 4 | 7.5A | Cruise control system, A/T control unit, Security control unit |
| 5 | 10A | Sunroof relays (GS), Windshield wiper system, Shift lock solenoid |
| 6 | 30A | Windshield wiper motor, Integrated control unit |
| 7 | 7.5A | ABS system, Heater and A/C system, Option (B) ACC |
| 8 | 7.5A | Rear window defogger system, Seat heater system (CANADA), A/C system, Door mirror defogger (CANADA), Fan timer unit |
| 9 | 7.5A | ECU, Gauge (brake check circuit) |
| 10 | 7.5A | Daytime running light control unit (CANADA) |
| 11 | 10A | Cigarette lighter relay (coil), Option (A), Stereo sound system |

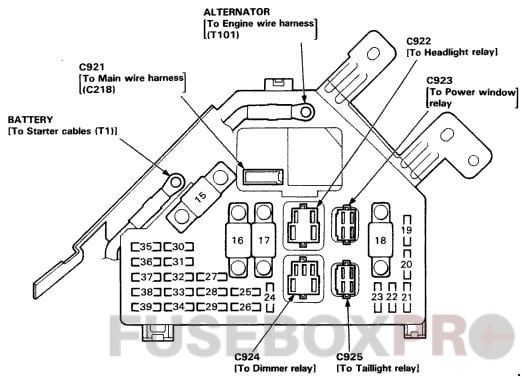

Fuse box in the engine compartment
| No. | Amps | Description/Circuits Protected |
| 15 | 100A | Power Distribution |
| 16 | 40A | Rear window defogger relay (contacts) |
| 17 | 30A | Blower Motor |
| 18 | 50A | Ignition switch (BAT) |
| 19 | 20A | Left headlight, Daytime running light (CANADA) |
| 20 | 20A | Right headlight, Daytime running light (CANADA) |
| 21 | 20A | Lighting switch, Taillight relay (contacts) |
| 22 | 15A | Seat heater system (CANADA) |
| 23 | – | Not used |
| 24 | 20A | Right rear power window motor |
| 25 | 20A | Left rear power window motor |
| 26 | 20A | Front passenger power window motor |
| 27 | 20A | Driver’s power seat recline motor (USA – GS) |
| 28 | 20A | Driver’s power window switch, motor, and power window control unit |
| 29 | 30A | Sunroof motor (GS) |
| 30 | 20A | Horn, key interlock solenoid (A/T), Security system, Brake system |
| 31 | 20A | Driver’s power seat slide (fore/aft) motor |
| 32 | 20A | Power door lock control unit |
| 33 | 10A | ECU main relay |
| 34 | 15A | Condenser fan motor |
| 35 | 10A | Hazard lights, Turn signal/hazard relay |
| 36 | 15A | Fog lights |
| 37 | 15A | Seat heaters (CANADA), Courtesy lights, dome light, Trunk light, Power antenna motor, Integrated control unit, Rear reading lights |
| 38 | 15A | Radiator fan motor |
| 39 | 10A | ECU, Fan timer unit, A/T control unit, Clock, Stereo sound system |

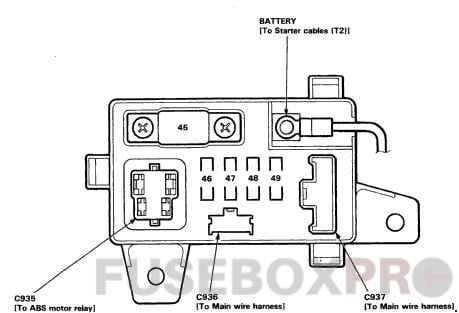

ABS fuse box
| No. | Amps | Description/Circuits Protected |
| 45 | 50A | ABS motor relay (contacts) |
| 46 | 7.5A | ABS control unit |
| 47 | 15A | ABS control unit (+) B3 |
| 48 | 15A | ABS control unit (+) B2 |
| 49 | 15A | ABS control unit (+) B1 |
