The Acura TL 1995-1998 is a popular luxury sedan produced by Honda under the Acura brand. This vehicle features a stylish exterior, a spacious interior, and a range of advanced features for a comfortable and enjoyable driving experience. As with any car, the Acura TL 1995-1998 has its own set of maintenance needs and potential issues, particularly when it comes to the electrical system. In this article, we will focus on the fuse box and relay along with other important electrical components of the Acura TL 1995-1998, providing essential information for car owners looking to keep their vehicles in top working condition.

(1995-1998) Acura TL fuse box and relay with Diagram

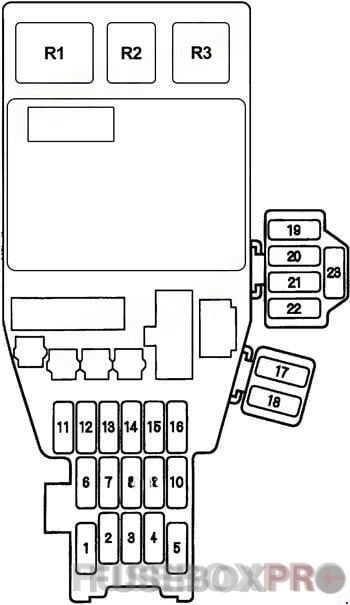

acura tl 1995 1998 passenger compartment
acura tl 1995 1998 passenger compartment

Passenger compartment fuse box

No.AmpsAssignment/Designation
115A –
210ABack-Up Lights, Meter Lights, Moonroof
315AFuel Pump
410ASRS
57.5A –
620A –
720AECU (PCM), Cruise Control, EAT ECU
87.5A’95: Turn Signal
7.5A’96-’98: Wiper, Washer, Moonroof Relay
930A’95: Wiper, Washer
30A’96: Turn Signal
7.5A’97-’98: Turn Signal
1010A –
1130A –
127.5AHeater Control Relay, Conditioning Clutch Relay (’96-’98), Cooling Fan Relay (’96-’98)
137.5APower Mirror, Air Conditioning Clutch Relay (’95), Rear Window Defroster Relay
147.5AStarter Signal
157.5ADaytime Running Lights
1610ARadio
1720A’96-’98: Front Passenger’s Power Seat 1
1820A’96-’98: Front Passenger’s Power Seat 2
1920A’96-’98: Front Left Power Window
2020A’96-’98: Front Right Power Window
2120A’96-’98: Rear Left Power Window
2220A’96-’98: Rear Right Power Window
2330A’96-’98: Front Wiper
Relay
R1Turn Signal/Hazard
R2Cigarette Lighter
R3Rear Window Defogger

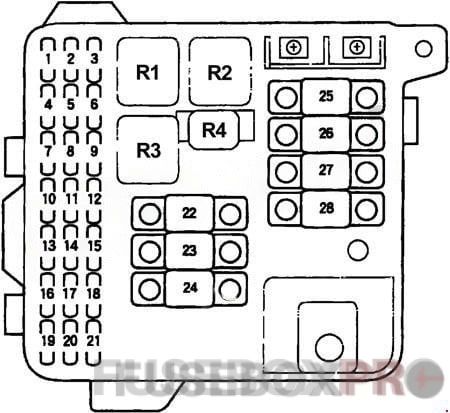

Engine Compartment Fuse Box (’96-’98)

acura tl 1996 1998 engine compartment
acura tl 1996 1998 engine compartment
No.AmpsAssignment/Designation
17.5AABS Unit
220AStop Lights, Horn
310AHazard Lights
420AABS B1
515AABS B2
615ATCS, Daytime Running Lights
720APower Door Locks
815ARight Headlight
915ALeft Headlight
1020ACooling Fan
11 –
1215ASmall Light
1320ACondenser Fan
1430AMoonroof
1520AECU (PCM)
1615AFront Fog Light
1720AHeated Seat
1820ADriver’s Power Seat 2
1910ABack-up, Radio
2015AInterior Lights
2120ADriver’s Power Seat 1
2250AIgnition Switch
2340APower Window
2430AHeater Motor
25120AMain Fuse
2640AABS Motor
2740ARear Window Defroster
2840AFront Passenger’s Power Seat Main
Relay
R1Dimmer
R2ABS Pump Motor
R3Headlight
R4Taillight

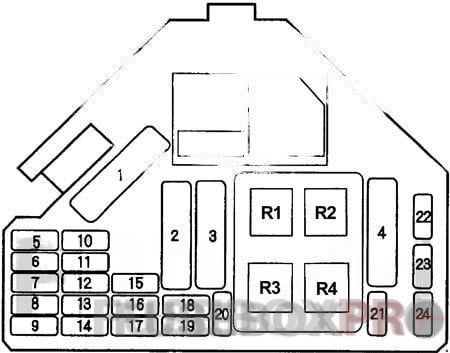

Engine Compartment Fuse Box (1995)

acura tl 1995 engine compartment
acura tl 1995 engine compartment
No.AAssignment/Designation
1100Main Fuse
240Rear Window Defroster
330Heater Blower
450Main Fuse Ignition
510Hazard
615Front Fog Light
715Interior Light
820Cooling Fan
910Backup, Radio
1020Stop, Horn
1120Power Seat Slide
1220Door Locks
1315ECU (ECM)
1420Condenser Fan
1520Power Seat Reclining
1620Front Left Power Window
1730Moonroof
1820Rear Left Power Window
1920Front Right Power Window
2020Rear Right Power Window
2120Daytime Running Lights
2215Left Headlight
2315Right Headlight
2415Parking Lights
Relay
R1Headlight
R2Power Window
R3Dimmer
R4Taillight

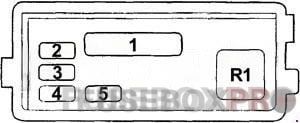

Engine Compartment Fuse Box No.2 (1995)

acura tl 1995 engine compartment box 2
acura tl 1995 engine compartment box 2
No.AAssignment/Designation
140ABS Motor
220ABS B1
315ABS B2
4 –
510ABS Unit
Relay
R1ABS Pump Motor

In conclusion, the Acura TL 1995-1998 is a high-performing luxury sedan with a range of advanced features and amenities. The electrical system of this vehicle is an essential component that requires proper maintenance and care to ensure its longevity and reliable operation. The fuse box and relay, along with other electrical components, play a critical role in the functioning of the Acura TL. Regular inspection and maintenance of these components can help prevent potential issues and keep your vehicle running smoothly. By understanding the importance of the fuse box and relay in the electrical system of your Acura TL, you can stay ahead of any potential issues and ensure that your car continues to provide you with the performance and luxury driving experience you expect.
