(2011-2014) Ford Edge (U387) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Edge (U387) 2011-2014 fuse assignment
Ford Edge (U387) Year of production: 2011, 2012, 2013, 2014
Passenger Compartment Fuse Panel:

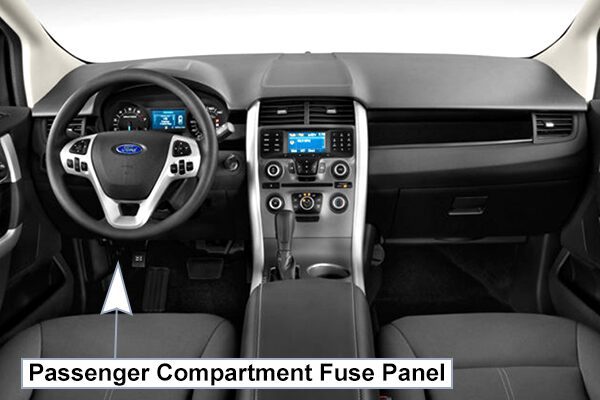

The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake. To remove the trim panel, slide the release lever to the right then pull the trim panel out.
To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until it clicks into place. Gently pull on the cover to make sure it is secure.
To reinstall the trim panel, align the tabs on the bottom of the panel with the grooves, push the panel shut and slide the release lever to the left to secure the panel.
Power Distribution Box:

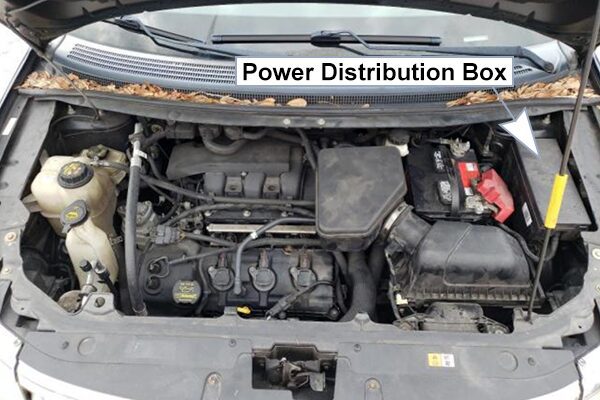

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2011

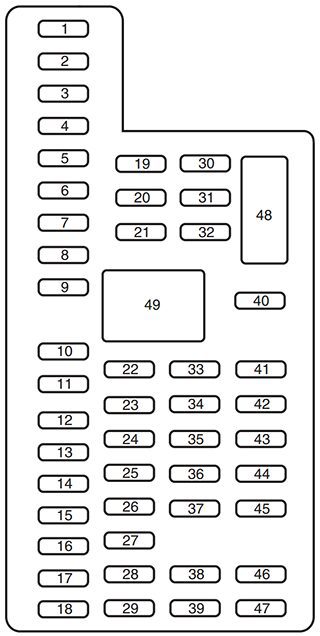

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2011)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Driver front smart window |
| 2 | 15A | Not used (spare) |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Demand lamps |
| 5 | 20A | Not used (spare) |
| 6 | 5A | RF module |
| 7 | 7.5A | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Power liftgate |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument panel cluster, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn/stop lamps and turn signals |
| 14 | 15A | Left turn/stop lamps and turn signals |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamps |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock (BSI), Passenger compartment fuse panelStart button LED, Passive anti-theft system (PATS), Powertrain control module (PCM) wake-up, 2nd row power enable |
| 19 | 20A | Amplifier/subwoofer (Sony) |
| 20 | 20A | Lock/unlock relays – vehicles without intelligent access (IA) |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control, intelligent access (IA), Headlamp switch |
| 24 | 15A | On-board diagnostics (OBDII) |
| 25 | 15A | Liftgate release |
| 26 | 5A | Global positioning system (GPS) module |
| 27 | 20A | intelligent access (IA) |
| 28 | 15A | Ignition switch (without IA), Key inhibit solenoid, Push button start (with IA) |
| 29 | 20A | Radio, Multi-function display screen, Electronic finish panel, SYNC module |
| 30 | 15A | Front park lamps , Side repeater lamps (China only) |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Lock switch backlighting, Moon roof, Power Windows, Compass/auto-dimming rear view mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse sensing system, Rearview camera, Blind spot monitor |
| 35 | 5A | Heads-up display, Headlamp leveling |
| 36 | 10A | Not used (spare) , Rear fog lamp module (China only) |
| 37 | 10A | Climate control |
| 38 | 10A | Not used (spare) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, license plate lamps |
| 41 | 7.5A | Occupant classification sensor (OCS), Restraints control module |
| 42 | 5A | Grade assist control switch |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Not used (spare) |
| 48 | 30A Circuit Breaker | Power Windows |
| 49 | – | Delayed accessory relay |

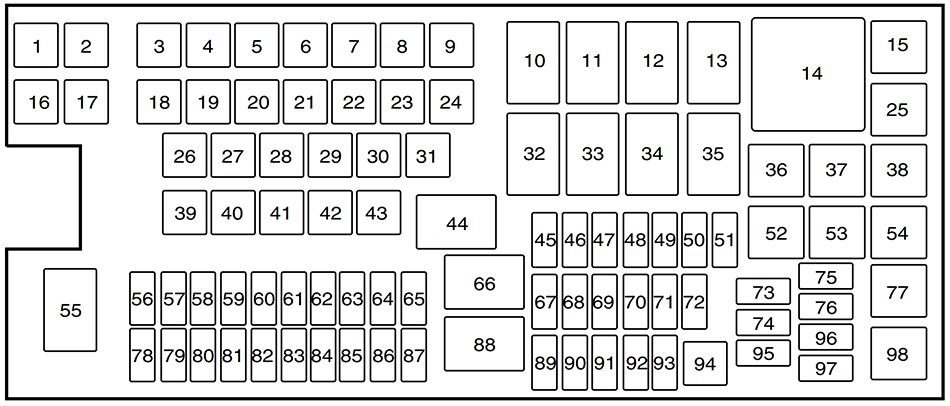

Power Distribution Box
List of fuses in the power distribution box (2011)
| â„– | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 30A** | Wipers |
| 5 | 40A** | Anti-lock brake system (ABS) pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moon roof |
| 9 | 20A** | Power point #2 (console rear) |
| 10 | – | Not used |
| 11 | – | Rear window defroster/heated mirror relay |
| 12 | – | Not used |
| 13 | – | Starter relay |
| 14 | – | Not used |
| 15 | – | Fuel pump relay |
| 16 | – | Not used |
| 17 | – | Not used |
| 18 | 40A** | Blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Power point #1 (console bin) |
| 21 | 20A** | Cargo area power point |
| 22 | – | Not used |
| 23 | 30A** | Driver seat module |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster |
| 27 | 20A** | Front power point/lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | – | Not used |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | – | Blower motor relay |
| 35 | – | Not used |
| 36 | – | Rear seat relay |
| 37 | – | Right trailer tow (TT) stop/turn lamps relay |
| 38 | – | Not used |
| 39 | 40A** | Cooling fan (vehicles with TT) |
| 60A** | Cooling fan (vehicles without TT) | |
| 40 | 40A** | Cooling fan (TT only) |
| 41 | – | Not used |
| 42 | 30A** | Passenger seat |
| 43 | 30A** | ABS valves |
| 44 | – | Rear washer relay |
| 45 | 5A* | Rain sensor |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 15A* | Heated mirror |
| 51 | – | Not used |
| 52 | – | Stop lamp relay |
| 53 | – | Left TT stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wiper relay |
| 56 | Not used | |
| 57 | 20A* | Left high-intensity discharge (HID) headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 15A* | Stop lamps |
| 61 | 10A* | Rear seat release |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | TT stop/turn lamps relay |
| 64 | 20A* | Rear wiper motor |
| 65 | 15A* | Fuel pump |
| 66 | – | Powertrain control module (PCM) relay |
| 67 | 20A* | Vehicle power (VPWR) #2 |
| 68 | 15A* | VPWR #4 |
| 69 | 15A* | VPWR #1 |
| 70 | 10A* | A/C relay, All-wheel drive module |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | A/C clutch diode |
| 76 | – | Not used |
| 77 | – | TT park lamps relay |
| 78 | 20A* | Right HID headlamps |
| 79 | 5A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | TT park lamps |
| 85 | – | Not used |
| 86 | 7.5A* | PCM keep-alive, PCM relay |
| 87 | 5A* | Run/start relay |
| 88 | – | Run/start relay |
| 89 | – | Not used |
| 90 | 10A* | PCM |
| 91 | 10A* | Adaptive cruise control |
| 92 | 10A* | ABS module |
| 93 | 5A* | Blower motor/rear defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | – | Not used |
| 96 | – | Not used |
| 97 | – | Not used |
| 98 | – | A/C clutch relay |
| * Mini Fuses ** Cartridge Fuses | ||
2012
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Driver front smart window |
| 2 | 15A | Not used (spare) |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Demand lamps |
| 5 | 20A | Not used (spare) |
| 6 | 5A | RF module |
| 7 | 7.5A | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Power liftgate |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument panel cluster, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn/stop lamps and turn signals |
| 14 | 15A | Left turn/stop lamps and turn signals |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamps |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock (BSI), Start button LED, Passive anti-theft system (PATS), Powertrain control module (PCM) wake-up, 2nd row power enable |
| 19 | 20A | Amplifier/subwoofer (Sony) |
| 20 | 20A | Lock/unlock relays – vehicles without intelligent access (IA) |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control, intelligent access (IA), Headlamp switch |
| 24 | 15A | On-board diagnostics (OBDII) |
| 25 | 15A | Liftgate release |
| 26 | 5A | Global positioning system (GPS) module |
| 27 | 20A | intelligent access (IA) |
| 28 | 15A | Ignition switch (without IA), Key inhibit solenoid, Push button start (with IA) |
| 29 | 20A | Radio, Multi-function display screen, Electronic finish panel, SYNC module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Lock switch backlighting, Moon roof, Power Windows, Compass/auto-dimming rear view mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse sensing system, Rearview camera, Blind spot monitor |
| 35 | 5A | Heads-up display, Headlamp leveling |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Climate control (3.5L/3.7L engines) |
| 38 | 10A | Not used (spare) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, license plate lamps |
| 41 | 7.5A | Occupant classification sensor (OCS), Restraints control module |
| 42 | 5A | Grade assist control switch (2.0L engine) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | LED signal mirrors |
| 48 | 30A Circuit Breaker | Power Windows |
| 49 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2012)
| â„– | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 30A** | Wipers |
| 5 | 40A** | Anti-lock brake system (ABS) pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moon roof |
| 9 | 20A** | Power point #2 (console rear) |
| 10 | – | Not used |
| 11 | – | Rear window defroster/heated mirror relay |
| 12 | – | Not used |
| 13 | – | Starter relay |
| 14 | – | Not used |
| 15 | – | Fuel pump relay |
| 16 | – | Not used |
| 17 | – | Not used |
| 18 | 40A** | Blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Power point #1 (console bin) |
| 21 | 20A** | Cargo area power point |
| 22 | – | Not used |
| 23 | 30A** | Driver seat module |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster |
| 27 | 20A** | Front power point/lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | – | Not used |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | – | Blower motor relay |
| 35 | – | Not used |
| 36 | – | Rear seat relay |
| 37 | Right trailer tow (TT) stop/turn lamps relay | |
| 38 | – | Not used |
| 39 | 40A** | Cooling fan (vehicles with TT) |
| 60A** | Cooling fan (vehicles without TT) | |
| 40 | 40A** | Cooling fan (TT only) |
| 41 | – | Not used |
| 42 | 30A** | Passenger seat |
| 43 | 25A** | ABS valves |
| 44 | – | Rear washer relay |
| 45 | 5A* | Rain sensor |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 15A* | Heated mirror |
| 51 | – | Not used |
| 52 | – | Stop lamp relay |
| 53 | – | Left TT stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wiper relay |
| 56 | 15A* | Transmission control module (TCM) (2.0L engine) |
| 57 | 20A* | Left high-intensity discharge (HID) headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 15A* | Stop lamps |
| 61 | 10A* | Rear seat release |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | TT stop/turn lamps relay |
| 64 | 20A* | Rear wiper motor |
| 65 | 15A* | Fuel pump |
| 66 | – | Powertrain control module (PCM) relay |
| 67 | 20A* | Vehicle power (VPWR) #2 |
| 68 | 15A* | VPWR #4 |
| 69 | 15A* | VPWR #1 (3.5/3.7L engines) |
| 20A* | VPWR #1 (2.0L engine) | |
| 70 | 10A* | A/C relay, VPWR #3, All-wheel drive module (3.5/3.7L engines), Active grille shutter (AGS) (2.0L engine) |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | A/C clutch diode (3.5/3.7L engines) |
| 76 | – | Not used |
| 77 | – | TT park lamps relay |
| 78 | 20A* | Right HID headlamps |
| 79 | 5A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | TT park lamps |
| 85 | – | Not used |
| 86 | 7.5A* | PCM relay, PCM keep-alive (3.5/3.7L engines) |
| 87 | 5A* | Run/start relay |
| 88 | – | Run/start relay |
| 89 | – | Not used |
| 5A* | Headlamp leveling motors (China only) | |
| 90 | 10A* | PCM |
| 91 | 10A* | Adaptive cruise control (3.5/3.7L engines) |
| 5A* | Automatic transmission warm-up (2.0L engine) | |
| 92 | 10A* | ABS module |
| 93 | 5A* | Blower motor/rear defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | – | Not used |
| 96 | – | Canister purge solenoid (CPS) diode (2.0L engine) |
| 97 | Auto trans warm-up diode (2.0L engine) | |
| 98 | – | A/C clutch relay |
| * Mini Fuses ** Cartridge Fuses | ||
2013
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| â„– | A | Protected components |
|---|---|---|
| 1 | 30A | Driver front smart window |
| 2 | 15A | Not used (spare) |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Demand lamps relay |
| 5 | 20A | Not used (spare) |
| 6 | 5A | Radio frequency module |
| 7 | 7.5A | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Power liftgate |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument panel cluster, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamps |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system, Powertrain control module wake-up, Second row power enable |
| 19 | 20A | Amplifier (Sony) |
| 20 | 20A | Lock/unlock relays – vehicles without intelligent access |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control, Intelligent access, Headlamp switch |
| 24 | 15A | On-board diagnostics |
| 25 | 15A | Liftgate release |
| 26 | 5A | Global positioning system module |
| 27 | 20A | Intelligent access |
| 28 | 15A | Ignition switch (without intelligent access), Key inhibit solenoid, Push button start (with intelligent access) |
| 29 | 20A | Radio, Multi-function display screen, Electronic finish panel, SYNC module |
| 30 | 15A | Front park lamps, Auxiliary park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Lock switch backlighting, Moonroof, Power Windows (driver front), Compass/auto-dimming rear view mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse sensing system, Rearview camera, Blind spot monitor |
| 35 | 5A | Heads-up display, Headlamp leveling |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Climate control (3.5L/3.7L engines) |
| 38 | 10A | Not used (spare) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, license plate lamps |
| 41 | 7.5A | Occupant classification sensor, Restraints control module |
| 42 | 5A | Grade assist control switch (2.0L engine) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | LED signal mirrors |
| 48 | 30A Circuit Breaker | Power Windows |
| 49 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2013)
| â„– | A | Protected components |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 30A** | Wipers |
| 5 | 40A** | Anti-lock brake system pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moonroof |
| 9 | 20A** | Power point #2 (console rear) |
| 10 | – | Not used |
| 11 | – | Rear window defroster and heated mirror relay |
| 12 | – | Not used |
| 13 | – | Starter relay |
| 14 | – | Not used |
| 15 | – | Fuel pump relay |
| 16 | – | Not used |
| 17 | – | Not used |
| 18 | 40A** | Blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Power point #1 (console bin) |
| 21 | 20A** | Cargo area power point |
| 22 | – | Not used |
| 23 | 30A** | Driver seat module |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster |
| 27 | 20A** | Front power point or lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | – | Not used |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | – | Blower motor relay |
| 35 | – | Not used |
| 36 | – | Rear seat relay |
| 37 | – | Right trailer tow stop/turn lamps relay |
| 38 | – | Not used |
| 39 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 40 | 40A** | Cooling fan (trailer tow only) |
| 41 | – | Not used |
| 42 | 30A** | Passenger seat |
| 43 | 25A** | Anti-lock brake system valves |
| 44 | – | Rear washer relay |
| 45 | 5A* | Rain sensor |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 15A* | Heated mirror |
| 51 | – | Not used |
| 52 | – | Stop lamp relay |
| 53 | – | Left trailer tow stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wiper relay |
| 56 | 15A* | Transmission control module (2.0L engine) |
| 57 | 20A* | Left high-intensity discharge headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 15A* | Stop lamps |
| 61 | 10A* | Rear seat release |
| 62 | 10A* | Air conditioner clutch |
| 63 | 15A* | Trailer tow stop/turn lamps relay |
| 64 | 20A* | Rear wiper motor |
| 65 | 15A* | Fuel pump |
| 66 | – | Powertrain control module relay |
| 67 | 20A* | Vehicle power #2 |
| 68 | 15A* | Vehicle power #4 |
| 69 | 15A* | Vehicle power #1 (3.5/3.7L engines) |
| 20A* | Vehicle power #1 (2.0L engine) | |
| 70 | 10A* | Air conditioner relay, Vehicle power #3, All-wheel drive module (3.5/3.7L engines), Active grille shutter (2.0L engine) |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Air conditioner clutch diode (3.5/3.7L engines) |
| 76 | – | Not used |
| 77 | – | Trailer tow park lamps relay |
| 78 | 20A* | Right high-intensity discharge headlamps |
| 79 | 5A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | Trailer tow park lamps |
| 85 | – | Not used |
| 86 | 7.5A* | Powertrain control module relay, Powertrain control module keep-alive (3.5/3.7L engines) |
| 87 | 5A* | Run/start relay |
| 88 | – | Run/start relay |
| 89 | – | Not used |
| 5A* | Headlamp leveling motors (China only) | |
| 90 | 10A* | Powertrain control module, Transmission Control Module (2.0L engine) |
| 91 | 10A* | Adaptive cruise control (3.5/3.7L engines) |
| 5A* | Automatic transmission warm-up (2.0L engine) | |
| 92 | 10A* | Anti-lock brake system module |
| 93 | 5A* | Blower motor/rear defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | – | Not used |
| 96 | – | Canister purge solenoid diode (2.0L engine) |
| 97 | – | Automatic transmission warm-up diode (2.0L engine) |
| 98 | – | Air conditioner clutch relay |
| * Mini Fuses ** Cartridge Fuses | ||
2014
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2014)
| â„– | A | Protected components |
|---|---|---|
| 1 | 30A | Driver front smart window |
| 2 | 15A | Not used (spare) |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Demand lamps relay |
| 5 | 20A | Not used (spare) |
| 6 | 5A | Radio frequency module |
| 7 | 7.5A | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Power liftgate |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument panel cluster, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamps |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system, Powertrain control module wake-up, Second row power enable |
| 19 | 20A | Amplifier (Sony) |
| 20 | 20A | Lock/unlock relays – vehicles without intelligent access |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control, Intelligent access, Headlamp switch |
| 24 | 15A | On-board diagnostics |
| 25 | 15A | Liftgate release |
| 26 | 5A | Global positioning system module |
| 27 | 20A | Intelligent access |
| 28 | 15A | Ignition switch (without intelligent access), Key inhibit solenoid, Push button start (with intelligent access) |
| 29 | 20A | Radio, Multi-function display screen, Electronic finish panel, SYNC module |
| 30 | 15A | Front park lamps, Auxiliary park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Lock switch backlighting, Moonroof, Power Windows (driver front), Compass/auto-dimming rear view mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse sensing system, Rearview camera, Blind spot monitor |
| 35 | 5A | Heads-up display, Headlamp leveling |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Climate control (3.5L/3.7L engines) |
| 38 | 10A | Not used (spare) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, license plate lamps |
| 41 | 7.5A | Occupant classification sensor, Restraints control module |
| 42 | 5A | Grade assist control switch (2.0L engine) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | LED signal mirrors |
| 48 | 30A Circuit Breaker | Power Windows |
| 49 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2014)
| â„– | A | Protected components |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 30A** | Wipers |
| 5 | 40A** | Anti-lock brake system pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moonroof |
| 9 | 20A** | Power point #2 (console rear) |
| 10 | – | Not used |
| 11 | – | Rear window defroster and heated mirror relay |
| 12 | – | Not used |
| 13 | – | Starter relay |
| 14 | – | Not used |
| 15 | – | Fuel pump relay |
| 16 | – | Not used |
| 17 | – | Not used |
| 18 | 40A** | Blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Power point #1 (console bin) |
| 21 | 20A** | Cargo area power point |
| 22 | – | Not used |
| 23 | 30A** | Driver seat module |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster |
| 27 | 20A** | Front power point or lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | – | Not used |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | Blower motor relay | |
| 35 | – | Not used |
| 36 | – | Rear seat relay |
| 37 | – | Right trailer tow stop/turn lamps relay |
| 38 | – | Not used |
| 39 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 40 | 40A** | Cooling fan (trailer tow only) |
| 41 | – | Not used |
| 42 | 30A** | Passenger seat |
| 43 | 25A** | Anti-lock brake system valves |
| 44 | – | Rear washer relay |
| 45 | 5A* | Rain sensor |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 15A* | Heated mirror |
| 51 | – | Not used |
| 52 | – | Stop lamp relay |
| 53 | – | Left trailer tow stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wiper relay |
| 56 | 15A* | Transmission control module (2.0L engine) |
| 57 | 20A* | Left high-intensity discharge headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 15A* | Stop lamps |
| 61 | 10A* | Rear seat release |
| 62 | 10A* | Air conditioner clutch |
| 63 | 15A* | Trailer tow stop/turn lamps relay |
| 64 | 20A* | Rear wiper motor |
| 65 | 15A* | Fuel pump |
| 66 | – | Powertrain control module relay |
| 67 | 20A* | Vehicle power #2 |
| 68 | 15A* | Vehicle power #4 |
| 69 | 15A* | Vehicle power #1 (3.5/3.7L engines) |
| 20A* | Vehicle power #1 (2.0L engine) | |
| 70 | 10A* | Air conditioner relay, Vehicle power #3, All-wheel drive module (3.5/3.7L engines), Active grille shutter (2.0L engine) |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Air conditioner clutch diode (3.5/3.7L engines) |
| 76 | – | Not used |
| 77 | – | Trailer tow park lamps relay |
| 78 | 20A* | Right high-intensity discharge headlamps |
| 79 | 5A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | Trailer tow park lamps |
| 85 | – | Not used |
| 86 | 7.5A* | Powertrain control module relay, Powertrain control module keep-alive (3.5/3.7L engines) |
| 87 | 5A* | Run/start relay |
| 88 | – | Run/start relay |
| 89 | – | Not used |
| 5A* | Headlamp leveling motors (China only) | |
| 90 | 10A* | Powertrain control module, Transmission Control Module (2.0L engine) |
| 91 | 10A* | Adaptive cruise control (3.5/3.7L engines) |
| 5A* | Automatic transmission warm-up (2.0L engine) | |
| 92 | 10A* | Anti-lock brake system module |
| 93 | 5A* | Blower motor/rear defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | – | Not used |
| 96 | – | Canister purge solenoid diode (2.0L engine) |
| 97 | – | Automatic transmission warm-up diode (2.0L engine) |
| 98 | – | Air conditioner clutch relay |
| * Mini Fuses ** Cartridge Fuses | ||
Conclusion
The Ford Edge (2011-2014) offers style, practicality, and advanced features, all supported by a reliable electrical system. Proper care of the fuse box and relays is essential for optimal performance.
