(2007-2010) Ford Edge (U387) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Edge (U387) 2007-2010 fuse assignment
Ford Edge (U387) Year of production: 2007, 2008, 2009, 2010
Passenger Compartment Fuse Panel:
The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake. To remove the trim panel, slide the release lever to the right then pull the trim panel out.
To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until it clicks into place. Gently pull on the cover to make sure it is secure.
To reinstall the trim panel, align the tabs on the bottom of the panel with the grooves, push the panel shut and slide the release lever to the left to secure the panel.
Power Distribution Box:

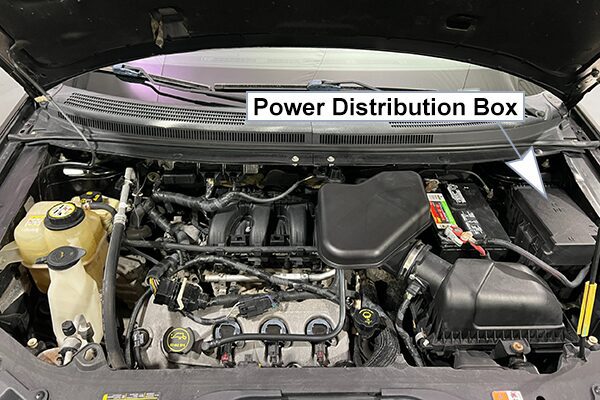

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2007
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2007)
| № | A | Description |
|---|---|---|
| 1 | 30A | Not used (Spare) |
| 2 | 15A | Not used (Spare) |
| 3 | 15A | Family entertainment system (FES)/Rear seat control |
| 4 | 30A | Not used (Spare) |
| 5 | 10A | Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI) |
| 6 | 20A | Tum signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All wheel drive |
| 12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – Keep alive power (KA) |
| 13 | 7.5A | Not used (Spare) |
| 14 | 10A | Not used (Spare) |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All power lock motor feeds, Liftgate release, Moon roof |
| 18 | 20A | Not used (Spare) |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps/Interior lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Overdrive cancel switch |
| 31 | 10A | Compass, Automatic dimming rear view mirror |
| 32 | 10A | Not used (Spare) |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Steering angle sensor |
| 35 | 10A | Rear park assist, AWD, Heated seat module |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Not used (Spare) |
| 41 | 15A | Delayed accessory function for radio and lock switch illumination |
| 42 | 10A | Not used (Spare) |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Customer accessory feed |
| 45 | 5A | Front wiper logic, Climate control relay feed |
| 46 | 7.5A | Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |

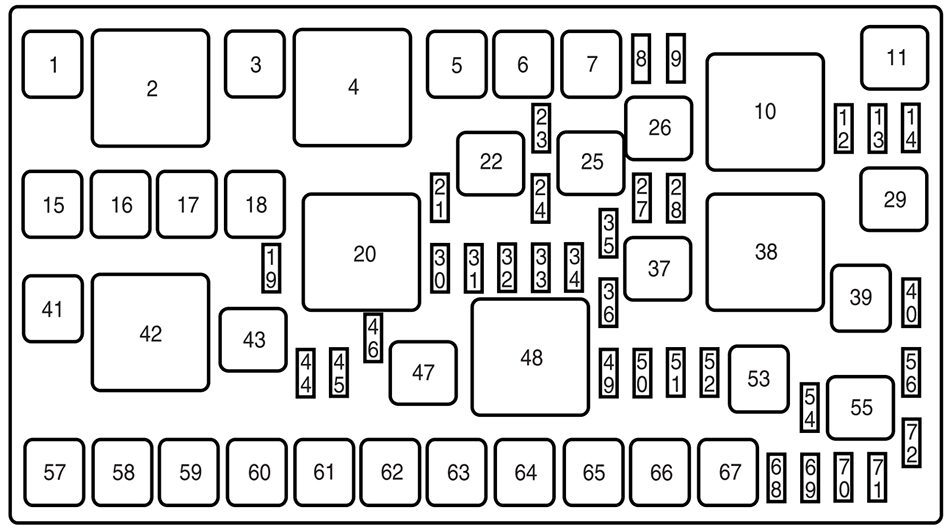

Power Distribution Box
List of fuses in the power distribution box (2007)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Blower motor relay |
| 3 | – | Not used |
| 4 | – | Not used |
| 5 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 6 | 40A** | Cooling fan (trailer tow only) |
| 7 | – | Not used |
| 8 | 10A* | Altemator |
| 9 | 20A* | Trailer tow parking lamps |
| 10 | – | Not used |
| 11 | – | Trailer tow parking lamp relay |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | Not used | |
| 15 | 40A** | ABS pump motor |
| 16 | 30A** | Front heated seats |
| 17 | 20A** | Cigar lighter/Power point |
| 18 | 30A** | Panorama moon roof |
| 19 | – | Fuel pump diode |
| 20 | – | PCM relay |
| 21 | 7.5A* | PCM – Keep alive power (KA) |
| 22 | – | Trailer tow left stop/turn lamp relay |
| 23 | – | Not used |
| 24 | 15A* | Trailer tow left stop/turn lamp |
| 25 | – | Rear seat release relay |
| 26 | – | Fuel pump relay |
| 27 | 10A* | Rear seat release |
| 28 | 15A* | Heated mirror |
| 29 | – | Heated mirror relay |
| 30 | 15A* | VPWR 1 – PCM |
| 31 | 10A* | VPWR 3 – PCM |
| 32 | 10A* | VPWR 2 – PCM |
| 33 | 15A* | VPWR 4 – PCM |
| 34 | – | Not used |
| 35 | 10A* | A/C clutch |
| 36 | – | Not used |
| 37 | – | A/C clutch relay |
| 38 | – | Rear window defroster relay |
| 39 | 40A** | Rear window defroster |
| 40 | – | Not used |
| 41 | 30A** | Starter |
| 42 | – | Starter relay |
| 43 | – | Backup lamp relay |
| 44 | 10A* | Backup lamps |
| 45 | – | Not used |
| 46 | 15A* | Trailer tow right stop/turn lamp |
| 47 | – | Trailer tow right stop/turn lamp relay |
| 48 | – | Run/Start relay |
| 49 | 10A* | PCM ISPR |
| 50 | 10A* | ABS Run/Start |
| 51 | – | Not used |
| 52 | 5A* | Fuel pump relay coil |
| 53 | 30A** | SPDJB Run/Start |
| 54 | – | Not used |
| 55 | – | Not used |
| 56 | – | A/C clutch diode |
| 57 | 40A** | ABS valves |
| 58 | 30A** | Front wipers |
| 59 | – | Not used |
| 60 | 30A** | Driver power seat |
| 61 | 30A** | Passenger power seat |
| 62 | – | Not used |
| 63 | 40A** | Blower motor |
| 64 | 20A** | Cigar lighter/Power point |
| 65 | 20A** | Cigar lighter/Power point |
| 66 | 20A** | Cigar lighter/Power point |
| 67 | – | Not used |
| 68 | 15A* | Fuel pump |
| 69 | – | Not used |
| 70 | – | Not used |
| 71 | 10A* | Stop lamps |
| 72 | – | Not used |
| * Mini Fuses ** Cartridge Fuses | ||
2008
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2008)
| № | A | Description |
|---|---|---|
| 1 | 30A | Not used (Spare) |
| 2 | 15A | Not used (Spare) |
| 3 | 15A | Family entertainment system (FES)/ Rear seat control, SYNC |
| 4 | 30A | Driver front smart window |
| 5 | 10A | Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI) |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps ( left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All wheel drive |
| 12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – Keep alive power (KA) |
| 13 | 5A | Not used (Spare) |
| 14 | 10A | Power liftgate module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All power lock motor feeds, Liftgate release, Moon roof |
| 18 | 20A | Not used (Spare) |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps/Interior lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Overdrive cancel switch |
| 31 | 10A | Automatic dimming rear view mirror |
| 32 | 10A | Not used (Spare) |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Steering angle sensor |
| 35 | 10A | Rear park assist, AWD, Heated seat module |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Not used (Spare) |
| 41 | 15A | Delayed accessory function for radio and lock switch illumination |
| 42 | 10A | Not used (Spare) |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Customer accessory feed |
| 45 | 5A | Front wiper logic, Climate control relay feed |
| 46 | 7.5A | Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2008)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Blower motor relay |
| 3 | – | Not used |
| 4 | – | Not used |
| 5 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 6 | 40A** | Cooling fan (trailer tow only) |
| 7 | – | Not used |
| 8 | 10A* | Alternator |
| 9 | 20A* | Trailer tow parking lamps |
| 10 | – | Not used |
| 11 | – | Trailer tow parking lamp relay |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 40A** | ABS pump motor |
| 16 | 30A** | Front heated seats |
| 17 | 20A** | Cigar lighter/Power point |
| 18 | 20A** | Panorama moon roof |
| 19 | – | Fuel pump diode |
| 20 | – | PCM relay |
| 21 | 7.5A* | PCM – Keep alive power (KA) |
| 22 | – | Trailer tow left stop/turn lamp relay |
| 23 | – | One touch integrated start (OTIS) diode |
| 24 | 10A* | Trailer tow left stop/turn lamp |
| 25 | – | Rear seat release relay |
| 26 | – | Fuel pump relay |
| 27 | 10A* | Rear seat release |
| 28 | 15A* | Heated mirror |
| 29 | – | Heated mirror relay |
| 30 | 15A* | VPWR 1 – PCM |
| 31 | 10A* | VPWR 3 – PCM |
| 32 | 10A* | VPWR 2 – PCM |
| 33 | 15A* | VPWR 4 – PCM |
| 34 | – | Not used |
| 35 | 10A* | A/C clutch |
| 36 | – | Not used |
| 37 | – | A/C clutch relay |
| 38 | – | Rear window defroster relay |
| 39 | 40A** | Rear window defroster |
| 40 | – | Not used |
| 41 | 30A** | Starter |
| 42 | – | Starter relay |
| 43 | – | Backup lamp relay |
| 44 | 10A* | Backup lamps |
| 45 | – | Not used |
| 46 | 10A* | Trailer tow right stop/turn lamp |
| 47 | – | Trailer tow right stop/turn lamp relay |
| 48 | – | Run/Start relay |
| 49 | 10A* | PCM ISPR |
| 50 | 10A* | ABS Run/Start |
| 51 | – | Not used |
| 52 | 5A* | Fuel pump relay coil |
| 53 | 30A** | SPDJB Run/Start |
| 54 | – | Not used |
| 55 | – | Not used |
| 56 | – | A/C clutch diode |
| 57 | 40A** | ABS valves |
| 58 | 30A** | Front wipers |
| 59 | 30A** | Power liftgate |
| 60 | 30A** | Driver power seat |
| 61 | 30A** | Passenger power seat |
| 62 | – | Not used |
| 63 | 40A** | Blower motor |
| 64 | 20A** | Cigar lighter/Power point |
| 65 | 20A** | Cigar lighter/Power point |
| 66 | 20A** | Cigar lighter/Power point |
| 67 | – | Not used |
| 68 | 15A* | Fuel pump |
| 69 | – | Not used |
| 70 | – | Not used |
| 71 | 10A* | Stop lamps |
| 72 | – | Not used |
| * Mini Fuses ** Cartridge Fuses | ||
2009
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2009)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Not used (Spare) |
| 2 | 15A | Not used (Spare) |
| 3 | 15A | SYNC |
| 4 | 30A | Driver front smart window |
| 5 | 10A | Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI), Smart junction box (SJB) |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps, Ambient lighting |
| 11 | 10A | All wheel drive |
| 12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – Keep alive power (KA) |
| 13 | 5A | Satellite radio |
| 14 | 10A | Power liftgate module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All power lock motor feeds, Liftgate release |
| 18 | 20A | Heated seats, Four channel amp (Audiophile amp) |
| 19 | 25A | Rear wiper |
| 20 | 15A | DataHnk |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Overdrive cancel switch |
| 31 | 10A | Automatic dimming rear view mirror |
| 32 | 10A | Not used (Spare) |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Steering angle sensor |
| 35 | 10A | Rear park assist, AWD, Heated seat module |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Not used (Spare) |
| 41 | 15A | Delayed accessory function for radio and lock switch illumination, Ambient lighting |
| 42 | 10A | Not used (Spare) |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Customer accessory feed |
| 45 | 5A | Front wiper logic, Climate control relay feed |
| 46 | 7.5A | Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2009)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Blower motor relay |
| 3 | – | Not used |
| 4 | – | Not used |
| 5 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 6 | 40A** | Cooling fan (trailer tow only) |
| 7 | – | Not used |
| 8 | 10A* | Alternator |
| 9 | 20A* | Trailer tow parking lamps |
| 10 | – | Not used |
| 11 | – | Trailer tow parking lamp relay |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 40A** | ABS pump motor |
| 16 | 30A** | Front heated seats |
| 17 | 20A** | Cigar lighter/Power point |
| 18 | 20A** | Panoramic moon roof |
| 19 | – | Fuel pump diode |
| 20 | – | Powertrain control module (PCM) relay |
| 21 | 7.5A* | PCM – Keep alive power (KA) |
| 22 | – | Trailer tow left stop/turn lamp relay |
| 23 | – | One-touch integrated start diode |
| 24 | 10A* | Trailer tow left stop/turn lamp |
| 25 | – | Rear seat release relay |
| 26 | – | Fuel pump relay |
| 27 | 10A* | Rear seat release |
| 28 | 15A* | Heated mirror |
| 29 | – | Heated mirror relay |
| 30 | 15A* | VPWR 1 – PCM |
| 31 | 10A* | VPWR 3 – PCM |
| 32 | 10A* | VPWR 2 – PCM |
| 33 | 15A* | VPWR 4 – PCM |
| 34 | – | Not used |
| 35 | 10A* | A/C clutch |
| 36 | – | Not used |
| 37 | – | A/C clutch relay |
| 38 | – | Rear window defroster relay |
| 39 | 40A** | Rear window defroster |
| 40 | – | Not used |
| 41 | 30A** | Starter |
| 42 | – | Starter relay |
| 43 | – | Backup lamp relay |
| 44 | 10A* | Backup lamps |
| 45 | Not used | |
| 46 | 10A* | Trailer tow right stop/turn lamp |
| 47 | – | Trailer tow right stop/turn lamp relay |
| 48 | – | Run/Start relay |
| 49 | 10A* | PCM ISPR |
| 50 | 10A* | ABS Run/Start |
| 51 | – | Not used |
| 52 | 5A* | Fuel pump relay coil |
| 53 | 30A** | SPDJB Run/Start |
| 54 | – | Not used |
| 55 | – | Not used |
| 56 | – | A/C clutch diode |
| 57 | 40A** | ABS valves |
| 58 | 30A** | Front wipers |
| 59 | 30A** | Power liftgate |
| 60 | 30A** | Driver power seat |
| 61 | 30A** | Passenger power seat |
| 62 | – | Not used |
| 63 | 40A** | Blower motor |
| 64 | 20A** | Cigar lighter/Power point |
| 65 | 20A** | Cigar lighter/Power point |
| 66 | 20A** | Cigar lighter/Power point |
| 67 | – | Not used |
| 68 | 15A* | Fuel pump |
| 69 | – | Not used |
| 70 | – | Not used |
| 71 | 10A* | Stop lamps |
| 72 | – | Not used |
| * Mini Fuses ** Cartridge Fuses | ||
2010
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2010)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Not used (Spare) |
| 2 | 15A | High-mount brake lamp (brake on/off) |
| 3 | 15A | SYNC module |
| 4 | 30A | Driver front smart window |
| 5 | 10A | Keypad iUumination (2nd row seat), Brake shift interlock (BSI) |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All-wheel drive (AWD) |
| 12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – keep alive power |
| 13 | 5A | Satellite radio |
| 14 | 10A | Power liftgate – keep alive power |
| 15 | 10A | Climate control, GPS module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All power lock motor feeds, Liftgate release |
| 18 | 20A | Amplifier |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Override cancel |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Restraint control module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Steering angle sensor |
| 35 | 10A | Rear park assist, Yaw rate sensor, Heated seats |
| 36 | 5A | Passive anti-theft system transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/amplifier |
| 39 | 20A | Radio |
| 40 | 20A | Not used (spare) |
| 41 | 15A | Automatic dimming rear view mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Customer accessory feed |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI) light |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2010)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Blower motor relay |
| 3 | – | Not used |
| 4 | – | Not used |
| 5 | 40A** | Cooling fan (vehicles with trailer tow) |
| 60A** | Cooling fan (vehicles without trailer tow) | |
| 6 | 40A** | Cooling fan (trailer tow only) |
| 7 | – | Not used |
| 8 | 10A* | Alternator |
| 9 | 20A* | Trailer tow parking lamps |
| 10 | – | Not used |
| 11 | – | Trailer tow parking lamp relay |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 40A** | ABS pump motor |
| 16 | 30A** | Front heated seats |
| 17 | 20A** | Cigar lighter/Power point |
| 18 | 20A** | Panoramic moon roof |
| 19 | – | Fuel pump diode |
| 20 | – | Powertrain control module (PCM) relay |
| 21 | 7.5A* | PCM – keep alive power |
| 22 | – | Trailer tow left stop/turn lamp relay |
| 23 | – | One-touch integrated start diode |
| 24 | 10A* | Trailer tow left stop/turn lamp |
| 25 | – | Rear seat release relay |
| 26 | – | Fuel pump relay |
| 27 | 10A* | Rear seat release |
| 28 | 15A* | Heated mirror |
| 29 | – | Heated mirror relay |
| 30 | 15A* | Vehicle power 1 |
| 31 | 10A* | Vehicle power 3 |
| 32 | 10A* | Vehicle power 2 |
| 33 | 15A* | Vehicle power 4 |
| 34 | – | Not used |
| 35 | 10A* | A/C clutch |
| 36 | – | Not used |
| 37 | – | A/C clutch relay |
| 38 | – | Rear window defroster relay |
| 39 | 40A** | Rear window defroster |
| 40 | – | Not used |
| 41 | 30A** | Starter |
| 42 | – | Starter relay |
| 43 | – | Backup lamp relay |
| 44 | 10A* | Backup lamps |
| 45 | – | Not used |
| 46 | 10A* | Trailer tow right stop/turn lamp |
| 47 | – | Trailer tow right stop/turn lamp relay |
| 48 | – | Run/start relay |
| 49 | 10A* | PCM ISPR |
| 50 | 10A* | ABS Run/start |
| 51 | – | Not used |
| 52 | 5A* | Fuel pump diode feed |
| 53 | 30A** | Passenger compartment fuse panel run/start |
| 54 | – | Not used |
| 55 | – | Not used |
| 56 | – | A/C clutch diode |
| 57 | 40A** | Anti-lock brake system valves |
| 58 | 30A** | Front wipers |
| 59 | 30A** | Power liftgate |
| 60 | 30A** | Driver power seat/memory module |
| 61 | 30A** | Passenger power seat |
| 62 | – | Not used |
| 63 | 40A** | Blower motor |
| 64 | 20A** | Cigar lighter/Power point |
| 65 | 20A** | Cigar lighter/Power point |
| 66 | 20A** | Cigar lighter/Power point |
| 67 | – | Not used |
| 68 | 15A* | Fuel pump |
| 69 | – | Not used |
| 70 | – | Not used |
| 71 | 10A* | Brake on/off switch (brake lights) |
| 72 | – | Not used |
| * Mini Fuses ** Cartridge Fuses | ||
Conclusion
The Ford Edge (2007-2010) combines style and practicality, supported by a dependable electrical system. Maintaining its fuse box and relays ensures peak performance.
