(2019-2024) Ford Edge (CD539) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford Edge (CD539) 2019-2024 fuse assignment

Ford Edge (CD539) Year of production: 2019, 2020, 2021, 2022, 2023, 2024

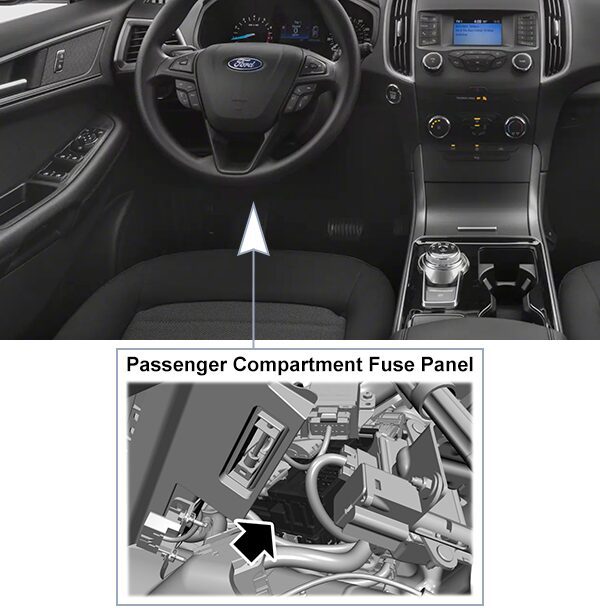

Ford Edge (CD539; 2019-2022): Passenger compartment fuse panel location

Passenger Compartment Fuse Panel:
The fuse panel is under the instrument panel to the left of the steering column. It may be easier to access the fuse panel if you remove the finish trim piece.

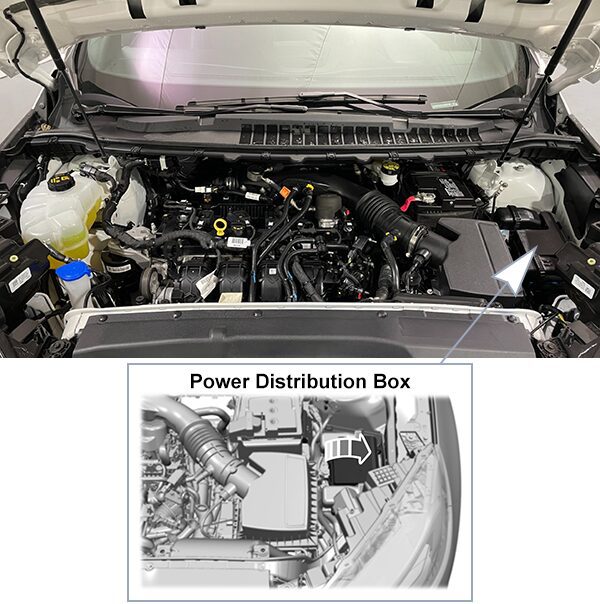

Ford Edge (CD539; 2019-2022): Engine compartment fuse box location

Power Distribution Box:
The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. If the battery has been disconnected and reconnected, some features need to be reset.
There is a 40A fuse on the cowl side engine harness that controls the all wheel drive module. If this fuse requires service, see an authorized dealer.

Ford Edge (CD539; 2019-2022): Engine compartment fuse box location

Power Distribution Box – Bottom:

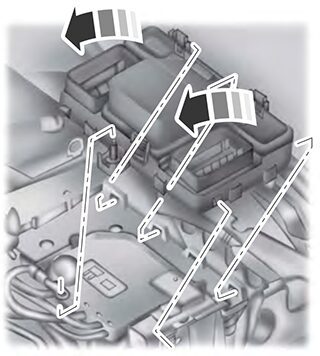

There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

  1. Release the latches on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

Fuse Box Diagrams

2019

Passenger Compartment Fuse Panel

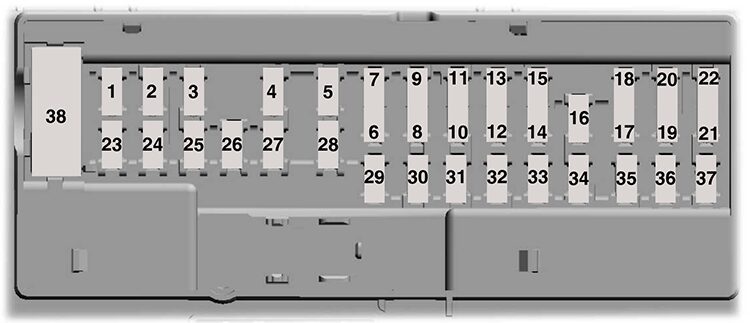

Ford Edge (CD539; 2019): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2019)

№AProtected Component
1–Not used.
27.5A1Memory seats. Lumbar. Wireless charger.
320A1Driver door unlock.
45A1Not used (spare).
520A1Audio amplifier.
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate moduie logic power. Hands free liftgate module. Embedded modem.
115A2Not used (spare).
127.5A2Climate control module. Gear shift module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Extended power module.
1510A2Datalink power.
1615A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
197.5A2Extended power module.
207.5A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification system.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock/unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Center stack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Not used (spare).
3615A1Auto-dimming rear view mirror. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3720A1Heated steering wheel module. Active front steering wheel.
3830A3Rear power Windows. Rear window switch illumination.
1 Micro 2 fuse.
2 Micro 3 fuse.
3 Circuit breaker.
Power Distribution Box

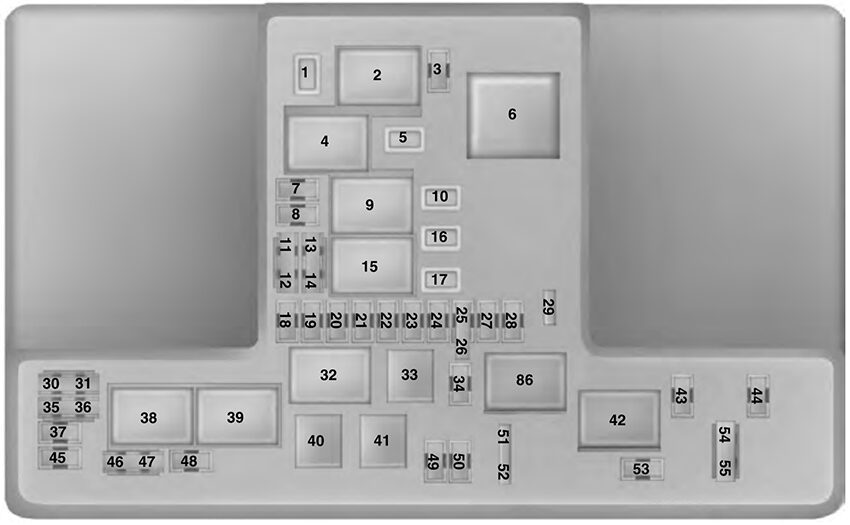

Ford Edge (CD539; 2019): Engine compartment fuse box diagram

List of fuses in the power distribution box (2019)

№AProtected Component
130A1Not used (spare).
2–Starter relay.
315A2Rear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520A1Power point 3 – back of console.
6–Not used.
720A2Powertrain control module – vehicle power 1.
820A2Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A1Power point 1 – driver front.
1115A3Powertrain control module – vehicle power 4.
1215A3Powertrain control module – vehicle power 3. All wheel drive module relay coil.
13–Not used.
14–Not used.
15–Run-start relay.
1520A1Power point 2 – console bin.
1720A1Power point 4 – luggage compartment.
1820A2Not used (spare).
1910A2Run-start electronic power assist steering.
2010A2Headlamp leveling motors.
2115A2Not used (spare).
2210A2Air conditioner clutch solenoid.
2315A2Run-start 6. Blind spot information system. Rear view camera. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A2Not used (spare).
2510A3Run-start anti-lock brake system.
2510A3Run-start powertrain control module.
27–Not used.
2810A2Rear washer pump.
295A2Not used (spare).
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A2Not used (spare).
35–Not used.
36–Not used.
3710A2Power transfer unit fan.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Low beam assumption relay.
42–Fuel pump relay.
4315A22nd row easy fold seat release.
4420A2Not used (spare).
45–Not used.
45–Not used.
47–Not used.
4815A2Steering column lock relay power.
49–Not used.
5020A2Horn.
51–Not used.
52–Not used.
53–Not used.
5410A3Brake on off switch.
5510A3Alternator sensor.
86–Not used.
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box – Bottom

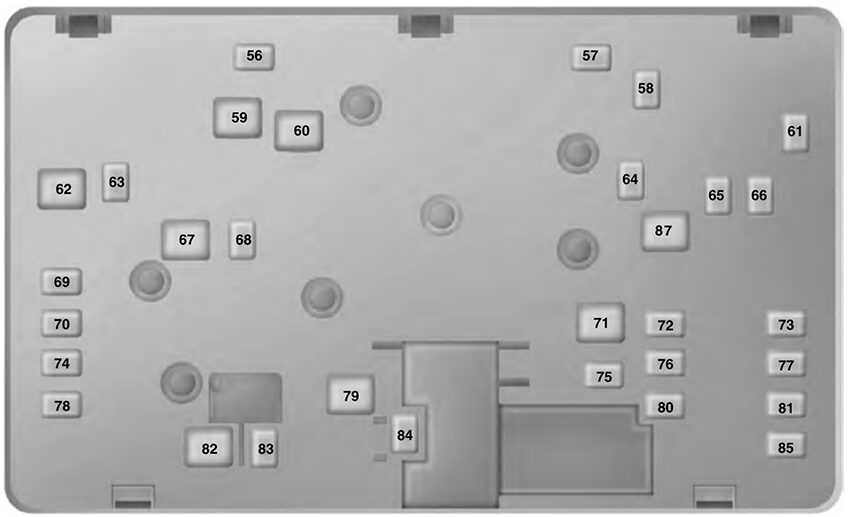

Ford Edge (CD539; 2019): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2019)

№AProtected Component
56–Not used.
57–Not used.
5830A1Fuel pump feed.
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
6615A1Heated wiper park.
6750A2Body control module 2.
6840A1Heated rearwindow.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Not used (spare).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power liftgate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
8760A2Anti-lock brake system pump.
1 M case fuse.
2 J case fuse.

2020

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2020): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2020)

№AProtected Component
1–Not used.
27.5A1Memory seats. Lumbar. Wiretess charger.
320A1Driver door unlock.
45A1Not used (spare).
520A1Audio amplifier.
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate module logic power. Hands free liftgate module. Embedded modem.
115A2Not used (spare).
127.5A2Climate control module. Gear shift module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Extended power module.
1510A2Datalink power.
1515A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
197.5A2Extended power module.
207.5A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification system.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock/unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Center stack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Not used (spare).
3615A1Auto-dimming rear view mirror. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3720A1Heated steering wheel module. Active front steering wheel.
3830A3Rear power Windows. Rear window switch illumination.
1 Micro 2 fuse.
2 Micro 3 fuse.
3 Circuit breaker
Power Distribution Box
Ford Edge (CD539; 2020): Engine compartment fuse box diagram

List of fuses in the power distribution box (2020)

№AProtected Component
130A1Not used (spare).
2–Starter relay.
315A2Rear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520A1Power point 3 – back of console.
6–Not used.
720A2Powertrain control module – vehicle power 1.
820A2Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A1Power point 1 – driver front.
1115A3Powertrain control module – vehicle power 4.
1215A3Powertrain control module – vehicle power 3. All wheel drive module relay coil.
13–Not used.
14–Not used.
15–Run-start relay.
1620A1Power point 2 – console bin.
1720A1Power point 4 – luggage compartment.
1820A2Not used (spare).
1910A2Run-start electronic power assist steering.
2010A2Headlamp leveling motors.
2115A2Not used (spare).
2210A2Air conditioner clutch solenoid.
2315A2Run-start 6. Blind spot Information system. Rear view camera. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A2Not used (spare).
2510A3Run-start anti-lock brake system.
2610A3Run-start powertrain control module.
27–Not used.
2810A2Rear washer pump.
295A2Not used (spare).
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A2Not used (spare).
35–Not used.
36–Not used.
3710A2Power transfer unit fan.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Low beam assumption reiay.
42–Fuel pump relay.
4315A22nd row easy fold seat release.
4420A2Not used (spare).
45–Not used.
46–Not used.
47–Not used.
4815A2Steering coluimn lock relay power.
49–Not used.
5020A2Horn.
51–Not used.
52–Not used.
53–Not used.
5410A3Brake on off switch.
5510A3Alternator sensor.
85–Not used.
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse
Power Distribution Box – Bottom
Ford Edge (CD539; 2020): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2020)

№AProtected Component
56–Not used.
57–Not used.
5830A1Fuel pump feed.
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
6615A1Heated wiper park.
6750A2Body control module 2.
6840A1Heated rear window.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Not used (spare).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power liftgate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
8750A2Anti-lock brake system pump.
1 M case fuse.
2 J case fuse

2021

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2021): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2021)

№AProtected Component
1–Not used.
210ADelayed accessory – power inverter logic, moonroof logic and driver window switch power.
37.5AMemory seats. Lumbar. Wireless accessory charging.
420ASubwoofer amplifier.
5–Not used.
610ANot used (spare).
710AGearshift module.
85APower liftgate module. Hands free liftgate module. Embedded modem.
95AKeypad.
10–Not used.
11–Not used.
127.5AClimate control module. Enhanced central gateway module.
137.5AInstrument cluster. Steering column control module.
1415ANot used (spare).
1515ASYNC module.
15–Not used.
177.5AHeadlamp control module.
187.5ANot used (spare).
195ANot used (spare).
205APush button ignition switch.
215AIn-vehicle temperature and humidity sensor.
225ANot used (spare).
2330ADriver door window and mirror. Driver door module. Driver door lock indicator. Driver lock switch illumination.
2430AMoonroof.
2520AAmplifier.
2630AFront passenger door window and mirror. Front passenger door module. Front passenger lock indicator. Front passenger switch illumination.
2730ANot used (spare).
2830ANot used (spare).
2915AEnhanced central gateway power – OBD connector.
305ANot used (spare).
3110ARadio transceiver module. Multi-function display. Integrated control panei.
3220ARadio.
33–Not used.
3430ARun-start bus (fuse 17, 18, 21, 22, 35, 36, 37, Circuit breaker 38).
355APassenger airbag deactivation indicator.
3615ARear heated seat module.
3720AHeated steering wheel. Auto-dimming interior mirror. Automatic high beam and lane departure mirror module.
3830ACircuit breaker. Right-hand rear window power. Left-hand rear window power.
Power Distribution Box
Ford Edge (CD539; 2021): Engine compartment fuse box diagram

List of fuses in the power distribution box (2021)

№AProtected Component
1–Not used.
2–Starter relay.
315ARear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520APower point 3 – back of console.
6–Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2. Canister vent. Vapor blocking valve. Heated oxygen post.
9–Powertrain control module relay.
1020APower point 1 – driver front.
1115APowertrain control module – vehicle power 4.
1215APowertrain control module – vehicle power 3. All-wheel drive module relay coil. Active grille shutters. Active transmission warm up. Auxiliary cooling pump. Electric compressor bypass. Vacuum on demand valve. A/C compressor.
13–Not used.
14–Not used.
15–Run-start relay.
1620APower point 2 – console bin.
1720APower point 4 – luggage compartment.
18–Not used.
1910ARun-start electronic power assist steering.
2010AHeadlamp leveling.
21–Not used.
2210AAir conditioner clutch solenoid.
2315ABlind spot information system. Rear view camera. Forward looking radar. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
24–Not used.
2510ARun-start anti-lock brake system.
2610ARun-start powertrain control module.
27–Not used.
2810ARear window washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
34–Not used.
35–Not used.
36–Not used.
37–Not used.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Steering column lock relay.
42–Fuel pump relay.
4310A2nd row easy fold seat release.
44–Not used.
45–Not used.
46–Not used.
47–Not used.
4815ASteering column lock relay power.
49–Not used.
5020AHorn.
51–Not used.
52–Not used.
53–Not used.
5410ABrake on-off switch.
5510AAlternator sensor.
86–Not used.
Power Distribution Box – Bottom
Ford Edge (CD539; 2021): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2021)

№AProtected Component
56–Not used.
57–Not used.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61–Not used.
6250ABody control module 1.
6325AElectronic fan 2.
64–Not used.
6520AFront heated seat.
6615ANot used (spare).
6750ABody control module 2.
6840AHeated rear window.
6930AAnti-lock brake system valves.
7030APassenger seat.
71–Not used.
72–Not used.
7320ARear heated seats.
7430ADriver seat module. Driver seat power.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 V inverter.
82–Not used.
83–Not used.
8430AStarter motor solenoid.
85–Not used.
8760AAnti-lock brake system pump.

2022

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2022): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2022)

№AProtected Component
1–Not used.
210ADelayed accessory – power inverter logic, moonroof logic and driver window switch power.
37.5AMemory seats. Lumbar. Wireless accessory charging.
420ASubwoofer amplifier.
5–Not used.
610ANot used (spare).
710AGearshift module.
85APower liftgate module. Hands free liftgate module. Embedded modem.
95AKeypad.
10–Not used.
11–Not used.
127.5AClimate control module. Enhanced central gateway module.
137.5AInstrument cluster. Steering column control module.
1415ANot used (spare).
1515ASYNC module.
16–Not used.
177.5AHeadlamp control module.
187.5ANot used (spare).
195ANot used (spare).
205APush button ignition switch.
215AIn-vehicle temperature and humidity sensor.
225ANot used (spare).
2330ADriver door window and mirror. Driver door module. Driver door lock indicator. Driver lock switch illumination.
2430AMoonroof.
2520AAmplifier.
2630AFront passenger door window and mirror. Front passenger door module. Front passenger lock indicator. Front passenger switch illumination.
2730ANot used (spare).
2830ANot used (spare).
2915AEnhanced central gateway power – OBD connector.
305ANot used (spare).
3110ARadio transceiver moduie. Multi-function display. Integrated control panei.
3220ARadio.
33–Not used.
3430ARun-start bus (fuse 17, 18, 21, 22, 35, 36, 37, Circuit breaker 38).
355APassenger airbag deactivation indicator.
3615ARear heated seat module.
3720AHeated steering wheel. Auto-dimming interior mirror. Automatic high beam and lane departure mirror module.
3830ACircuit breaker. Right-hand rear window power. Left-hand rear window power.
Power Distribution Box
Ford Edge (CD539; 2022): Engine compartment fuse box diagram

List of fuses in the power distribution box (2022)

№AProtected Component
1–Not used.
2–Starter relay.
315ARear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520APower point 3 – back of console.
6–Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2. Canister vent. Vapor blocking valve. Heated oxygen post.
9–Powertrain control module relay.
1020APower point 1 – driver front.
1115APowertrain control module – vehicle power 4.
1215APowertrain control module – vehicle power 3. All-wheel drive module relay coil. Active grille shutters. Active transmission warm up. Auxiliary cooling pump. Electric compressor bypass. Vacuum on demand valve. A/C compressor.
13–Not used.
14–Not used.
15–Run-start relay.
1620APower point 2 – console bin.
1720APower point 4 – luggage compartment.
18–Not used.
1910ARun-start electronic power assist steering.
2010AHeadlamp leveling.
21–Not used.
2210AAir conditioner clutch solenoid.
2315ABlind spot information system. Rear view camera. Forward looking radar. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
24–Not used.
2510ARun-start anti-lock brake system.
2610ARun-start powertrain control module.
27–Not used.
2810ARear window washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
34–Not used.
35–Not used.
36–Not used.
37–Not used.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Steering column lock relay.
42–Fuel pump relay.
4310A2nd row easy fold seat release.
44–Not used.
45–Not used.
46–Not used.
47–Not used.
4815ASteering column lock relay power.
49–Not used.
5020AHorn.
51–Not used.
52–Not used.
53–Not used.
5410ABrake on-off switch.
5510AAlternator sensor.
86–Not used.
Power Distribution Box – Bottom
Ford Edge (CD539; 2022): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2022)

№AProtected Component
56–Not used.
57–Not used.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61–Not used.
6250ABody control module 1.
6325AElectronic fan 2.
64–Not used.
6520AFront heated seat.
6615ANot used (spare).
6750ABody control module 2.
6840AHeated rearwindow.
6930AAnti-lock brake system valves.
7030APassenger seat.
71–Not used.
72–Not used.
7320ARear heated seats.
7430ADriver seat module. Driver seat power.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 V inverter.
82–Not used.
83–Not used.
8430AStarter motor solenoid.
85–Not used.
8760AAnti-lock brake system pump.

2023

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2023): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2023)

№AProtected Component
1–Not used.
210ADelayed accessory – power inverter logic, moonroof logic and driver window switch power.
37.5AMemory seats. Lumbar. Wireless accessory charging.
420ASubwoofer amplifier.
5–Not used.
610ANot used (spare).
710AGearshift module.
85APower liftgate module. Hands free liftgate module. Embedded modem.
95AKeypad.
10–Not used.
11–Not used.
127.5AClimate control module. Enhanced central gateway module.
137.5AInstrument cluster. Steering column control module.
1415ANot used (spare).
1515ASYNC module.
15–Not used.
177.5AHeadlamp control module.
187.5ANot used (spare).
195ANot used (spare).
205APush button ignition switch.
215AIn-vehicle temperature and humidity sensor.
225ANot used (spare).
2330ADriver door window and mirror. Driver door module. Driver door lock indicator. Driver lock switch illumination.
2430AMoonroof.
2520AAmplifier.
2630AFront passenger door window and mirror. Front passenger door module. Front passenger lock indicator. Front passenger switch illumination.
2730ANot used (spare).
2830ANot used (spare).
2915AEnhanced central gateway power – OBD connector.
305ANot used (spare).
3110ARadio transceiver module. Multi-function display. Integrated control panel.
3220ARadio.
33–Not used.
3430ARun-start bus (fuse 17, 18, 21, 22, 35, 36, 37, Circuit breaker 38).
355APassenger airbag deactivation indicator.
3615ARear heated seat module.
3720AHeated steering wheel. Auto-dimming interior mirror. Automatic high beam and lane departure mirror module.
3830ACircuit breaker. Right-hand rear window power. Left-hand rear window power.
Power Distribution Box
Ford Edge (CD539; 2023): Engine compartment fuse box diagram

List of fuses in the power distribution box (2023)

№AProtected Component
1–Not used.
2–Starter relay.
315ARear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520APower point 3 – back of console.
6–Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2. Canister vent. Vapor blocking valve. Heated oxygen post.
9–Powertrain control module relay.
1020APower point 1 – driver front.
1115APowertrain control module – vehicle power 4.
1215APowertrain control module – vehicle power 3. All-wheel drive module relay coil. Active grille shutters. Active transmission warm up. Auxiliary cooling pump. Electric compressor bypass. Vacuum on demand valve. A/C compressor.
13–Not used.
14–Not used.
15–Run-start relay.
1620APower point 2 – console bin.
1720APower point 4 – luggage compartment.
18–Not used.
1910ARun-start electronic power assist steering.
2010AHeadlamp leveling.
21–Not used.
2210AAir conditioner clutch solenoid.
2315ABlind spot information system. Rear view camera. Forward looking radar. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
24–Not used.
2510ARun-start anti-lock brake system.
2610ARun-start powertrain control module.
27–Not used.
2810ARear window washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
34–Not used.
35–Not used.
36–Not used.
37–Not used.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Steering column lock relay.
42–Fuel pump relay.
4310A2nd row easy fold seat release.
44–Not used.
45–Not used.
46–Not used.
47–Not used.
4815ASteering column lock relay power.
49–Not used.
5020AHorn.
51–Not used.
52–Not used.
53–Not used.
5410ABrake on-off switch.
5510AAlternator sensor.
86–Not used.
Power Distribution Box – Bottom
Ford Edge (CD539; 2023): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2023)

№AProtected Component
56–Not used.
57–Not used.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61–Not used.
6250ABody control module 1.
6325AElectronic fan 2.
64–Not used.
6520AFront heated seat.
6615ANot used (spare).
6750ABody control module 2.
6840AHeated rear window.
6930AAnti-lock brake system valves.
7030APassenger seat.
71–Not used.
72–Not used.
7320ARear heated seats.
7430ADriver seat module. Driver seat power.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 V inverter.
82–Not used.
83–Not used.
8430AStarter motor solenoid.
85–Not used.
8760AAnti-lock brake system pump.

2024

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2024): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2024)

№AProtected Component
1–Not used.
210ADelayed accessory – power inverter logic, moonroof logic and driver window switch power.
37.5AMemory seats. Lumbar. Wireless accessory charging.
420ASubwoofer amplifier.
5–Not used.
610ANot used (spare).
710AGearshift module.
85APower liftgate module. Hands free liftgate module. Embedded modem.
95ANot used (spare).
10–Not used.
11–Not used.
127.5AClimate control module. Enhanced central gateway module.
137.5AInstrument cluster. Steering column control module.
1415ANot used (spare).
1515ASYNC module.
16–Not used.
177.5AHeadlamp control module.
187.5ANot used (spare).
195ANot used (spare).
205APush button ignition switch.
215AIn-vehicle temperature and humidity sensor.
225ANot used (spare).
2330ADriver door window and mirror. Driver door module. Driver door lock indicator. Driver lock switch illumination.
2430AMoonroof.
2520AAmplifier.
2630AFront passenger door window and mirror. Front passenger door module. Front passenger lock indicator. Front passenger switch illumination.
2730ANot used (spare).
2830ANot used (spare).
2915AEnhanced central gateway power – OBD connector.
305ANot used (spare).
3110ARadio transceiver module. Multi-function display. Integrated control panei.
3220ARadio.
33–Not used.
3430ARun-start bus (fuse 17, 18, 21, 22, 35, 36, 37, Circuit breaker 38).
355APassenger airbag deactivation indicator.
3615ARear heated seat module.
3720AHeated steering wheel. Auto-dimming interior mirror. Automatic high beam and lane departure mirror module.
3830ACircuit breaker. Right-hand rear window power. Left-hand rear window power.
Power Distribution Box
Ford Edge (CD539; 2024): Engine compartment fuse box diagram

List of fuses in the power distribution box (2024)

№AProtected Component
1–Not used.
2–Starter relay.
315ARear wiper. Rain sensor. Rear washer pump relay coil.
4–Blower motor relay.
520APower point 3 – back of console.
6–Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2. Canister vent. Vapor blocking valve. Heated oxygen post.
9–Powertrain control module relay.
1020APower point 1 – driver front.
1115APowertrain control module – vehicle power 4.
1215APowertrain control module – vehicle power 3. All-wheel drive module relay coil. Active grille shutters. Active transmission warm up. Auxiliary cooling pump. Electric compressor bypass. Vacuum on demand valve. A/C compressor.
13–Not used.
14–Not used.
15–Run-start relay.
1520APower point 2 – console bin.
1720APower point 4 – luggage compartment.
18–Not used.
1910ARun-start electronic power assist steering.
2010AHeadlamp leveling.
21–Not used.
2210AAir conditioner clutch solenoid.
2315ABlind spot information system. Rear view camera. Forward looking radar. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
24–Not used.
2510ARun-start anti-lock brake system.
2510ARun-start powertrain control module.
27–Not used.
2810ARear window washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
34–Not used.
35–Not used.
36–Not used.
37–Not used.
38–Electronic fan 2 relay.
39–Electronic fan 3 relay.
40–Horn relay.
41–Steering column lock relay.
42–Fuel pump relay.
4310A2nd row easy fold seat release.
44–Not used.
45–Not used.
46–Not used.
47–Not used.
4815ASteering column lock relay power.
49–Not used.
5020AHorn.
51–Not used.
52–Not used.
53–Not used.
5410ABrake on-off switch.
5510AAlternator sensor.
86–Not used.
Power Distribution Box – Bottom
Ford Edge (CD539; 2024): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2024)

№AProtected Component
56–Not used.
57–Not used.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61–Not used.
6250ABody control module 1.
6325AElectronic fan 2.
64–Not used.
6520AFront heated seat.
6615ANot used (spare).
6750ABody control module 2.
6840AHeated rearwindow.
6930AAnti-lock brake system valves.
7030APassenger seat.
71–Not used.
72–Not used.
7320ARear heated seats.
7430ADriver seat module. Driver seat power.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 V inverter.
82–Not used.
83–Not used.
8430AStarter motor solenoid.
85–Not used.
8760AAnti-lock brake system pump.

Conclusion

The Ford Edge (2019-2024) combines sleek design with advanced technology. Maintaining its fuse box and relays is key to ensuring reliable electrical performance.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *
