Find the fuse box and relay locations for the Ford Edge (2015-2018) with clear diagrams. Keep your SUV’s electrical systems running reliably with professional guidance.

The Ford Edge (CD539) from 2015 to 2018 is a midsize crossover SUV known for its bold design, spacious interior, and impressive performance. Featuring a five-door body style, the Edge offers comfortable seating for up to five passengers, making it ideal for families and commuters. Its aerodynamic styling, along with advanced technology and safety features, ensures both style and functionality. Trim levels range from the practical SE to the sportier ST-Line, catering to different preferences and lifestyles.

The electrical systems in the Edge rely on a well-structured fuse box and relay system for seamless operation. The primary fuse box is located under the hood, near the driver’s side, and protects vital components like the engine cooling fan, headlights, and ignition. A secondary fuse panel is inside the cabin, beneath the dashboard, controlling interior systems such as the infotainment, power seats, and windows. Relays, situated alongside the fuses, regulate higher-power systems like the fuel pump and starter motor. Regular checks of the fuse box and relays ensure reliability and prevent potential electrical failures.

MUST READ: DYI – How to Check Car Fuses?

(2015-2018) Ford Edge (CD539) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford Edge (CD539) 2015-2018 fuse assignment

Ford Edge (CD539) Year of production: 2015, 2016, 2017, 2018

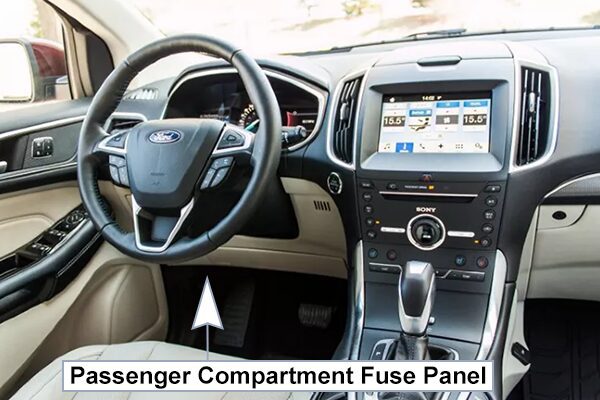

Ford Edge (CD539; 2015-2018): Passenger compartment fuse panel location

Passenger Compartment Fuse Panel:
The fuse panel is located under the instrument panel to the left of the steering column. It may be easier to access the fuse panel if you remove the finish trim piece.

Ford Edge (CD539; 2015-2018): Engine compartment fuse box location

Power Distribution Box:
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. If the battery has been disconnected and reconnected, some features will need to be reset.

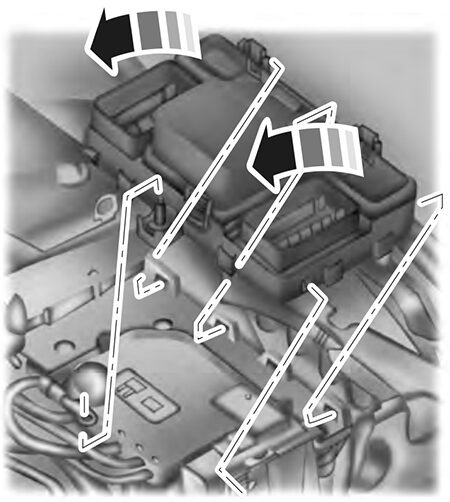

Ford Edge (CD539; 2015-2018): Engine compartment fuse box location

Power Distribution Box – Bottom:
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

  1. Release the two latches, located on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

Fuse Box Diagrams

2015

Passenger Compartment Fuse Panel

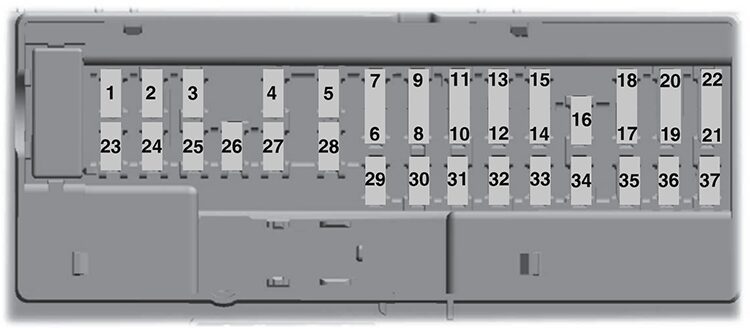

Ford Edge (CD539; 2015): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2015)

№AProtected components
110A1Demand lighting (glove box, vanity, dome). Battery saver relay coil. Second row easy fold relay coil.
27.5A1Memory seats. Lumbar. Driver seat module logic power.
320A1Driver door unlock.
45A1Not used (spare).
520A1Not used (spare).
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate module logic power. Hands free liftgate module.
115A2Not used (spare).
127.5A2Climate control module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Not used (spare).
1510A2Datalink power.
1515A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
197.5A2Not used (spare).
207.5A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification sensor.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2530A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Global positioning system. Centerstack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Restraints control module.
3615A1Auto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3715A1Heated steering wheel module.
3830A3Rear power Windows. Rear window switch illumination.
1 Micro fuse.
2 Dual micro fuse.
3 Circuit breaker
Power Distribution Box
Ford Edge (CD539; 2015): Engine compartment fuse box diagram

List of fuses in the power distribution box (2015)

№AProtected components
130A3Not used (spare).
2–Starter relay.
315A1Rear wiper. Rain sensor Rear washer pump relay coil.
4–Blower motor relay.
520A3Power point 3 – back of console.
6–Not used.
720A1Powertrain control module – vehicle power 1.
820A1Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A3Power point 1 – driver front.
1115A2Powertrain control module – vehicle power 4.
1215A2Powertrain control module – vehicle power 3.
13–Not used.
14–Not used.
15–Run-start relay.
1620A3Power point 2 – console bin.
1720A3Power point 4 – luggage compartment.
1820A1RH HID headlamp.
1910A1Run-start electronic power assist steering.
2010A1Run/start lighting.
2115A1Transmission oil pump logic power (start/ stop).
2210A1Air conditioner clutch solenoid.
2315A1Run-start 6. Blind spot information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A1Not used (spare).
2510A2Run-start anti-lock brake system.
2510A2Run-start powertrain control module.
27–Not used.
2810A1Rear washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A1Not used (spare).
35–Not used.
36–Not used.
3710A1Power transfer unit fan.
38–Electronic fan 2 relay
39–Electric fan 3 relay.
40–Horn relay.
41–Not used.
42–Fuel pump reiay.
4310A12nd row easy fold seat retease.
4420A1LH HID headlamp.
45–Not used.
46–Not used.
47–Not used.
48–Not used.
49–Not used.
5020A1Horn.
51–Not used.
52–Not used.
53–Not used.
5410A2Brake on off switch.
5510A2ALT sensor.
1 Micro fuse.
2 Dual micro fuse.
3 M-type fuse.
Power Distribution Box – Bottom

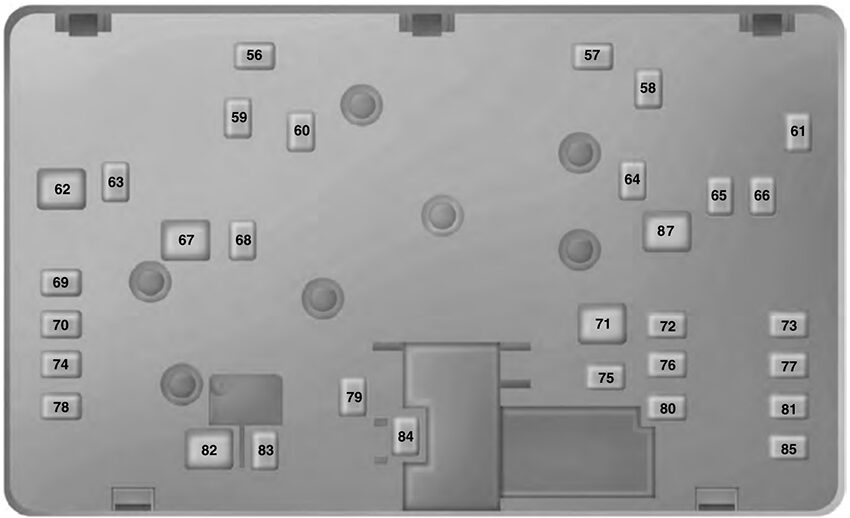

Ford Edge (CD539; 2015): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2015)

№AProtected components
56–Not used.
57–Not used.
5830A1Fuel pump feed. Port fuel injectors (3.5L).
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
66–Not used.
6750A2Body control module 2.
6840A1Heated rearwindow.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Transmission oil pump (start/stop).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power lift-gate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
85–Not used.
8760A2Anti-lock brake system pump.
1 M-type fuse.
2 J-type fuse.

2016

Passenger Compartment Fuse Panel

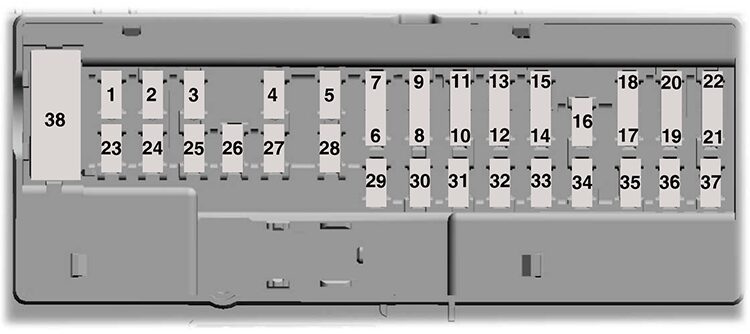

Ford Edge (CD539; 2016): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2016)

№AProtected components
110A1Demand lighting (glove box, vanity, dome). Battery saver relay coil. Second row easy fold relay coil.
27.5A1Memory seats. Lumbar. Driver seat module logic power.
320A1Driver door unlock.
45A1Not used (spare).
520A1Not used (spare).
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate module logic power. Hands free liftgate module.
115A2Not used (spare).
127.5A2Climate control module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Not used (spare).
1510A2Datalink power.
1515A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
1975A2Not used (spare).
2075A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification sensor.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Global positioning systeim. Center stack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Restraints control module.
3515A1Auto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3720A1Heated steering wheel module. Active front steering wheel.
3830A3Rear power Windows. Rear window switch illumination.
1Micro fuse.
2Dual micro fuse.
3Circuit breaker.
Power Distribution Box
Ford Edge (CD539; 2016): Engine compartment fuse box diagram

List of fuses in the power distribution box (2016)

№AProtected components
130A3Not used (spare).
2–Starter relay.
315A1Rear wiper. Rain sensor Rear washer pump relay coil.
4–Blower motor relay.
520A3Power point 3 – back of console.
6–Not used.
720A1Powertrain control module – vehicle power 1.
820A1Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A3Power point 1 – driver front.
1115A2Powertrain control module – vehicle power 4.
1215A2Powertrain control module – vehicle power 3.
13–Not used.
14–Not used.
15–Run-start relay.
1620A3Power point 2 – console bin.
1720A3Power point 4 – luggage compartment.
1820A1RH HID headlamp.
1910A1Run-start electronic power assist steering.
2010A1Run/start lighting. Headlamp leveling switch.
2115A1Transmission oiL pump logic power (start/ stop).
2210A1Air conditioner clutch solenoid.
2315A1Run-start 6. Blind spot Information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A1Not used (spare).
2510A2Run-start anti-lock brake system.
2610A2Run-start powertrain control module.
27–Not used.
2810A1Rear washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A1Not used (spare).
35–Not used.
36–Not used.
3710A1Power transfer unit fan.
38–Electronic fan 2 relay
39–Electric fan 3 relay.
40–Horn relay.
41–Not used.
42–Fuel pump relay.
4310A12nd row easy fold seat release.
4420A1LH HID headlamp.
45–Not used.
46–Not used.
47–Not used.
4815A1Steering coluimn lock.
49–Not used.
5020A1Horn.
51–Not used.
52–Not used.
53–Not used.
5410A2Brake on off switch.
5510A2ALT sensor.
1Micro fuse.
2Dual micro fuse.
3M-type fuse.
Power Distribution Box – Bottom
Ford Edge (CD539; 2016): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2016)

№AProtected components
56–Not used.
57–Not used.
5830A1Fuel pump feed. Port fuel injectors (3.5L).
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
6615A1Not used (spare).
6750A2Body control module 2.
6840A1Heated rear window.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Transmission oil pump (start/stop).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power lift-gate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
86–Not used.
8760A2Anti-lock brake system pump.
1 M-type fuse.
2 J-type fuse.

2017

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2017): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2017)

№AProtected Components
110A1Demand lighting (glove box, vanity, dome). Battery saver relay coil. Second row easy fold relay coil.
27.5A1Memory seats. Lumbar. Driver seat module logic power.
320A1Driver door unlock.
45A1Not used (spare).
520A1Not used (spare).
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate module logic power. Hands free liftgate module.
115A2Not used (spare).
127.5A2Climate control module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Extended power module.
1510A2Datalink power.
1615A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
1975A2Extended power module.
2075A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification system.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock/unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Global positioning systeim. Center stack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Not used (spare).
3615A1Auto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3720A1Heated steering wheel module. Active front steering wheel.
3830A3Rear power Windows. Rear window switch illumination.
1 Micro 2 fuse.
2 Micro 3 fuse.
3 Circuit breaker.
Power Distribution Box
Ford Edge (CD539; 2017): Engine compartment fuse box diagram

List of fuses in the power distribution box (2017)

№AProtected Components
130A1Not used (spare).
2–Starter relay.
315A2Rear wiper. Rain sensor Rear washer pump relay coil.
4–Blower motor relay.
520A1Power point 3 – back of console.
6–Not used.
720A2Powertrain control module – vehicle power 1.
820A2Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A1Power point 1 – driver front.
1115A3Powertrain control module – vehicle power 4.
1215A3Powertrain control module – vehicle power 3.
13–Not used.
14–Not used.
15–Run-start relay.
1520A1Power point 2 – console bin.
1720A1Power point 4 – luggage compartment.
1820A2RH HID headlamp.
1910A2Run-start electronic power assist steering.
2010A2Run/start lighting. Headlamp leveling switch.
2115A2Transmission oil pump logic power (start/ stop).
2210A2Air conditioner clutch solenoid.
2315A2Run-start 6. Blind spot information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A2Not used (spare).
2510A3Run-start anti-lock brake system.
2510A3Run-start powertrain control module.
27–Not used.
2810A2Rear washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A2Not used (spare).
35–Not used.
36–Not used.
3710A2Power transfer unit fan.
38–Electronic fan 2 relay
39–Electric fan 3 relay.
40–Horn relay.
41–Not used.
42–Fuel pump relay.
4310A22nd row easy fold seat release.
4420A2LH HID headlamp.
45–Not used.
46–Not used.
47–Not used.
48–Not used.
49–Not used.
5020A2Horn.
51–Not used.
52–Not used.
53–Not used.
5410A3Brake on off switch.
5510A3ALT sensor.
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box – Bottom
Ford Edge (CD539; 2017): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2017)

№AProtected Components
56–Not used.
57–Not used.
5830A1Fuel pump feed. Port fuel injectors (3.5L).
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
6615A1Heated wiper park.
6750A2Body control module 2.
6840A1Heated rearwindow.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Transmission oil pump (start/stop).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power liftgate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
85–Not used.
8750A2Anti-lock brake system pump.
1 M case fuse.
2 J case fuse.

2018

Passenger Compartment Fuse Panel
Ford Edge (CD539; 2018): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2018)

№AProtected Components
1–Not used.
27.5A1Memory seats. Lumbar. Driver seat module logic power.
320A1Driver door unlock.
45A1Not used (spare).
520A1Not used (spare).
610A2Not used (spare).
710A2Not used (spare).
810A2Not used (spare).
910A2Not used (spare).
105A2Keypad. Power liftgate module logic power. Hands free liftgate module.
115A2Not used (spare).
127.5A2Climate control module.
137.5A2Cluster. Steering column control module. Smart datalink connector (gateway) module.
1410A2Extended power module.
1510A2Datalink power.
1615A1Not used (spare).
175A2Not used (spare).
185A2Push button start switch.
197.5A2Extended power module.
207.5A2Not used (spare).
215A2Humidity and in-car temperature sensor.
225A2Occupant classification system.
2310A1Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420A1Central lock/unlock.
2530A1Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630A1Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730A1Moonroof.
2820A1Amplifier.
2930A1Not used (spare).
3030A1Not used (spare).
3115A1Not used (spare).
3210A1Global positioning system. Center stack display. Voice control (SYNC). Radio transceiver module.
3320A1Radio.
3430A1Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, Circuit breaker 38).
355A1Not used (spare).
3615A1Auto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
3720A1Heated steering wheel module. Active front steering wheel.
3830A3Rear power Windows. Rearwindow switch illumination.
Power Distribution Box
Ford Edge (CD539; 2018): Engine compartment fuse box diagram

List of fuses in the power distribution box (2018)

№AProtected Components
130A1Not used (spare).
2–Starter relay.
315A2Rear wiper. Rain sensor Rear washer pump relay coil.
4–Blower motor relay.
520A1Power point 3 – back of console.
6–Not used.
720A2Powertrain control module – vehicle power 1.
820A2Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
1020A1Power point 1 – driver front.
1115A3Powertrain control module – vehicle power 4.
1215A3Powertrain control module – vehicle power 3.
13–Not used.
14–Not used.
15–Run-start relay.
1620A1Power point 2 – console bin.
1720A1Power point 4 – luggage compartment.
1820A2RH HID headlamp.
1910A2Run-start electronic power assist steering.
2010A2Run/start lighting.
2115A2Transmission oil pump logic power (start/
stop).
2210A2Air conditioner clutch solenoid.
2315A2Run-start 6. Blind spot Information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410A2Not used (spare).
2510A3Run-start anti-lock brake system.
2610A3Run-start powertrain control module.
27–Not used.
2810A2Rear washer pump.
29–Not used.
30–Not used.
31–Not used.
32–Electronic fan 1 relay.
33–A/C clutch relay.
3415A2Not used (spare).
35–Not used.
36–Not used.
3710A2Power transfer unit fan.
38–Electronic fan 2 relay
39–Electric fan 3 relay.
40–Horn relay.
41–Not used.
42–Fuel pump relay.
4310A22nd row easy fold seat release.
4420A2LH HID headlamp.
45–Not used.
46–Not used.
47–Not used.
4815A2Not used (spare).
49–Not used.
5020A2Horn.
51–Not used.
52–Not used.
53–Not used.
5410A3Brake on off switch.
5510A3ALT sensor.
85–Not used.
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box – Bottom
Ford Edge (CD539; 2018): Engine compartment fuse box diagram

List of fuses in the power distribution box – bottom (2018)

№AProtected Components
56–Not used.
57–Not used.
5830A1Fuel pump feed. Port fuel injectors (3.5L).
5940A2Electronic fan 3.
6040A2Electronic fan 1.
61–Not used.
6250A2Body control module 1.
6325A1Electronic fan 2.
64–Not used.
6520A1Front heated seat.
6615A1Heated wiper park.
6750A2Body control module 2.
6840A1Heated rear window.
6930A1Anti-lock brake system valves.
7030A1Passenger seat.
71–Not used.
7220A1Transmission oil pump (start/stop).
7320A1Rear heated seats.
7430A1Driver seat module. Power driver seat (less memory).
7525A1Wiper motor 1.
7630A1Power liftgate module.
7730A1Climate control seat module.
7840A1Trailer lighting module.
7940A2Blower motor.
8025A1Wiper motor 2.
8140A1110 volt inverter.
82–Not used.
8320A1Not used (spare).
8430A1Starter solenoid.
85–Not used.
8760A2Anti-lock brake system pump.
1 M case fuse.
2 J case fuse.

Conclusion

The Ford Edge (2015-2018) combines sleek design with advanced technology. Maintaining the fuse box and relays is key to ensuring optimal electrical performance.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *
