The Ford E-Series (E-150, E-250, E-350, E-450) from 1997 to 2001 is a lineup of full-size vans designed for utility, versatility, and durability. These vehicles are available in multiple configurations, including cargo vans for commercial use and passenger vans capable of seating up to 15 occupants. With their spacious interiors and robust build, the E-Series models are ideal for transporting goods, people, or customizing for specialized purposes such as camper conversions.
The electrical systems in these vans rely heavily on the fuse box and relays for proper functionality. The main fuse box is located under the dashboard on the driver’s side, while the power distribution box, housing most relays, is found in the engine compartment. These components protect and control critical systems such as the lights, air conditioning, ignition, and fuel pump. Ensuring the fuses and relays are in good condition is vital to maintaining the reliability of these systems.
MUST READ: DYI – How to Check Car Fuses?
(1997-2001) Ford E-150 / E-250 / E-350 / E-450 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford E-150 / E-250 / E-350 / E-450 (1997-2001) fuse assignment
Ford E-150 / E-250 / E-350 / E-450 Year of production: 1997, 1998, 1999, 2000, 2001

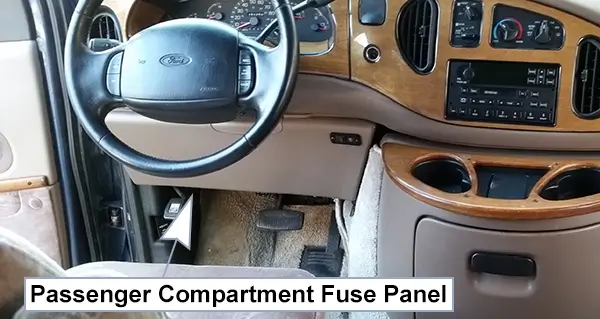

Passenger Compartment Fuse Panel:
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.

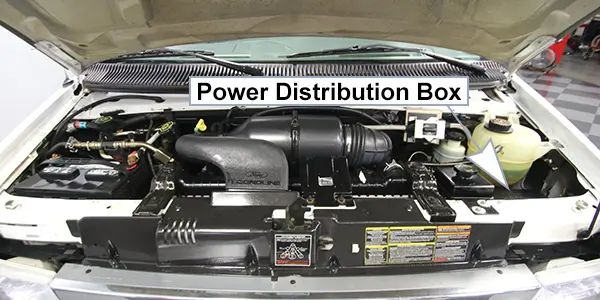

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Relays are located in the power distribution box. Ford recommends that relays be replaced by a qualified technician.
Fuse Box Diagrams
1997

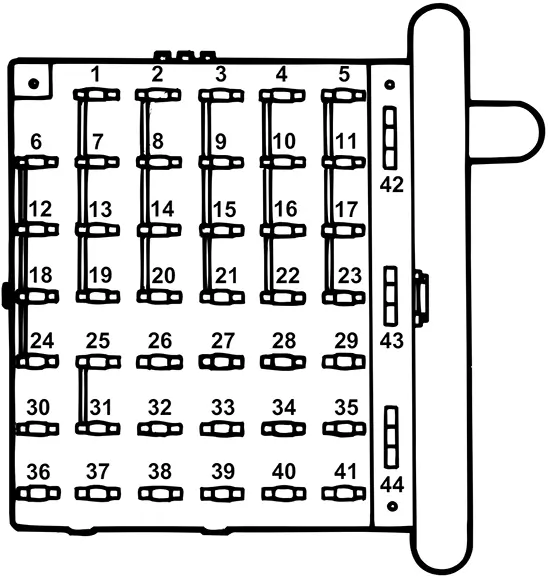

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1997)
| № | A | Circuits protected |
|---|---|---|
| 1 | 20A | 4WABS or RABS module |
| 2 | 15A | 4WABS relay (coil), RABS (diode/resistor), instrument cluster, warning chime |
| 3 | 15A | Headlamp switch, radio sense, rear radio control, Remote keyless entry module |
| 4 | 15A | Power mirrors, modified vehicle, power locks w/RKE, Headlamp switch (dome), illuminated entry, Courtesy lamp switches, Radio (KAP), Cluster (KAP), warning chime |
| 5 | 20A | Remote keyless entry module, power door lock switches, memory lock |
| 6 | 10A | Brake shift interlock, speed control, daytime running light module |
| 7 | 10A | Multi-function switch |
| 8 | 30A | Noise supression capacitor, ignition coil positive feed, PCM relay diode/PCM power relay, fuel heater (diesel), glow plug relay (diesel) |
| 9 | 30A | Wiper control module, wiper motor |
| 10 | 20A | Headlamp switch (exterior lamps), Multi-function switch (flash-to-pass) |
| 11 | 15A | Stoplight switch, brake pressure switch, multi-function switch |
| 12 | 15A | Digital transmission range sensor (backup lamps), auxiliary battery relay |
| 13 | 15A | A/C mode switch, blend door actuator |
| 14 | 5A | Instrument cluster (air bag and charge indicator lamps) |
| 15 | 5A | Trailer tow battery charge relay (coil) |
| 16 | 30A | Power seats |
| 17 | – | Not used |
| 18 | – | Not used |
| 19 | 10A | Air bag module |
| 20 | 5A | Overdrive cancel switch |
| 21 | 30A | Power Windows |
| 22 | – | Not used |
| 23 | 20A | Cigar lighter, data link connector |
| 24 | 5A | llluminated entry |
| 25 | 10A | Left headlamp (low beam) |
| 26 | – | Not used |
| 27 | – | Not used |
| 28 | 25A | Instrument panei power point |
| 29 | – | Not used |
| 30 | 15A | Headlamps (high beam), Daytime running lamps (DRL), high beam indicator |
| 31 | 10A | Right headlamp (low beam), Daytime running lamps (DRL) |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | 10A | Digital transmission range sensor (start control) |
| 35 | – | Not used |
| 36 | 5A | Panei illumination |
| 37 | – | Not used |
| 38 | 10A | Air bag module |
| 39 | – | Not used |
| 40 | 30A | Modified vehicle |
| 41 | 30A | Modified vehicle |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |

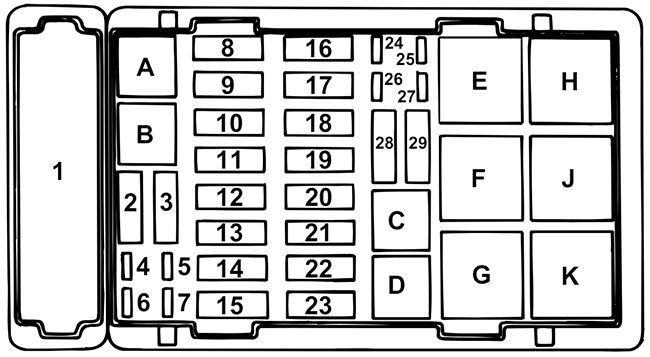

Power Distribution Box
List of fuses in the power distribution box (1997)
| № | A | Circuits protected |
|---|---|---|
| 1 | – | Generator to battery |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 5A | PCM keep alive memory |
| 5 | 10A | Right trailer turn signal |
| 6 | 10A | Left trailer turn signal |
| 7 | – | Not used |
| 8 | 60A | Instrument panel fuses |
| 9 | 30A | PCM power relay |
| 10 | 60A | Auxiliary battery |
| 11 | – | Not used |
| 12 | 60A | Misc. |
| 13 | 50A | Blower motor relay |
| 14 | 30A | Trailer running lamps, trailer backup lamps |
| 15 | 40A | Headlamp switch |
| 16 | 50A | Auxiliary A/C, remote keyless entry module |
| 17 | 30A | Fuel pump relay (gasoline), injector driver module relay (diesel) |
| 18 | 60A | Modified vehicle power |
| 19 | 60A | Anti-lock brake system (4WABS) |
| 20 | 20A | Electric brake controller (trailer tow) |
| 21 | 50A | Modified vehicle power |
| 22 | 40A | Trailer battery charge (relay) |
| 23 | 60A | Ignition switch feed |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 10A | Alternator (diesel) |
| 27 | 15A | Horn, daytime running lamp module |
| 28 | – | PCM diode |
| 29 | – | Not used |
| Relays | ||
| A | Not used | |
| B | Not used | |
| C | Trailer backup lamps | |
| D | Trailer running lamps | |
| E | Trailer battery charge relay | |
| F | Not used | |
| G | PCM | |
| H | Blower motor | |
| J | Horn | |
| K | Fuel pump or IDM | |
1998

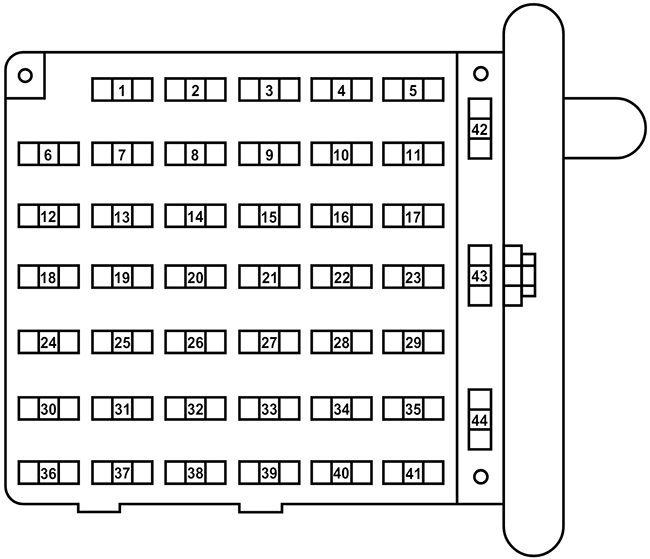

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1998)
| № | A | Description |
|---|---|---|
| 1 | 20A | RABS/4WABS Module |
| 2 | 15A | Brake Warning Diode/Resistor, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators |
| 3 | 15A | Main Light Switch, RKE Module, Radio |
| 4 | 15A | Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Power Mirrors, Main Light Switch, Courtesy Lamps |
| 5 | 20A | RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE |
| 6 | 10A | Shift Interlock, Speed Control, DRL Module |
| 7 | 10A | Multi-Function Switch, Turn Signals |
| 8 | 30A | Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater, Glow Plug Relay (Diesel) |
| 9 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 10 | 20A | Main Light Switch, (Externai Lamps) Multi-Function Switch (Flash-to-pass) |
| 11 | 15A | Brake Pressure Switch, Multi-Function Switch (Hazards), RABS, Brake Pedal Position Switch |
| 12 | 15A | Transmission Range (TR) Sensor, Auxiliary Battery Relay |
| 13 | 15A | Blend Door Actuator, Function Selector Switch |
| 14 | 5A | Instrument Cluster (Air Bag and Charge Indicator) |
| 15 | 5A | Trailer Battery Charge Relay |
| 16 | 30A | Power Seats |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 10A | Air Bag Diagnostic Monitor |
| 20 | 5A | Overdrive Cancel Switch |
| 21 | 30A | Power Windows* |
| 22 | 15A | Memory Power Radio |
| 23 | 20A | Cigar Lighter, Data Link Connector (DLC) |
| 24 | 5A | Illuminated Entry Module |
| 25 | 10A | Left Headlamp (Low Beam) |
| 26 | – | Not Used |
| 27 | 5A | Radio |
| 28 | 25A | Power Plug |
| 29 | – | Not Used |
| 30 | 15A | Headlamps (High Beam Indicator), DRL |
| 31 | 10A | Right Headlamp (Low Beam), DRL |
| 32 | – | Not Used |
| 33 | – | Not Used |
| 34 | 10A | Transmission Range (TR) Sensor |
| 35 | – | Not Used |
| 36 | 5A | (Cluster, A/C, Illumination, Radio), Steering Column Assembly |
| 37 | – | Not Used |
| 38 | 10A | Air Bag Diagnostic Monitor |
| 39 | – | Not Used |
| 40 | 30A | Modified Vehicle |
| 41 | 30A | Modified Vehicle |
| 42 | – | Not Used |
| 43 | 20A C.B. | Power Windows* |
| 44 | – | Not Used |
| *Either fuse 21 or Circuit breaker 43 will be present for power Windows. | ||
Power Distribution Box
List of fuses in the power distribution box (1998)
| № | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A | PCM Keep Alive Memory, Instrument Cluster |
| 5 | 10A | Right Trailer Turn Signal |
| 6 | 10A | Left Trailer Turn Signal |
| 7 | – | Not Used |
| 8 | 60A | I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28 |
| 9 | 30A | PCM Power Relay, Engine Compartment Fuse 4 |
| 10 | 60A | Auxiliary Battery Relay, Engine Compartment Fuses 14, 22 |
| 11 | 30A | IDM Relay (1998 1/2 Vehicles) |
| 12 | 60A | Engine Compartment Fuses 26, 27 |
| 13 | 50A | Blower Motor Relay (Blower Motor) |
| 14 | 30A | Trailer Running Lamps Relay, Trailer Backup Lamps Relay |
| 15 | 40A | Main Light Switch |
| 16 | 50A | RKE Module, Auxiliary Blower Motor Relay |
| 17 | 30A | Fuel Pump Relay, IDM (Diesel) |
| 18 | 60A | I/P Fuses 40, 41 |
| 19 | 60A | 4WABS Module |
| 20 | 20A | Electric Brake Controller |
| 21 | 50A | Modified Vehicle Power |
| 22 | 40A | Trailer Battery Charge Relay (Modified Vehicles Only) |
| 23 | 60A | Ignition Switch |
| 24 | – | Not Used |
| 25 | 20A | NGV Module |
| 26 | 10A | Generator/Voltage Regulator (Diesel Only) |
| 27 | 15A | DRL Module, Horn Relay |
| 28 | – | PCM Diode |
| 29 | – | Not Used |
| A | – | Not Used |
| B | – | Not Used |
| C | – | Trailer Backup Lamps Relay |
| D | – | Trailer Running Lamps Relay |
| E | – | Trailer Battery Charge Relay |
| F | – | IDM Relay |
| G | – | PCM Relay |
| H | – | Blower Motor Relay |
| J | – | Horn Relay |
| K | – | Fuel Pump Relay, IDM Relay (Diesel) |
1999
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1999)
| № | A | Description |
|---|---|---|
| 1 | 20A | RABS/4WABS Module |
| 2 | 15A | Brake Warning Diode/Resistor, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators |
| 3 | 15A | Main Light Switch, RKE Module, Radio |
| 4 | 15A | Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Power Mirrors, Main Light Switch, Courtesy Lamps |
| 5 | 20A | RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE |
| 6 | 10A | Shift Interlock, Speed Control, DRL Module |
| 7 | 10A | Multi-Function Switch, Turn Signals |
| 8 | 30A | Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater, Glow Plug Relay (Diesel Only) |
| 9 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 10 | 20A | Main Light Switch, (Externai Lamps) Multi-Function Switch (Flash-to-pass) |
| 11 | 15A | Brake Pressure Switch, Multi-Function Switch (Hazards), RABS, Brake Pedal Position Switch |
| 12 | 15A | Transmission Range (TR) Sensor, Auxiliary Battery Relay |
| 13 | 15A | Blend Door Actuator, Function Selector Switch |
| 14 | 5A | Instrument Cluster (Air Bag and Charge Indicator) |
| 15 | 5A | Trailer Battery Charge Relay |
| 16 | 30A | Power Seats |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 10A | Air Bag Diagnostic Monitor |
| 20 | 5A | Overdrive Cancel Switch |
| 21 | 30A | Power Windows* |
| 22 | 15A | Memory Power Radio |
| 23 | 20A | Cigar Lighter, Data Link Connector (DLC) |
| 24 | 5A | Illuminated Entry Module |
| 25 | 10A | Left Headlamp (Low Beam) |
| 26 | – | Not Used |
| 27 | 5A | Radio |
| 28 | 25A | Power Plug |
| 29 | – | Not Used |
| 30 | 15A | Headlamps (High Beam Indicator), DRL 10A |
| 31 | 10A | Right Headlamp (Low Beam), DRL |
| 32 | – | Not Used |
| 33 | – | Not Used |
| 34 | 10A | Transmission Range (TR) Sensor |
| 35 | – | Not Used |
| 36 | 5A | (Cluster, A/C, Illumination, Radio), Steering Column Assembly |
| 37 | – | Not Used |
| 38 | 10A | Air Bag Diagnostic Monitor |
| 39 | – | Not Used |
| 40 | 30A | Modified Vehicle |
| 41 | 30A | Modified Vehicle |
| 42 | – | Not Used |
| 43 | 20A C.B. | Power Windows* |
| 44 | – | Not Used |
| * Either fuse 21 or Circuit breaker 43 will be present for power Windows. | ||
Power Distribution Box
List of fuses in the power distribution box (1999)
| № | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A | PCM Keep Alive Memory, Instrument Cluster |
| 5 | 10A | Right Trailer Turn Signal |
| 6 | 10A | Left Trailer Turn Signal |
| 7 | – | Not Used |
| 8 | 60A | I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28 |
| 9 | 30A | PCM Power Relay, Engine Compartment Fuse 4 |
| 10 | 60A | Auxiliary Battery Relay, Engine Compartment Fuses 14, 22 |
| 11 | 30A | IDM Relay |
| 12 | 60A | Engine Compartment Fuses 26, 27 |
| 13 | 50A | Blower Motor Relay (Blower Motor) |
| 14 | 30A | Trailer Running Lamps Relay, Trailer Backup Lamps Relay |
| 15 | 40A | Main Light Switch |
| 16 | 50A | RKE Module, Auxiliary Blower Motor Relay |
| 17 | 30A | Fuel Pump Relay, IDM (Diesel) |
| 18 | 60A | I/P Fuses 40, 41 |
| 19 | 60A | 4WABS Module |
| 20 | 20A | Electric Brake Controller |
| 21 | 50A | Modified Vehicle Power |
| 22 | 40A | Trailer Battery Charge Relay (Modified Vehicles Only) |
| 23 | 60A | Ignition Switch |
| 24 | – | Not Used |
| 25 | 20A | NGV Module |
| 26 | 10A | Generator/Voltage Regulator (Diesel Only) |
| 27 | 15A | DRL Module, Horn Relay |
| 28 | – | PCM Diode |
| 29 | – | Not Used |
| A | – | Not Used |
| B | – | Not Used |
| C | – | Trailer Backup Lamps Relay |
| D | – | Trailer Running Lamps Relay |
| E | – | Trailer Running Lamps Relay |
| F | – | IDM Relay |
| G | – | PCM Relay |
| H | – | Blower Motor Relay |
| J | – | Horn Relay |
| K | – | Fuel Pump Relay, IDM Relay (Diesel) |
2000
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2000)
| № | A | Description |
|---|---|---|
| 1 | 20A | 4WABS Module |
| 2 | 15A | Brake Warning Diode/Resistor, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators |
| 3 | 15A | Main Light Switch, RKE Module, Radio |
| 4 | 15A | Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Power Mirrors, Main Light Switch, Courtesy Lamps |
| 5 | 20A | RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE |
| 6 | 10A | Shift Interlock, Speed Control, DRL Module |
| 7 | 10A | Multi-Function Switch, Turn Signals |
| 8 | 30A | Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater, Glow Plug Relay (Diesel Only) |
| 9 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 10 | 20A | Main Light Switch, (Externai Lamps) Multi-Function Switch (Flash-to-pass) |
| 11 | 15A | Brake Pressure Switch, Multi-Function Switch (Hazards), RABS, Brake Pedal Position Switch |
| 12 | 15A | Transmission Range (TR) Sensor, Auxiliary Battery Relay |
| 13 | 15A | Blend Door Actuator, Function Selector Switch |
| 14 | 5A | Instrument Cluster (Air Bag and Charge Indicator) |
| 15 | 5A | Trailer Battery Charge Relay |
| 16 | 30A | Power Seats |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 10A | Air Bag Diagnostic Monitor |
| 20 | 5A | Overdrive Cancel Switch |
| 21 | 30A | Power Windows* |
| 22 | 15A | Memory Power Radio |
| 23 | 20A | Cigar Lighter, Data Link Connector (DLC) |
| 24 | – | Not Used |
| 25 | 10A | Left Headlamp (Low Beam) |
| 26 | – | Not Used |
| 27 | 5A | Radio |
| 28 | 20A | Power Plug |
| 29 | – | Not Used |
| 30 | 15A | Headlamps (High Beam Indicator), DRL 10A |
| 31 | 10A | Right Headlamp (Low Beam), DRL |
| 32 | 5A | Power Mirrors |
| 33 | – | Not Used |
| 34 | 10A | Transmission Range (TR) Sensor |
| 35 | 30A | RKE Module |
| 36 | 5A | (Cluster, A/C, Illumination, Radio), Steering Column Assembly |
| 37 | – | Not Used |
| 38 | 10A | Air Bag Diagnostic Monitor |
| 39 | – | Not Used |
| 40 | 30A | Modified Vehicle |
| 41 | 30A | Modified Vehicle |
| 42 | – | Not Used |
| 43 | 20A C.B. | Power Windows* |
| 44 | – | Not Used |
| * Either Fuse 21 or Circuit breaker 43 will be present for power Windows. | ||
Power Distribution Box
List of fuses in the power distribution box (2000)
| № | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A* | PCM Keep Alive Memory, Instrument Cluster |
| 5 | 10A* | Right Trailer Turn Signal |
| 6 | 10A* | Left Trailer Turn Signal |
| 7 | – | Not Used |
| 8 | 60A** | I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28 |
| 9 | 30A** | PCM Power Relay, Engine Compartment Fuse 4 |
| 10 | 60A** | Auxiliary Battery Relay, Engine Compartment Fuses 14, 22 |
| 11 | 30A** | IDM Relay |
| 12 | 60A** | Engine Compartment Fuses 26, 27 |
| 13 | 50A** | Blower Motor Relay (Blower Motor) |
| 14 | 30A** | Trailer Running Lamps Relay, Trailer Backup Lamps Relay |
| 15 | 40A** | Main Light Switch |
| 16 | 50A** | RKE Module, Auxiliary Blower Motor Relay |
| 17 | 30A** | Fuel Pump Relay, IDM (Diesel) |
| 18 | 60A** | I/P Fuses 40, 41 |
| 19 | 60A** | 4WABS Module |
| 20 | 20A** | Electric Brake Controller |
| 21 | 50A** | Modified Vehicle Power |
| 22 | 40A** | Trailer Battery Charge Relay (Modified Vehicles Only) |
| 23 | 60A** | Ignition Switch |
| 24 | – | Not Used |
| 25 | 20A* | NGV Module |
| 26 | 10A* | Generator/Voltage Regulator (Diesel Only) |
| 27 | 15A* | DRL Module, Horn Relay |
| 28 | – | PCM Diode |
| 29 | – | Not Used |
| A | – | Not Used |
| B | – | Not Used |
| C | – | Trailer Backup Lamps Relay |
| D | – | Trailer Running Lamps Relay |
| E | – | Trailer Running Lamps Relay |
| F | – | IDM Relay |
| G | – | PCM Relay |
| H | – | Blower Motor Relay |
| J | – | Horn Relay |
| K | – | Fuel Pump Relay, IDM Relay (Diesel) |
| * Mini Fuses ** Maxi Fuses | ||
2001
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2001)
| № | A | Description |
|---|---|---|
| 1 | 20A | 4WABS Module |
| 2 | 15A | Brake Warning Lamp, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators, Low Vacuum Warning Switch (Diesel Only) |
| 3 | 15A | Main Light Switch, RKE Module, Radio, Instrument Illumination, E Traveler VCP and video screen. |
| 4 | 15A | Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Main Light Switch, Courtesy Lamps |
| 5 | 20A | RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE |
| 6 | 10A | Brake Shift Interlock, Speed Control, DRL Module |
| 7 | 10A | Multi-Function Switch, Turn Signals |
| 8 | 30A | Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater (Diesel Only), Glow Plug Relay (Diesel Only) |
| 9 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 10 | 20A | Main Light Switch, Park Lamps, License Lamp,(Externai Lamps) Multi-Function Switch (Flash-to-pass) |
| 11 | 15A | Brake Pressure Switch, Multi-Function Switch (Hazards), Brake Lamp Switch, Brake Lamps |
| 12 | 15A | Transmission Range (TR) Sensor, Backup Lamps, Auxiliary Battery Relay |
| 13 | 15A | Blend Door Actuator, A/C Heater, Function Selector Switch |
| 14 | 5A | Instrument Cluster (Air Bag and Charge Indicator) |
| 15 | 5A | Trailer Battery Charge Relay |
| 16 | 30A | Power Seats |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 10A | Air Bag Diagnostic Monitor |
| 20 | 5A | Overdrive Cancel Switch |
| 21 | 30A | Power Windows* |
| 22 | 15A | Memory Power Radio, E Traveler Radio |
| 23 | 20A | Cigar Lighter, Data Link Connector (DLC) |
| 24 | – | Not Used |
| 25 | 10A | Left Headlamp (Low Beam) |
| 26 | 20A | Rear Power Point |
| 27 | 5A | Radio |
| 28 | 20A | Power Plug |
| 29 | – | Not Used |
| 30 | 15A | Headlamps (High Beam Indicator), DRL 10A |
| 31 | 10A | Right Headlamp (Low Beam), DRL |
| 32 | 5A | Power Mirrors |
| 33 | 20A | E Traveler Power Point #2 |
| 34 | 10A | Transmission Range (TR) Sensor |
| 35 | 30A | RKE Module |
| 36 | 5A | (Cluster, A/C, Illumination, Radio), Steering Column Assembly |
| 37 | 20A | Power Plug |
| 38 | 10A | Air Bag Diagnostic Monitor |
| 39 | 20A | E Traveler Power Point #1 |
| 40 | 30A | Modified Vehicle |
| 41 | 30A | Modified Vehicle |
| 42 | – | Not Used |
| 43 | 20A C.B. | Power Windows* |
| 44 | – | Not Used |
| * Either Fuse 21 or Circuit breaker 43 will be present for power Windows. | ||
Power Distribution Box
List of fuses in the power distribution box (2001)
| № | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A* | PCM Keep Alive Memory, Instrument Cluster, Voltmeter |
| 5 | 10A* | Right Trailer Turn Signal |
| 6 | 10A* | Left Trailer Turn Signal |
| 7 | – | Not Used |
| 8 | 60A** | I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28, 32 |
| 9 | 30A** | PCM Power Relay, Engine Compartment Fuse 4 |
| 10 | 60A** | Auxiliary Battery Relay, Engine Compartment Fuses 14, 22 |
| 11 | 30A** | IDM Relay (Diesel Only) |
| 12 | 60A** | Engine Compartment Fuses 25, 27 |
| 13 | 50A** | Blower Motor Relay (Blower Motor) |
| 14 | 30A** | Trailer Running Lamps Relay, Trailer Backup Lamps Relay |
| 15 | 40A** | Main Light Switch, Daytime Running Lights (DRL) |
| 16 | 50A** | Auxiliary Blower Motor Relay |
| 17 | 30A** | Fuel Pump Relay |
| 18 | 60A** | I/P Fuses 40, 41,26, 33, 39 |
| 19 | 60A** | 4WABS Module |
| 20 | 20A** | Electric Brake Controller |
| 21 | 50A** | Modified Vehicle Power |
| 22 | 40A** | Trailer Battery Charge Relay, Modified Vehicles |
| 23 | 60A** | Ignition Switch, Fuse Panel |
| 24 | – | Not Used |
| 25 | 20A* | NGV Module (Natural Gas Only) |
| 26 | 10A* | A/C Clutch (4.2L Only) |
| 27 | 15A* | DRL Module, Horn Relay |
| 28 | – | PCM Diode |
| 29 | – | Not Used |
| A | – | Not Used |
| B | – | Stop Lamp Relay |
| C | – | Trailer Backup Lamps Relay |
| D | – | Trailer Running Lamps Relay |
| E | – | Trailer Battery Charge Relay |
| F | – | IDM Relay (Diesel Only), A/C Clutch Relay (4.2L Only) |
| G | – | PCM Relay |
| H | – | Blower Motor Relay |
| J | – | Horn Relay |
| K | – | Fuel Pump Relay |
| * Mini Fuses ** Maxi Fuses | ||
Conclusion
The 1997-2001 Ford E-Series vans combine functionality and durability, supported by a reliable electrical system. Maintaining the fuse box and relays ensures smooth operation of key features.
