Discover the fuse box and relay locations for the 2022-2024 Ford Bronco (U725). Includes diagrams and tips for maintaining reliable electrical systems.
The Ford Bronco (U725) 2022-2024 is a rugged and versatile SUV designed for both off-road adventures and everyday driving. It is available in two-door and four-door body styles, offering flexibility for drivers who prioritize either a compact or spacious cabin. With removable doors and roof panels, the Bronco emphasizes outdoor exploration, making it an ideal choice for adventure enthusiasts. Inside, it features modern technology and durable materials designed to withstand rugged conditions.
The Bronco’s advanced features depend on a robust electrical system managed by its fuse box and relays. The main fuse box is located in the engine bay, providing easy access to fuses controlling essential functions like lighting, power accessories, and climate control. An additional fuse panel is typically found under the dashboard inside the cabin. Relays, which handle high-power components such as the starter and fuel pump, are positioned near these fuse boxes. Proper maintenance of the fuse box and relays ensures the reliability of the Bronco’s electrical systems during off-road and daily use.
MUST READ: DYI – How to Check Car Fuses?
(2022-2024) Ford Bronco (U725) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Bronco (U725) 2022-2024 fuse assignment
Ford Bronco (U725) Year of production: 2022, 2023, 2024

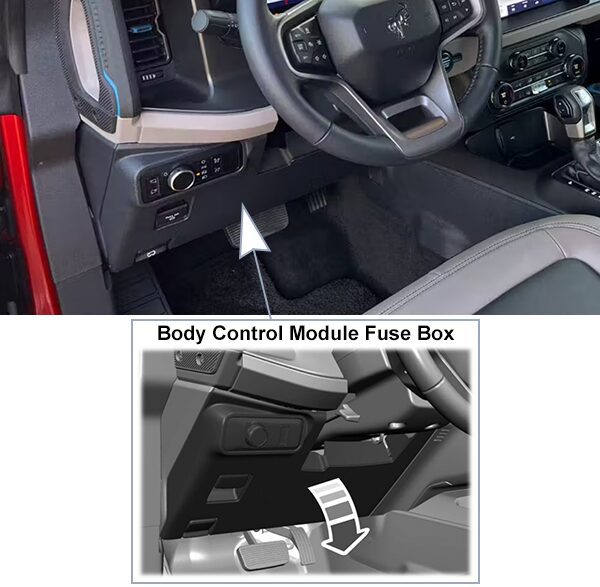

Body Control Module Fuse Box:

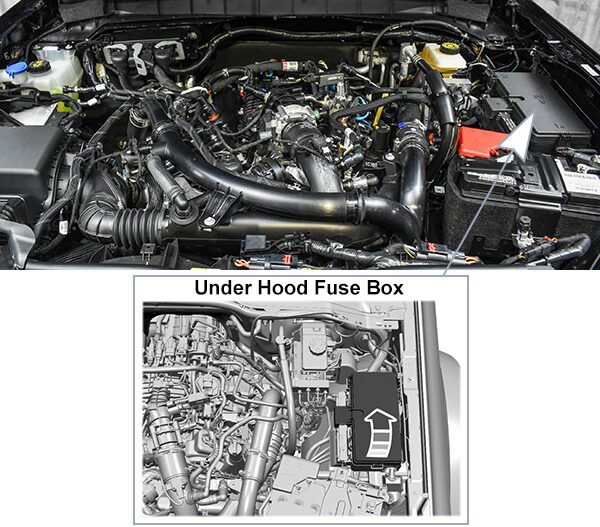

Under Hood Fuse Box:
Fuse Box Diagrams
2022

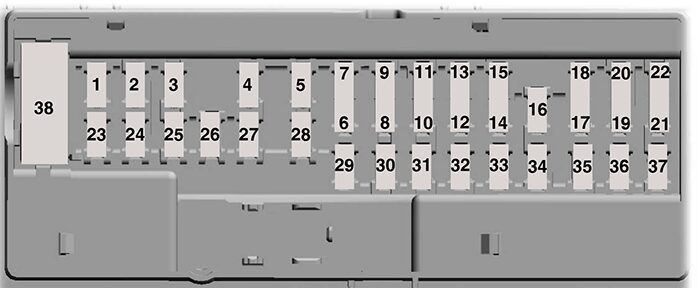

Body Control Module Fuse Box
List of fuses in the body control module fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | 10A | Power Windows. DC/AC inverter. |
| 3 | 7.5A | Exterior mirrors. Wireless charging module. |
| 4 | 20A | Not used (spare). |
| 5 | – | Not used. |
| 6 | 10A | Anti-theft alarm horn. |
| 7 | 10A | Not used. |
| 8 | 5A | Not used (spare). |
| 9 | 5A | Not used (spare). |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 7.5A | Climate control. Gateway module. |
| 13 | 7.5A | Steering column control module. Instrument cluster module. |
| 14 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 16 | – | Not used. |
| 17 | 7.5A | Not used (spare). |
| 18 | 7.5A | Not used (spare). |
| 19 | 5A | Ignition switch. Headlamps. |
| 20 | 5A | Telematics modem. |
| 21 | 5A | In-vehicle temperature and humidity sensor. |
| 22 | 5A | Not used. |
| 23 | 30A | Not used (spare). |
| 24 | 30A | Not used (spare). |
| 25 | 20A | Not used (spare). |
| 26 | 30A | Not used (spare). |
| 27 | 30A | Not used (spare). |
| 28 | 30A | Not used (spare). |
| 29 | 15A | Not used (spare). |
| 30 | 5A | Brake on-off switch. |
| 31 | 10A | Terrain management switch. Integrated control panei switch. Driveline and chassis Controls switch panel. 12 inch center display. Radio frequency receiver module. |
| 32 | 20A | Audio control module. |
| 33 | – | Not used. |
| 34 | 30A | Run/start relay. |
| 35 | 5A | Not used (spare). |
| 36 | 15A | Automatic high beam. Image Processing module A. |
| 37 | 20A | Auto-dimming interior mirror. Parking assist control module. Heated steering wheel. |
| 38 | 30A Circuit Breaker | Not used. |

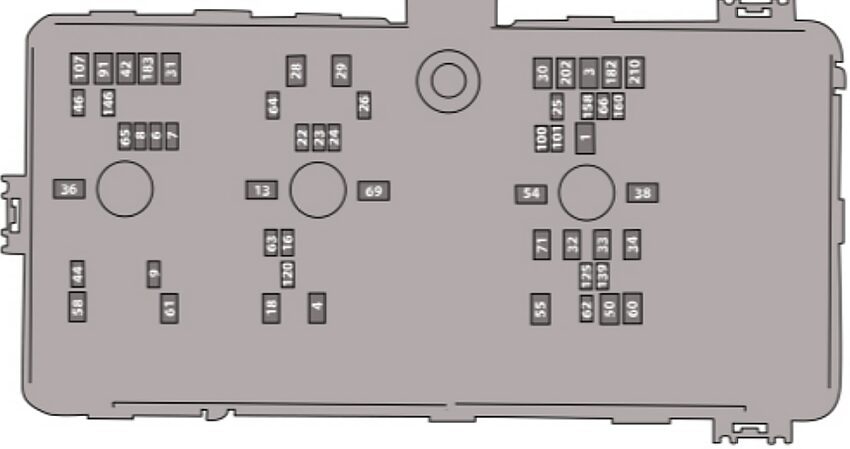

Under Hood Fuse Box
List of fuses in the under hood fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Body control module – battery power in feed 1. |
| 3 | 30A | Body control module – battery power in feed 2. |
| 4 | 30A | Fuel pump. |
| 6 | 25A | Powertrain control module power. |
| 7 | 30A | Powertrain components. |
| 8 | 20A | Powertrain components. |
| 9 | 20A | Ignition coils. |
| 13 | 40A | Blower motor. |
| 16 | 10A | Windshield washer. |
| 18 | 30A | Starter motor. |
| 22 | 10A | 360 degree camera module. |
| 23 | 10A | Anti-lock brake system run-start feed. |
| 24 | 10A | Powertrain control module. Power steering module. |
| 25 | 10A | Blind spot information system. Rear view camera. Adaptive cruise control. Driveline control module. |
| 26 | 15A | Transmission control module. |
| 28 | 60A | Anti-lock brake system valves. |
| 29 | 60A | Anti-lock brake system pump. |
| 30 | 30A | Driver power seat. |
| 31 | 30A | Passenger power seat. |
| 32 | 20A | Auxiliary power point. |
| 33 | 20A | Auxiliary power point. |
| 34 | 20A | Auxiliary power point. |
| 36 | 40A | 150 watt DC/AC inverter. |
| 38 | 30A | Heated seat module. |
| 42 | 30A | Trailer brake control module. |
| 44 | 10A | Brake on-off switch. |
| 46 | 20A | SYNC module. |
| 50 | 40A | Heated rear windshield. |
| 54 | 40A | Driveline control module. |
| 55 | 30A | Trailer tow park lamp relay. |
| 58 | 20A | Trailer tow backup lamps. |
| 60 | 30A | Upfitter switch #1. |
| 61 | 15A | Upfitter switch #2. |
| 62 | 10A | Upfitter switch #3. |
| 63 | 10A | Upfitter switch #4. |
| 64 | 10A | Upfitter switch #5. |
| 65 | 10A | Upfitter switch #6. |
| 66 | 10A | Stability bar disconnect module. |
| 69 | 30A | Front windshield wiper. |
| 71 | 30A | Rear windshield wiper. |
| 91 | 40A | Trailer tow light module. |
| 100 | 20A | Left-hand headlamps. |
| 101 | 20A | Right-hand headlamps. |
| 107 | 30A | Trailer tow battery charge. |
| 120 | 10A | Fuel injectors (2.7L). |
| 125 | 10A | USB smart charger 1. |
| 139 | 5A | Not used (spare). |
| 146 | 20A | Amplifier. |
| 158 | 10A | Stability bar disconnect module run/start. |
| 160 | 10A | Smart data link control. |
| 182 | 60A | Driver door module. |
| 183 | 60A | Passenger door module. |
| 202 | 60A | Body control module B + . |
| 210 | 30A | Body control module start stop. |
Under Hood Fuse Box – 3.0L ECOBOOST
List of fuses in the under hood fuse box – 3.0l ecoboost (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Body control module – battery power in feed 1. |
| 3 | 30A | Body control module – battery power in feed 2. |
| 4 | 30A | Fuel pump. |
| 6 | 25A | Powertrain control module power. |
| 7 | 30A | Powertrain components. |
| 8 | 20A | Powertrain components. |
| 9 | 20A | Ignition coils. |
| 13 | 40A | Blower motor. |
| 16 | 10A | Windshield washer. |
| 18 | 30A | Starter motor. |
| 21 | 10A | Not used (spare). |
| 22 | 10A | 360 degree camera module. |
| 23 | 10A | Anti-lock brake system run-start feed. |
| 24 | 10A | Powertrain control module. Power steering module. |
| 25 | 10A | Blind spot information system. Rear view camera. Adaptive cruise control. Driveline control module. |
| 26 | 15A | Transmission control module. |
| 28 | 60A | Anti-lock brake system valves. |
| 29 | 60A | Anti-lock brake system pump. |
| 30 | 30A | Driver power seat. |
| 31 | 30A | Passenger power seat. |
| 32 | 20A | Auxiliary power point. |
| 33 | 20A | Auxiliary power point. |
| 34 | 20A | Auxiliary power point. |
| 36 | 40A | 150 watt DC/AC inverter. |
| 38 | 30A | Heated seat module. |
| 39 | 15A | Vehicle dynamics control module. |
| 42 | 30A | Trailer brake control module. |
| 44 | 10A | Brake on-off switch. |
| 46 | 20A | SYNC module. |
| 50 | 40A | Heated rear windshield. |
| 54 | 40A | Driveline control module. |
| 55 | 30A | Trailer tow park lamp relay. |
| 58 | 20A | Trailer tow backup lamps. |
| 60 | 30A | Upfitter switch #3. |
| 61 | 15A | Upfitter switch #2. |
| 62 | 10A | Upfitter switch #1 – off-road driving lights. |
| 63 | 10A | Upfitter switch #4. |
| 64 | 10A | Upfitter switch #5. |
| 65 | 10A | Upfitter switch #6. |
| 66 | 10A | Stability bar disconnect module. |
| 69 | 30A | Front windshield wiper. |
| 71 | 30A | Rear windshield wiper. |
| 91 | 40A | Trailer tow light module. |
| 100 | 20A | Left-hand headlamps. |
| 101 | 20A | Right-hand headlamps. |
| 107 | 30A | Trailer tow battery charge. |
| 120 | 10A | Fuel injectors. |
| 124 | 5A | Not used (spare). |
| 125 | 10A | USB smart charger 1. |
| 139 | 5A | Not used (spare). |
| 140 | 5A | Not used (spare). |
| 141 | 5A | Not used (spare). |
| 146 | 20A | Amplifier. |
| 158 | 10A | Stability bar disconnect module run/start. |
| 160 | 10A | Smart data link control. |
| 182 | 60A | Driver door module. |
| 183 | 60A | Passenger door module. |
| 202 | 60A | Body control module B + . |
| 210 | 30A | Body control module start stop. |
2023
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | 10A | Power Windows. DC/AC inverter. Upfitter switches. |
| 3 | 7.5A | Exterior mirrors. Wireless charging module. |
| 4 | 20A | Not used (spare). |
| 5 | – | Not used. |
| 6 | – | Not used. |
| 7 | 10A | Not used. |
| 8 | 5A | Not used (spare). |
| 9 | 5A | Not used (spare). |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 7.5A | Climate control. Gateway module. |
| 13 | 7.5A | Steering column control module. Instrument cluster module. |
| 14 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 15 | – | Not used. |
| 17 | 7.5A | Not used (spare). |
| 18 | 7.5A | Not used (spare). |
| 19 | 5A | Ignition switch. Headlamps. |
| 20 | 5A | Telematics modem. |
| 21 | 5A | In-vehicle temperature and humidity sensor. |
| 22 | 5A | Not used. |
| 23 | 30A | Not used (spare). |
| 24 | 30A | Not used (spare). |
| 25 | 20A | Not used (spare). |
| 26 | 30A | Not used (spare). |
| 27 | 30A | Not used (spare). |
| 28 | 30A | Not used (spare). |
| 29 | 15A | Not used (spare). |
| 30 | – | Not used. |
| 31 | 10A | Terrain management switch. Integrated control panel switch. Driveline and chassis Controls switch panel. 12 inch center display. Radio frequency receiver module. |
| 32 | 20A | Audio control module. |
| 33 | – | Not used. |
| 34 | – | Not used. |
| 35 | 5A | Not used (spare). |
| 36 | 15A | Automatic high beam. Image Processing module A. |
| 37 | 20A | Auto-dimming interior mirror. Parking assist control module. Heated steering wheel. |
| 38 | 30A Circuit Breaker | Not used. |

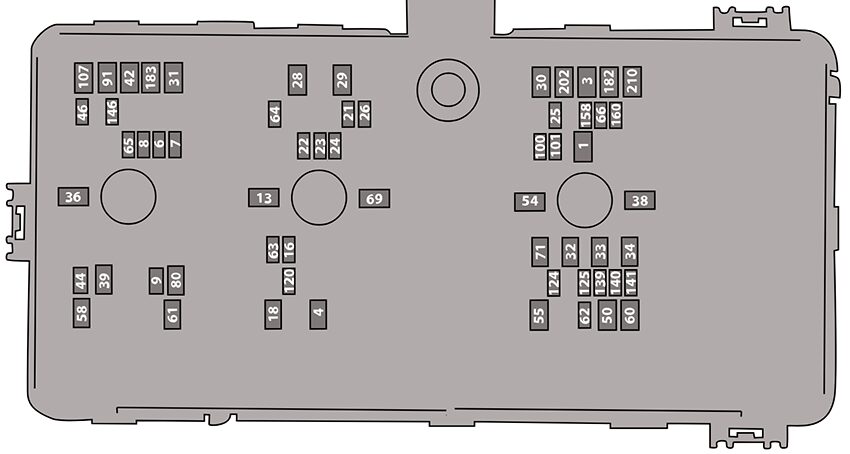

Under Hood Fuse Box
List of fuses in the under hood fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Body control module – battery power in feed 1. |
| 3 | 30A | Body control module – battery power in feed 2. |
| 4 | 30A | Fuel pump. |
| 6 | 25A | Powertrain control module power. |
| 7 | 30A | Powertrain components. |
| 8 | 20A | Powertrain components. |
| 9 | 20A | Ignition coils. |
| 13 | 40A | Blower motor. |
| 16 | 10A | Rear windshield washer. |
| 18 | 30A | Starter motor. |
| 21 | 10A | Not used (spare). |
| 22 | 10A | 360 degree camera module. |
| 23 | 10A | Anti-lock brake system run-start feed. |
| 24 | 10A | Powertrain control module. Power steering module. |
| 25 | 20A | Blind spot information system. Rear view camera. Adaptive cruise control. Driveline control module. |
| 26 | 15A | Transmission control module. |
| 28 | 60A | Anti-lock brake system valves. |
| 29 | 60A | Anti-lock brake system pump. |
| 30 | 30A | Driver power seat. |
| 31 | 30A | Passenger power seat. |
| 32 | 20A | Auxiliary power point. |
| 33 | 20A | Auxiliary power point. |
| 34 | – | Not used. |
| 36 | – | Not used. |
| 38 | 30A | Heated seat module. |
| 39 | 15A | Vehicle dynamics control module (Raptor). |
| 42 | 30A | Trailer brake control module. |
| 44 | 10A | Brake on-off switch. |
| 46 | 20A | SYNC module. |
| 50 | 40A | Heated rear windshield. |
| 54 | 40A | Driveline control module. |
| 55 | 30A | Trailer tow park lamp relay. |
| 58 | 20A | Trailer tow backup lamps. |
| 60 | 30A | Upfitter switch #1 (Base). Upfitter switch #3 (Raptor). |
| 61 | 15A | Upfitter switch #2. |
| 62 | 10A | Upfitter switch #3 (Base). Upfitter switch #1 – off-road driving lights (Raptor). |
| 63 | 10A | Upfitter switch #4. |
| 64 | 10A | Upfitter switch #5. |
| 65 | 10A | Upfitter switch #6. |
| 66 | 10A | Stability bar disconnect module. |
| 69 | 30A | Front windshield wiper. |
| 71 | 30A | Rear windshield wiper. |
| 80 | 10A | Integrated wheel end (Raptor). |
| 91 | 40A | Trailer tow light module. |
| 100 | 20A | Left-hand headlamps. |
| 101 | 20A | Right-hand headlamps. |
| 107 | 30A | Trailer tow battery charge. |
| 120 | 10A | Fuel injectors (2.7L, Raptor). |
| 124 | 5A | Not used (spare). |
| 125 | 10A | USB smart charger 1. |
| 139 | 5A | USB smart charger 2. |
| 140 | 5A | Not used (spare). |
| 141 | 5A | Not used (spare). |
| 146 | 20A | Amplifier. |
| 158 | 10A | Stability bar disconnect module run/start. |
| 160 | 10A | Smart data link control. |
| 182 | 60A | Driver door module. |
| 183 | 60A | Passenger door module. |
| 202 | 60A | Body control module B+. |
| 210 | 30A | Body control module start stop. |
2024
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | 10A | Power Windows. DC/AC inverter. Upfitter switches. |
| 3 | 7.5A | Exterior mirrors. Wireless charging module. |
| 4 | 20A | Not used (spare). |
| 5 | – | Not used. |
| 6 | – | Not used. |
| 7 | 10A | Not used. |
| 8 | 5A | Not used (spare). |
| 9 | 5A | Not used (spare). |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 7.5A | Climate control. Gateway module. |
| 13 | 7.5A | Steering column control module. Instrument cluster module. |
| 14 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 16 | – | Not used. |
| 17 | 7.5A | Not used (spare). |
| 18 | 7.5A | Not used (spare). |
| 19 | 5A | Ignition switch. Headlamps. |
| 20 | 5A | Telematics modem. |
| 21 | 5A | In-vehicle temperature and humidity sensor. |
| 22 | 5A | Not used. |
| 23 | 30A | Not used (spare). |
| 24 | 30A | Not used (spare). |
| 25 | 20A | Not used (spare). |
| 26 | 30A | Not used (spare). |
| 27 | 30A | Not used (spare). |
| 28 | 30A | Not used (spare). |
| 29 | 15A | Not used (spare). |
| 30 | – | Not used. |
| 31 | 10A | Terrain management switch. Integrated control panei switch. Driveline and chassis Controls switch panei. 12 inch center display. Radio frequency receiver module. |
| 32 | 20A | Audio control module. |
| 33 | – | Not used. |
| 34 | – | Not used. |
| 35 | 5A | Not used (spare). |
| 36 | 15A | Automatic high beam. Image Processing module A. |
| 37 | 20A | Auto-dimming interior mirror. Parking assist control module. Heated steering wheel. |
| 38 | 30A Circuit Breaker | Not used. |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Body control module – battery power in feed 1. |
| 3 | 30A | Body control module – battery power in feed 2. |
| 4 | 30A | Fuel pump. |
| 6 | 25A | Powertrain control module power. |
| 7 | 30A | Powertrain components. |
| 8 | 20A | Powertrain components. |
| 9 | 20A | Ignition coils. |
| 13 | 40A | Blower motor. |
| 16 | 10A | Rear windshield washer. |
| 18 | 30A | Starter motor. |
| 21 | 10A | Not used (spare). |
| 22 | 10A | 360 degree camera module. |
| 23 | 10A | Anti-lock brake system run-start feed. |
| 24 | 10A | Powertrain control module. Power steering module. |
| 25 | 20A | Blind spot information system. Rear view camera. Adaptive cruise control. Driveline control module. |
| 25 | 15A | Transmission control module. |
| 28 | 60A | Anti-lock brake system valves. |
| 29 | 60A | Anti-lock brake system pump. |
| 30 | 30A | Driver power seat. |
| 31 | 30A | Passenger power seat. |
| 32 | 20A | Auxiliary power point. |
| 33 | 20A | Auxiliary power point. |
| 34 | 20A | Not used (spare). |
| 36 | 40A | Not used (spare). |
| 38 | 30A | Heated seat module. |
| 39 | 15A | Vehicle dynamics control module (Raptor). |
| 42 | 30A | Trailer brake control module. |
| 44 | 10A | Brake on-off switch. |
| 46 | 20A | SYNC module. |
| 50 | 40A | Heated rear windshield. |
| 54 | 40A | Driveline control module. |
| 55 | 30A | Trailer tow park lamp relay. |
| 58 | 20A | Trailer tow backup lamps. |
| 60 | 30A | Upfitter switch #1 (Base). Upfitter switch #3 (Raptor). |
| 61 | 15A | Upfitter switch #2. |
| 62 | 10A | Upfitterswitch #3 (Base). Upfitter switch #1 – off-road driving lights (Raptor). |
| 63 | 10A | Upfitter switch #4. |
| 64 | 10A | Upfitter switch #5. |
| 65 | 10A | Upfitter switch #6. |
| 66 | 10A | Stability bar disconnect module. |
| 69 | 30A | Front windshield wiper. |
| 71 | 30A | Rear windshield wiper. |
| 80 | 10A | Integrated wheel end (Raptor). |
| 91 | 40A | Trailer tow light module. |
| 100 | 20A | Left-hand headlamps. |
| 101 | 20A | Right-hand headlamps. |
| 107 | 30A | Trailer tow battery charge. |
| 120 | 10A | Fuel injectors (2.7L, Raptor). |
| 124 | 5A | Not used (spare). |
| 125 | 10A | USB smart charger 1. |
| 139 | 5A | USB smart charger 2. |
| 140 | 5A | Not used (spare). |
| 141 | 5A | Not used (spare). |
| 146 | 20A | Amplifier. |
| 158 | 10A | Stability bar disconnect module run/start. |
| 150 | 10A | Smart data link control. |
| 182 | 60A | Driver door module. |
| 183 | 60A | Passenger door module. |
| 202 | 60A | Body control module B+. |
| 210 | 30A | Body control module start stop. |
Conclusion
The Ford Bronco (U725) 2022-2024 offers unmatched versatility and capability. Maintaining the fuse box and relays is critical for ensuring seamless electrical performance.
