Find the Ford Bronco Sport 2021-2024 fuse box and relay locations with diagrams. Learn how to maintain the electrical system for reliable performance.
The Ford Bronco Sport (2021-2024) is a compact SUV built for adventure, featuring rugged styling and versatile body designs. With its boxy shape and off-road-ready aesthetics, it appeals to drivers who value functionality and style. The Bronco Sport is available in several trims, including Base, Big Bend, Outer Banks, and Badlands, offering options for urban driving or off-road exploration. Its spacious interior, fold-flat rear seats, and advanced technology features make it both practical and comfortable.
The Bronco Sport’s advanced electrical systems rely on its fuse box and relays to power critical components like lighting, climate control, and engine systems. The primary fuse box is located in the engine compartment, while another fuse box is positioned in the passenger cabin, under the dashboard. Relays, which control high-power components such as the fuel pump and starter, are housed near the fuse boxes. Routine inspection and replacement of fuses and relays ensure the Bronco Sport’s features perform reliably.
MUST READ: DYI – How to Check Car Fuses?
(2021-2024) Ford Bronco Sport fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Bronco Sport 2021-2024 fuse assignment
Ford Bronco Sport Year of production: 2021, 2022, 2023, 2024

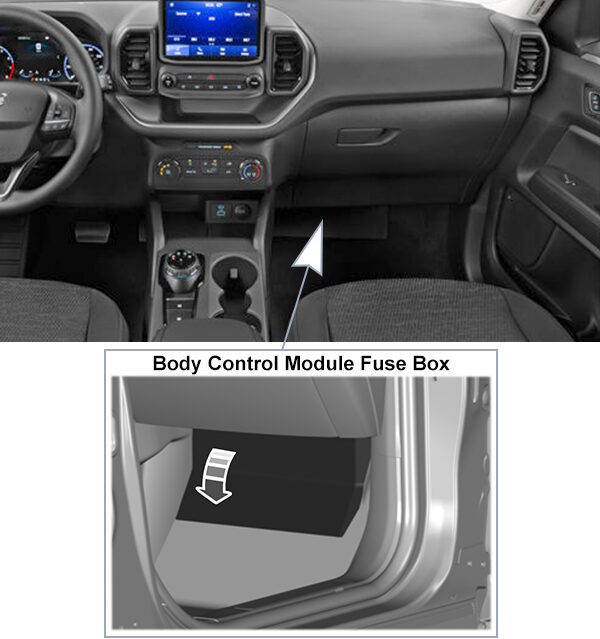

Body Control Module Fuse Box:
The fuse box is below the glove compartment.

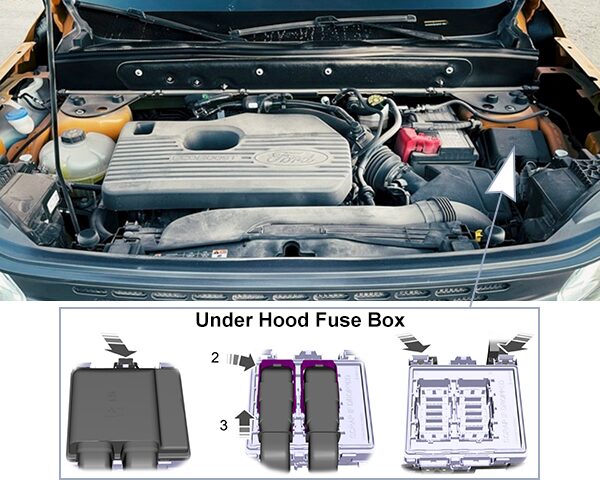

Under Hood Fuse Box:
- Pull the latch toward you and remove the top cover.
- Pull the connector lever upward.
- Pull the connector upward to remove it.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.
Fuse Box Diagrams
2021

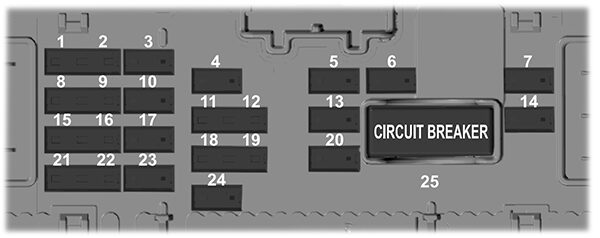

Body Control Module Fuse Box
List of fuses in the body control module fuse box (2021)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used. |
| 2 | 5A | Not used. |
| 3 | 10A | Not used. |
| 4 | 10A | Ignition switch. Steering column lock. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | DC-AC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Auto-dimming interior mirror. Lane keeping system. Passenger airbag deactivation indicator. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Telematics control unit module. |
| 12 | 5A | Keyless keypad switch. |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Not used (spare). |
| 16 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panei. |
| 18 | 7.5A | Wireless accessory charging module. All terrain control module. |
| 19 | 7.5A | Not used (spare). |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Not used (spare). |
| 22 | 7.5A | Not used (spare). |
| 23 | 20A | Not used (spare). |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Not used (spare). |
| Note: Spare fuse amperage may vary. | ||

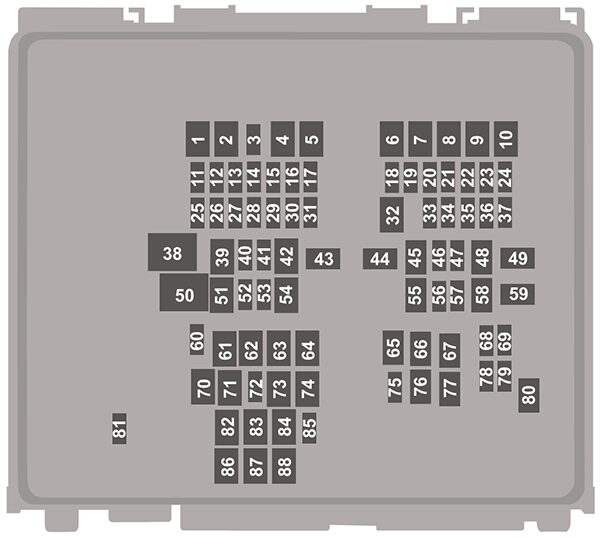

Under Hood Fuse Box
List of fuses in the under hood fuse box (2021)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Aftermarket auxiliary lighting. |
| 2 | – | Not used. |
| 3 | 10A | Windshield heated washer jets. |
| 4 | 60A | Supplemental heater. |
| 5 | 40A | Supplemental heater. |
| 6 | 40A | Supplemental heater. |
| 7 | 20A | Heated wiper park. |
| 8 | – | Not used. |
| 9 | 60A | Power inverter. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 15 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | 10A | Data link connector. |
| 21 | 5A | Headlamp switch. |
| 22 | 20A | Amplifier. |
| 23 | – | Not used. |
| 24 | – | Not used. |
| 25 | 25A | Left-hand enhanced headlamps. |
| 26 | 25A | Right-hand enhanced headlamps. |
| 27 | – | Not used. |
| 28 | – | Not used. |
| 29 | – | Not used. |
| 30 | 10A | Electronic stability control. |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Gear shift actuator. |
| 34 | – | Not used. |
| 35 | 15A | Heated steering wheel. |
| 36 | – | Not used. |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 10A | Brake on-off switch. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 40A | Anti-lock brake system valves. |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | – | Not used. |
| 47 | 20A | Heated seats. |
| 48 | – | Not used. |
| 49 | 60A | Anti-lock brake system pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | USB smart charger. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | 10A | A/C clutch. |
| 57 | 5A | Flood light. |
| 58 | – | Not used. |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Auxiliary power point. |
| 62 | – | Not used. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | – | Not used. |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Auxiliary power point. |
| 71 | 20A | Auxiliary power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated rear window. |
| 77 | – | Not used. |
| 78 | 15A | Liftglass release. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
| Note: Spare fuse amperage may vary. | ||
2022
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used. |
| 2 | 5A | Not used. |
| 3 | 10A | Not used. |
| 4 | 10A | Ignition switch. Steering column lock. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | DC-AC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Auto-dimming interior mirror. Lane keeping system. Passenger airbag deactivation indicator. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Telematics control unit module. |
| 12 | 5A | Keyless keypad switch. |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panei. |
| 18 | 7.5A | Wireless accessory charging module. All terrain control module. |
| 19 | 7.5A | Not used (spare). |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Not used (spare). |
| 22 | 7.5A | Not used (spare). |
| 23 | 20A | Not used (spare). |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Not used (spare). |
| Note: Spare fuse amperage may vary. | ||
Under Hood Fuse Box
List of fuses in the under hood fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Aftermarket auxiliary lighting. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater. |
| 5 | 40A | Supplemental heater. |
| 6 | 40A | Supplemental heater. |
| 7 | 20A | Heated wiper park. |
| 8 | – | Not used. |
| 9 | 60A | Power inverter. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 15 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | 10A | Data link connector. |
| 21 | 5A | Headlamp switch. |
| 22 | 20A | Amplifier. |
| 23 | – | Not used. |
| 24 | – | Not used. |
| 25 | 25A | Left-hand enhanced head-lamps. |
| 26 | 25A | Right-hand enhanced head-lamps. |
| 27 | – | Not used. |
| 28 | – | Not used. |
| 29 | – | Not used. |
| 30 | – | Not used. |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system.Gear shift actuator. |
| 34 | – | Not used. |
| 35 | 15A | Heated steering wheel. |
| 36 | – | Not used. |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 10A | Brake on-off switch. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 40A | Anti-lock brake system valves. |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | – | Not used. |
| 47 | 20A | Heated seats. |
| 48 | – | Not used. |
| 49 | 60A | Anti-lock brake system pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | USB smart charger. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | 10A | A/C clutch. |
| 57 | 5A | Flood light. |
| 58 | – | Not used. |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Auxiliary power point. |
| 62 | – | Not used. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | – | Not used. |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Auxiliary power point. |
| 71 | 20A | Auxiliary power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated rear window. |
| 77 | – | Not used. |
| 78 | 15A | Liftgate window release. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
| Note: Spare fuse amperage may vary. | ||
2023
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Ignition switch. Steering column lock. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | DC-AC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Auto-dimming interior mirror. Lane keeping system. Passenger airbag deactivation indicator. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Telematics control unit module. |
| 12 | 5A | Keyless keypad switch. |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5A | Wireless accessory charging module. All terrain control module. |
| 19 | 7.5A | Not used (spare). |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Not used (spare). |
| 22 | 7.5A | Not used (spare). |
| 23 | 20A | Not used (spare). |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Not used (spare). |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Aftermarket auxiliary lighting. |
| 2 | – | Not used. |
| 3 | 10A | Not used (spare). |
| 4 | 60A | Supplemental heater. |
| 5 | 40A | Supplemental heater. |
| 6 | 40A | Supplemental heater. |
| 7 | 20A | Heated wiper park. |
| 8 | – | Not used. |
| 9 | 60A | Power inverter. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | 10A | Data link connector. |
| 21 | 5A | Headlamp switch. |
| 22 | 20A | Amplifier. |
| 23 | – | Not used. |
| 24 | – | Not used. |
| 25 | 25A | Left-hand enhanced head-lamps. |
| 26 | 25A | Right-hand enhanced head-lamps. |
| 27 | – | Not used. |
| 28 | – | Not used. |
| 29 | – | Not used. |
| 30 | – | Not used. |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Gear shift actuator. |
| 34 | – | Not used. |
| 35 | 15A | Heated steering wheel. |
| 36 | – | Not used. |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 10A | Brake on-off switch. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 40A | Anti-lock brake system valves. |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | – | Not used. |
| 47 | 20A | Heated seats. |
| 48 | – | Not used. |
| 49 | 60A | Anti-lock brake system pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | USB smart charger. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 55 | 10A | A/C clutch. |
| 57 | 5A | Floodlamps. |
| 58 | 20A | Not used (spare). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Auxiliary power point. |
| 62 | – | Not used. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | – | Not used. |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Auxiliary power point. |
| 71 | 20A | Auxiliary power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated rear window. |
| 77 | – | Not used. |
| 78 | 15A | Liftgate window release. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
2024
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Ignition switch. Steering column lock. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | DC/AC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Auto-dimming interior mirror. Lane keeping system. Passenger airbag deactivation indicator. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Telematics control unit module. |
| 12 | 5A | Not used (spare). |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5A | Wireless accessory charging module. All terrain control module. |
| 19 | 7.5A | Not used (spare). |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Not used (spare). |
| 22 | 7.5A | Not used (spare). |
| 23 | 20A | Not used (spare). |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Not used (spare). |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Aftermarket auxiliary lighting. |
| 2 | – | Not used. |
| 3 | 10A | Not used (spare). |
| 4 | 60A | Supplemental heater. |
| 5 | 40A | Supplemental heater. |
| 6 | 40A | Supplemental heater. |
| 7 | 20A | Heated wiper park. |
| 8 | – | Not used. |
| 9 | 60A | Power inverter. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | 10A | Data link connector. |
| 21 | 5A | Headlamp switch. |
| 22 | 20A | Amplifier. |
| 23 | – | Not used. |
| 24 | – | Not used. |
| 25 | 25A | Left-hand enhanced head-lamps. |
| 26 | 25A | Right-hand enhanced head-lamps. |
| 27 | – | Not used. |
| 28 | – | Not used. |
| 29 | – | Not used. |
| 30 | – | Not used. |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rearview camera. Blind spot information system. Gear shift actuator. |
| 34 | – | Not used. |
| 35 | 15A | Heated steering wheel. |
| 36 | – | Not used. |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 10A | Brake on-off switch. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 40A | Anti-lock brake system valves. |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | – | Not used. |
| 47 | 20A | Heated seats. |
| 48 | – | Not used. |
| 49 | 60A | Anti-lock brake system pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | USB smart charger. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 55 | 10A | A/C clutch. |
| 57 | 5A | Floodlamps. |
| 58 | 20A | Not used (spare). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Auxiliary power point. |
| 62 | – | Not used. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | – | Not used. |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Auxiliary power point. |
| 71 | 20A | Auxiliary power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated rearwindow. |
| 77 | – | Not used. |
| 78 | 15A | Liftgate window release. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
Conclusion
The 2021-2024 Ford Bronco Sport blends rugged design with modern functionality. Maintaining its fuse box and relays is essential for dependable performance and safety.
