Learn about Ford Bronco 1992-1996 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

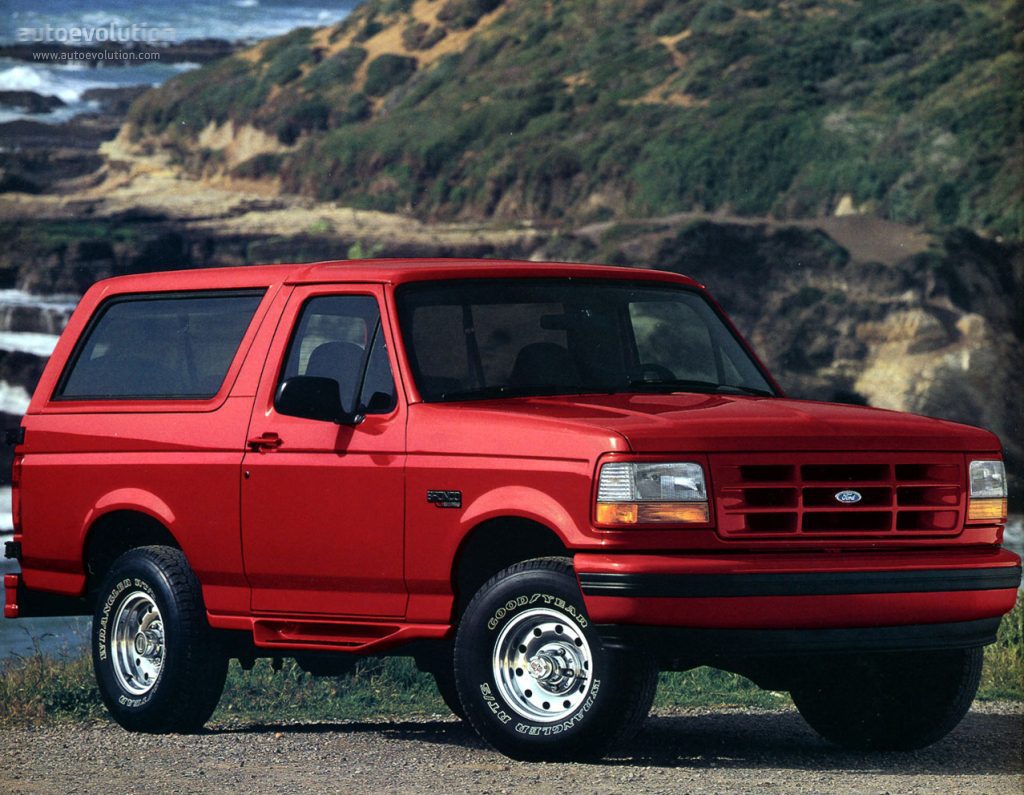

The Ford Bronco (1992-1996) is a full-size SUV with a rugged design and iconic status among off-road enthusiasts. It features a two-door body style with a removable rear hardtop, offering versatility for both on-road and off-road use. Known for its spacious interior and durable build, the Bronco caters to drivers who need a capable vehicle for outdoor adventures or daily commutes. It is equipped with reliable electrical systems that support essential components like lighting, ignition, and power accessories.
The fuse box and relays play a vital role in maintaining these systems. The main fuse box is located under the dashboard on the driver’s side, while a power distribution box containing additional fuses and relays is in the engine bay. These components control high-load systems such as the starter, fuel pump, and air conditioning. Ensuring that the fuses and relays are intact is critical for uninterrupted operation of the Bronco’s key features.
MUST READ: DYI – How to Check Car Fuses?
(1992-1996) Ford Bronco fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Bronco 1992-1996 fuse assignment
Ford Bronco Year of production: 1992, 1993, 1994, 1995, 1996
Passenger Compartment Fuse Box:
Power Distribution Box:
The high current fuses contained in the Power Distribution Box protect your vehicle’s main electrical systems from overloads; these fuses provide the connection between the battery and your vehicle’s electrical systems.
Fuse Box Diagrams
1996
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (1996)
| â„–. | A | Description |
|---|---|---|
| 1 | 30A | Heater/Air conditioner blower |
| 2 | 30A | Wiper/Washer |
| 3 | – | Not used |
| 4 | 15A | Exterior lamps Instrument illumination Keyless entry Waming buzzer/chime module |
| 5 | 10A | Air bag restraint |
| 6 | 15A | Air conditioner clutch Remo te/keyless entry |
| 7 | 15A | Rear window defrost Turn lamps |
| 8 | 15A | Courtesy/lamps Electric outside mirrors Engine compartment lamp Keyless entry Speedometer Sun visor mirror illumination Waming buzzer/chime module |
| 9 | 25A | Power point |
| 10 | 4A | Instrument illumination |
| 11 | 15A | Radio Radio display dimmer |
| 12 | 20A Circuit Breaker | Electronic shift motor 4-wheel drive Power door locks Power lumbar Tailgate power window |
| 13 | 15A | Anti-lock brakes Brake shift interlock Speed control Stop/hazard lamps Stop sense for electronic engine control |
| 14 | 20A Circuit Breaker | Power Windows Tailgate power window: Instrument panei switch |
| 15 | – | Not used |
| 16 | 15A | Cigarette lighter |
| 17 | 10A | Electronic transmission Gauges Tachometer Warningbuzzer/chime module Warning indicators |
| 18 | 10A | Air bag restraint Automatic Day/Night mirror Brake shift interlock Electronic shift module 4-wheel drive Overhead console Speedometer |

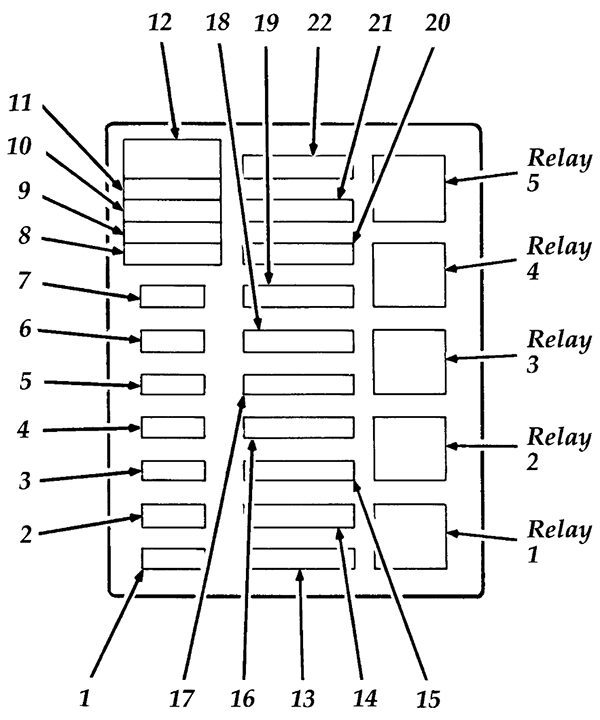

Power Distribution Box
List of fuses in the power distribution box (1996)
| â„– | A | Description |
|---|---|---|
| 1 | 20A | Audio power |
| 2 | 30A | Anti-lock brakes |
| 3 | 30A | Headlamp flash-to-pass Daytime running lamps (Canada only) Horn Speed control |
| 4 | 25A | Trailer back-up lamps Trailer running lamps |
| 5 | 15A | Anti-lock brakes Back-up lamps Daytime running lamp module (DRL) (Canada only) Speed control Trailer battery charge relay |
| 6 | 10A | Trailer right-hand stop/turn lamp |
| 7 | 10A | Trailer left-hand stop/turn lamp |
| 8 | 30A maxi | Anti-lock brakes |
| 9 | 20A maxi | Fuel pump relay coil Powertrain control system |
| 10 | 20A maxi | Instrument panei fuses: 15, 18 Starter relay coil |
| 11 | – | Not used |
| 12 | Diode | Powertrain control system relay |
| 13 | 50A maxi | Instrument panei fuses: 5, 9, 13 |
| 14 | 30A maxi | Rear window defroster |
| 15 | 50A maxi | Instrument panei fuses: 1, 7 Power network box: fuse 5 |
| 16 | 20A maxi | Fuel pump feed |
| 17 | 50A maxi | Altemator charge lamp Instrument panel fuses: 2, 6, 11, 14, 17 Power network box: fuse 22 |
| 18 | 30A maxi | Trailer battery charge |
| 19 | 40A maxi | Headlamps |
| 20 | 50A maxi | Instrument panei fuses: 4, 8, 12, 16 |
| 21 | 30A maxi | Trailer brake feed |
| 22 | 20A maxi | Distributor pickup Ignitioncoil Powertrain control system relay coil Thick film integrated (TFI) module |
| Relay | ||
| Relay 1 | Powertrain control system | |
| Relay 2 | Fuel pump | |
| Relay 3 | Horn | |
| Relay 4 | Trailer tow running lamps | |
| Relay 5 | Anti-lock brake system (ABS) pump motor | |
Additional Fuses
| Circuit Protected | Size | Location |
|---|---|---|
| Headlamps & High Beam Indicator | 22 amp Circ. Brkr. | Integral with Headlamp Switch |
| Alternator, 95 Amp | 12 Ga. Fuse Link | At attachment to starter relay |
Conclusion
The 1992-1996 Ford Bronco combines durability and functionality. Proper maintenance of the fuse box and relays ensures the SUV’s electrical systems operate reliably.
