Find the fuse box and relay locations for the 2003-2005 Dodge Stratus Coupé, with diagrams for easy reference. Maintain reliability of key electrical functions.
The Dodge Stratus Coupé (2003-2005) is a sporty two-door version of the Stratus lineup, designed to appeal to drivers who appreciate a sleek, aerodynamic style with a dynamic performance edge. This compact coupé features a streamlined body, enhanced by a low profile and sporty front grille, aimed at delivering both visual appeal and a comfortable driving experience. Its spacious interior seats four, providing a blend of practicality and style for daily commutes or weekend drives.
To support its features, the Dodge Stratus Coupé relies on a well-organized electrical system. The main fuse box is typically located under the hood, near the battery, while an additional interior fuse box may be found on the driver’s side. Relays, essential for powering high-demand components like the fuel pump and A/C compressor, are positioned within the fuse boxes. Regularly inspecting and maintaining these parts is essential to keep the vehicle’s electrical system running smoothly.
MUST READ: DYI – How to Check Car Fuses?
(2003-2005) Dodge Stratus (Coupé) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Stratus (Coupé) 2003-2005 fuse assignment
Dodge Stratus (Coupé) Year of production: 2003, 2004, 2005

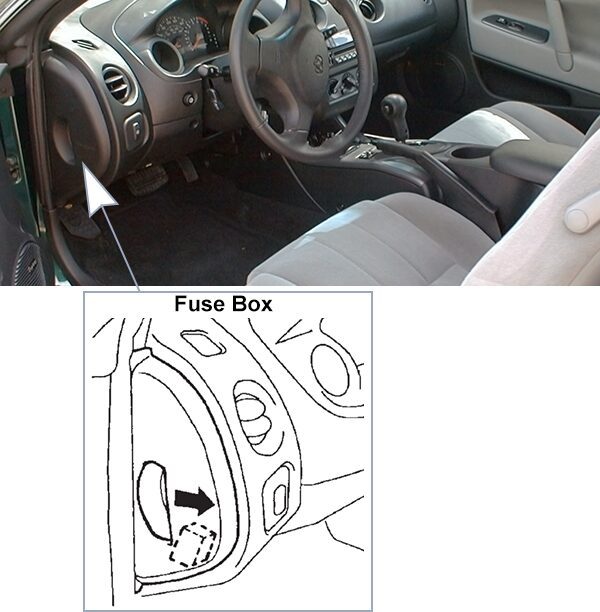

Passenger compartment fuses:
The fuse block positioned within the passenger cabin is situated on the driver’s side of the dashboard. Inside the fuse cover, a list of electrical systems and corresponding fuse capacities is provided. Any extra fuses may be found within the instrument panel cover, which is on the same side as the driver.

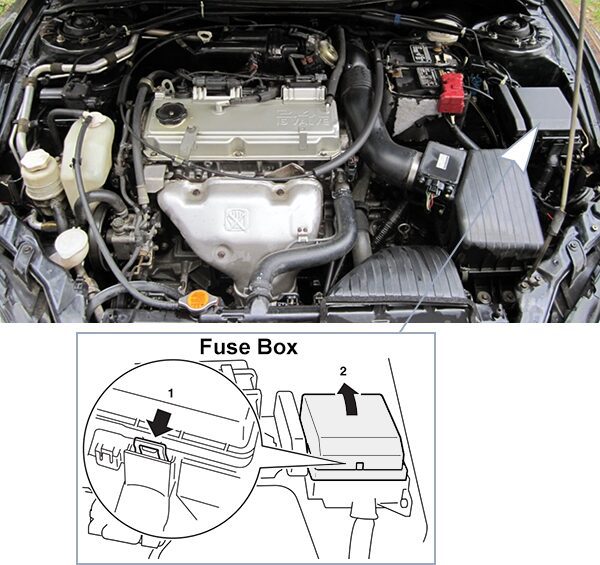

Engine compartment fuses:
Fuse Box Diagrams
2005

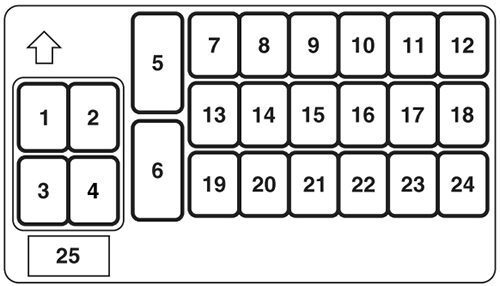

Passenger Compartment Fuses
List of fuses in the instrument panel (2005)
| № | A | Electrical system |
|---|---|---|
| 1 | 20A | Audio |
| 2 | – | – |
| 3 | 20A | Sunroof |
| 4 | 15A | Accessory socket |
| 5 | 30A | Rear window defogger |
| 6 | 30A | Heater |
| 7 | – | – |
| 8 | – | – |
| 9 | 15A | Accessory socket |
| 10 | 15A | Door lock |
| 11 | 15A | Rear window wiper |
| 12 | – | – |
| 13 | 7.5A | Relay |
| 14 | 7.5A | Electric remote-controlled outside mirror |
| 15 | – | – |
| 16 | 15A | Cigarette lighter |
| 17 | 7.5A | Engine Control |
| 18 | 20A | Windshield wiper |
| 19 | 7.5A | Door mirror heater |
| 20 | 7.5A | Relay |
| 21 | 7.5A | Cruise control |
| 22 | 7.5A | Back up light |
| 23 | 7.5A | Gauge |
| 24 | 10A | Engine control |
| 25 | 10A, 15A, 20A, 30A | Spare fuse |

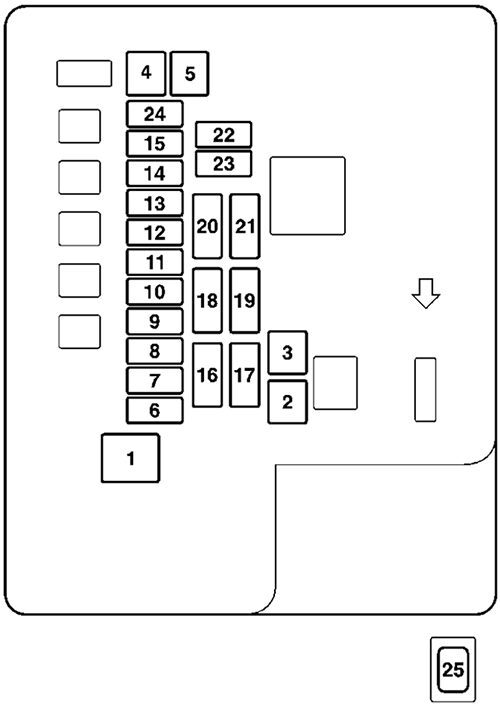

Engine Compartment Fuses
List of fuses in the engine compartment (2005)
| № | A | Electrical system |
|---|---|---|
| 1 | 60A | Fuse (+B) |
| 2 | 50A | Radiator fan motor |
| 3 | 60A | Anti-lock braking system |
| 4 | 40A | Ignition switch |
| 5 | 30A | Electric window controls |
| 6 | 15A | Fog lights |
| 7 | – | – |
| 8 | 15A | Horn |
| 9 | 20A | Engine control |
| 10 | 10A | Air conditioning |
| 11 | 15A | Stop lights |
| 12 | – | – |
| 13 | 7.5A | Alternator |
| 14 | 10A | Hazard warning flasher |
| 15 | 20A | Automatic transaxle |
| 16 | 10A | Headlights high beam (right) |
| 17 | 10A | Headlights high beam (left) |
| 18 | 10A | Headlights low beam (right) |
| 19 | 10A | Headlights low beam (left) |
| 20 | 7.5A | Position lights (right) |
| 21 | 7.5A | Position lights (left) |
| 22 | 10A | Dome lights |
| 23 | 10A | Audio |
| 24 | 15A | Fuel pump |
| 25 | 40A | Defroster |
Conclusion
The 2003-2005 Dodge Stratus Coupé offers a balance of sporty style and functionality. Proper maintenance of the fuse box and relays ensures reliability and longevity for its electrical components.
