The Dodge Sprinter (2003-2006) is a versatile, full-size van designed to accommodate a variety of commercial and personal needs. Available in multiple body styles, including cargo, passenger, and chassis cab configurations, it offers different roof heights and wheelbases to provide ample interior space and flexibility for hauling goods or transporting people. The Sprinter’s design prioritizes utility and practicality, making it popular among businesses and fleet operators.
To support its numerous features, the Sprinter’s electrical system relies on strategically placed fuse boxes and relays that help manage its electronic functions. The primary fuse box is typically located under the driver’s seat, while relays for larger electrical components, such as the starter and fuel pump, are found in the same compartment. Keeping these fuses and relays in good condition is crucial to ensuring the vehicle’s dependable performance, especially for commercial use where reliability is essential.
MUST READ: DYI – How to Check Car Fuses?
(2003-2006) Dodge Sprinter fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Sprinter 2003-2006 fuse assignment
Dodge Sprinter Year of production: 2003, 2004, 2005, 2006
Standard Fuse and Relay Equipment:
Fuses and relays (standard equipment) are on the underside of the ignition column.
- Locked
- Unlocked
- Detent spring – engage when the cover is fitted

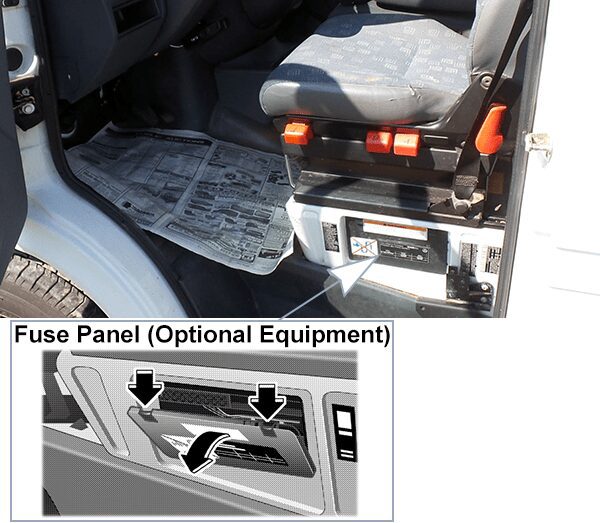

Optional Fuse and Relay Equipment:
The cover is located below the driver’s seat. Removing cover: Press both detent springs down and remove cover. Installing cover: Position cover at bottom and engage both detent springs.
Fuse Box Diagrams
2005
Standard Equipment

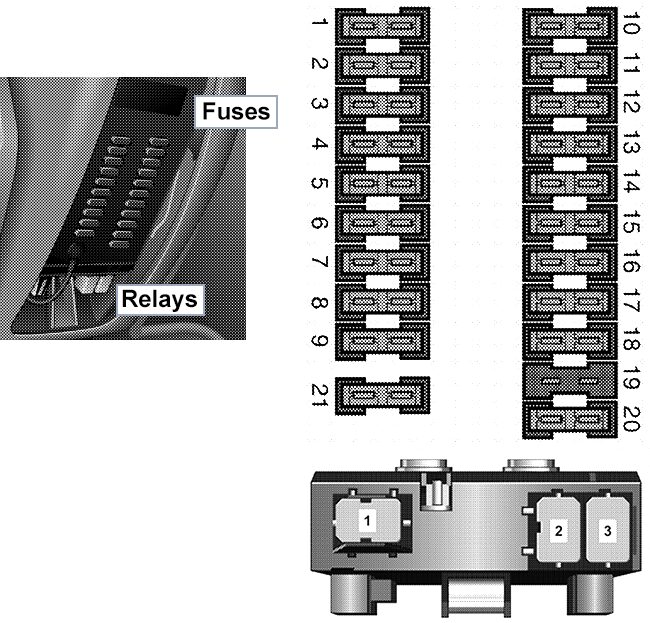

Fuse, Relay Assignment – Standard Equipment (2005)
| â„– | A | Circuit |
|---|---|---|
| 1 | 10A | Parking lamp right, taillamp right |
| 2 | 10A | High beam head lamp, right |
| 3 | 10A | High beam head lamp, left, high beam indicator lamp |
| 4 | 10A | Backup lamp |
| 5 | 10A | Brake lamp |
| 6 | 20A | Windshield wiper motor |
| 7 | 15A | Horn, heated rear window, air recirculation switch, optional equipment relay (terminal 15) |
| 8 | 20A | Interior lighting, cigarette lighter, radio (terminal 30) |
| 9 | 15A | Clock, hazard warning lamps, parking lamps |
| 10 | 10A | Instrument lighting, license plate lamp daytime driving lamps |
| 11 | 10A | Side lamp, left; taillamp, left |
| 12 | 10A | Low beam headlamp, right |
| 13 | 10A | Low beam headlamp, left |
| 14 | 15A | Fog lamp |
| 15 | 10A | Radio (terminal 15) |
| 16 | 25A | Engine control unit |
| 17 | 15A | Engine control unit |
| 18 | 15A | Ignition (terminal 15) |
| 19 | 15A | Not in use |
| 20 | 15A | Heater controls (terminal 30) |
| 21 | 30A | Heater blower (terminal 30) |
| Relays | ||
| 1 | Windshield wiper motor (W) | |
| 2 | Diesel engine control unit (M) | |
| 3 | Turn signals (B) | |
Optional Equipment

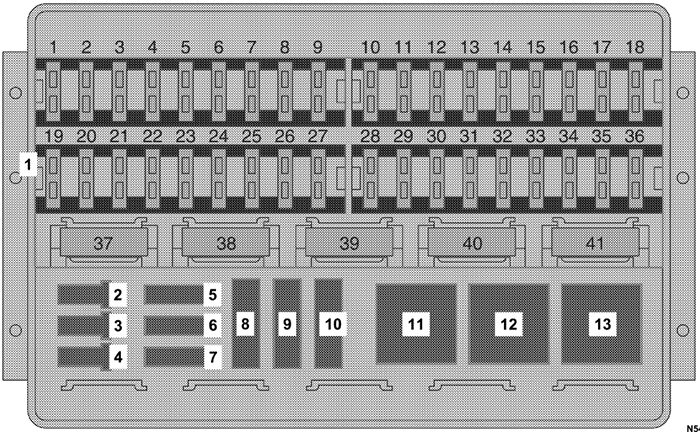

Fuse, Relay, and Diode Assignments – Optional Equipment (2005)
| â„– | A | Circuit |
|---|---|---|
| 5 | 10A | Immobilizer |
| 6 | 7.5A | Anti-lock brake system (ABS) / Electronic Stability program (ESP) |
| 7 | 25A | Anti-lock brake system (ABS) / Electronic Stability program (ESP) – 2500 Type Vehicles |
| 8 | 40A | Not in use / Electronic Stability program (ESP) – 2500 Type Vehicles |
| 9 | 40A | Anti-lock brake system (ABS) |
| 10 | Not in use | |
| Relays | ||
| 11 | Not in use | |
| 12 | Starter relay | |
| 13 | Not in use | |
2006
Standard Equipment
Fuse, Relay Assignment – Standard Equipment (2006)
| â„– | A | Circuit |
|---|---|---|
| 1 | 10A | Parking lamp right, taillamp right |
| 2 | 10A | High beam head lamp,right |
| 3 | 10A | High beam head lamp, left, high beam indicator lamp |
| 4 | 10A | Backup lamp |
| 5 | 10A | Brake lamp |
| 6 | 20A | Windshield wiper motor |
| 7 | 15A | Horn, heated rear window, air recirculation switch, optional equipment relay (terminal 15) |
| 8 | 20A | Interior lighting, cigarette lighter, radio (terminal 30) |
| 9 | 15A | Clock, hazard warning lamps, parking lamps |
| 10 | 10A | Instrument lighting, license plate lamp daytime driving lamps |
| 11 | 10A | Side lamp, left; taillamp, left |
| 12 | 10A | Low beam headlamp, right |
| 13 | 10A | Low beam headlamp, left |
| 14 | 15A | Fog lamp |
| 15 | 10A | Radio (terminal 15) |
| 16 | 25A | Engine control unit |
| 17 | 15A | Engine control unit |
| 18 | 15A | Ignition (terminal 15) |
| 19 | 15A | Not in use |
| 20 | 15A | Heater controls (terminal 30) |
| 21 | 30A | Heater blower (terminal 30) |
| Relays | ||
| 1 | Windshield wiper motor (W) | |
| 2 | Diesel engine control unit (M) | |
| 3 | Turn signals (B) | |
Optional Equipment
Fuse, Relay, and Diode Assignments – Optional Equipment (2006)
| â„– | A | Circuit |
|---|---|---|
| 5 | 10A | Immobilizer |
| 6 | 7.5A | Anti-lock brake system (ABS) / Electronic Stability program (ESP) |
| 7 | 25A | Anti-lock brake system (ABS) / Electronic Stability program (ESP) – 2500 Type Vehicles |
| 8 | 40A | Not in use / Electronic Stability program (ESP) – 2500 Type Vehicles |
| 9 | 40A | Anti-lock brake system (ABS) |
| 10 | Not in use | |
| Relays | ||
| 11 | Not in use | |
| 12 | Starter relay | |
| 13 | Not in use | |
Conclusion
The Dodge Sprinter 2003-2006 offers diverse body styles tailored for different needs. Regularly checking the fuse box and relays is key to maintaining optimal performance.
